Summary of Contents for Smarthome SeriaLinc 2410S

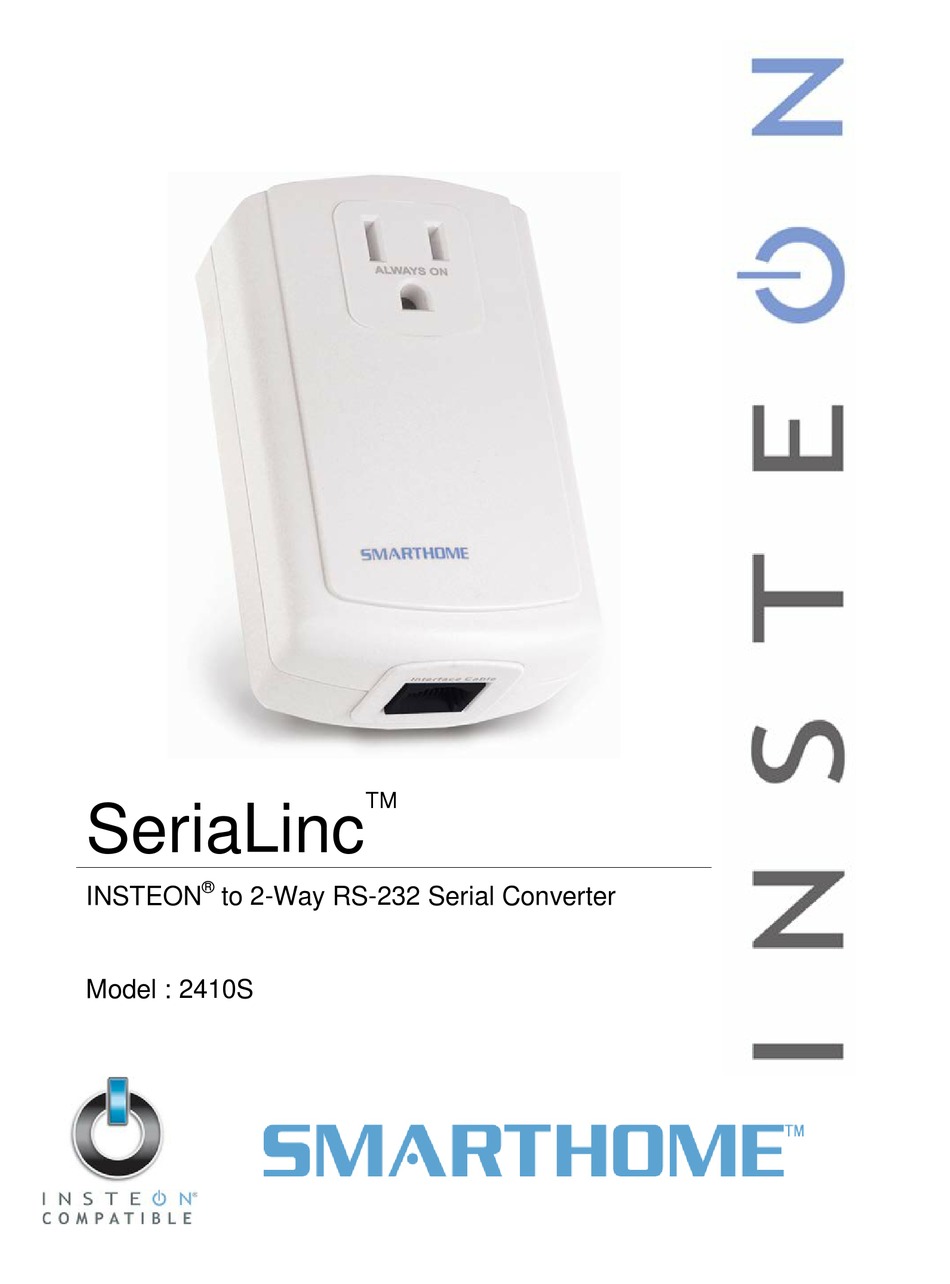

- Page 1 SeriaLinc ® INSTEON to 2-Way RS-232 Serial Converter Model : 2410S...
-
Page 2: Table Of Contents
SeriaLinc Owner’s Manual TABLE OF CONTENTS ABOUT SERIALINC ............................. 3 Key SeriaLinc Features ..........................3 What is Included with SeriaLinc ........................ 3 System Requirements ..........................3 WHAT IS INSTEON? ............................ 4 INSTALLATION ............................4 Preparing to Install SeriaLinc........................4 Creating a CSV File ........................... 5 Installing SeriaLinc ............................ -
Page 3: Serialinc Owner's Manual
SeriaLinc Owner’s Manual ABOUT SERIALINC With SeriaLinc, now you can connect serial and/or RS-232 compatible devices to your INSTEON network. From whole-home audio to security systems to automation controllers, you can now keep the equipment you already own and take advantage of a reliable INSTEON network. SeriaLinc is a 2-way serial, so it can be used to control RS-232 devices or control INSTEON devices via RS-232 commands. -
Page 4: What Is Insteon
SeriaLinc Owner’s Manual WHAT IS INSTEON? Since its inception in 2005, INSTEON has become a best-selling home-control networking technology, offering more reliability and flexibility than any other home management system on the market. INSTEON systems are simple, reliable, and affordable. Simple, because each device takes mere minutes to install. Reliable, because every INSTEON device works as a network repeater, ensuring your commands will not be lost. -
Page 5: Creating A Csv File
Some computers and their accessories can absorb SeriaLinc signals off the power lines. Since SeriaLinc will be so close to the computer, use a Smarthome FilterLinc (#1626) or filtered power strip for the computer to keep the SeriaLinc signals from getting absorbed by the computer equipment. -
Page 6: Installing Serialinc
SeriaLinc Owner’s Manual Installing SeriaLinc 1) You will need a CSV file with your serial codes to download the SeriaLinc Downloader Application. See Creating a CSV File. 2) Download the SeriaLinc Downloader application at: http://www.insteon.net/software/serialincdownloader/serialinc_1_0_0_32.application 3) Plug SeriaLinc into an electrical outlet (make sure SeriaLinc will be able to reach your computer with the included serial cable or use an extension cord) 4) Tap the Set button on SeriaLinc to enter Configuration Mode... -
Page 7: Advanced Features
For larger applications, it is recommended to install at least one dual-band device for every 750 – 1,000 square feet. Search for dual-band INSTEON devices at: www.smarthome.com/dualband Page 7 of 10... -
Page 8: Important Note About Insteon Networks; Split Single-Phase Vs. 3-Phase Installation
SeriaLinc Owner’s Manual Important Note about INSTEON Networks; Split Single-Phase vs. 3-Phase Installation For the best INSTEON network performance, be sure you have properly installed at least two dual-band INSTEON devices. INSTEON has only been officially tested in a split single-phase residential environment but has been known to work in many 3-phase systems, where three dual-band devices are used (one on each phase). -
Page 9: Specifications, Certification, And Warranty
For repair or replacement during the warranty period, call the INSTEON Gold Support Line at 800-762-7845 with the Model # and Revision # of the device to receive an RMA# and send the product, along with all other required materials to: Smarthome, Inc. ATTN: Receiving Dept. 16542 Millikan Ave. - Page 10 INSTEON Technology Patent U.S Patent No. 7,345,998, International patents pending © Copyright 2011 Smarthome, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845, www.smarthome.com Rev 03-14-2011 Page 10 of 10...
