Summary of Contents for Aqua Systems AQLP Series

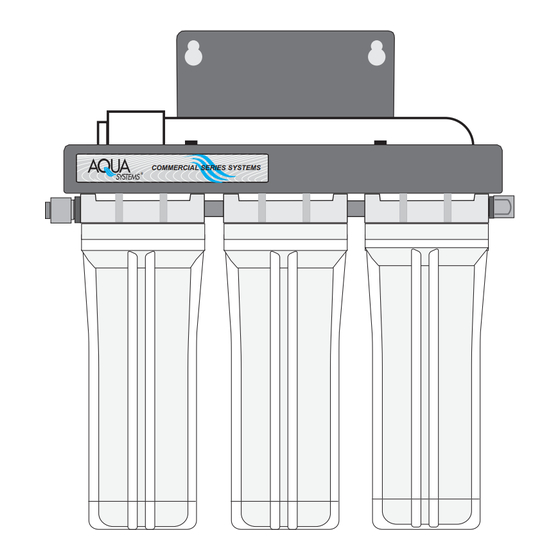

- Page 1 AQLP Series Light Commercial Reverse Osmosis System COMMERCIAL SERIES SYSTEMS ® COMMERCIAL SERIES SYSTEMS ® ® Installation, Operation, 7785 E. US Hwy. 36 and Service Manual Avon, IN 46123 (317) 272-3000 • (800) 447-5582 © 2007 New Aqua LLC...
- Page 2 This design allows the AQLP to be customized to each individual application. The AQLP Series RO units also serve many other applications such as office drinking water systems, lab make up water, restaurant ingredient water, ice - maker systems, plant watering systems, and any application requiring up to 100 gallons per day of high quality water (The model number indi- cates the rated capacity).
-
Page 3: Application Guidelines
Light Commercial Installation, Operation, and AQLP Maintenance Manual Reverse Osmosis System Application Guidelines The performance of the AQLP is in direct proportion to the characteris- tics of the feed water. When sizing and installing a reverse osmosis system it is important to test and record the pressure, temperature, and the TDS of the feed water as these are the factors that will affect the production of the system. - Page 4 Light Commercial Installation, Operation, and AQLP Maintenance Manual Reverse Osmosis System Operating Parameters (con't) Operating Specifications AQLP 100 AQLP 100 w/ Perm Pump Membrane Type > 96% Typical Rejection > 96% 40 - 80° F Feed Temperature 40 - 80° F Feed Pressure 40 - 90 psi 40 - 90 psi...
-
Page 5: Installation Procedure
Light Commercial Installation, Operation, and AQLP Maintenance Manual Reverse Osmosis System Installation Procedure Front View COMMERCIAL SERIES SYSTEMS ® 3/8" Feed water connection Use a ball valve or a gate valve for this connection.(Not included) Never use a needle or a self-piercing valve Top View Product water... - Page 6 Light Commercial Installation, Operation, and AQLP Maintenance Manual Reverse Osmosis System Installation Procedure (con't) Front View 3/8" COMMERCIAL SERIES SYSTEMS ® Note: Feed water Outlet connections on Connection the Permeate Pump must always be at the Use a ball valve or a top of the pump.
-
Page 7: Feedwater Connection
Light Commercial Installation, Operation, and AQLP Maintenance Manual Reverse Osmosis System Installation Procedure (con't) Inspect the area that the AQLP RO system will be installed. Note where the feed and drain connections will be, also where the storage tank(s) will set. Then place the AQLP in a suitable place that is easily accesible for service. - Page 8 Light Commercial Installation, Operation, and AQLP Maintenance Manual Reverse Osmosis System Installation Procedure (con't) Product Water Connection Connect 3/8" O.D. tubing to the product water connection on the AQLP system and run to a tee at the inlet of a pressurized storage tank. The tee should be above the inlet valve to the storage tank so the tank can be isolated from the system in servicing situations.
-
Page 9: Start-Up Procedure
Light Commercial Installation, Operation, and AQLP Maintenance Manual Reverse Osmosis System Start Up Procedure Check that all tubing connections have been made. Close the valve to the storage tank. This will allow the lines to pressurize without waiting to fill the tank. -
Page 10: Maintenance
Light Commercial Installation, Operation, and AQLP Maintenance Manual Reverse Osmosis System Maintenance Regular maintenance is essential to the performance and longevity of the AQLP system. The maintenance consists of changing the pre filters, changing the post filter if so equiped, and sanitizing the system. The filters should be changed every 3 months to 1 year, depending on the quality of the feed water. - Page 11 Light Commercial Installation, Operation, and AQLP Maintenance Manual Reverse Osmosis System Maintenance (Con't) Postfilter Replacement (if equipped) If the AQLP is installed with a post filter (carbon filter after the storage tank), change the post filter at least annually. When replacing the post filter it is highly recommended to sanitize the storage tank.
-
Page 12: Parts Diagram
Light Commercial Installation, Operation, and AQLP Maintenance Manual Reverse Osmosis System Parts Diagram COMMERCIAL SERIES SYSTEMS ® ® © 2007 New Aqua LLC • 7785 E US Hwy 36 • Avon, In. 46123... -
Page 13: Parts List
Light Commercial Installation, Operation, and AQLP Maintenance Manual Reverse Osmosis System Parts List Item Part Number Description Models 21902000 Automatic Shut Off (ASO) ASO Models 01330065 System Bracket All Models 22146070 100gpd TFC Membrane All Models 21002500 Membrane Housing Assy All Models 01120050 Filter Housing Assy... - Page 14 Light Commercial Installation, Operation, and AQLP Maintenance Manual Reverse Osmosis System Notes: ® © 2007 New Aqua LLC • 7785 E US Hwy 36 • Avon, In. 46123...
-
Page 15: Warranty
This warranty becomes effective on the installation date of the covered system. Should a malfunction occur, contact Aqua Systems or an authorized dealer. War- ranty Returns must be accompanied by a copy of the original sales order showing the dealers name and the purchasers name and address.
