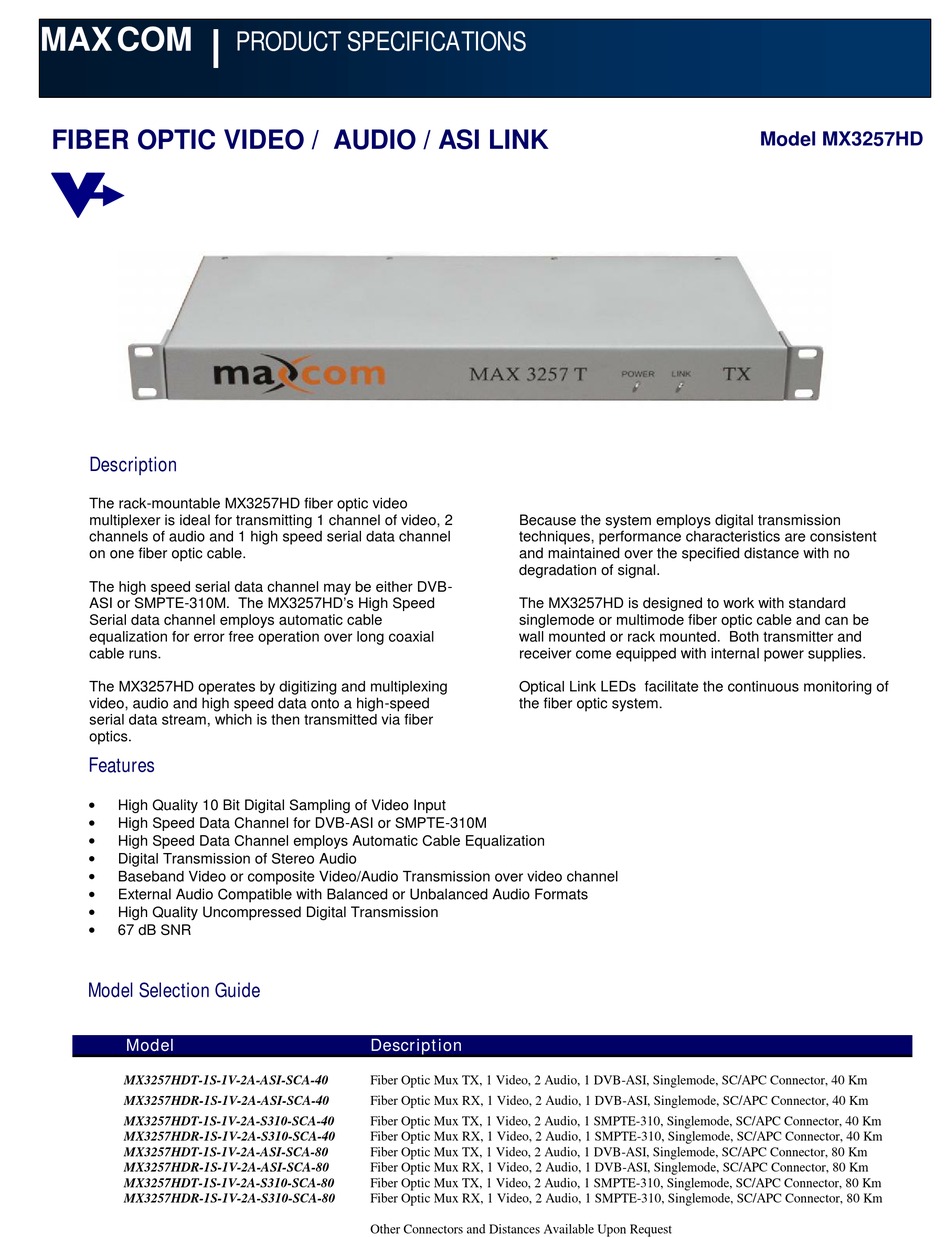

MAX COM
FIBER OPTIC VIDEO / AUDIO / ASI LINK
Description
The rack-mountable MX3257HD fiber optic video
multiplexer is ideal for transmitting 1 channel of video, 2
channels of audio and 1 high speed serial data channel
on one fiber optic cable.
The high speed serial data channel may be either DVB-
ASI or SMPTE-310M. The MX3257HD's High Speed
Serial data channel employs automatic cable
equalization for error free operation over long coaxial
cable runs.
The MX3257HD operates by digitizing and multiplexing
video, audio and high speed data onto a high-speed
serial data stream, which is then transmitted via fiber
optics.
Features
High Quality 10 Bit Digital Sampling of Video Input
High Speed Data Channel for DVB-ASI or SMPTE-310M
High Speed Data Channel employs Automatic Cable Equalization
Digital Transmission of Stereo Audio
Baseband Video or composite Video/Audio Transmission over video channel
External Audio Compatible with Balanced or Unbalanced Audio Formats
High Quality Uncompressed Digital Transmission
67 dB SNR
Model Selection Guide
Model
MX3257HDT-1S-1V-2A-ASI-SCA-40
MX3257HDR-1S-1V-2A-ASI-SCA-40
MX3257HDT-1S-1V-2A-S310-SCA-40
MX3257HDR-1S-1V-2A-S310-SCA-40
MX3257HDT-1S-1V-2A-ASI-SCA-80
MX3257HDR-1S-1V-2A-ASI-SCA-80
MX3257HDT-1S-1V-2A-S310-SCA-80
MX3257HDR-1S-1V-2A-S310-SCA-80
PRODUCT SPECIFICATIONS
Description
Fiber Optic Mux TX, 1 Video, 2 Audio, 1 DVB-ASI, Singlemode, SC/APC Connector, 40 Km
Fiber Optic Mux RX, 1 Video, 2 Audio, 1 DVB-ASI, Singlemode, SC/APC Connector, 40 Km
Fiber Optic Mux TX, 1 Video, 2 Audio, 1 SMPTE-310, Singlemode, SC/APC Connector, 40 Km
Fiber Optic Mux RX, 1 Video, 2 Audio, 1 SMPTE-310, Singlemode, SC/APC Connector, 40 Km
Fiber Optic Mux TX, 1 Video, 2 Audio, 1 DVB-ASI, Singlemode, SC/APC Connector, 80 Km
Fiber Optic Mux RX, 1 Video, 2 Audio, 1 DVB-ASI, Singlemode, SC/APC Connector, 80 Km
Fiber Optic Mux TX, 1 Video, 2 Audio, 1 SMPTE-310, Singlemode, SC/APC Connector, 80 Km
Fiber Optic Mux RX, 1 Video, 2 Audio, 1 SMPTE-310, Singlemode, SC/APC Connector, 80 Km
Other Connectors and Distances Available Upon Request
Because the system employs digital transmission
techniques, performance characteristics are consistent
and maintained over the specified distance with no
degradation of signal.
The MX3257HD is designed to work with standard
singlemode or multimode fiber optic cable and can be
wall mounted or rack mounted. Both transmitter and
receiver come equipped with internal power supplies.
Optical Link LEDs facilitate the continuous monitoring of
the fiber optic system.
Model MX3257HD
Advertisement
Table of Contents
Related Manuals for Maxcom MX3257HD
Summary of Contents for Maxcom MX3257HD
- Page 1 The high speed serial data channel may be either DVB- ASI or SMPTE-310M. The MX3257HD’s High Speed The MX3257HD is designed to work with standard Serial data channel employs automatic cable singlemode or multimode fiber optic cable and can be equalization for error free operation over long coaxial wall mounted or rack mounted.
- Page 2 Rear Panel Audio Video Audio SC OPTICS 90 - 240 VAC 47 - 63 Hz Video I/O: BNC, 75 Ohm AC Power Input Stereo Audio Terminal Block, 10K Ohm Optical I/O SC/PC or SC/APC High Speed Data Channel: BNC, 75 - DVB-ASI (270Mbps Transport) - SMPTE-310M 19.4Mbps NTSC, PAL, SECAM...
- Page 3 User’s Manual MAX3257HD Series Model: MAX3257/4A/3HD 1 VIDEO / 4 AUDIO / 3 DVB-ASI CWDM multiplexer Video / Audio / ASI Fiber Optic Multiplexing System Installation and User Guide...
-
Page 4: Table Of Contents
3257 HD Series User’s Manual No: UM-3257-D2 TABLE OF CONTENTS SAFETY INSTRUCTIONS INTRODUCTION System Description Front Panel Indicator Description Rear Panel Indicator Description INSTALLATION General Installation Power Connection Fiber Optic Cables Connection Video Connections Audio Connections Balanced Audio Connections Unbalanced Audio Connections External Audio Sub-Carrier Connections DVB-ASI Connections OPERATION... -
Page 5: Safety Instructions
3257 HD Series User’s Manual No: UM-3257-D2 SAFETY INSTRUCTIONS THE 3257 SYSTEM MAY CONTAIN A CLASS IIIb LASER. PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS THAT APPLY TO LASER EQUIPPED UNITS. WARNING: Do not disconnect the fiber optic external connector with the power turned on. -
Page 6: Introduction
3257 HD Series User’s Manual No: UM-3257-D2 2 INTRODUCTION 2.1 System Description The 3257 HD Series is a Video / Audio / DVB-ASI fiber optic multiplexer. The 3257 Series video modules can be configured to transmit simplex (one direction) or duplex (two direction) video & audio, and 1 to 4 DVB-ASI signals using CWDM technology. -
Page 7: Front Panel Indicators
3257 HD Series User’s Manual No: UM-3257-D2 2.2 Front Panel Indicators The following diagram depicts the front panel indicators: Status M AXCO M P o w er L in k Power Indicator Link Indicator (light on): TX – Transmitter status OK RX –... - Page 8 3257 HD Series User’s Manual No: UM-3257-D2 2.3 Rear Panel Indicators The following diagram depicts the 3257T and 3257R rear panel configuration with optional audio channels installed: NOTE: Model Depicted is configured with 1 Video 8 Audio and 4 ASI Channels www.maxcomcorp.com Page 6...
-
Page 9: Installation
3257 HD Series User’s Manual No: UM-3257-D2 INSTALLATION General Installation The units may be shelf mounted, 19” EIA rack mounted or table mounted. In order to mount the units in an 19” rack, the Rack Mount Brackets must be first installed by mounting the brackets to the mounting holes in the sides of the 3257. - Page 10 3257 HD Series User’s Manual No: UM-3257-D2 Fiber optic cable connection Verify that the fiber cable meets the 3257 Series’ transmission requirements. Relevant cable specifications include loss, distance (dispersion) and return loss. Optical Specifications: For MX3257/2HD Service wavelength Output Receiver Loss in Fiber Power sensitivity...
-
Page 11: Video Connections
3257 HD Series User’s Manual No: UM-3257-D2 Video Connections Video signals are sent over a 75 ohm coax cable terminated in a BNC connector (e.g. RG 59U with a BNC connector) a. At the TX end (3257T), connect the video source to the VIDEO BNC connector. -
Page 12: Audio Connections
3257 HD Series User’s Manual No: UM-3257-D2 Audio Connection The 3257 Models have either simplex or duplex audio. The 3257 supports both balanced audio and unbalanced audio. Accessing the audio I/O requires connecting to one or both channels of audio. The audio input and output impedance is 10Kohms. -
Page 13: Unbalanced Audio Connections
3257 HD Series User’s Manual No: UM-3257-D2 Unbalanced Audio (Single Ended) For Unbalanced audio connections, connect the audio I/O to the respective “+” and “GND“ leads on the output audio connector, as shown below. Audio Video UnBalanced Audio Input UnBalanced Audio Output Audio Channel 1, 3, 5, 7 Audio Channel 1, 3, 5, 7 Connect Ground to TB Pin 1... - Page 14 3257 HD Series User’s Manual No: UM-3257-D2 External 4.5Mhz Audio Sub-Carrier The 3257 Series also includes an option for transmitting video, audio and a 4.5Mhz audio sub- carrier as an external signal. The figure below depicts the 3257 set up with video, 4 channels of baseband audio and an external audio sub-carrier channel.
-
Page 15: Dvb-Asi Connections
3257 HD Series User’s Manual No: UM-3257-D2 3.9 DVB-ASI Connections DVB-ASI signals are sent over a 75 ohm coax cable terminated in a BNC connector (e.g. RG 59U with a BNC connector) The DVB-ASI I/O will accept ANY PCM signal from 1Mbps to 600Mbps that is less than 1Vp-p and is compatible with 75 ohm terminations. -
Page 16: Operation
3257 HD Series User’s Manual No: UM-3257-D2 Operation Turn-On Procedure To operate the 3257 video transmission system: 1. Install the 3257 units to the appropriate power supply using the power entry module to provide power via an IEC 3 prong cable. 2.
