Summary of Contents for JBJ Lighting T5Ho-24

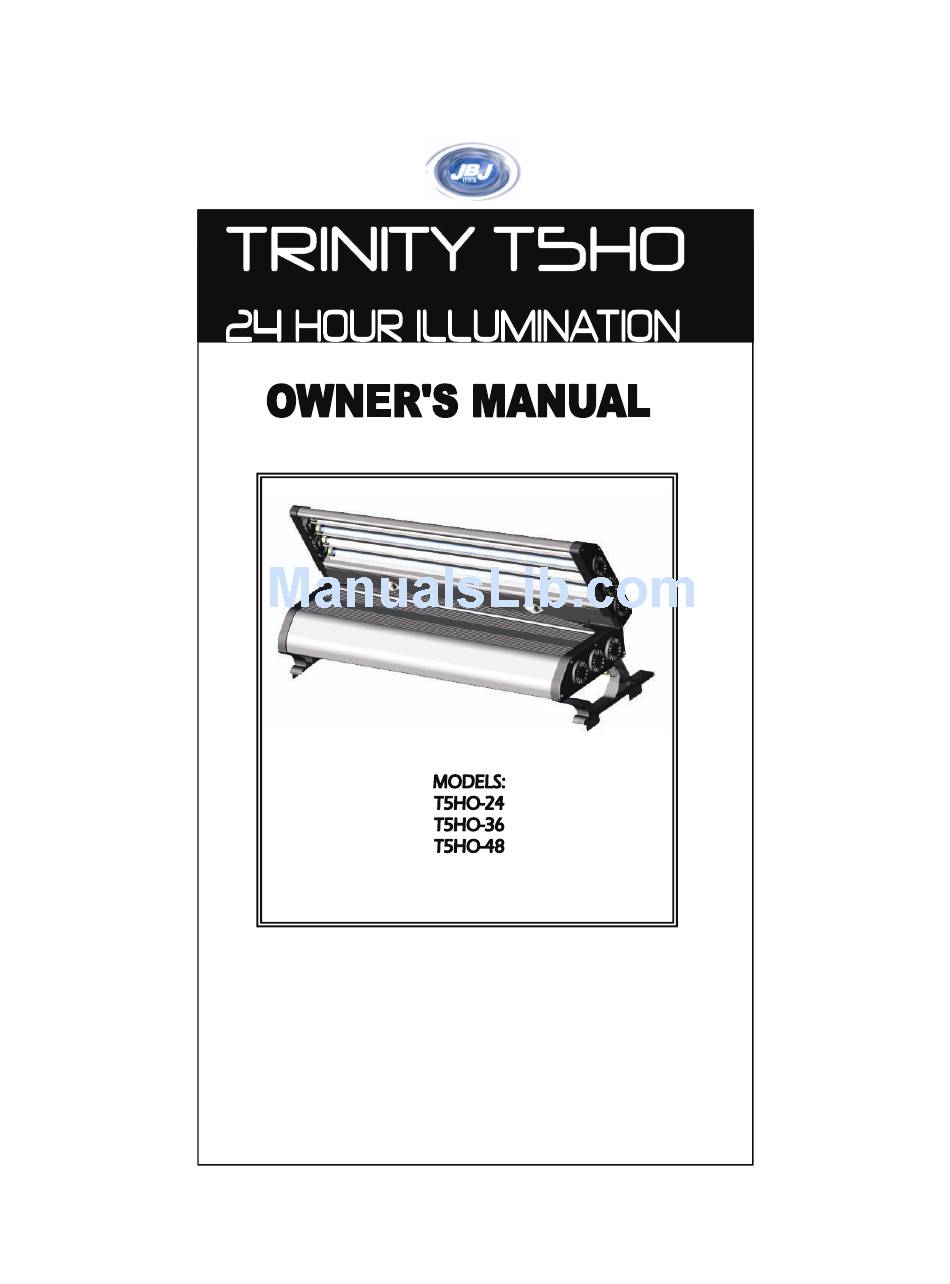

- Page 1 TRANSWORLD AQUATIC ENTERPRISES INC WWW.JBJLIGHTING.COM...
- Page 2 TABLE OF CONTENTS Important Safety Instructions 3—5 TRINITY™ - PARTS PAGE 6—7 Dimensions Introduction Getting Started 10-11 Lighting 12-15 Maintenance Log 16-17 Maintenance Notes 18-19...
- Page 3 WARNING To guard against injury, basic safety precautions should be ob- served, including the following: READ ALL SAFETY INSTRUCTIONS BEFORE USE. DANGER To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the following situations, do not attempt to repair your- self: return the appliance to an authorized service facility for ser- vice or discard the appliance.
- Page 4 (Continued from pg 3) If the plug or the receptacle do get wet, DON’T unplug the cord. Disconnect the fuse to the circuit breaker that supplies power to the appliance. Then unplug and examine for the pres- ence of water in the receptacle. Close supervision is necessary when any appliance is used by or near children.
-
Page 5: Operation
CLEANING It is important to keep this hood appliance clean. Always un- plug the appliance before performing maintenance or clean- ing of the exterior of this hood. Wipe exposed surfaces care- fully with a damp terrycloth to remove any dust or mineral deposits which may collect over time. -
Page 6: Parts Exploded View
IDENTIFICATION PARTS EXPLODED VIEW &... - Page 7 PART Name ALUMINUM CASE—TOP ALUMINUM CASE—FRONT SIDECAP—RIGHT SIDECAP—LEFT SWITCH POWER CORD—T5 STRAIN RELIEF BUSHING LEG STAND—HINGE LEG STAND—ARM SUPPORT LEG STAND—ARM SUPPORT LEG STAND—SCREW LED—FEMALE POWER CORD LED—STRAIN RELIEF BUSHING T5—ELECTRONIC BALLAST FAN-12 VOLT CONVERTER FAN-CIRCUIT BOARD FAN-CIRCUIT BOARD TRAY COOLING FAN ALUMINUM CASE—GROMMET ALUMINUM CASE—REAR...
- Page 8 DIMENSIONS Model # T5HO-24 24W x 4 + 1W x 2 Nite-Vu LEDs Model # T5HO-39 39W x 4 + 1W x 3 Nite-Vu LEDs Model # T5HO-48 54W x 4 + 1W x 4 Nite-Vu LEDs...
- Page 9 INNOVATIVE DESIGN Thank you for purchasing the TRINITY™ T5HO illumination sys- tem. TRINITY™ fixtures are offered in 24”, 36”, and 48” lengths. These low profile fixtures are compact and modern in style. Fix- tures are intended for use above covered aquariums with Flip Top Stands.
- Page 10 WARNING Do not plug into electrical outlet until all lamps are installed cor- rectly REMOVING PROTECTIVE FILM OFF SPLASHGUARD LENS Locate the Sliding Tab on the right sidecap. Pull out Sliding Tab Gently slide out Splash Guard Lens REMOVING PROTECTIVE FILM OFF SPLASHGUARD LENS 1.
- Page 11 INSTALLING—FLIP TOP LEG STANDS Your TRINTIY™ fixture includes our Flip-Top Leg Stands that raise the fixture for maximum reflection and allows the fixture to be raised back for routine maintenance and cleaning. The innova- tive design fits all glass and acrylic aquariums. A.
- Page 12 TRINITY™ POWER CORDS & LAMP LAYOUT 1. Daylight Power Cord - Controls Rows 1 & 3 2. Dawn/Dusk Power Cord - Controls Rows 2 & 4 3. Nite Vu—LED Power Cord -Controls Moonlights ROW 1 10K DAYLIGHT ROW 2 420nm ACTINIC ROW 3 10K DAYLIGHT 460nm ACTINIC...
- Page 13 UTILIZING TIMERS FOR LIGHT CYCLES We recommend purchasing 2 grounded tim- ers from your local hardware or electronics store for use with the lighting fixture. You will be able to automate sunrise/sunset and daylight photoperiods by simply adding these simple devices. TURNING ON YOUR LIGHTING SYSTEM (Moonlights) Your TRINITY™...
- Page 14 TURNING ON YOUR LIGHTING SYSTEM (DAWN/DUSK) Your TRINITY™ fixture is installed with (2) type of Actinic Lamps A. 420 Nanometer—Utilizes 03 phosphors to create a bril- liant purple fluorescence for photosynthesis 420 nm B. 460 Nanometer—Utilizes phosphors to produce a bright blue wavelength 460 nm * Lamp should be inserted into Row 2 or 4...
- Page 15 TURNING ON YOUR LIGHTING SYSTEM (DAYLIGHT) Your TRINITY™ fixture is installed with (2) daylight 10,000K Lamps. A. 10,000K— Simulates high intensity daylight for promoting zooxanthalle production. Produces a crisp white spectrum. 10,000K * Lamps should be inserted into Rows 1 & 3 * We recommend the daylight lamps to be on for 6-8 hours per day.
-
Page 16: Recommended Maintenance
RECOMMENDED MAINTENANCE... -
Page 17: Maintenance
DATE MAINTENANCE... - Page 20 TransWorld Aquatic Enterprises, Inc 3730 W. Century Blvd #3 Inglewood, CA 90303 Phone: (877) 374-9981 Visit us at www.jbjlighting.com...
