MANUFACTURING
NUMBERS:
9100420
9100424
9100426
9100425
9100428
9100430
9100432
9100433
9100436
9100438
9100439
9100450
9100452
9100456
9100458
9100460
9100462
9100466
9100468
9100480
9100486

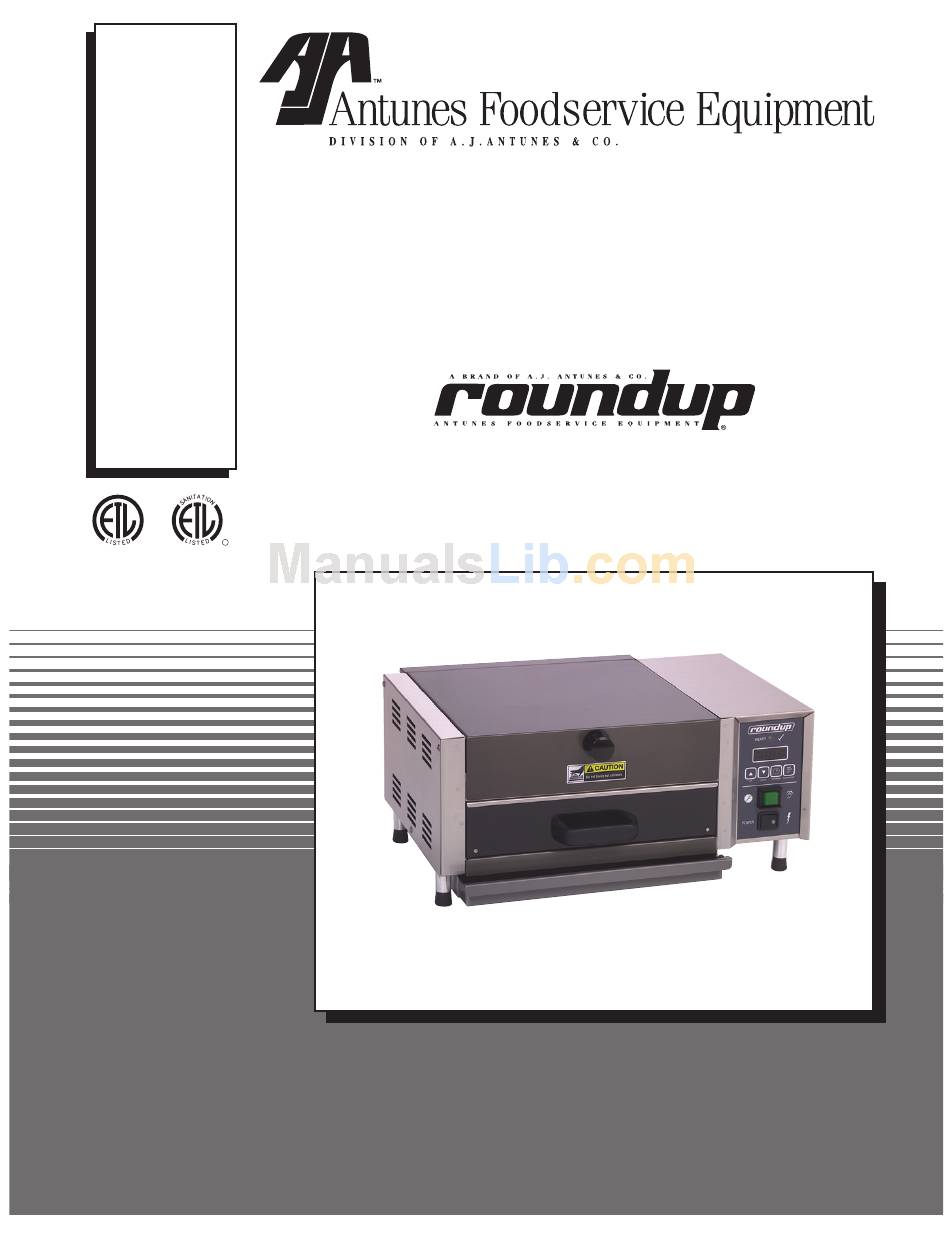

MIRACLE STEAMER
Models MS-150/155,
MS-250/255 & MS-355
C
US
CM
P/N 1010699 Rev. M 12/06
MS-255 Shown
Owner
s Manual
'
Advertisement
Table of Contents
Related Manuals for Antunes, AJ MS-150/155
Summary of Contents for Antunes, AJ MS-150/155
- Page 1 NUMBERS: 9100420 9100424 9100426 9100425 9100428 9100430 9100432 9100433 9100436 9100438 9100439 9100450 9100452 9100456 9100458 9100460 9100462 9100466 9100468 9100480 9100486 MIRACLE STEAMER Models MS-150/155, MS-250/255 & MS-355 P/N 1010699 Rev. M 12/06 MS-255 Shown Owner s Manual ’...
-
Page 2: Table Of Contents
Electrical Ratings ...5 Electrical Cord & Plug Configurations ...5 Model Designation ...5 Dimensions ...6 Installation ...7 Unpacking ...7 Model MS-150/155 & MS-355 ...8 Models MS-250/255 ...9 Operation ...10 General (All Units Except MS-150/250 Mfg. #9100424, 432, 433 & 439) ... 10 General The Miracle Steamer produces steam using plain tap water for quick heating and reconstituting of food items. -
Page 3: Service/Technical Assistance
Service/Technical Assistance If you experience any problems with the installation or operation of your unit, contact your local Roundup Authorized Service Agency. They can be found in the service agency directory packaged with the equipment. Fill in the information below and have it handy when calling your authorized service agency for assistance. - Page 4 MIRACLE STEAMER IMPORTANT SAFETY INFORMATION (continued) In addition to the warnings and cautions in this manual, use the following guidelines for safe operation of the unit. • Read all instructions before using equipment. • For your safety, the equipment is furnished with a properly grounded cord connector.
-
Page 5: Specifications
Electrical Ratings Model Mfg. Voltage Watts Amps Hertz Number MS-150CV 9100420 MS-150CV 9100424 MS-150CV 9100426 MS-150CF 9100425 MS-150HC 9100428 MS-250CV 9100430 MS-250CV 9100432 MS-250CV 9100433 MS-250CV 9100436 MS-250HC 9100438 MS-250CF 9100439 MS-155CV 9100450 MS-155CF 9100452 MS-155CV 9100456 MS-155HC 9100458 MS-255CV 9100460 MS-255CF 9100462... -
Page 6: Dimensions
MIRACLE STEAMER SPECIFICATIONS (continued) Dimensions MS-150/155 & MS-250/255 17-1/8” (435 mm) 20-3/4” (527 mm) 9-1/2” (234 mm) MS-355 17-1/8” (435 mm) 25” (635 mm) 9-1/2” (234 mm) P/N 1010699 Rev. M 12/06... -
Page 7: Installation
Unpacking 1. Remove the unit and all packing materials from the shipping carton. 2. The unit should come with the items listed below: • Owner’s Manual • Authorized Service Agency Directory • Inlet Hose Assembly (MS-250/255 only) • Spatula Assembly (MS-150/250 only) •... -
Page 8: Model Ms-150/155 & Ms-355
This equipment is to be installed to comply with the basic plumbing code of the Building Officials and Code Administrators, Inc. (BOCA) and the Food Service Sanitation Manual of the Food and Drug Administration (FDA). Sliding Cover Figure 2. Filling Water Tank–MS-150/155 Filter P/N 1010699 Rev. M 12/06... -
Page 9: Models Ms-250/255
Models MS-250/255 CAUTION Water pressure must not exceed 30 psi (2.1 kg/ cm 2 or 207 kPa). Higher water pressures may cause poor performance or flooding. To reduce water pressure, install a water pressure regulator, and set water pressure to 20-25 psi (1.4 - 1.7 kg/ cm 2 or 138 - 172 kPa). -
Page 10: Operation
General (All Units Except MS-150/250 - Mfg. #9100424, 432, 433 & 439) When the Operate button (Figure 5a) is pressed, power is supplied to the water pump (MS-150/155/355) or the solenoid valve (MS-250/255). The pump/solenoid operates and water sprays onto the heated Steam Generator. -
Page 11: Operating Instructions
• Shot Interval Time (SHO) = 00 min., 20 secs. (Range: 3 seconds to 5 minutes 59 seconds) • Steam Shot Time (H O) = MS-150/155/355 - (1_00) MS-250/255 - (0_70) (Range: 0_10 second to 2_50) This converts approximately 3/4 oz. (25 milliliters) of water to steam every 20 seconds for a 15 minute cooking cycle. - Page 12 (Item H, Figure 6). Use ▲ or ▼ to increase or decrease the time. NOTE: Recommended settings are: MS-150/155/355 (0_80) 120 Volt units only MS-250/255 (0_40) 120 Volt units only MS-150/155/355 (1_00) 208-240 Volt units only MS-250/255 (0_70) 208-240 Volt units only 10.
-
Page 13: Hi-Limit Reset Button
Hi-Limit Reset Button A hi-limit thermostat turns off electrical power to the steam generator if it overheats. To reset this thermo- stat, allow approximately 45 minutes for the unit to cool down, remove the black cap, and then press the black reset button located on the rear of the unit (Figure 7). -
Page 14: Maintenance
MIRACLE STEAMER WARNING Turn the unit off, disconnect the power source and allow the unit to cool down before performing any service or maintenance on the unit. CAUTION Chlorides or phosphates in cleansing agents (such as bleach, sanitizers, degreasers or deter- gents) could cause permanent damage to stain- less steel equipment. - Page 15 CLEANING STEAM GENERATOR 1. Turn the unit off and unplug the power cord. Allow the unit to cool down before proceeding. 2. Perform the Daily cleaning, but DO NOT reas- semble the unit 3. Remove the wing nut, Generator Cover, and Diffuser (Figure 8).
- Page 16 MIRACLE STEAMER MAINTENANCE (continued) Spatula (MS-150/250 only) Cover Drawer (MS-155/255/355 only) Diffuser Steam Vent Spatula Liner MS-355 Shown (MS-150/250 Only) Drawer Liner with Rollers (MS-155/255/355 only) Condensate Drip Pan Figure 8. Miracle Steamer Components P/N 1010699 Rev. M 12/06...
- Page 17 Slide Door Bottom Hole of Water Tank Figure 9. Water Tank Filter–MS-150/155 Only 2. At the sink, gently flush all of the accumulated debris from the strainer cup and mesh strainer. Be especially careful not to damage the mesh strainer screen.
-
Page 18: Technical Theory Of Operation
When the Operate, Single Shot, or Start/Stop button is pressed, the Control Board is signaled to supply 24 VAC to the solenoid valve used in models MS-250/255 or the water pump used in models MS-150/155/355 for a split second. MAINTENANCE (continued) -
Page 19: Troubleshooting
To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equip- ment should be performed by qualified service personnel. The unit should be unplugged when servicing, except when electrical tests are required. Problem Control Display is Blank (power On/ Off switch is On but indicator light is off). - Page 20 MIRACLE STEAMER TROUBLESHOOTING (continued) Problem Possible Cause Unit heats but there Water Line Valve is closed (MS- is little or no steam 250/255). produced Filter Strainer is restricted. and/or Quick disconnect is not fully The product requires engaged at rear of the unit or is more steaming than damaged (MS-250/255).
- Page 21 TROUBLESHOOTING (continued) Problem Unit floods overnight and/or Solenoid Valve is leaking due to continues to steam even when debris trapped inside the plung- in idle mode. er (MS-250/255). Solenoid Valve is installed incor- rectly (MS-250/255). There is no pre-strainer or filter on the water line just before the unit (MS-250/255).
-
Page 22: Replacement Parts
MIRACLE STEAMER REPLACEMENT PARTS NOTE: Refer to parts list on page 25. MS-150/155/250/255 �� �� �� �� �� �� � �� �� �� �� �� �� �� �� �� �� �� �� � �� �� �� �� �� � �... - Page 23 MIRACLE STEAMER REPLACEMENT PARTS (continued) MS-150/155 Service Compartment NOTE: Refer to parts list on page 25. P/N 1010699 Rev. M 12/06...
- Page 24 MIRACLE STEAMER REPLACEMENT PARTS (continued) MS-250/255 Service Compartment NOTE: Refer to parts list on page 25. P/N 1010699 Rev. M 12/06...
- Page 25 REPLACEMENT PARTS (continued) Item Part No. Description 0010159 Filter Assy., Water Tank (MS-150/155) 1 7000652 Relay 0010584 Inlet Hose Assy. w/ strainer (MS-250/255) 7000137 Pump/Tube Assy., 24VAC (MS-150/155) 4040145 Solenoid Valve 24VAC (MS-250/255) 7000237 Top Cover Assy. (Includes #41 & #42) 1 0011314 Steam Vent Assy.
- Page 26 88 0021237 Liner Weldment (MS-155/255 only) 89 0503536 Drip Pan 90 2100118 Guard, Handle 91 See page 29 for Strainer Parts Identification. MS-150/155/250/255 (continued) Qty. Item Part No. 92 7000139 93 0011413 94 0011370 94a 210K134 4” Leg Kit (not shown) 94b 210K123 4”...
- Page 27 REPLACEMENT PARTS (continued) INSET A (Model MS 355) INSET C (Model MS 355) P/N 1010699 Rev. M 12/06 MS-355 Service Compartment INSET B (Model MS 355) �� �� �� 44 62 MIRACLE STEAMER NOTE: Refer to parts list on page 28. ��...
- Page 28 MIRACLE STEAMER REPLACEMENT PARTS (continued) MS-355 NOTE: Refer to parts list on page 28. P/N 1010699 Rev. M 12/06...
- Page 29 REPLACEMENT PARTS (continued) Item Part No. Description 0011314 Steam Vent Assy. 7000237 Top Cover Assy. (Incl. #73-77) 0011413 Liner Assy. (Incl. #65, 69, 72) 0011471 Drawer Assy. (Incl. #64-71) 040P138 Locknut, Conduit, 1/2” 040K251 Strain Relief (includes #6) 0503441 Cover, Access 0503536 Drip Pan, Water 10 0503712...
- Page 30 MIRACLE STEAMER REPLACEMENT PARTS (continued) Dual Water Pressure Regulator Kit - Part No. 7000235 To Steamer Water Supply Single Water Pressure Regulator Kit - Part No. 7000314 NOTE: Item 1 is made up of items 2 - 4 Item Part 7000139 To Steamer 2030126...
-
Page 31: Wiring Diagrams
THERMOSTAT # WHT 230V POWER SWITCH 120V # BLK P/N 1010699 Rev. M 12/06 WIRING DIAGRAMS MS-150/155/250/255 NOTE: ALL WIRES TO BE 14 GA. AWM-105°C UNLESS OTHERWISE SPECIFIED. # 18 GA. AWM-105°C 22 GA. AWM-105°C HEATER HI-LIMIT (PUMP ONLY) SOLENOID... -
Page 32: Limited Warranty
Equipment manufactured by Roundup Food Equipment Division of A.J. Antunes & Co. has been constructed of the finest materials available and manufactured to high quality standards. These units are warranted to be free from mechanical and electrical defects for a period of one year from date of purchase or 18 months from shipment from factory, whichever occurs first, under normal use and service, and when installed in accordance with manufacturer’s recommendations.
