Summary of Contents for Eads CARK-9
-

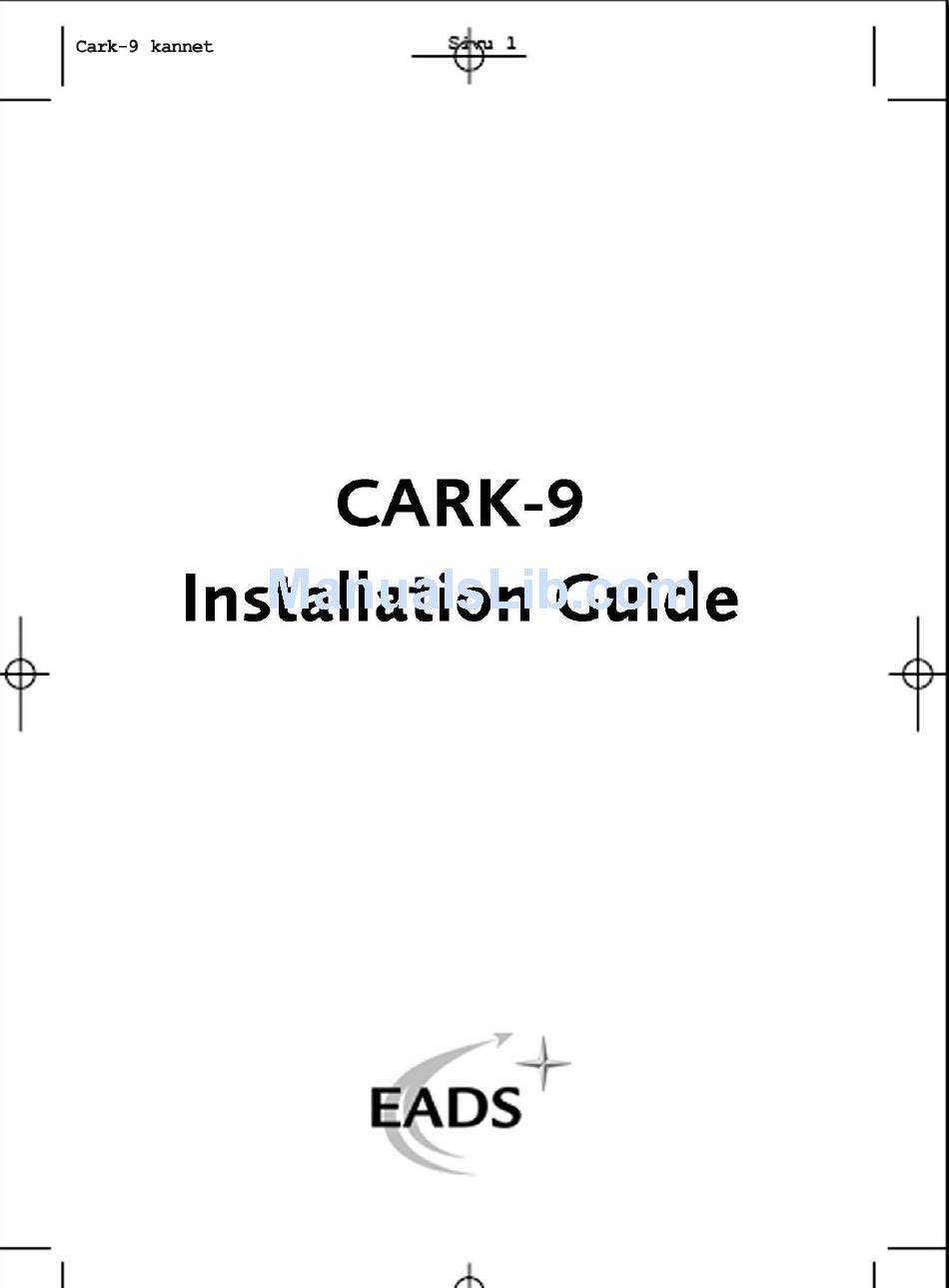

Page 2: Installation Guide
CARK-9 Car Kit Installation Guide Version 1 Part No. HR8159AA, PS11160AMLAA01 Copyright © 2010 EADS Secure Networks. All rights reserved. - Page 3 This installation guide has been prepared to provide the basic information necessary to install CARK-9. This guide is not intended to be definitive, because different types and models of vehicles will require different installation work. The information given is for general guidance only.
- Page 4 Components of CARK-9 Fig. 1. Installation without the DTC-1 Adapter Cable The CARK-9 includes the above parts. Please note that the items enclosed within broken lines are not supplied with CARK-9. Page 3...
- Page 5 Fig. 2. Installation using the DTC-1 Adapter Cable Please note that all items shown above are included in CARK-9 except those enclosed within broken lines. *Two of these accessories can be connected simultaneously. Warning Side connector accessories should be removed from the terminal before the terminal can be used in the carkit installation.
-
Page 6: Component Parts
Component Parts Advanced Active Holder MCR-4 The holder for the radio is attached to the vehicle’s interior in a convenient position using the swivel mount HHS-14. The mounting is secured with a screw (included with HHS-14). The screw recess is covered with the rubber plate. The cable with the plug-in connector from MCR-4 connects to the PHONE socket in HFU- 2T. -
Page 7: Installation
Handset HSU-1T (not supplied) The handset HSU-1T offers more privacy during a call. During a one-way call the PTT key must be used. It connects to the DATA/HANDSET socket of HFU-2T or to the DTC-1 adapter cable HANDSET socket (please refer to DTC-1). For more information, please refer to the user guide for the handset. - Page 8 Ignition Sense IGNS The ignition sense feature prevents your car kit from draining the car battery by executing an auto power off 20 seconds after the ignition key has been turned off. The blue cable from PCH-4J is used for the ignition sense feature. The use of ignition sense is recommended to prevent accidental draining of the car’s battery.
