Summary of Contents for Blue Sky International SAT 6.5 EXR

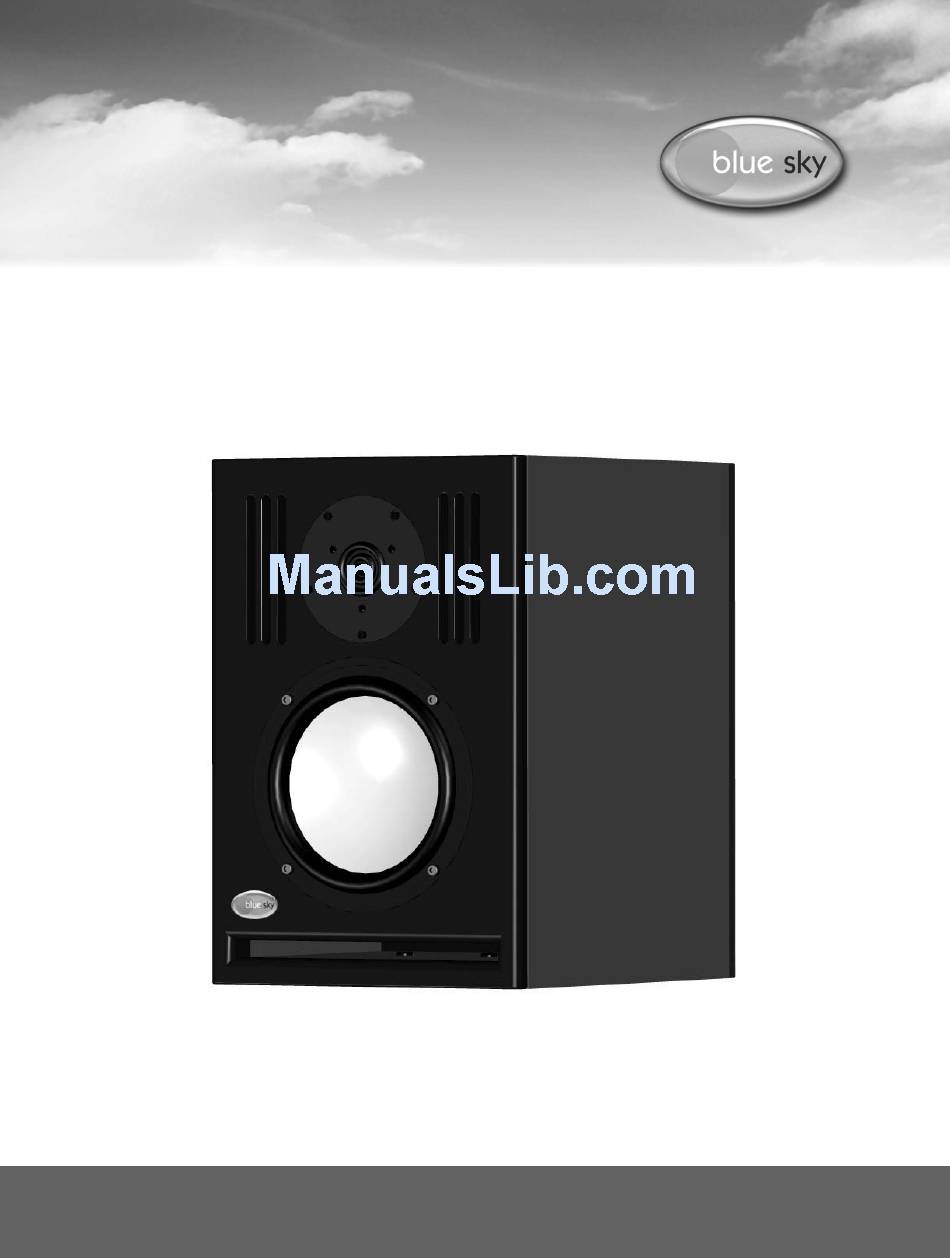

- Page 1 SAT 6.5 EXR Extended Range Near-Field active studio monitor Blue Sky International 70 Sea Lane, Farmingdale, New York, 11735 USA • T: +1 516 249 1399 • F +1 516 249 8870 www.abluesky.com...
-
Page 2: Table Of Contents
SAT 6.5 EXR USER MANUAL • CONTENTS Important Safety Instructions Page 3 SAT 6.5 EXR Introduction Page 4 Important Notes About the SAT 6.5 EXR & This Manual Page 4 What is included? Page 4 SAT 6.5 EXR Features Overview Page 5 A Tour of the Amplifier &... -
Page 3: Safety Instructions
It is IMPORTANT to confirm that the voltage this product, ask the service technician to perform safety checks selector switch on the back of the SAT 6.5 EXR is set to the to determine that the product is in proper operating condition. -
Page 4: Sat 6.5 Exr Introduction
If you are unsure of the type of power that is supplied to your home, consult your product dealer or local power company. To that end we are proud to introduce the SAT 6.5 EXR. The SAT 6.5 EXR is 115V 230V a 2-way, bi-amplified, 200-Watt, near-field, ported studio monitor. -
Page 5: Sat 6.5 Exr Features Overview
SUB (-3dB @ 40Hz). For more information please see page treatment of the room and ensuring proper placement of the 6 & 7 [A Tour of the SAT 6.5 EXR Amplifier & Electronics] and SAT 6.5 EXR. For more information please see page 6 & 7 [A page 9 [System Signal Flow &... - Page 6 375 WATTS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR designed in the USA made in China Page 6 • User Manual • A Tour of the SAT 6.5 EXR Amplifier & Electronics...
- Page 7 The only way to accurately determine the amount of compensation needed is to use a high resolution acoustic analyzer, such as MLSSA, TEF, etc. User Manual • A Tour of the SAT 6.5 EXR Amplifier & Electronics • Page 7...
- Page 8 USER MANUAL • 6 • MOUNTING & PLACEMENT Monitor mounting and placement is often an afterthought, but in order to get the best imaging and overall performance from the SAT 6.5 EXR, it is Center of the tweeter important to place the speakers correctly.
- Page 9 2.1 & 2.0 SYSTEM SIGNAL FLOW & CONNECTIONS in the room will not be as consistent using this method. This is because Above is a simple diagram showing how a SAT 6.5 EXR system may be electrical summation of the LF signals (as is done with bass-management wired for a stereo applications.
-
Page 10: Quick 2.1 System Setup Instructions
9 ft. apart Etc. Ideally If a more exacting setup is required, using test signals and a SPL the SAT 6.5 EXR should be at seated ear height. If this is not meter, please see Page 11 [Expanded Calibration Guide]. -
Page 11: Expanded Calibration Guide
A. If you have a master monitor level control (console etc), you SPL Meter - such as the SPL meter sold by can set the SAT 6.5 EXR gain control at reference and then adjust RadioShack in the U.S. the monitor gain control for 85 dBc. Then mark the monitor level as your reference position. -
Page 12: Subwoofer Placement Guide
SAT 6.5 EXR USER MANUAL • 10 • SUBWOOFER PLACEMENT GUIDE So now that my system uses an integral subwoofer, how do I place it in my in the room, place the subwoofer in that location. Now, listen studio for the best possible low frequency performance? from the main position and confirm that the subwoofers response is similar to when the positions were reversed. - Page 13 SAT 6.5 EXR USER MANUAL • 11 • TECHNICAL SPECIFICATIONS & DIMENSIONS SAT 6.5 EXR Specifications Enclosure Amplifiers & Electronics .75” MDF with 1” front / rear baffle and internal bracing 2 x 100* Watts into 4-Ohm (for each woofer and tweeter) .25”...
-
Page 14: Measurement Data
USER MANUAL • 12 • MEASUREMENT DATA Conditions: All SAT 6.5 EXR measurements were made outdoors on a 58 inch stand at a distance of 1 meter. Since a 58 inch stand is not tall enough for accurate low-frequency measurements, a 1 meter ground plane measurement was also made and spliced in at 125 Hz on all measurements, to generate full frequency response. -
Page 15: Factory Service Instructions
Sky product! Blue Sky International Note the following aspects about recycling some of the main components of our SAT 6.5 EXR studio monitor: ATTN: SERVICE DEPT / RA# 70 Sea Lane Packing material: Cardboard and plastic can be recycled or burned in a Farmingdale, NY 11735 waste disposal oven. - Page 16 Blue Sky International 70 Sea Lane, Farmingdale, New York, 11735 USA • T: +1 516 249 1399 • F +1 516 249 8870 www.abluesky.com...
