Summary of Contents for Manhattan 177078

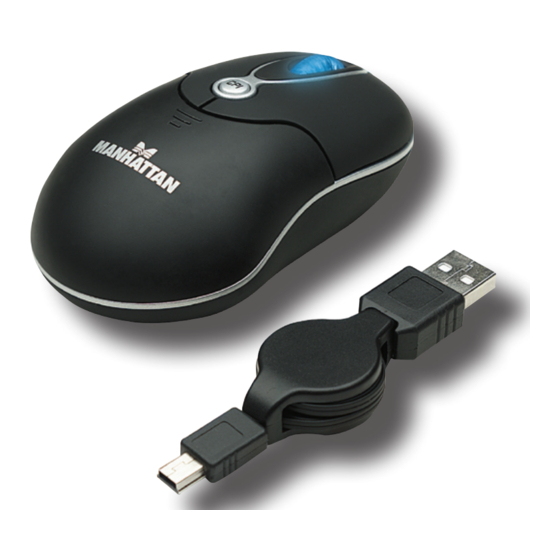

- Page 1 MLBX WireLess Laser MoBiLe Mini Mouse user ManuaL Model 177078 MAN-177078-UM-1208-01...
- Page 2 Thank you for purchasing the MANHATTAN MLBX ® Wireless Laser Mobile Mini Mouse, Model 177078. The easy-to-follow instructions in this user manual help make installation of the mouse quick and simple, so you’ll also soon be enjoying the benefits of these features: •...
- Page 3 • Connect the equipment into an outlet on a circuit other than that to which the receiver is connected. • Ask your MANHATTAN dealer or an experienced radio/ TV technician for help. Operating Tips • To save battery power, operate the mouse on a bright surface with a fine texture.
-
Page 4: Hardware Installation
hardWare instaLLation Batteries 1. Slide the battery cover off the mouse. 2. Insert the 2 included AAA batteries, matching the Power switch +/– polarity as marked inside the Connect button battery compartment. 3. Replace the battery cover. 4. On the underside of the mouse, set the Power switch to On. - Page 5 Connecting with Widcomm (recommended): 1. Double-click the Bluetooth icon and click “Next” on the Setup screens until the system finds the mouse and the Bluetooth Device Selection screen displays (below). Bluetooth Device Selection Bluetooth Wireless Mouse 2. Select “Bluetooth Wireless Mouse” and click “Next.” 3.
- Page 6 If a disconnection occurs during the procedure, just reconnect the Disable mouse. It may be necessary to open the Bluetooth Dongle Software window, disable the mouse, then reconnect. If you’re using the Widcomm Bluetooth software, click the right mouse button and select “Status” (below) to check the battery power status and set up the low battery alarm.
- Page 7 Connecting with Built-in Microsoft Software: 1. Double-click the Bluetooth Devices Bluetooth icon to display the Bluetooth Devices screen; then click “Add” to display the Add Bluetooth Device Wizard welcome screen. 2. Select “My device is set up and ready to be found” (or “facility is ready for searching,”...
- Page 8 3. Select “Bluetooth Wireless Mouse” and click “Next.” Add Bluetooth Device Wizard Bluetooth Wireless Mouse New Device 4. Select “Don’t use a passkey” (or “No Password”) and click “Next,” then “Finish” to complete the procedure. Add Bluetooth Device Wizard...
- Page 9 Connecting with IVT: 1. Double-click the Bluetooth icon to open the management window; from the My Bluetooth menu, select “Bluetooth Device Discover” (or “Search for Bluetooth facilities”), or click the orange ball on the screen. IVT Corporation BlueSoleil - Main Window My Bluetooth Bluetooth Device Selection Refresh Services...
-
Page 10: Specifications
If you’re unable to connect the MLBX Wireless Laser Mobile Mini Mouse to the computer, or if the mouse works erratically, check the possible corrective measures below. • Before installing the mouse, make sure the Bluetooth dongle has been installed and activated. •... - Page 11 • Mouse: laser, 800/1200/1600 dpi resolution • Controls: right, left and center mouse buttons with scroll wheel; power switch (on/off); top-mount resolution adjustment button • Automatic power save/power off mode • Material: ABS plastic • Compatible with Windows 2000/XP/2003/Vista (Bluetooth enabled) Dimensions •...
- Page 12 ® of PC Components, Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
