Set up a program to Activate the Link

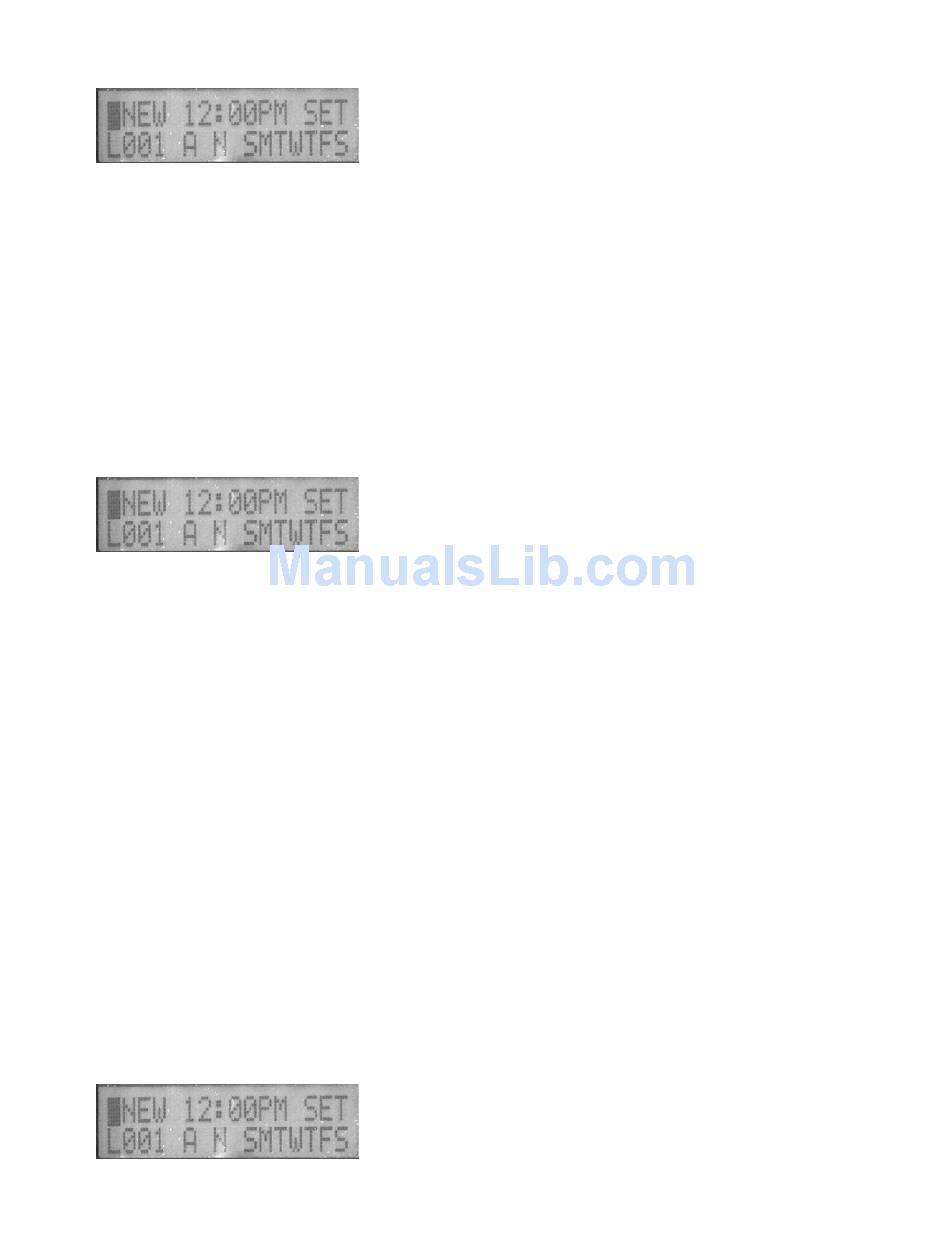

o Push the MENU button until the SET screen is displayed.
Use the RIGHT button to move to the hour field. The NEW field will automatically change to the next available program number. If this is
o
the first time you have set up any programs, the field will change to P01. Use the UP/DOWN buttons to select the hour at which you want
the Link you have already set up to be activated.
Use the RIGHT button to move to the minute field and use the UP/DOWN buttons to select the proper value for minutes.
o
Use the RIGHT button to move to the AM/PM field and use the UP/DOWN buttons to select AM or PM.
o
Use the RIGHT button to move to the Link number field and use the UP/DOWN buttons to select the Link number that has already been set
o
up and that you want to have activated by this timer program.
Use the RIGHT button to skip the next field (which has an "A" in it), because we already know that the program we are setting up is meant
o
to Activate (turn on) the Link in question. Use the UP/DOWN buttons on the next field to select N or R. Use N for programs that you want
to run at exactly the time you have set up. Use R for programs that you would like to be randomly varied by up to 30 minutes in either
direction from the time you have set up.
Use the RIGHT button to move to the "S" field. Use the UP/DOWN arrows to either select the program to run on Sunday or to keep it from
o
running on Sunday. If the "S" is showing, the program will run on Sunday. If there is a dash in place of the "S", the program will not run on
Sunday.
Use the RIGHT button to move to each day of the week, selecting whether or not to run this program on each day of the week according to
o
the directions laid out in the previous step.
Review all your settings, and if they are correct, push the ENTER button to save them. The Timer will revert to the RUN screen.
o
•
Set up a program to Deactivate the Link
Push the MENU button until the SET screen is displayed.
o
Use the RIGHT button to move to the hour field. The NEW field will automatically change to the next available program number. Because
o
you already set up a program in the previous step, the value you see here will most likely be P02. Use the UP/DOWN buttons to select the
hour at which you want the Link you have already set up to be Deactivated (turned off).
Use the RIGHT button to move to the minute field and use the UP/DOWN buttons to select the proper value for minutes.
o
Use the RIGHT button to move to the AM/PM field and use the UP/DOWN buttons to select AM or PM.
o
Use the RIGHT button to move to the Link number field and use the UP/DOWN buttons to select the Link number that has already been set
o
up and that you want to have deactivated by this timer program.
Use the RIGHT button to move to the next field and use the UP or DOWN button to change the value to "D" because we want to Deactivate
o
the Link.
Use the RIGHT button to move to the next field and use the UP/DOWN buttons to select N or R. Use N for programs that you want to run
o
at exactly the time you have set up. Use R for programs that you would like to be randomly varied by up to 30 minutes in either direction
from the time you have set up. If you select R for both the Activation program and the Deactivation program for the same Link, make sure
the two programs are more than an hour apart to avoid the possibility that the Link will not be Deactivated as you expect.
Use the RIGHT button to move to the "S" field. Use the UP/DOWN arrows to either select the program to run on Sunday or to keep it from
o
running on Sunday. If the "S" is showing, the program will run on Sunday. If there is a dash in place of the "S", the program will not run on
Sunday.
Use the RIGHT button to move to each day of the week, selecting whether or not to run this program on each day of the week according to
o
the directions laid out in the previous step.
Review all your settings, and if they are correct, push the ENTER button to save them. The Timer will revert to the RUN screen.
o
•
Your Timer is now set up to Activate the Link at the time you've selected and then to Deactivate it later according to your settings.
5 Quick Start – Countdown Timer
A common use for the Countdown Timer capability is to automatically turn off a bathroom fan a certain amount of time after it has been turned on.
The first step in implementing this capability is to install a UPB dimmer or relay switch to control the fan. If you are installing a dimmer, use UPStart to
make sure the switch is set for on/off operation only. Trying to reduce the speed of any kind of fan with a UPB dimmer is not a supported function. In
UPStart, assign a Link (we'll use L040 as an example) to be transmitted when the top rocker is pressed. Make sure this same Link is in the receive
table as well and is setup to turn the fan on and off. Assign another Link (we'll use L044) to the receive table of the switch. Use UPStart to make sure
the switch rocker has been Transmit Enabled (see the Options tab). DO NOT use Link241 for any button or rocker that is Transmit Enabled. Link241
is reserved as an internal link in many UPB switches. Assuming you have already set the date/time, latitude, longitude, time zone and UPB Network
ID (see the previous section) follow these steps to quickly turn the UPB switch into a countdown timer:
•
Set up a Trigger to watch for a UPB Link, wait a defined amount of time, then issue another Link:
o Push the MENU button until the SET screen is displayed.
Use the UP/DOWN buttons to change the first field from a P to a T. Notice that the screen changes as follows:
o
