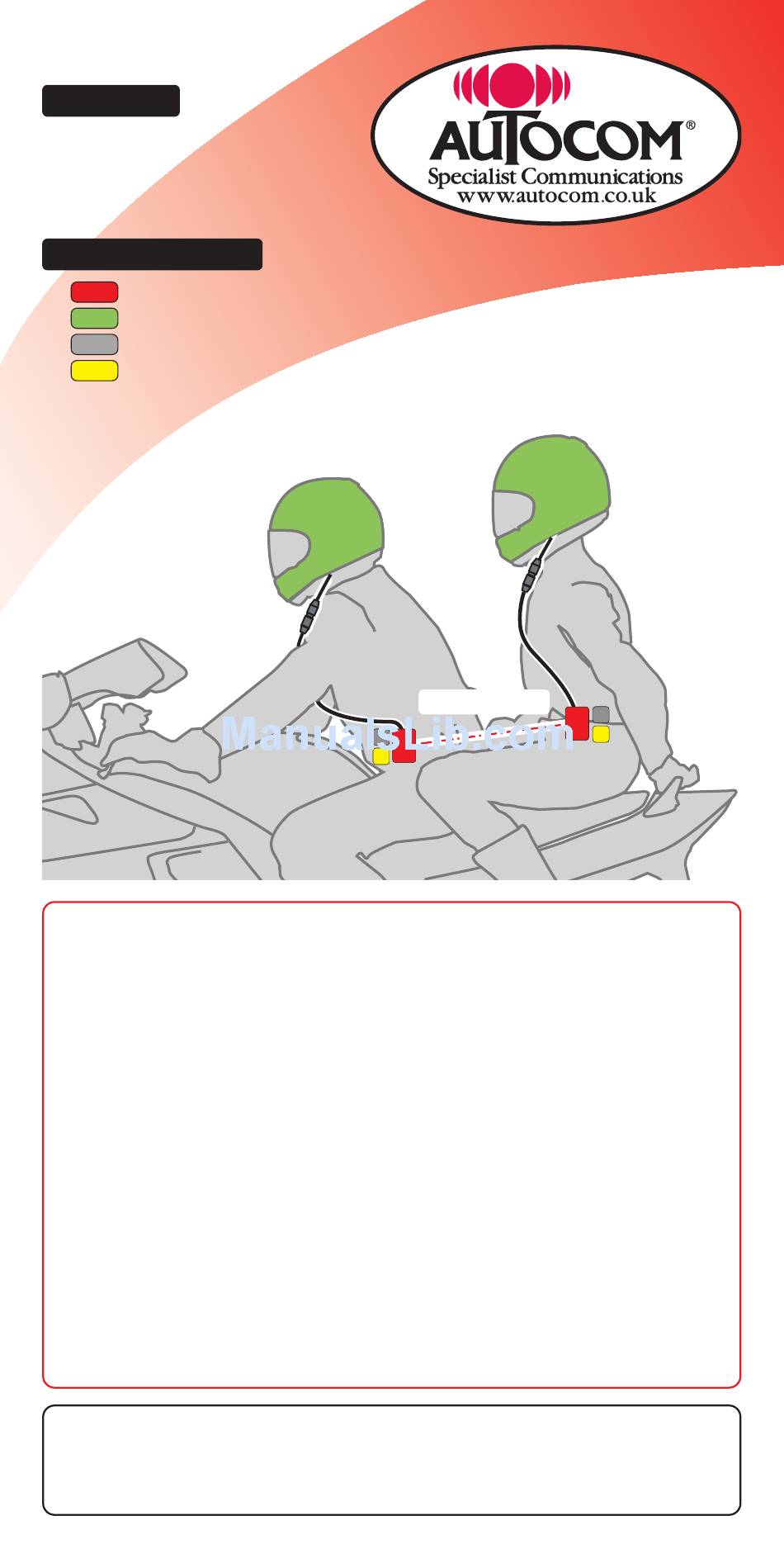

autocom Kit L-IW Instruction Manual

Hub-to-hub system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Kit L-IW
Logic Independence WIRELESS
INSTRUCTION MANUAL
and WARRANTY
Kit L-IW
includes:
Logic Independence WIRELESS
2011
2x
2116
2x
Complete noise cancelling stereo headsets with plug-in boom microphones
2174
2x
Standard 400mm phone leads
2243
2x
Standard 150mm stereo music leads
PLEASE ASK your supplier to personally check with you that this kit contains ALL the parts listed
above before you leave the shop!
Autocom UK has carefully checked that all of the parts listed above are supplied in this kit at the
time of packing and shipping; however we also train our suppliers to check and confirm with you (in
the shop) that you have all of these listed parts supplied in your kit before leaving the shop. Because
of this thorough triple check quality control method Autocom UK cannot accept any claims for
missing parts once you have left the shop.
This product is intended for sale ONLY from authorised retail premises by trained authorised
Autocom dealers, where your supplier has provided you with high quality hands on demonstration
and advice about the products before you purchase. This product is not to be sold/purchased via
mail order etc or from any dealer who has not/or cannot provide you with high quality face to face
hands on demonstration and after sales service and support.
If this product was supplied to you by mail order, we ask that you please contact
enquiries@autocom.co.uk or telephone: +44 (0)1926 431249 and let us know who your supplier
was, such that we can ensure that ALL of our customers receive the highest standards of supply and
support that our customers, products and brand deserves.
Please fill in and return the product registration on the inside back cover.
It is very important that you fully read and understand all of
these instructions before installation and use.
This system is designed for domestic motorcycle use only.
IMPORTANT NOTE:
main control hub units
WIRELESS
HUB
HUB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kit L-IW and is the answer not in the manual?

Questions and answers

Summary of Contents for autocom Kit L-IW

  • Page 1 Autocom UK has carefully checked that all of the parts listed above are supplied in this kit at the time of packing and shipping; however we also train our suppliers to check and confirm with you (in the shop) that you have all of these listed parts supplied in your kit before leaving the shop.

  • Page 2: Safety First

    Please take the time to fully read and understand these instructions before installation and use and feel free to ask your Autocom dealer for advice, or call our help-line if anything is not perfectly clear and understandable. Telephone: +44 (0)1926 431249 (UK). Email: enquiries@autocom.co.uk SAFETY FIRST It is very important to properly set up and use these products as designed.
  • Page 3 VOX/PTT power leads, which come with their own instruction manuals. Autocom systems are track developed under extreme speed and noise conditions where they demonstrate highly effective performance. Each part is fully tested before it leaves the factory and set...

  • Page 4: Getting Started

    Built to last but also easy to service or replace. Please see notes about using wireless systems on our website: www.autocom.co.uk GETTING STARTED Having already read this manual completely and checked any questions with your dealer, you should now be ready to power one of the hubs and set/test prior to headset installation.
  • Page 5 It is important that you set each users master volume control to suit each users own level of side-tone and then fine tune the level as required to suit the received speech from the other user. If any other audio levels (such as bike-to-bike, phone GPS or music etc need to be adjusted it is important that you adjust each level using the audio devices own volume control.

  • Page 6: First Test

    FIRST TEST We strongly recommend that you test your headset out of the helmet (before installation) to make it easier for you to experience how even small movements in microphone and speaker positioning can reduce or improve the sound quality and ease of use. With this knowledge you will have a benchmark to work to during final helmet installation later and be sure you are getting the very best out of your system.

  • Page 7: Speaker Positioning

    Top Tips (1) Fine tune and perfect using the microphone loud-spot by listening to the sound of your voice through the speakers while carefully moving the microphone around until it is at its very loudest point. It can also help if you pucker your lips to the microphone as if kissing it. Apart from providing you with audio confirmation of correct microphone and VOX use, side-tone also helps you to naturally speak at the correct level when in noisy conditions and so also prevents unnecessary shouting.

  • Page 8: Headset Installation

    HEADSET INSTALLATION Because Autocom systems work so much better than other systems, it is easy for people to think its working great even when it’s not set up and used properly and only giving you perhaps 30% of what is really has to offer.
  • Page 9 If ever passing an approved Autocom dealer you can ask them if you can compare your headset installation with their ear-defender demo/test headsets in the shop. It is a good idea to do this at least once every six months just to check your speakers haven’t move over time through putting the helmet...
  • Page 10 BASIC PRINCIPLE HOW HELMETS ARE ASSEMBLED One Part Inner Helmet Design View from underside of one part type helmet Remove straps and lift out complete Peel back tape and lining, slide The fabric is either taped or speaker inside pushing it right elasticated over the polystyrene up to the strap hole and so it is easy to install the...
  • Page 11 Microphone Decide which side of the helmet you would prefer the lead and plug to hang from (normally the left side) and then release and remove that side’s cheek pad so as to allow you fit the boom microphone and main speaker harness behind it, with the boom coming up from behind the check pad and up into the visor area and then bent down (from between the outer shell...
  • Page 12 TESTING THE INSTALLATION AND FINE TUNING With some music playing through the speakers try to focus on one speaker at a time and move the helmet up, down, back and forwards and also side to side to listen for improvements or loss of sound level and quality.
  • Page 13 Connecting one of the bike-to-bike radio’s to your system Remove the battery cover and batteries from one of your hubs and then remove the two Pozi-Drive screws from the hubs small back cover, allowing it to be removed. NOTE you should lightly press down on the battery tray while carefully lifting the small back cover off.

  • Page 14: Troubleshooting Guide

    All Autocom products are warranted for a period of 12 months from the date of original purchase, to the original purchaser, from an authorised Autocom retailer. This warranty covers faulty materials or workmanship, subject to the goods being used only as stated, and only for the purpose as described in the instruction manuals.
  • Page 15 The information collected will be used for marketing purposes by Autocom and our authorised distributors only. We may contact you either in relation to the products you already have or other Autocom products which may be of interest to you.
  • Page 16 Unit 4, Tachbrook Link, Tachbrook Park Drive, Warwick CV34 6RH. England Tel: +44 (0)1926 431249 • Fax: +44 (0)1926 431250 Email: enquiries@autocom.co.uk Website: www.autocom.co.uk...
