Summary of Contents for Spatz Sniffer

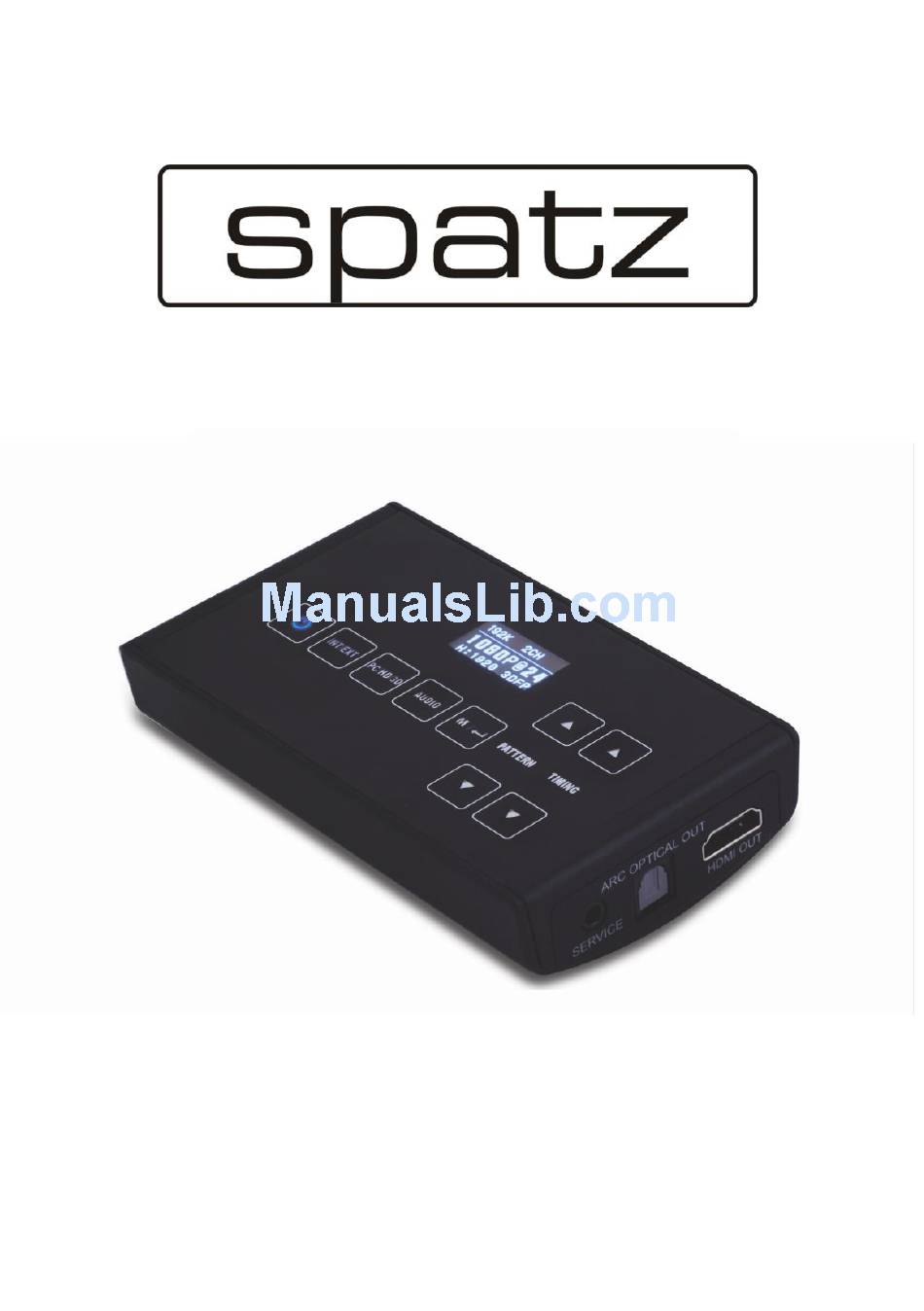

- Page 1 SNIFFER 3D Mini HDMI Analyzer...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. SPATZ assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. SPATZ assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements......1 5. Features ..........2 6. Operation Controls and Functions..3 6.1 Front Panel ........3 6.2 Rear Panel......... 4 6.3 Top Panel .......... 5 7 OSD Menu .......... -
Page 6: Introduction
1. INTRODUCTION The 3D Mini-HDMI Analyzer is a tool for checking both source (Blu- ray or DVD players) and display devices (TV or monitors). With touch button controls and built-in OLED (Organic Light Emitting Diode) display it can show the status and information of both the input and output devices connected to it through HDMI. -
Page 7: Features
5. FEATURES • Supports Timing include SD, HD up to 1080p, PC up to WUXGA and 3D • Provides 25 timings, 6 patterns and 1 pattern for 3D timing • 'Deep color' video support (up to 12-bit, 1080p@60 Hz) • Supports input signal bypass, digital video formats in 'Deep Color' Mode up to 36-bit (12-bit/color) and new lossless compressed digital audio (Dolby TrueHD, Dolby Digital Plus and... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI IN DC 5V HDMI IN Connect the HDMI input port to the HDMI output port of the source device for testing and displaying the EDID information. DC 5V Plug the DC 5 V power supply into the Mini-HDMI Analyzer and connect the adaptor to an AC wall outlet. -
Page 9: Rear Panel
6.2 Rear Panel ARC OPTICAL OUT SERVICE HDMI OUT SERVICE Use a DB9 (RS-232) to 3.5 mm (phone jack) cable to do the software upgrade. NOTE: This feature is not available to the end user. The DB9 to 3.5 mm phone jack is not included in the package. -
Page 10: Top Panel
6.3 Top Panel Note: Please remove the protective plastic film from the top panel before using the touch key function. POWER Press this button to turn on the device, the LED will turn blue. Press again to switch the unit to standby mode, the LED will turn red. INT/EXT Press this button to toggle between the built-in internal pattern generator or the external source device. - Page 11 PC/HD/3D Press this button to cycle through the test patterns (PC/HD or 3D timings). The OLED display will show the timing currently selected. AUDIO Press this button to select the audio sample rate from LPCM 2CH, LPCM 5.1CH and LPCM 7.1CH 48 kHz or LPCM 2CH, LPCM 5.1CH and LPCM 7.1CH 96 kHz or LPCM 2CH and LPCM 5.1CH 192 kHz.
-
Page 12: Osd Menu
7 OSD MENU Press the button from the device to bring up the OSD on the display. • Press pattern’s ▲/▼ to highlight on option • Press to confirm the selection ... -
Page 13: System Info
7.1 System Info Press this button to show the EDID information for any connected device. When an output display is connected, press this button repeatedly to bring up the patterns for display (Refer to Section 10 for pattern details). Press to check the input/output device information and ... -
Page 14: Cec Command
7.4 CEC Command OPTION DESCRIPTION Stand By To set the source to standby mode Active Source To turn on the source Monitor (Read) To detect the command data on the CEC Note: Source equipment must support CEC function in order to activate this function. -
Page 15: Oled Display
8. OLED DSPLAY 48K 2CH 1080P@60 H:1920 3DTB Sampling Rate The Analyzer supports audio sampling rates of 48/96/192 kHz, display will show the signals current sample rate. If external audio is selected the OLED will display 'BYPASS'. Audio Channels The device supports audio channels from LPCM 2, 5.1 and 7.1CH. If external audio is selected the OLED will display 'BYPASS'. -
Page 16: Timing Table (Pattern Mode)
9. TIMING TABLE (PATTERN MODE) Resolution V Hz 480p 480i 720P 1080i 1080p 576i 576p 720p 1080i 1080p 1080p 640×480 800×600 1024×768 1280×1024 1920×1200 720p (3D Frame Packing) 720p (3D Side-by-Side) 720p (3D Top-to-Bottom) 720p (3D Frame Packing) 720p (3D Side-by-Side) 720p (3D Top-to-Bottom) 1080p (3D Frame Packing) 1080p (3D Side-by-Side) -
Page 17: Support Pattern Table
10. SUPPORT PATTERN TABLE GROUP PATTERN Description Primary colors: Red, Green, Blue P1: Red P2: Green P3: Blue P4: Horizontal RGB Bar P5: H Grey Scale P6: HDCP handshaking and link- integrity test... - Page 18 P7(FP): Frame Packing Non-3D Display (FP) P7(FP): Frame Packing 3D Display P7(SH): Side-by- Side (Half) Non-3D Display (SH) P7(SH): Side-by- Side (Half) 3D Display P7 (TB): Top- and-Bottom Non-3D Display (TB) P7 (TB): Top- and-Bottom 3D Display...
-
Page 19: Connection Diagram
11. CONNECTION DIAGRAM For checking both the source and display device's information, press M/ to display the System Information. 1080P@60 DVD or Blu-ray H:1920 Player Monitor or HDMI 3D TV For checking only the display device's supported timings, connect the HDMI output only to the display device and press the PATTERN and TIMING buttons. -
Page 20: Specifications
12. SPECIFICATIONS TMDS Clock Frequency 225 MHz Input Port 1× HDMI (Female type) Output port 1× HDMI (Female type) EXT Mode (HDMI input) HDMI Resolution 480i/p, 576i/p, 720p~1080p PC Resolution VGA~WUXGA INT Mode (internal pattern) HDMI Resolution 480i/p, 576i/p, 720p~1080p PC Resolution VGA~SXGA, WUXGA 3D Resolution...
