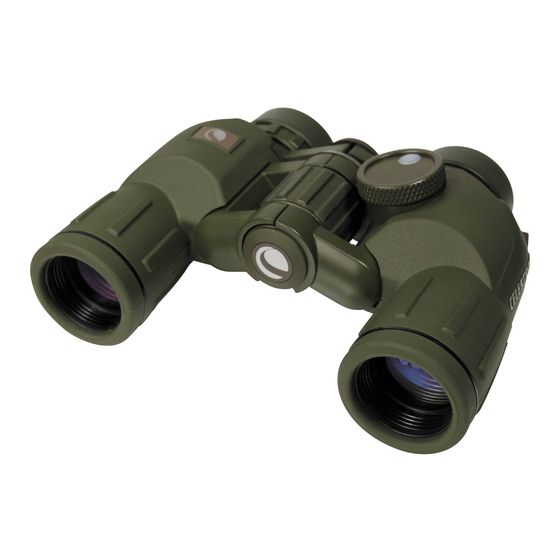

Celestron Cavalry 71420 Manual

Cavalry series binocular/monocular
Hide thumbs Also See for Cavalry 71420:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
BINOCULARS | JUMELLE
BINOCUL A R ES | FERNGL A S
BINOCOLI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cavalry 71420 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Celestron Cavalry 71420

Summary of Contents for Celestron Cavalry 71420

  • Page 1 BINOCULARS | JUMELLE BINOCUL A R ES | FERNGL A S BINOCOLI...
  • Page 2 CAVALRY BINOCULARS AND MONOCULAR ® Thank you for purchasing a Celestron Cavalry binocular/monocular. We trust this binocular/ monocular will provide you with years of enjoyment and faithful service. Please read the instructions carefully before using your binocular/monocular to ensure proper use and care.
  • Page 3 WARNING: Viewing the Sun may cause permanent eye damage. Do not view the Sun with your binoculars/monocular or even with the naked eye. ADJUSTING THE INTERPUPILLARY DISTANCE (IPD) The interpupillary distance, or the distance between the pupils, varies from person to person.
  • Page 4 SETTING THE DIOPTER / FOCUSING Models 71420, 71424, and 71426 5. Viewing the same object, adjust the diopter ring until the image viewed with your right To ensure a crisp, sharp image the focusing eye is clear and sharp. system of the binocular must be set to compensate for any differences in your 6.
  • Page 5 Model 71422 The Cavalry 7x50 utilizes an individual focus 4. Cover the left objective lens with your hand system which requires you to focus each or objective lens cap. eyepiece to ensure a crisp, sharp image. This 5. Viewing the same object, rotate the right is achieved by setting the diopter (located on eyepiece until the image viewed with your each eyepiece) before use.

  • Page 6: Eyecup Adjustment

    Model 71215 The focus of the Cavalry 8x42 monocular Focus Ring is adjusted by simply turning the focus ring located in front of the eyepiece. Tip: Eyeglasses worn for nearsightedness should be worn when using a binocular/monocular as you may not be able to obtain focus at infinity without them.
  • Page 7 TRIPOD ADAPTABILITY The Cavalry binoculars feature built-in threads that allow the binocular to be attached to a tripod using a binocular tripod adapter. These threads can be accessed by unscrewing the logo plate found on the front of the hinge (Fig. 7). To attach the binocular to a tripod, thread the adapter into the binocular and attach the other end of the adapter to a photographic tripod.
  • Page 8 USING THE RETICLE Cavalry models 71420, 71422 and 71215 Note: The reticle varies slightly from model to model but this does not have an integrated reticle that can be used to affect how distance and size are calculated. estimate size and distance. The reticle is divided into 10mil increments with 5mil marks between each 10mil increment.
  • Page 9 Target Size (Inches) x 27.8 For example: = Range (Yards) Measured Mils You range a 6-foot tall man (2 yards) that is 20mils tall and you want to know the distance to him. Target Size (Meters) x 1000 = Range (Meters) 2 (Yards) x 1000 Measured Mils = 100 Yards...
  • Page 10 CALCULATING SIZE (HEIGHT AND WIDTH) Using the simple formulas below, you can effectively determine the size of a target if the distance to the target is known. Range (Yards) x Measured Mils = Target size (Yards) 1000 Fig. 10 Range (Yards) x Measured Mils = Target size (Inches) For example: 27.8...
  • Page 11 INTEGRATED COMPASS Models 71420, 71215 Note: When using the compass always keep in mind the local variation Models 71420 and 71215 have a built in between magnetic north (the compass reading) and true north. When 6400mil analog compass. The compass reading holding the binocular make sure that your finger/hand is not covering the is aligned with the vertical line of the reticle and white button (compass window) on the top of the binocular as it allows...
  • Page 12 Model 71422 Model 71422 has a built-in LCD screen that displays three modes: GPS, digital compass, and level. The unit is powered by one CR123A battery (included). INSTALLING THE BATTERY The battery included in the case with your Note: To conserve battery life, turn off the electronic functions of the binocular powers the electronics that run the binocular when not in use.

  • Page 13: Power Button

    POWER BUTTON Press and hold the power button for 2-3 Screen Lock seconds to power the unit on and off. If the power button is pressed quickly while the unit is Power Button Mode Button on, a red padlock icon will appear to the left of the battery indicator, indicating the screen lock has been activated.

  • Page 14: Gps Mode

    GPS MODE When the device is in GPS mode, a signal icon Signal designated by four vertical bars of increasing height will appear in the upper left hand corner Latitude of the LCD screen. While a signal is being Longitude acquired, the icon will flash red.

  • Page 15: Compass Mode

    COMPASS MODE In compass mode, the screen displays a digital Keep in mind that the digital compass points compass and readings (in both degrees and to true North, which is different from the analog mils) for the bearing that the objective lenses compass reading of the other Cavalry models.

  • Page 16: Care And Storage

    CARE AND STORAGE Your Celestron binocular/monocular will provide you years of dependable service if it is cared for and stored properly. 1. Protect the binocular/monocular from impact 4. When storing for an extended period of time, and do not force any of the moving parts place the binocular/monocular in a plastic beyond their limits.
  • Page 17 If warranty problems arise or repairs are purchased your binocular/monocular from or necessary, contact the Celestron customer the Celestron distributor in your country. A list service department if you live in the United of our distributors can be found on our website.

  • Page 18: Warranty

    Celestron will repair information. Additional warranty information and or replace the binoculars/monoculars which, eligibility details can be found on the Celestron upon inspection by Celestron, are found to website. be defective in materials or workmanship and This product is designed and intended for use by those 14 years of age and older.
  • Page 19 Liability Notice In no event shall Celestron be liable for any incidental, special, indirect or consequential damages, whether resulting from the use, misuse, or inability to use this product or from the defects in the product. Some states do not allow the exclusion of incidental or receiver is connected.
  • Page 20 Telephone: 800.421.9649 ©2013 Celestron This product is designed and intended for use by those 14 years of age and older.
  • Page 21 ©2013 Celestron. All rights reserved.

This manual is also suitable for:

Cavalry 71215Cavalry 71422Cavalry 71424Cavalry 71426
