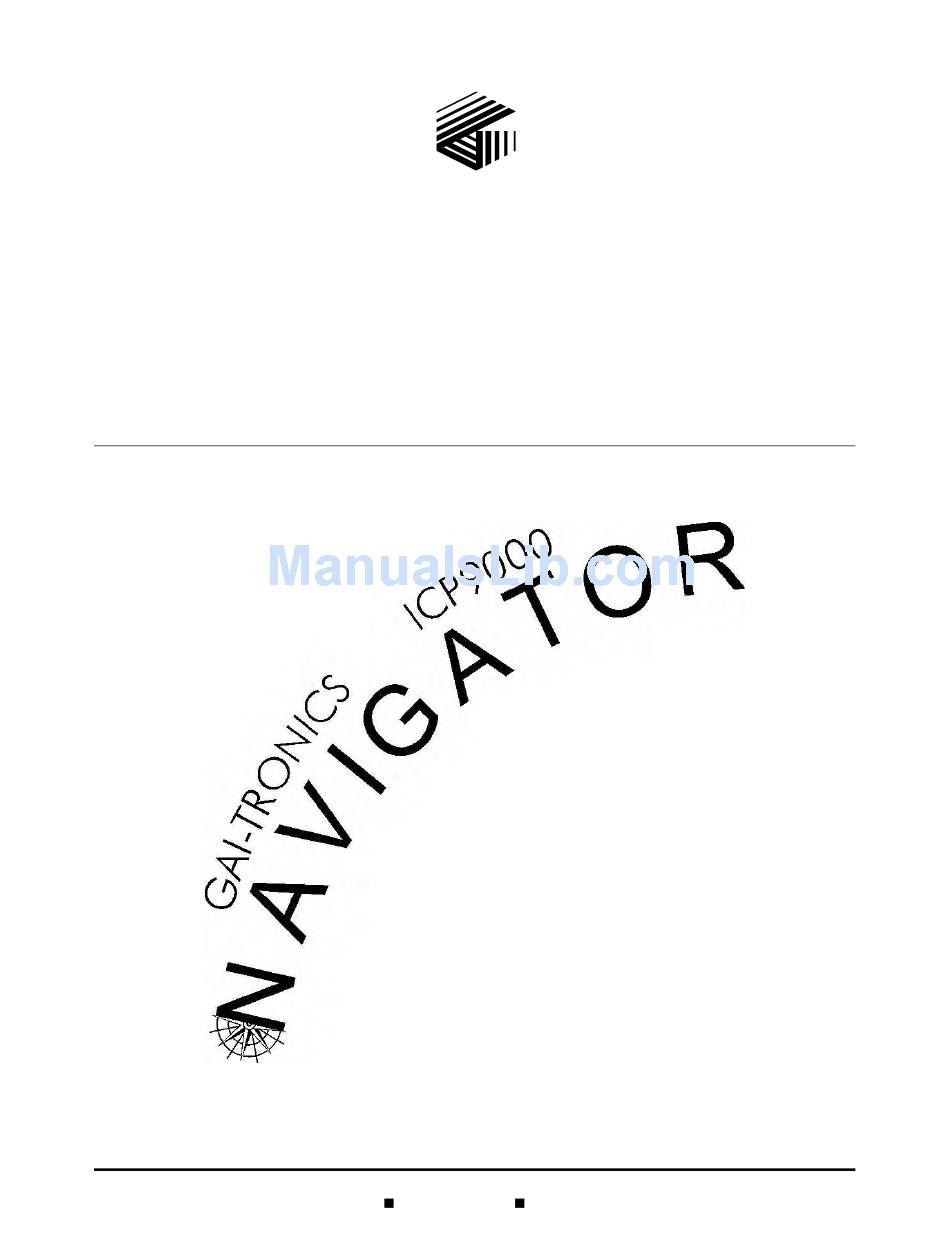

Model ICP9000
Navigator Series Console
Installation and Service Manual
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
610-777-1374
V
.
ISIT WWW
GAI
G A I - T R O N I C S ® C O R P O R A T I O N
A H U B B E L L C O M P A N Y
800-492-1212
-
.
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
Fax: 610-796-5954
Pub. 43004-024H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICP9000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GAI-Tronics ICP9000

  • Page 1 A H U B B E L L C O M P A N Y Model ICP9000 Navigator Series Console Installation and Service Manual GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA 610-777-1374 800-492-1212 Fax: 610-796-5954 ISIT WWW...
  • Page 2 GAI-Tronics. WARRANTY GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.

  • Page 3: Table Of Contents

    COPE OF ANUAL ..........................2 RDERING EPLACEMENT ARTS ..............................2 ERVICE AND EPAIR CMOS I ..................3 ANDLING OF NTEGRATED IRCUIT EVICES ICP9000 N ..................4 EATURES OF THE AVIGATOR ERIES ONSOLE PC ....................5 YSTEM EQUIREMENTS FOR USTOMER UPPLIED ................................6 ODEL HART .................................9 PECIFICATIONS DESCRIPTION .................................11...
  • Page 4 Table of Contents ICP9000 Navigator Installation and Service Manual Setup - Operator Setup............................33 Setup - Control Setup ............................36 Setup - Card Suite File............................37 Tools – Error Log ...............................37 Tools - Options – Create Profile.........................38 Tools - Options - Save Profile..........................39 Tools - Reset Console............................39...

  • Page 5: Foreword

    REN is separately shown on the label. If this equipment [GAI-Tronics telephone] causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible.

  • Page 6: Scope Of Manual

    ICP9000 Navigator Installation and Service Manual Scope of Manual This manual offers descriptive data and service information for the ICP9000 Navigator Series Console. Service diagrams and printed circuit board details are a part of this service manual. The ICP9000 Navigator Series Console Operator’s Manual, Pub. 43004-025, is another publication related to the operation of the console.

  • Page 7: Safe Handling Of Cmos Integrated Circuit Devices

    ICP9000 Navigator Installation and Service Manual Foreword Safe Handling of CMOS Integrated Circuit Devices Many of the integrated circuit devices used in communications equipment are of the Complementary Metal Oxide Semiconductor (CMOS) type. Because of their high open circuit impedance, CMOS integrated circuits are vulnerable to damage from static charges.

  • Page 8: Features Of The Icp9000 Navigator Series Console

    Foreword ICP9000 Navigator Installation and Service Manual Features of the ICP9000 Navigator Series Console • Enhanced multi-tasking operation • Graphical User Interface (GUI) features touch-screen, mouse or wand support • Desktop layout customizable each operator, including right or left-hand operation •...

  • Page 9: System Requirements For Customer-Supplied Pc

    • Sound Card (Soundblaster is recommended) with Line-In jack OTES 1. The ICP9000 Navigator operating software is not currently compatible with Windows Vista operating system. 2. The use of high-quality, PC speakers (minimum 4-watt output) is strongly recommended. In addition, the operating environment should be a controlled environment such as typical office conditions without extremes in temperature, humidity or dust.

  • Page 10: Model Chart

    (04A = 4 channels, 08A = 8 channels, 12A = 12 channels). Factory-installed options are identified in the display area of the Navigator PC screen upon the initial application of power. The following is a list of the ICP9000 Navigator Series Console models: Model...
  • Page 11 ICP9000 Navigator Installation and Service Manual Foreword The following options may be ordered pre-installed in your ICP9000 Navigator Series Console: Option Description CP0010 DC Control (Order one for each dc channel) CP0040 E&M Signaling (One option for every four channels – requires CP0050)
  • Page 12 Foreword ICP9000 Navigator Installation and Service Manual The following field installation kits and accessories are available for installation in the ICP9000 Navigator Series Console: Description XCP0010A DC Control Kit (one per dc channel) XCP0030A 25-Pair Telco Interface Kit XCP0040A 4-Channel E&M Signaling Kit (requires CP0050 or XCP0050A)

  • Page 13: Specifications

    1250, 1150, 1050, 950, 850, and 750 Default function tones....................F1 Transmit: 1950 Hz F2 Transmit: 1850 Hz F3 Transmit: 1350 Hz F4 Transmit: 1250 Hz Monitor: 2050 Hz Functional tones are selectable via GAI-Tronics’ CARD Suite Software Application 12/10...
  • Page 14 Audio out to phone line..................... F1 Transmit: +5.5 mA F2 Transmit: +12.5 mA Monitor: −2.5 mA Output currents are selectable via GAI-Tronics’ CARD Suite Software Application FCC Information FCC Registration Number ..................US: ADGOT01B46053 Ringer Equivalence Number (REN) ......................1 Network Connection (USOC)........................

  • Page 15: Description

    PC. Its graphical user interface (GUI) supports touch- screen, mouse or wand operation. It uses tone remote control to interact with the base stations, but dc remote control and E&M control are available as options. The ICP9000 Navigator allows control of up to 12 individual base stations.

  • Page 16: Dc Remote Control

    Description ICP9000 Navigator Installation and Service Manual DC Remote Control DC control is a method of remote radio control. This scheme uses dc currents of differing magnitudes and polarities to command the radio to perform various tasks. The dc control currents are directly impressed upon the audio wire line connections between the console and base stations.

  • Page 17: Installation

    Installation The ICP9000 Navigator Series computer (purchased separately) can be placed on any flat level surface that provides the operator with a comfortable working position with full visibility of the computer desktop screen controls and indicators. The MCU can be placed up to 50 feet away in a convenient location, using the RS-232 connection.

  • Page 18: Cable Installation Safety Considerations

    Telephone Line Lightning and Over-voltage Protection The ICP9000 Navigator has an over-current phone line fuse that protects against occasional extreme fault conditions that may get past the primary protectors. An example of such a fault condition is a power line cross.

  • Page 19: Line Level Settings

    ICP9000 Navigator Installation and Service Manual Installation Line Level Settings The ICP9000 Navigator Console allows the installer to adjust level settings through the on-screen diagnostics. These procedures assume that the base stations have been properly adjusted. Line Input (Receive Audio) Level Adjustment The line input level adjustment allows the receive audio of each channel to be compensated for line loses between the base station and console, ensuring the optimum audio performance of the console.

  • Page 20: Types Of Base Station Control

    ICP9000 Navigator Installation and Service Manual Types of Base Station Control The ICP9000 Navigator is capable of either tone or dc control depending on the position of jumpers JU620 through JU623. For dc control, the console must have option CP0010 or XCP0010A. Refer to Table 2.

  • Page 21: Mcu Connections

    All of the electrical connections to the console are made at the rear panel. Power to the console is furnished through a 5-pin, DIN connector, P5. The Figure 3 shows the rear view of the ICP9000 Navigator MCU and the locations of the various connectors. The pinout for the power DIN connector is shown in Table 4: Table 4.

  • Page 22: Power Supply (3308-00124-00)

    ICP9000 Navigator Installation and Service Manual Power Supply (3308-00124-00) The ICP9000 Navigator MCU requires an external power supply provided with the unit. This is a self- contained unit that can be located at some convenient spot near the MCU. It requires an input of 90–264 V ac 50-60 Hz and delivers a regulated output of 12 V dc at 4.2 amps maximum.

  • Page 23: Model Xaab002A Audio Accessory Box Connections

    ICP9000 Navigator Installation and Service Manual Installation Model XAAB002A Audio Accessory Box Connections The rear panel connector TB3, an 8-pin removable terminal block, provides connections for the Model XAAB002A Audio Accessory Box, if it is not installed directly next to the MCU. Use a multi-pair 8- conductor cable to connect TB3 on the MCU to J1 on the Audio Accessory Box.

  • Page 24: Selected/Unselected Audio Connections

    Installation ICP9000 Navigator Installation and Service Manual Selected/Unselected Audio Connections The rear panel connector TB2, a 4-pin removable terminal block, provides connection from the MCU to the line-in jack on the computer’s sound card. Cable Part No. 61531-029 is provided to connect the audio to the computer.

  • Page 25: Mcu To Pc Communications Connections

    Use a multi-twisted pair cable for the RS-485 connection. An RS-485 converter at the PC side is required. An externally powered full duplex with a ground converter, such as GAI-Tronics Part No. 69275-026, is recommended. Depending on the converter used, terminating resistors maybe required.

  • Page 26: Rs-485 Cable For Navigator Mcu To Edgeport Usb Converter

    Installation ICP9000 Navigator Installation and Service Manual RS-485 Cable for Navigator MCU to Edgeport USB Converter Table 7. Wiring Diagram Edgeport Navigator Connector Number Description Connector (TB1) Number Description DB-9 female No connection DB-9 female No connection RX − DB-9 female TX Data Neg.

  • Page 27: Accessories

    Refer to Figure 8 below for the board position of JU5 and JU6. The default for these jumpers is OUT. Figure 8. Main Board Microphone Jumper Positions NOTE The following sections discuss the connections for accessories that may or may not be available for your set up. Please contact GAI-Tronics Customer Service for additional information. 12/10...

  • Page 28: Xcp0140A Headset Interface Box

    Installation ICP9000 Navigator Installation and Service Manual XCP0140A Headset Interface Box Table 9. Headset Modular Jack The interface box allows the use of several headset accessories, Pin No. Pin Function such as the Startset II, Supra headband-style monaural headset, and TX Lo Supra headband-style noise-canceling headset.

  • Page 29: System Jumper Table

    (parallel or single console). Refer to Figure 9. The ICP9000 Navigator MCU is shipped with all line termination resistors in place. For parallel operation of multiple consoles, the last console on any particular line should have its 2W or 4W termination jumpers in place and any intermediate console should have the line termination jumpers removed.
  • Page 30 Installation ICP9000 Navigator Installation and Service Manual The Figure 9 shows the positions on the upper portion of the CSD slave board. Figure 9. 2-Wire/4-Wire Jumper Configuration 12/10...

  • Page 31: Card Suite Programming Software

    Connections The GAI-Tronics equipment must be connected to your personal computer with the programming cable, part number XAC0170A, before the programming software can be used. To make this connection, attach the cable to the COM1 or COM2 connector on the computer.
  • Page 32 CARD Suite Programming Software ICP9000 Navigator Installation and Service Manual 12/10...

  • Page 33: Navigator Configuration

    Navigator Configuration Customizing the Navigator Desktop The Navigator offers great flexibility in customizing the layout to suit each operator. Customization allows the following: • The boarder of each channel can be color-coded per operator to group similar services. • The channels can be placed in the channel area above the information window in any position or order per operator to ease use and to reduce eye fatigue.

  • Page 34: Menu Functions

    Navigator Configuration ICP9000 Navigator Installation and Service Manual Menu Functions File Open Opens and copies the database ICP9000Config.mdb to the specified path. This is used with a previously saved database. The database includes all user profiles. Figure 11. 12/10...

  • Page 35: File Save

    ICP9000 Navigator Installation and Service Manual Navigator Configuration File Save Saves the database to a path determined by the user. Use the Open function to retrieve the originally saved database. Figure 12. The above section refers to backing up the profile database.

  • Page 36: Setup - Configure Database

    Navigator Configuration ICP9000 Navigator Installation and Service Manual Setup - Configure Database Use this form to add the channel button labels, programmable button names, and alert tone button labels. OTES 1. Channel button labels must be 12 characters or less, programmable button names must be six characters or less, and alert tone labels must be six characters or less.

  • Page 37: Setup - Operator Setup

    ICP9000 Navigator Installation and Service Manual Navigator Configuration Setup - Operator Setup The Operator Setup form contains two tabbed sections, Operator Options and One-Touch Options. The Operator Options tab is divided into four sections, Operator Options, Tool Options, Channel and Control Selection, and is used to configure the operator characteristics for an individual operator profile.
  • Page 38 Navigator Configuration ICP9000 Navigator Installation and Service Manual Tool Options The Tool Options allow the user to configure which buttons are available in the Navigator tool bar for each individual operator. The factory default setting displays all available buttons. Channel Selection The Channel Selection section determines which channels are displayed in the main window for each individual operator.
  • Page 39 ICP9000 Navigator Installation and Service Manual Navigator Configuration One Touch Options The One Touch Options portion of the form enables the user to select which aliases are available to each individual operator. The left window displays all aliases that are unassigned to this operator. The right window displays those aliases assigned to this operator.

  • Page 40: Setup - Control Setup

    Navigator Configuration ICP9000 Navigator Installation and Service Manual Setup - Control Setup The Control Display is divided into 32 frames. Each frame contains setup functions for an individual control button. The control caption box allows up to 13 characters for alias labeling. Choosing the Momentary button causes the output to be turned on until the control button is released.

  • Page 41: Setup - Card Suite File

    The operator uses this menu item to open a Card Suite configuration file. An existing archive file must be exported from the ICP9000 using the Card Suite software, creating a filename with the .cst extension. The Navigator GUI opens this file, and extracts the paging alias information from the archived data. The paging alias information is used when configuring the available one-touch paging aliases for operator profiles.

  • Page 42: Tools - Options - Create Profile

    Navigator Configuration ICP9000 Navigator Installation and Service Manual Tools - Options – Create Profile While this form is visible, the layout of the desktop can be configured. Several aspects of the GUI can be altered to allow for different profiles: The position of each channel can be changed by clicking on and dragging the frame of a channel to a new location.

  • Page 43: Tools - Options - Save Profile

    ICP9000 Navigator Installation and Service Manual Navigator Configuration Tools - Options - Save Profile Saves settings to the current user logged on. The shortcut key combination is <Ctrl+S>. Tools - Reset Console This reboots the console’s MCU. Logon The Operator Log On box allows the user to login to Navigator. If a profile had been saved for that user, the settings are applied.

  • Page 44: Diagnostics

    Navigator Configuration ICP9000 Navigator Installation and Service Manual Diagnostics Opens a window where console diagnostics can be accessed. This screen is password-protected and should only be accessed by authorized personnel. Window - Organize Allows the toolbar to be organized for left-hand or right-hand operation.

  • Page 45: Console Diagnostics

    Console Diagnostics Entering the Diagnostic Mode The ICP9000 Navigator Series Console contains several internal diagnostics designed to assist in the installation and servicing of the unit. The opening menu for these diagnostics is accessed by selecting Diagnostics from the menu bar. Each of the selections from the opening menu links to another menu that lists settings or other diagnostic and installation aids.

  • Page 46: User Parameters Menu

    Console Diagnostics ICP9000 Navigator Installation and Service Manual User Parameters Menu The User Parameters menu is shown below. USER PARAMETERS 1) SIDE TONE VOLUME ADJUST 2) MIC SELECTION/SENSITIVITY 3) PRINTER ERROR <1–3> TO SELECT <MODE> TO EXIT Figure 23. User Parameter Menu Side Tone Volume Adjust Side tone is the tone as heard by the operator during tone generation.

  • Page 47: Microphone Selection And Sensitivity

    ICP9000 Navigator Installation and Service Manual Console Diagnostics Microphone Selection and Sensitivity There are two microphone ports available on the Navigator when microphones are locally connected to the Navigator MCU. These are the desk/hand/headset port and the gooseneck port. By default, the Navigator is shipped with the desk/hand/headset port selected.

  • Page 48: Printer Error Messages

    Console Diagnostics ICP9000 Navigator Installation and Service Manual Printer Error Messages The console supports the use of a serial printer to log decoded ANI information as well as access to other diagnostic data. If the printer is enabled through the CARD Suite software and the console detects and error, PRINTER ERROR is displayed on the bottom line of the information window unless the printer error message is disabled.
  • Page 49 ICP9000 Navigator Installation and Service Manual Console Diagnostics Test 2 – Audio Loop Test Before running this test, any external connections that configure the console for 2-wire operation should be removed. Test 2 allows testing the wire line input and output audio paths for any channel. To execute this test, place different audio sources on the receive wire line connections for each channel to be tested.

  • Page 50: Internal Diagnostics

    Console Diagnostics ICP9000 Navigator Installation and Service Manual Internal Diagnostics Internal diagnostics are used to ensure the proper function of certain aspects of the MCU. Certain internal tests may be performed to test the operation of a console feature or to troubleshoot a problem. For certain tests it is advised to disconnect the MCU from any landlines or other devices before performing the test.

  • Page 51: Alert Level

    ICP9000 Navigator Installation and Service Manual Console Diagnostics Alert Level When 3 is selected from the Service Diagnostic menu, and the correct password had been entered, the Alert Tone Level may be adjusted. The alert tone level is adjusted by using the scroll keys to increase or decrease the tone level.

  • Page 52: Start-Up Display

    Boot-Up Error Code Definitions The following error codes are displayed automatically upon boot-up: Master – 00 If anything other than 00 is displayed for the master error, contact GAI-Tronics field service. Slave – 00 00 00 00 = OK 01 = Slave not present...

  • Page 53: Features And Options

    If, however, five or more frequencies are enabled for a channel, the F1 - F4 keys assume the function of SELECT, UP, HOME and DOWN for that channel. Refer to the ICP9000 Navigator Series Console Operator’s Manual, available in the XAC2000A Navigator Software, for complete user instructions.

  • Page 54: Positive Mode Control/Secure

    Up to four Console Interface Units (CIUs) can be connected to and controlled by the ICP9000 Navigator MCU through the I/O pins of the RS-232 & I/O. These pins are assigned automatically to channels that have secure operation enabled via the CARD Suite Software.

  • Page 55: Printer Interface

    ICP9000 Navigator Installation and Service Manual Features and Options Printer Interface The Printer feature, when enabled through the CARD Suite Software, allows a printed log of receive DTMF decode and signaling information to be captured. Optionally, an application such as Windows HyperTeminal may be used on the Navigator PC to capture this data.

  • Page 56: Logging Recorder Output Module

    ICP9000 Navigator Installation and Service Manual Logging Recorder Output Module This standard feature consists of an additional board that is installed in the ICP9000 Navigator MCU. This feature adds a logging recorder output that provides a line-level sum of the transmit mic audio, paging tones, receive audio, parallel console audio, and all signaling.
  • Page 57 : The XCP0010A DC Control Option has been factory-calibrated to provide the standard control currents and does not normally require field adjustment. 10. Reconnect power to the ICP9000 Navigator MCU. After the MCU has been reassembled, it is necessary to program the MCU. Using the CARD Suite software, edit the channel parameters accordingly.

  • Page 58: 4-Channel E&M Control Cp0040/Xcp0040A

    Features and Options ICP9000 Navigator Installation and Service Manual 4-Channel E&M Control CP0040/XCP0040A The 4-Channel E&M Control Option consists of an additional board that must be installed into the required supervisor option CP0050/XCP0050A of the MCU. This option adds E&M control in groups of four channels, up to 12 channels, to the console.

  • Page 59: Supervisory Control Cp0050/Xcp0050A

    FCC regulations. The unit mounts as a “bustle-back” on the rear panel of the console. Refer to the ICP9000 Navigator Series Console Operator’s Manual, available in the Help menu of the XAC2000A Navigator Software, for user instructions for the supervisory control.

  • Page 60: External Enhanced Full Duplex Phone Interface Cp0060 (Option Code Cth)

    (or pin 1) is grounded, the off-hook sense is activated. When activated, the console either automatically takes the phone off-hook (if possible) or provides a ringing indication that an off-hook request is being made. Refer to the ICP9000 Navigator Series Console Operator’s Manual, Pub. 43004-025, for user instructions for the External Phone Interface option.

  • Page 61: 25-Pair Telco Interface Xcp0030A

    The Telco Interface Kit adapts the DB25 rear panel connectors to a single 50-pin standard connector USOCK designated RJ27X. The unit mounts on the rear panel of the ICP9000 Navigator MCU and plugs into the three DB25 connectors, P40 (a) (b) (c). The Model XCP0030A 25-Pair Telco Interface Kit...
  • Page 62 ICP9000 Navigator Installation and Service Manual Supervisory Mounting 1. Disconnect the power from the ICP9000 Navigator MCU and remove all attached cables from the rear cover. Remove the stand-offs. 2. Mount the Telco Interface (where applicable) to the Supervisory unit on the rear of the console.

  • Page 63: Battery Revert Xcp0080A

    The standard battery revert feature consists of several components located on the main board of the ICP9000 Navigator MCU. In order to provide for battery back-up, a secondary power source capable of providing the necessary power for the MCU must be connected to pins 2 (+) and pins 1 or 4 (-) of the main power connector, P5, of the MCU.

  • Page 64: Mdc1200 Stat-Alert Signaling Cp0650/Tdn9413A

    Features and Options ICP9000 Navigator Installation and Service Manual MDC1200 STAT-ALERT Signaling CP0650/TDN9413A The ICP9000 Navigator’s MDC1200 Stat-Alert Signaling option supports encode and decode of MDC1200 data. To access the signaling screen, press the button located in the Navigator SIGNALING toolbar.

  • Page 65: Rapidcall Buttons

    ICP9000 Navigator Installation and Service Manual Features and Options The Navigator supports the printing or logging of RapidCall traffic. Upon receipt of any call type and for clearing of Emergency Alerts, a printer log entry is made. Using CARD Suite, the printing of each type of call, incoming and outgoing, can be enabled and disabled.
  • Page 66 Features and Options ICP9000 Navigator Installation and Service Manual Selecting a unit ID for transmission is accomplished in one of three ways. • Instant Send – If a valid unit ID or alias name is shown on the second line of the information...
  • Page 67 ICP9000 Navigator Installation and Service Manual Features and Options Short Call Alert For transmitting to older radio systems, a Short Call Alert may be used. A Short Call Alert is made by pressing the button. The second line of the information window will flash “*CALL...
  • Page 68 Features and Options ICP9000 Navigator Installation and Service Manual Selecting a unit ID for transmission is accomplished in one of the three ways discussed previously in the Call Alert section. However, since this call type must be used with care, group and wildcard ID’s are not permitted.

  • Page 69: Receiving Rapidcall Transmissions

    ICP9000 Navigator Installation and Service Manual Features and Options Select Call When the button is pressed, the second line of the information window flashes “*SELECT ELECT CALL*.” The border indicator of the button flashes indicating that an ID may now be ELECT selected.
  • Page 70 Features and Options ICP9000 Navigator Installation and Service Manual Pressing the EMR RESET button will silence the alert tone and the queued emergency will stop flashing. A printer log entry will be made indicating the time that the Emergency Alert was cleared by the operator.

  • Page 71: Paging

    Paging Types of Paging The ICP9000 Navigator supports the following types of paging: DTMF, 2-Tone, Plectron 5/6-Tone, 1500, 2805, and Immediate DTMF. The CARD Suite Software application is used to set the parameters for these paging types. : In many applications below 800 MHz, the maximum allowable signaling time, as prescribed by FCC regulations, is 3 seconds and only signal once.

  • Page 72: Group Call

    Paging ICP9000 Navigator Installation and Service Manual 4. The first digit of this number (6 in this example) corresponds to a number under the Group # heading on Table 21, and indicates which row of frequencies on Table 21 will be used for the A tone. In this example, the A tone number entered by the console operator is 4, which corresponds to 1251.4 Hz.
  • Page 73 ICP9000 Navigator Installation and Service Manual Paging Table 20. Code Plans Important Note: The 1 digit indicates Chart A Group # Source for the A tone, and the 2 digit indicates Chart A Group # Source for B Tone. Code...
  • Page 74 Paging ICP9000 Navigator Installation and Service Manual Table 21. Tone Group Frequency Chart The chart below cross-references the 2-Tone Paging Code to the frequency in Hz. Tone Group Group # 330.5 349.0 368.5 389.0 410.8 433.7 457.9 483.5 510.5 539.0 569.1...

  • Page 75: Plectron Paging

    ICP9000 Navigator Installation and Service Manual Paging Plectron Paging The Plectron paging feature requires a 4-digit prefix (capcode). Like 2-Tone paging, the capcode and code plan determine at what frequency the paging tones are transmitted. Plectron paging uses the Plectron Code Plan Chart (Table 22) and Plectron Tone Group/Frequency Chart (Table 23).
  • Page 76 Paging ICP9000 Navigator Installation and Service Manual Table 22. Plectron Paging Code Plan Chart Most Significant Digits-to-Tone Source 2 (MS) Digits digit tone P1 P2 source digit tone P1 P2 source 2 (MS) Digits digit tone P5 P2 source digit tone...

  • Page 77: 5/6-Tone Paging

    ICP9000 Navigator Installation and Service Manual Paging 5/6-Tone Paging The 5/6-tone paging type provides a method to page a series of tone bursts that can be customized based on the type of 5/6-tone paging and a 2-digit preamble. Motorola EIA 5/6-tone paging supports a programmable preamble frequency and dual addressing.
  • Page 78 Paging ICP9000 Navigator Installation and Service Manual Table 25. 5/6 Tone Paging Tone Timing 5/6 Tone Type Extended Motorola BOS/ Modified 70ms Tone Bruchcal ZVEI ZVEI CCIR CCIR CCIR Preamble (ms) Gap (ms) Address 1000 Tone (ms) Next 4 Tone...

  • Page 79: Troubleshooting

    Troubleshooting The following is a list of potential problems you may encounter and possible solutions. Problem Possible Solution There is partial or no Ensure that the proper COM port is selected within the Navigator communications between application. the MCU and the PC. Ensure that the PC is connected to the MCU properly: RS-232 to RS-232, if connected directly to the PC.
  • Page 80 Troubleshooting ICP9000 Navigator Installation and Service Manual Problem Possible Solution “Printer Off-Line” is being Ensure the printer or additional COM port of the PC is attached and displayed in the information “connected” to the printer/programming port of the MCU. window.
  • Page 81 ICP9000 Navigator Installation and Service Manual Troubleshooting Problem Possible Solution The alert tone or paging The transmit level of both the alert tone and page tone levels may be tones are transmitted at too adjusted, with the Alert Level or Page Level diagnostic, from 0 dBm to –15 high/low of a level.

  • Page 82: Replacement Parts List

    XCP0060A Supervisor PCBA Replacement Kit XCP0050A ICP Lightning Protection Board CP-CLP ICP Power Supply 3308-00124-00 ICP Power Supply with Battery Revert CP-BR-PS ICP9000 Display Extender 69509-001 : For availability of all other parts, please contact the GAI-Tronics Service Department. 12/10...

  • Page 83: Main Circuit Board

    Main Circuit Board 12/10...
  • Page 84 Main Circuit Board ICP9000 Navigator Installation and Service Manual Figure 39. ICP Main Board 69405-001...
  • Page 85 ICP9000 Navigator Installation and Service Manual Schematics Figure 40. ICP9000 Display Extender PCBA...
  • Page 86 Main Circuit Board ICP9000 Navigator Installation and Service Manual Notes:...

  • Page 87: Definitions And Acronyms

    Definitions and Acronyms Term Definition Carrier squelch The identifying number on the outside of the radio pager. It is related to the tone or Capcode digital code that gives the address and other information about this particular pager. Carrier Squelch Detection of a valid mobile signal is based on loss (squelch) of random channel noise.
  • Page 88 Notes: ICP9000 Navigator Installation and Service Manual...
