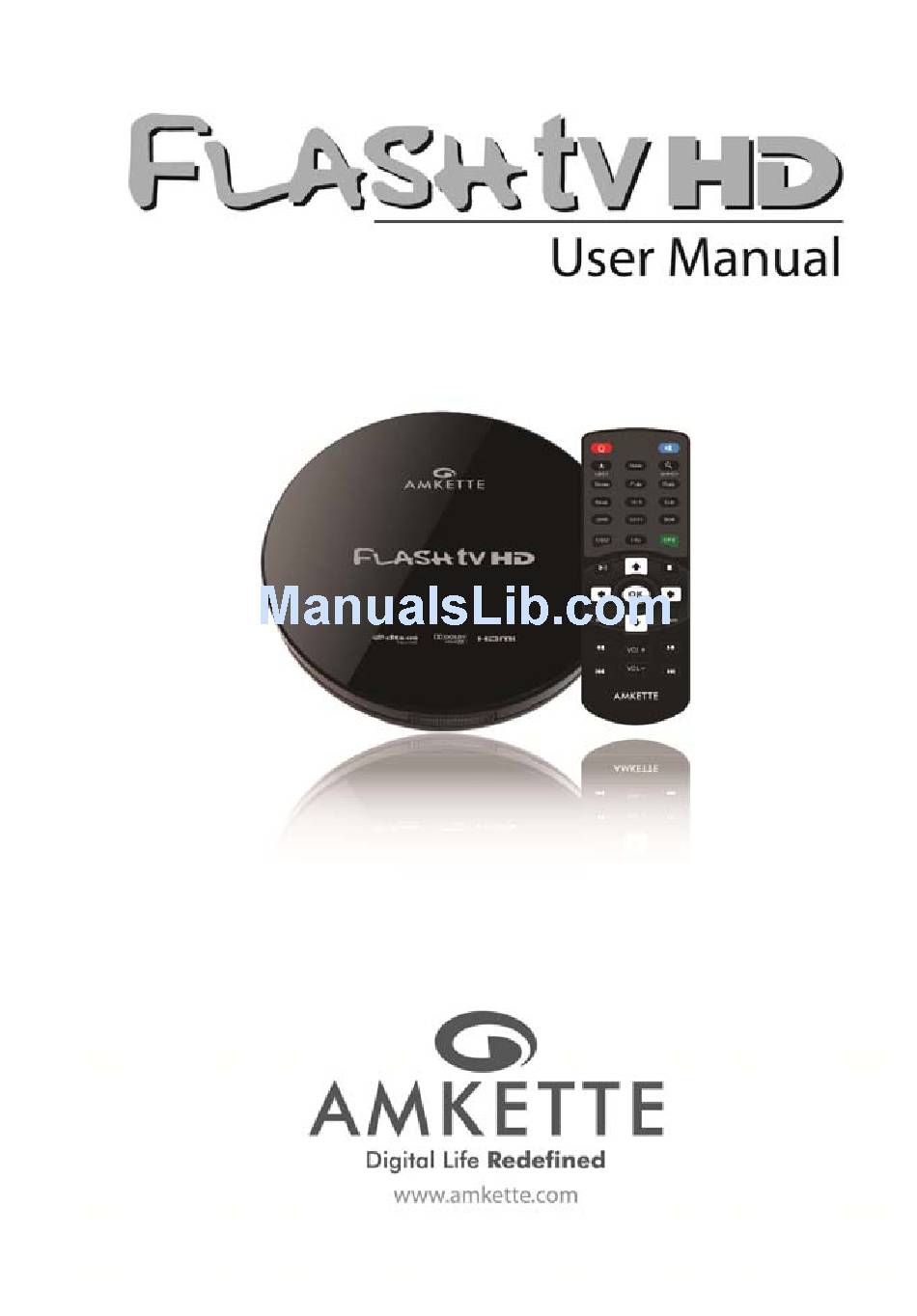

Amkette FlashTV HD User Manual

Amkette flashtv hd media player

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the FlashTV HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Amkette FlashTV HD

Page 3: Table Of Contents
Amkette Flash TV HD Media Player Amkette FlashTV HD Media Player User Manual Functional Characteristics Technical Specifications Exterior View and Instructions of Remote Control Power Connect to the Display Device Remote Control's Coverage Operation Introduction Menu Settings 8.1) System 8.2) Audio Settings 8.3) Video Settings...
Page 4: Functional Characteristics
Amkette Flash TV HD Media Player 1. Functional Characteristics Full-HD 1080P Output(Supports all media-video format and smooth decoding function and VC-1(WMV9-HD), H.264, Mpeg2-Hdvideo encoding, 1920*1080P video definition) Supports MPEG 1/2/4, Divx 3/4/5/6, Xvid, H.263, H.264, WMV, RV 8/9/10 and other video-codes.
Page 5: Technical Specifications
Amkette Flash TV HD Media Player 2. Technical Specifications  Expand Interface USB 2.0 HOST port x 1 (USB 1.1)  HDMI, AV,YPbPr  Memory Card Slots (Support SD/MMC/MS Pro)  Optical/Coaxial Digital Audio HDD Format FAT/FAT 32/ NTFS/EXT3/HFS+ Format Support* MKV, AVI, TS/TP, M2TS, RM/RMVB, WMV, MOV, VOB, DAT, MP3, LPCM, ADPCM, FLAC, AAC, WAV, OGG, JPEG, GIF, PNG &...
Page 6: Exterior View And Instructions Of Remote Control
Amkette Flash TV HD Media Player 3. Exteri ior view and Instructi ion of remote control Allied Electronics and d Magnetics Ltd. All Rights Reserved ev#1.0b...
Page 7 Amkette Flash TV HD Media Player Button Function POWER Press it to start the Player, & to switch it off MUTE Mute all sound output EJECT Press it for two seconds to eject the external DVD HOME Return to the Home Screen...
Page 8: Power
5. Connect to the Display device There are 3 methods to connect FlashTV HD to the TV. The most preferred method is to use the supplied HDMI cable. In the event that you do not have a TV with an HDMI input, you can use the supplied A/V cable.
Page 9: Operation Introduction
Amkette Flash TV HD Media Player 6. Remote Control’s Range  The remote control should be used within 7 meters from the player and within an area of 60 degrees.  The coverage area can change depending on different environmental conditions.
Page 10: System
Amkette Flash TV HD Media Player 8.1) System  On the main menu, press to select System option and press “OK” to enter. Allied Electronics and Magnetics Ltd. All Rights Reserved. Rev#1.0b...
Page 11 Amkette Flash TV HD Media Player Language Press “OK” to enter the multi-language list, use to select a language and press “OK” to confirm. Text Encoding Press “OK” to enter text encoding, use to select a related language and press “OK” to confirm.
Page 12 Amkette Flash TV HD Media Player R/RW If the system reads a DVD-R/RW, press this button to play its contents. Go to Playing R/RW Auto-Play and select yes or no. Press “OK” to confirm. Automatically Screen Savers Press “OK” to enter, select Off or On. Press “OK” to confirm.
Page 13 Amkette Flash TV HD Media Player Keyboard Press “OK” to enter, use to select a language. Press “OK” again to Language confirm. Scanning Press “OK” to enter, use to select scanning type. Press “OK” again Storage Device to confirm. Allied Electronics and Magnetics Ltd. All Rights Reserved.
Page 14 Amkette Flash TV HD Media Player Resume This function allows you to return to a movie from the main menu screen. Playing Press “OK” to enter, use to select format. Press “OK” again to Formatting confirm. Factory The set parameters will change to its factory default settings by pressing this Default button.
Page 15: Audio Settings
Amkette Flash TV HD Media Player 8.2) Audio settings Night You can select “Off” or “On” or “comfort” mode in this section. Mode By selecting “Night Mode” the sound will be automatically adjusted to avoid inconvenience to others. HDMI LPCM, LPCM Muti-CH or Raw type can be selected when the player is on the HDMI Output output.
Page 16: Video Settings
Amkette Flash TV HD Media Player SPDIF The LPCM or RAW of SPDIF can be selected by pressing & “OK” to Output confirm. 8.3) Video Setting Screen Ratio The screen-ratio can be selected as “Pan Scan 4:3, Letter Box 4:3, Wide- Screen 16:9 or 16:10”.
Page 17 Amkette Flash TV HD Media Player TV System The TV Video system can be selected as 1080P 50Hz, 1080P 60Hz, NTSC, PAL, 480P, 576P, 720P 50Hz, 720P 60Hz, 1080i 50Hz or 1080i 60Hz. Press to select and “OK” to confirm. HDMI Auto is the default Option.
Page 18 Amkette Flash TV HD Media Player Noise Select “Off” or “Auto” to reduce the noise. Reduction 1080P 24Hz Select 1080p 24 Hz Allied Electronics and Magnetics Ltd. All Rights Reserved. Rev#1.0b...
Page 20 Amkette Flash TV HD Media Player Version Info Relate version information. Make sure the firmware is copied to the storage device. U Disk Upgrading Select USB upgrade and press “OK” to confirm. After confirmation,the screen goes blank for few seconds.
Page 21 Amkette Flash TV HD Media Player The system starts upgrading automatically. When finished, restart automatically and return back to the main menu. Allied Electronics and Magnetics Ltd. All Rights Reserved. Rev#1.0b...
Page 22: File Management
Amkette Flash TV HD Media Player 9. File Management  Select file manager on the main menu. This function enables you to review music, photos, movies and files stored on the HDD, DVD or external USB device. 10. File Browsing Mode ...
Page 24: File Editing
Amkette Flash TV HD Media Player Preview Mode  Review the file by list, and follow the same steps as in Thumbnail Mode Display All Media  By selecting this option, all stored files including movies, music, photos will be displayed on the screen.
Page 25 Amkette Flash TV HD Media Player Press to select “copy” and then select the file-storage destination. Copying the file to the selected destination.  This function also enables copying of several files at one go. Follow the steps as below: Select “multiple-select”...
Page 26 Amkette Flash TV HD Media Player Select the files you want to copy. See the image below: Press “Green” button to enter file editing and select “copy” to copy the file as instructed in the image below: Allied Electronics and Magnetics Ltd. All Rights Reserved.
Page 28 Amkette Flash TV HD Media Player Delete Follow these steps:  Select a file and press “ Green” button to enter file editing:  to select delete as is shown below: Allied Electronics and Magnetics Ltd. All Rights Reserved. Rev#1.0b...
Page 29 Amkette Flash TV HD Media Player a) This function also enables deleting of several files at one go. Follow the steps as below:  Select “multiple-select” in file editing, the file lists will be displayed accordingly. Select “delete” to finish.
Page 31 Amkette Flash TV HD Media Player Rename Select a file which you want to rename and press ”Green” button to enter file editing Select “Rename” on the appeared window. Allied Electronics and Magnetics Ltd. All Rights Reserved. Rev#1.0b...
Page 34: Music
Amkette Flash TV HD Media Player 12. Music  From this folder, all stored audio files in the player can be reviewed. Automatic Playing  Press “OK” or “ “ to start playing  “ ” : Playing next music ...
Page 35 Amkette Flash TV HD Media Player  While the file is playing, press ”OSD” to select Repeat, Playing one time, Continuous playing or Random convert. Allied Electronics and Magnetics Ltd. All Rights Reserved. Rev#1.0b...
Page 36 Amkette Flash TV HD Media Player Search Press “OSD” on the music review list & follow these steps:  Press “ or ” ” to select Search option. ”  The file can be searched by name, just type in the particular file name and press”OK”...
Page 37 Amkette Flash TV HD Media Player accordingly. Browse Files  Press “ ”or “ ” and select “Browse Folder” to enter file storage. Press ”music” to return to file-management. Display Music Files  Press “ ”or “ ” to select Display Music Files. All music files stored in the folder will be listed accordingly.
Page 38 Amkette Flash TV HD Media Player a) This function supports addition of a new playlist. Follow the steps as below:  Press “green” button and the file list window will appear accordingly.  Select the file that you want to add to the new list.
Page 39 Amkette Flash TV HD Media Player Recently Played  This option displays all the recently played files. Recently Added  This option displays the recently added files. Name  The files are sorted by name. Allied Electronics and Magnetics Ltd. All Rights Reserved.
Page 40: Photo
Amkette Flash TV HD Media Player 13. Photo  From this folder, review all pictures stored in the player. Slide Display Select a particular picture file and press “OK” or “ ” to startplaying it, while the picture is playing, use the below mentioned functions to make desired changes: ...
Page 41 Amkette Flash TV HD Media Player Notice: Picture is reviewed automatically. A file can be reviewed even when an audio track is playing. The parameters of a slide show can be adjusted while music is playing, Press ”OSD” to select an item.
Page 42 Amkette Flash TV HD Media Player Search Press “Option” on the picture review list, follow the steps below:  Press “ ” or “ ” to select “Search” option.  The file is searched by name, just type in the particular document name and press ”OK”...
Page 43 Amkette Flash TV HD Media Player Thumbnail Checking  Use “ ”or “ ” to select ”Thumbnail” from the picture review list. All stored files in the folder will be displayed as thumbnails and the default file will be displayed only if the file folder is empty.
Page 44 Amkette Flash TV HD Media Player  All albums will be displayed by selecting this option. Name  The files are sorted by “name” Recently played  The recently reviewed pictures will be displayed by selecting this option Recently added ...
Page 45: Movie
Amkette Flash TV HD Media Player 14. Movie All movies stored in the player can be reviewed from this folder. Video Media Player Select a movie and press “OK” or “ ” to start playing. While the movie is playing, use the below mentioned functions to make desired changes: ...
Page 46 Amkette Flash TV HD Media Player  “ ”: Stop playing the movie  “RETURN”: Return to movie review list  Press “INFO” to get information about a particular movie. The parameters of playing a movie can be adjusted while it is being played. Press ”OSD”...
Page 47 Amkette Flash TV HD Media Player  Use “ ” or “ ” to select ”Thumbnail” from the movie review list. All stored files in the folder will be displayed as thumbnails and the default file will be displayed only if the file folder is empty.
Page 48 Amkette Flash TV HD Media Player Click rate  The files are sorted by its click rate. Recently Added  The recently added movies will be displayed by selecting this option. m) Subtitle  Select a movie and press “OK” or “...
Page 49 Amkette Flash TV HD Media Player Skip Playing  Press “Skip Playing” and “OK”to confirm skip. Other features like Hour, Minute, Second, Title and Chapter can also be selected to have desired results.  Press “ “ or ” ” to select, press “...
Page 50 Amkette Flash TV HD Media Player Cycle Playing  Use this option to play files continuously. Playing Sequentially  Use this option to play files in a sequence. Image output setting  Set up the brightness, contrast, saturation & hue of the playing movie.
Page 51: Detailed Playback Support List
Amkette Flash TV HD Media Player Amkette FlashTV Media Playback Support List Video File Video Type Audio Type Detail specification Remark Type/(E MP4, DIVX 3/4/5/6 LPCM, uLaw,aLaw DivX :Up to 1920x1080x30p M-JPEG: support all MOV / Motion MPEG-AUDIO M-JPEG: support 640x480x30p modes (.mp4,...
Page 52 Amkette Flash TV HD Media Player .xvid) for DivX Licensee only H.263,MPEG-4 LPCM,MPEG- H.263: 352x288,VP6: 640x480 maybe larger size AUDIO,HE-AAC possible, no testing /(.flv) (H.264),VP6 ,LC-AAC materials for that. DIVX 3/4/5/6, LPCM,MPEG- DivX:Up to 1920x1080x30p, MPEG-1:No profile/level MPEG-1, AUDIO,AC3, Dolby...
Page 53 Amkette Flash TV HD Media Player H.263,VP6 ADPCM,MP3 H.263: 352*288,VP6: 640*486 Flash 8.0 swf/(.s AVS: Jizhum profile @ level 2.0 pure video AVS/(.a 4.0 4.2 6.0 6.2 Audio File Video Type Audio Type Detail specification Remark Type/(E Mpeg-1 bit rate:...
Page 54 Amkette Flash TV HD Media Player aac,mp4,M4A MPEG-2/4 LC/HE bit rate: up to 288 kbps AAC variable bit rate : just profile forward speed 1.5x~2x AAC+ ver 1/2 ADIF can't FF/FR ADTS can FF/FR APE(Mo ape file have single or nkey multi track.
Page 55 Amkette Flash TV HD Media Player Dolby surround Dolby Licensee only Audistry iLBC internet Low Bitrate Codec Picture Media Ext Name Version support Detail Specification Remark Type JPEG jpg/jpeg support baseline mode & baseline mode: size progressive <=30000*15000; baseline progressive baseline: color mode = 444, size <=...
Page 56 Amkette Flash TV HD Media Player n Alpha DVD Video Embedded in DVD only Subtitle DivX DivX Ultra / DivX Embedded in AVI/DivX container Subtitle only BD video(PGS) Embedded in BD only Subtitle File System Type Read Write Detail Specification...
Page 60: Warranty Statement
Amkette Flash TV HD Media Player Warranty Statement The Amkette FlashTV HD is backed by a 1 Year performance warranty against any manufacturing defects in material or workmanship from the date of original purchase. This warranty entitles the purchaser to get the product repaired or replaced under the following conditions: •...
