Summary of Contents for JynxBox MINI

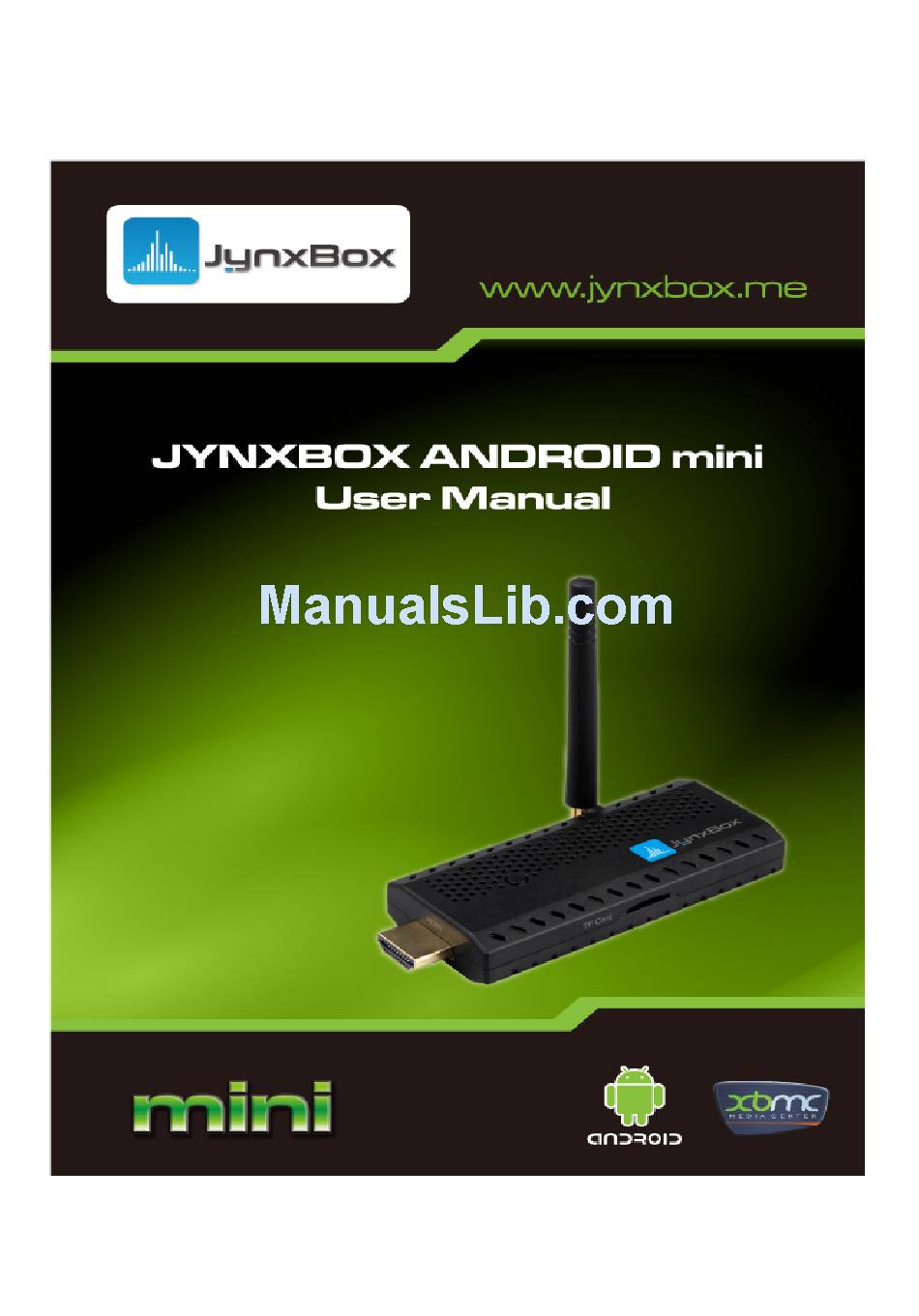

- Page 1 www.jynxbox.me...
- Page 2 HDMI port that turns your TV to a multifunction smart TV. It is a revolutionary entertainment device on your TV. It is also an Android HD Media player, a mini Android PC, and a DLNA server, a photo viewer, a game player, a music player, a huge size screen e-book/ e-magazine/ e-newspaper reader that provides a very powerful smart TV experience.
- Page 3 Remote control Jynx IR remote [01] Standby (No function currently) [07] Down [02] Menu [08] Left [03] Up [09] OK [04] VOL+ [10] Exit [05] VOL-- [11] Notification [06] Right www.jynxbox.me...
- Page 4 Start Up 1 Plug in the USB power cable and connect your Jynxbox Mini TV stick to TV via HDMI port. 2 There are two screens that appear on start-up: the first screen is a robot logo, and the second is an android text logo.
- Page 5 3. You will get a welcome screen which will prompt the first time user through the setup steps www.jynxbox.me...
- Page 6 www.jynxbox.me...
- Page 7 www.jynxbox.me...
- Page 8 www.jynxbox.me...
- Page 9 4. Click the FINISH button to complete the setup, after which, the main screen will be displayed as below www.jynxbox.me...
- Page 10 5. Click the top right icon which will display all the APPs list www.jynxbox.me...
- Page 11 Settings Settings provide individual preference setting functions. Wi-Fi It will scan available Wi-Fi networks automatically while clicked “ON” in Wi-Fi setting. Choose one encrypted Wi-Fi network to connect www.jynxbox.me...
- Page 12 2. Data usage Shows data usage information. www.jynxbox.me...
- Page 13 3. More It includes VPN, Portable hotspot and Proxy settings. Enable Portable hotspot www.jynxbox.me...
- Page 14 Please note that you need to disconnect from Wi-Fi and connect to Ethernet while using the hotspot function. Wi-Fi and hotspot connections can’t be used simultaneously. 4. Sound If you enable Touch sounds, you will hear the sound while moving the remote control. www.jynxbox.me...
- Page 15 5. Display Sets wallpaper, output mode, display position and font size. Output mode The default resolution is 720P www.jynxbox.me...
- Page 16 Display position Use the Direction keys and the Enter/Ok button on the remote control to adjust the display position when the screen is not displayed as full screen on your TV. Font size Changes the font size of OSD. www.jynxbox.me...
- Page 17 6. Storage Shows the storage used of the OS and SD card. 7. Apps Lists all apps and their different status. www.jynxbox.me...
- Page 18 8. Accounts & sync Click” ON” to enable accounts & sync. Security Enabling unknown sources will allow you to install non-market apps. www.jynxbox.me...
- Page 19 The default input method is android standard keyboard. If you are using our IR remote control, enter into “Default” option and switch to remote controller input method. 11. Factory reset Choosing factory reset will erase all user data of the box. www.jynxbox.me...
- Page 20 The android debug bridge (ADB) is supported for android software developers. It can be used on Ethernet or on Wi-Fi, but it is not enabled by default. The ADB can be turned on by enabling the USB debugging option in the menu. www.jynxbox.me...
-
Page 21: Movie Player
14. About Jynxbox. You will find the firmware version under the build number. Movie player Plays video files which may be found on your storage devices such as on your SD card, USB disk and USB / SATA HDD Click button to change video mode, subtitle, audio track, and get video information and so on. - Page 22 SET BROWSER TYPE > Select your browser type by checking the appropriate box and exit the menu. Network (SAMBA function) When you open network app the first time, it will scan all shared folders in the local area network. Scanned shared folders www.jynxbox.me...
- Page 23 Choose one of them and you will see a green checkmark icon appearing on the right. Click the second button to confirm the choice. Then, click and open the folder to browse videos, music, pictures and documents inside it. www.jynxbox.me...
- Page 24 Upgrade the firmware from an external storage device. You can choose to upgrade your firmware via your SD card, USB disk or HDD. You just need to copy the update.img file into the storage device. This manual is suitable for JYNXBOX ANDROID series products. www.jynxbox.me...
