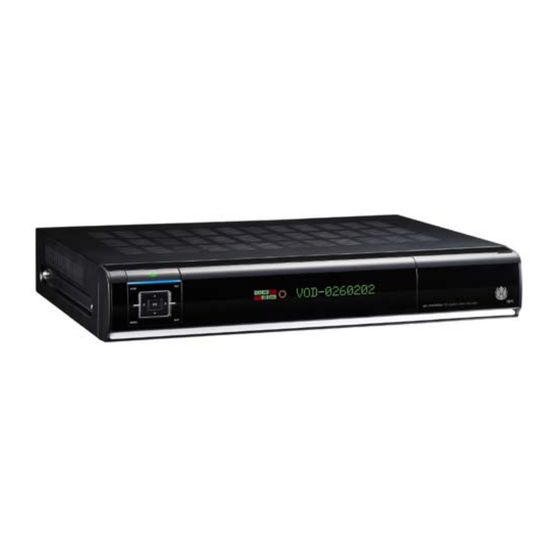

Kaon HD-3000 User Manual

High definition cable receiver personal video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

User's Manual
High Definition Cable Receiver
Personal Video Recorder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kaon HD-3000

  • Page 1 User’s Manual High Definition Cable Receiver Personal Video Recorder...

  • Page 2: Important Safety Instructions

    Important safety instructions Safety Warnings CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : To reduce the risk of electrical shock, do not remove the cover. No user serviceable parts inside. Refer any servicing to qualified Service personnel. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
  • Page 3 Warning If the product is mishandled, the user might receive a serious or minor injury. Damage or loss to the user’s property might also result.  The product must not be exposed to water or liquid. If the apparatus is exposed to drips or splashes, it might cause a problem that cannot be repaired.

  • Page 4: Table Of Contents

    Contents 1. Introduction 1.1 Package Contents .............................6 1.2 Front Panel ................................6 1.3 Smartcard ................................7 1.4 Rear Panel ................................8 1.5 Remote Control ..............................9 2. Setup 2.1 Connecting the Antenna ..........................11 2.2 Connecting Your Equipment........................11 2.3 Turning On and Off Your Receiver ......................13 3.
  • Page 5 5. Menu Guide 5.1 PVR ..................................19 5.2 Program Guide ..............................21 5.3 Edit Channel List ............................. 22 5.4 Installation ................................ 23 5.5 System Setting ..............................24 5.6 CA System ................................. 29 6. PVR Guide 6.1 Recorded List ..............................30 6.2 Progress Bar ..............................

  • Page 6: Introduction

    1. Introduction 1.1 Package Contents Make sure that the following accessories are supplied with your receiver. Remote control AAA Batteries (2 EA) User’s manual 1.2 Front Panel / Channel (Programme) Press to change the channel or select a menu item. Press to adjust the volume or select a menu item.

  • Page 7: Smartcard

    1.3 Smartcard Caution Please do not plug in the main power supply cord until you have finished all of the connections! Inserting a Smart card A Smart card looks similar to a credit card and entitles you to view and listen to all the channels you choose to subscribe to.

  • Page 8: Rear Panel

    1.4 Rear Panel 1 ANT IN Connect a CATV signals. 2 LOOP OUT Connect to other receiver. 3 VCR (SCART) Connect to the VCR with SCART cable. 4 TV (SCART) Connect to the TV with SCART cable. 5 S/PDIF (OPTICAL) Connect a digital amplifier output Use the HDMI cable to connect this jack to the HDMI jack on 6 HDMI...

  • Page 9: Remote Control

    1.5 Remote Control All the functions can be controlled with the remote control. Some function can also be adjusted with the buttons on the front panel of the receiver. Before you use the remote control, please install the batteries. Basic functions 1.

  • Page 10: Stop Press To Stop A Recording Or Playback

    TV Control Buttons 1. TV STANDBY Press to turn on and off your TV. 2. TV Volume Press to increase or decrease the TV volume. 3. TV MUTE Press to enable or disable the TV audio temporarily. 4. INPUT Press to check the TV’s external connection status and select an external device.

  • Page 11: Setup

    2. Setup There are several ways of connecting the receiver to your TV and VCR. Consult your local supplier for assistance in setting-up your system that is best suited to your requirements. 2.1 Connecting the Antenna Connect the antenna cable (RF cable) from cable system to the ANT IN jack of the receiver. Connect a Loop through cable between the LOOP OUT and the ANT IN.

  • Page 12: Connecting A Vcr

    2.2.2 Connecting a TV (HDMI jack) Connect the receiver to a TV with HDMI jack, if your TV is equipped for it. HD PVR receiver HDMI cable HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital audio and video signals using a single cable without compression.

  • Page 13: Turning On And Off Your Receiver

    2.3 Turning On and Off Your Receiver Power On 1. Connect the power cord of the receiver to a wall outlet. 2. Turn on the power switch located at the back of the receiver. 3. Press the STANDBY button on the front of the receiver or on the remote control. Power Off Press the STANDBY button again.

  • Page 14: Easy Installation

    3. Easy installation Before you watch the television or radio program, you must perform the installation procedure first. Therefore you will see only “Easy Installation” menu at first when you plug into your system. The Easy Installation gives you the convenience of selecting various languages, adjusting the time and channel search. 3.1 Language The first option in “Easy Installation”...

  • Page 15: Resolution

    3.4 Resolution The receiver supports various video resolutions (576p, 720p, and 1080i). Press the / button to select desired option and press the OK button. 3.5 Time You can set your local time according to your location. When “Auto” is selected Press the /...

  • Page 16: Basic Functions

    4. Basic Functions 4.1 Changing the Channel After the television channels have been programmed, you will see programme information for a few seconds each time you change the channels. You can change the current channel using one of the following methods. ...

  • Page 17: Subtitle

    4.4 Subtitle If the current programme provides subtitle information, you can select the language for the subtitle. 1. Press the SUB-T button to display the subtitle menu. 2. Press the / button to select the required subtitle language and press the OK button.

  • Page 18: Channel Banner

    4.8 Channel Banner When you press the Blue button during receiving service stream, you can view channel banner.  Press the / button to select the channel and then press the OK button.  Press the / button to view to previous or next programme information. ...

  • Page 19: Menu Guide

    5. Menu Guide 5.1 PVR 5.1.1 File List File List manages the files and directories in the built-in HDD. 1. Press the / button to select “File List” on the PVR menu and press the OK button. 2. Press the / button to select “AV”, “MP3”, or “Photo” and press the OK button.

  • Page 20: Pvr Setting

    5.1.2 Reservation You can set reserved recording functions including adding, changing and deleting reserved recordings. 1. Press the / button to select “PVR” in the main menu and press the OK button. 2. Press the / button to select “Reservation” and press the OK button. Reservation screen is displayed.

  • Page 21: Program Guide

    5.2 Program Guide The program guide displays programme information about each channel, based on the date and time. You can also reserve a recording by pressing the ● (Record) button. 5.2.1 Viewing the Program Guide Information 1. Press the / button to select “Program Guide” on the main menu and press the OK button.

  • Page 22: Edit Channel List

    5.3 Edit Channel List You can create favorite lists, lock, delete, or skip channel. 1. Press the / button to select “Edit Channel List” in the main menu and press the OK button.  Enter the PIN code using the Numeric (0~9) button. 2.

  • Page 23: Installation

    5.4 Installation You can search the channels according to the automatic or manual mode. Please wait until the channel search is complete. Automatic Search 1. Press the Numeric buttons to set the Start Frequency, End Frequency, and Symbol Rate of the cable signal. 2.

  • Page 24: System Setting

    5.5 System Setting If you want to customize the system to suit you better, you can specify some settings from the submenus in the “System Setting” menu. 1. Select “System Setting” in the main menu with the / buttons and press the OK button.
  • Page 25 5.5.2 Time You can set the Local time, Wakeup time, and Sleep time. Time You can set your local time according to your location. When “Auto” is selected Press the / buttons to select desired country and press the OK button. When “Manual”...

  • Page 26: Channel Lock

    5.5.3 Lock Control Channel Lock When you change “Channel Lock” to “On” or “Off”, service channel can get or not from that set values.  If you select “On”, you need PIN code every time you select the lock channel program as you set in the channel control. ...

  • Page 27: Display Format

    5.5.4 AV Setting You can set various options related to input/output signals. You can set the aspect ratio of your TV. Press the / button to select desired option and press the OK button.  If you have a TV set with 4:3 picture format, select 4:3 TV and if you have a TV set with 16:9 picture format, select 16:9 TV.

  • Page 28: Osd Setting

    5.5.5 OSD Setting You can adjust the on-screen transparency and set the banner time. Menu/Teletext/Subtitle Transparency From 20% to 100% will give the variable transparency on Video and OSD screen. Press the / button to select the desired transparency and then press the OK button.

  • Page 29: Ca System

    5.5.7 Factory Reset Use this option only if you have to start the complete installation procedure from scratch. If you perform the Factory Reset, all your previous settings and all channels will be cleared! The default data will be loaded. 1.

  • Page 30: Pvr Guide

    6. PVR Guide 6.1 Recorded List You can check the recorded programme on “File List”. 6.1.1 Recorded List screen Press the Recorded List button on the remote control to display the recorded list. The recorded list displays as the following. Also you can view the recorded list in the "PVR" > "File List" menu. Path of present folder Recorded programme list MP3 file list...

  • Page 31: Progress Bar

    6.1.2 Play Option 1. Press the Recorded List button on the remote control.  The recorded list will appear. 2. Press the / button to select the desired programme and press the press the OK button. Begin To play the programme from the beginning. Continue To continue to play from the previous stop point.

  • Page 32: Instant Replay

    6.3.2 Slow motion    Press the (Pause) button during playback, and press the (Fast  rewind) / (Fast forward) button to play backward/forward as slow motion.  Each time you press the button, the prograqmme plays at 2x, 4x, 8x, 16x, and 32x speed.
  • Page 33 6.3.6 Repeat A-B You can set a specific block within a recorded programme and play it back repeatedly. Press the Yellow button once at the start position and press the Yellow button again at the end position. The programme is played back the selected block repeatedly. To stop repeat mode 1.

  • Page 34: Time Shift Recording

    6.4 Time Shift Recording The receiver automatically saves the programme in the built-in hard disk drive temporarily, so that users can pause, play, fast rewind, fast forward, replay, etc. even while watching the currently broadcasting TV programme.   When you press the (Fast Rewind) or (Pause) button, the time shift will be start.

  • Page 35: Mp3/Photo

    6.8 MP3/Photo You can play MP3 or photo files stored on built-in hard disk drive, USB memory. Use a USB cable to connect the USB memory to the receiver. 6.8.1 Connecting the USB Memory 1. Save MP3 and image files into USB memory from your PC. 2.

  • Page 36: Supplement

    7. Supplement 7.1 Troubleshooting Problem Solution No display LED on the front panel.  Power cord plug in correctly. No power supply.  Ensure that the receiver is switched on. No picture.  Check connection and correct.  Check channel and video output and correct. ...

  • Page 37: Technical Specification

    7.2 Technical Specification System Resources Flash Memory 32Mbytes Program DRAM 256Mbytes EEPROM 32KBytes MPEG TS A/V DECODING Transport stream MPEG-4/H.264 HP@L4.0 1920x1080 interface@50Hz MPEG Profile/level MPEG-2 MP@HL, MPEG-4/AVC MP@L4 Input bit rate Max. 81,0 Mbit/Sec. Video aspect ratio 4:3, 16:9, Letter Box Video formats 576p, 720p, 1080i Video outputs...

  • Page 38: Menu Map

    7.3 Menu Map File List Photo Reservation PVR Setting Guard Time Start Guard Time End Default Record Duration Instant Replay Commercial Skip Program Guide Edit Channel List Installation Automatic Search Manual Search Network ID System Setting Language Menu Language First audio language Second audio language First subtitle language Second subtitle language...

  • Page 39: Remote Control Tv Setting

    7.4 Remote Control TV Setting 7.4.1 Checking the Set-Up Code 1. Press the TV STANDBY button with OK button on the remote control for 2 seconds to covert to Setting Mode.  It will convert to the Setting Mode after the LED is on. 2.
  • Page 40 7.4.5 TV Code Lists Manufacturer/Brand Set-Up Code Number Manufacturer/Brand Set-Up Code Number ADMIRAL 072 081 160 161 096 HARLEY DAVIDSON ADVENT HARMAN KARDON AIKO HARVARD AKAI 006 146 248 HITACHI 163 004 007 009 011 072 010 012 023 ALARON 075 143 158 AMARK 112 143...
  • Page 41 Manufacturer/Brand Set-Up Code Number Manufacturer/Brand Set-Up Code Number PIONEER 023 025 135 176 004 018 006 209 234 YORK PORTLAND 004 143 103 YUPITERU PRISM ZENITH 072 073 095 103 011 096 PROSCAN 144 160 161 ZONDA PROTON 004 058 143 171 173 112 QUASAR 034 056 RADIO SHACK...
