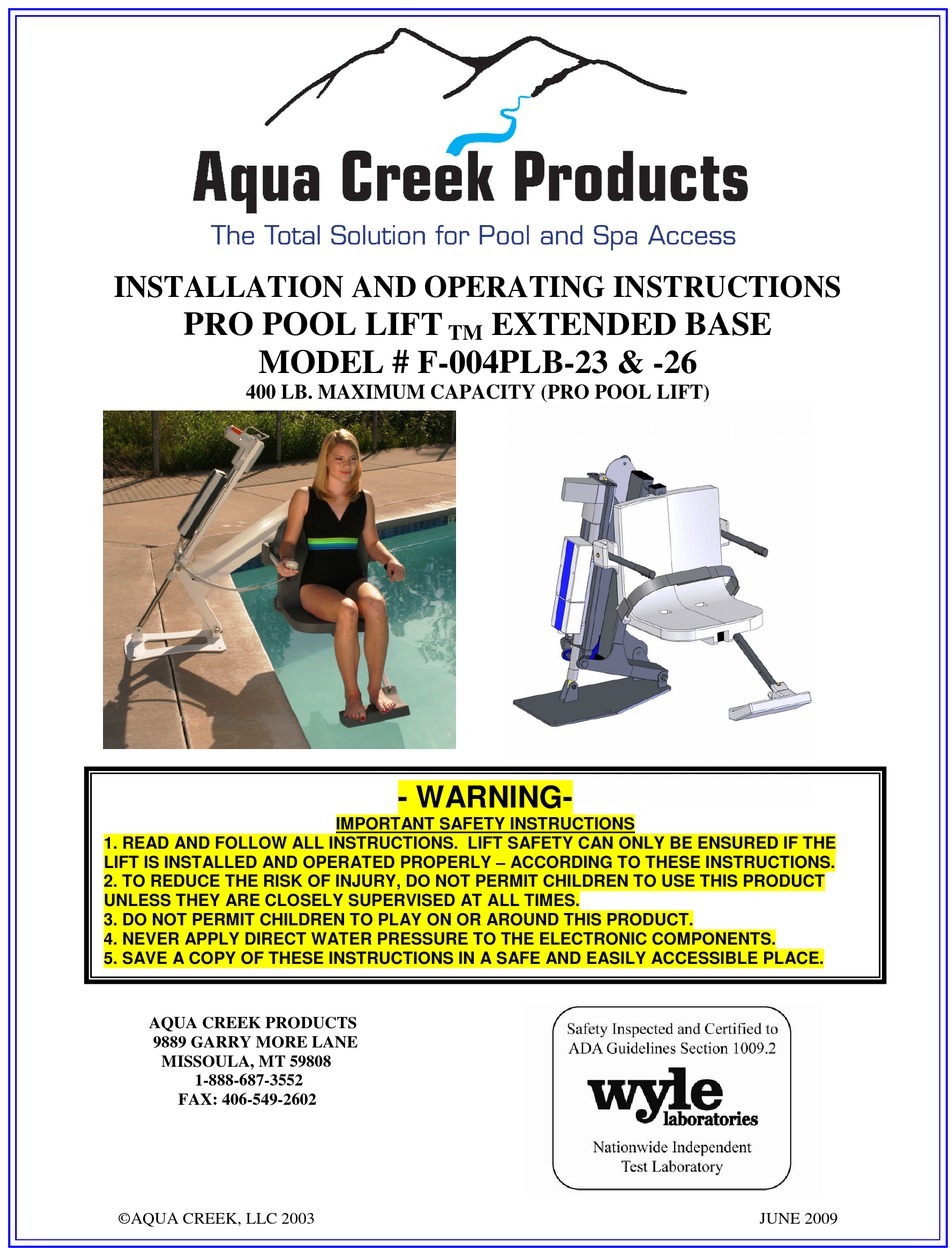

INSTALLATION AND OPERATING INSTRUCTIONS
PRO POOL LIFT
MODEL # F-004PLB-23 & -26
400 LB. MAXIMUM CAPACITY (PRO POOL LIFT)
1. READ AND FOLLOW ALL INSTRUCTIONS. LIFT SAFETY CAN ONLY BE ENSURED IF THE
LIFT IS INSTALLED AND OPERATED PROPERLY –ACCORDING TO THESE INSTRUCTIONS.
2. TO REDUCE THE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE THIS PRODUCT
UNLESS THEY ARE CLOSELY SUPERVISED AT ALL TIMES.
3. DO NOT PERMIT CHILDREN TO PLAY ON OR AROUND THIS PRODUCT.
4. NEVER APPLY DIRECT WATER PRESSURE TO THE ELECTRONIC COMPONENTS.
5. SAVE A COPY OF THESE INSTRUCTIONS IN A SAFE AND EASILY ACCESSIBLE PLACE.
AQUA CREEK PRODUCTS
9889 GARRY MORE LANE
Accessible Environments, Inc.
MISSOULA, MT 59808
Authorized Dealer
1-888-687-3552
(800) 643-5906
FAX: 406-549-2602
...........................................................
©AQUA CREEK, LLC 2003
EXTENDED BASE
TM
- WARNING-
IMPORTANT SAFETY INSTRUCTIONS
JUNE 2009
Advertisement
Table of Contents
Related Manuals for Aqua Creek F-004PLB-23
Summary of Contents for Aqua Creek F-004PLB-23
- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS PRO POOL LIFT EXTENDED BASE MODEL # F-004PLB-23 & -26 400 LB. MAXIMUM CAPACITY (PRO POOL LIFT) - WARNING- IMPORTANT SAFETY INSTRUCTIONS 1. READ AND FOLLOW ALL INSTRUCTIONS. LIFT SAFETY CAN ONLY BE ENSURED IF THE LIFT IS INSTALLED AND OPERATED PROPERLY –ACCORDING TO THESE INSTRUCTIONS.
-
Page 2: Parts List
PRO POOL LIFT PARTS LIST 1. PRO POOL LIFT W/ FOOTREST 2. HARDWARE BAG 3. INSTALLATION INSTRUCTIONS 4. 24V BATTERY 5. BATTERY CHARGER W/ MOUNTING PLATE 6. WATERPROOF CONTROLLER 7. ANCHOR BOLT BAG (SET OF 4) 8. ANCHOR JIG PLATE HARDWARE BAG –... - Page 3 PRO POOL LIFT: 4 – POINT ANCHOR INSTALLATION NOTE: THE PRO POOL LIFT ANCHOR CAN BE INSTALLED IN EITHER A NEW POOL DECK OR AN EXISTING DECK. RETRO-FIT INSTALLATION / EXISTING DECK APPLICATION TOOLS REQUIRED: MARKING PEN/PENCIL LEVEL 2 ” C O R E D R I L L B I T HIGH STRENGTH ANCHOR ADHESIVE* POWER DRILL HAMMER &...
- Page 4 NEW CONSTRUCTION: ANCHOR INSTALLATION When the lift is installed on a new deck, th e s l a b s h o u l d b e a m i n i m u m o f 6 ” [ 1 5 cm] thick at the l i f t l o c a t i o n , a n d s h o u l d b e r e i n f o r c e d w i t h # 4 r e i n f o r c i n g b a r a t 1 0 ”...
- Page 5 PRO POOL LIFT - ASSEMBLY INSTRUCTIONS Attach Seat belt to the seat as shown. Install the PRO POOL LIFT onto the four (4) anchors using the supplied 1/2 x 1-1 / 2 ” stainless steel hex-head bolts and 1/2" stainless steel flat washers. Make sure all bolts are tight before using the lift.
-
Page 6: Installation Instructions
24V BATTERY SYSTEM OPERATING AND INSTALLATION INSTRUCTIONS WALL MOUNT CHARGER CONTROL BOX 24V SEALED BATTERY & HANDSET REMOTE The Pro Pool Lift Battery system comes with a 24v sealed rechargeable battery, wall mount charging unit (with mounting bracket), control box, and a waterproof handheld controller. -
Page 7: Battery Maintenance
BATTERY MAINTENANCE 1. RECHARGE THE BATTERY AS OFTEN AS POSSIBLE. The battery power unit is a sealed lead acid battery pack. Frequent recharges will prolong the battery life and maintain a high cold amperage capacity. 2. Do NOT expose the battery to freezing temperatures. 3. - Page 8 PRO POOL LIFT OPERATING INSTRUCTIONS: NOTE: CHECK ALL NUTS & BOLTS FOR TIGHTNESS AND FOR WORN PARTS BEFORE EACH USE. NEVER OPERATE THE LIFT WITH THE ARMRESTS FLIPPED UP. The Pro Pool Lift should always be in the full up or deck position before a user attempts to transfer into the chair.
-
Page 9: Assembly Instructions
. You can call our customer service at 1- 888-687-3552 to order any parts. 2. Aqua Creek Products, LLC lifts shall be grounded per local codes. 3. At least ONCE A WEEK, the Pro Pool Lift must be cleaned with fresh water. - Page 10 Routine cleaning is an absolute necessity to ensure the integrity of the lift. Note that the Aqua Creek Pool Lift should not be stored in a pump room or in a storage room where pool chemicals are kept. Storing the lift near pool chemicals may cause rusting and other damage to occur.
-
Page 11: Troubleshooting Guide
TROUBLESHOOTING GUIDE Before troubleshooting make sure the battery is fully charged. I f t h e l i f t d o e s n ’ t mo v e when the handset button is pressed: Wh e n y o u c a n ’ t g e t t h e l i f t t o m o v e c h e c k t h e f o l l o w i n g t h i n g s : 1. - Page 12 If the battery is fully charged and the lift is not moving then: 2. Check all cords: A. Check that the cords are properly plugged in. Start by unplugging the remote and the actuator cord from the control box. Once these cords are removed check the ends for corrosion or damage.
- Page 13 If the lift stops moving over the water and is stuck: 4. Then try pushing the emergency button: A. If the lift gets stuck out over the water use a pen or pencil tip and stick it into the emergency button on the front of the control box to retract the lift.
- Page 14 PRO POOL EXTENDED BASE: PARTS LIST ITEM # DESCRIPTION PART NUMBER 1 PRO POOL EXTENDED BASE A-2011PPB-26 1 PRO POOL FRAME A-0404PPF 1 PRO POOL ACTUATOR FRAME A-8980PPAF 1 PRO POOL SEAT ROTATE ARM P-2012SRS 1 PRO POOL SEAT ARM A-2012ARM 1 PRO POOL CONTROL ARM L-2014FBL...
-
Page 15: Seat Assembly: Parts List
SEAT ASSEMBLY: PARTS LIST ITEM # QTY DESCRIPTION PART NUMBER 1 SEAT BODY F-132RC 2 SEAT ARMREST TUBE SA-0904SAT 2 SEAT ARMREST HANDGRIP RUBBERFINGERGRIPS 2 1/4"-20 x 3" HEX BOLT, S.S. BOLT1/4X3SSHEX 2 1/4" FLAT WASHER, S.S. FLATWASHER1/4SS 1 1/4" QUICK RELEASE PIN, S.S. PIN1/4X3SS 1 LANYARD FOR QRP LANYARD... - Page 16 LIFTING CAPACITY OF 400 POUNDS FOR THE EXTENDED BASE UNIT. To initiate a warranty claim, the owner of an Aqua Creek product must provide the place of purchase, in writing, with a full description of the product, its serial number, the dates of purchase and installation, and the exact nature of the defect.
