Vex-RC Transmitter & Receiver Kit
The Transmitter & Receiver Kit provides the foundation for a new robot. Use this kit along
with motion and structure components to create a remote-control robot. This transmitter &
receiver pair is part of the Vex-RC "blue" product line. For more information on compatibility,
refer to www.VexRobotics.com.

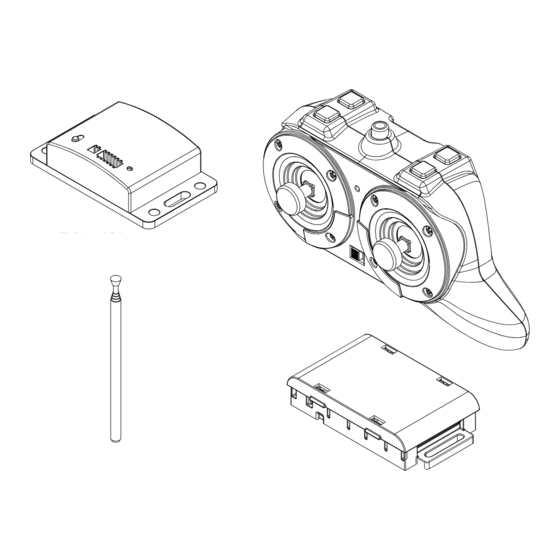

(1x) Vex-RC Receiver
(1x) Vex-RC Transmitter
Antenna
Warning: Changes or modifications to this
unit not expressly approved by the party
responsible for compliance could void the user
authority to operate the equipment.
NOTE: This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
For More Information, and additional Parts & Pieces refer to:
www.VexRobotics.com
(1x) Vex-RC
Transmitter
(1x) Vex Battery Box
Vex-RC Transmitter & Receiver Kit •
Limited 90-day Warranty
This product is warranted
by Innovation First against
manufacturing defects in
material and workmanship
under normal use for ninety
(90) days from the date of
purchase from authorized
Innovation First dealers.
For complete warranty
details and exclusions,
check with your dealer.
Innovation First, Inc.
1519 IH 30 W
Greenville, TX 75402
08/07
