Summary of Contents for RainDance Spas
- Page 1 Owner’s Guidebook Best Spa Experience to the on Earth raindancehottubs.com Raindance 2212 Bu alo Road Johnson City, Tennessee 37604 Spas (423) 477-7796...
- Page 3 Owner’s Manual This Owner’s Manual will acquaint you with the operation and general maintenance of your new Raindance Spa. Please keep this manual available for reference. If you have any questions about any aspect of your spa’s set up procedures, operation or maintenance, contact Raindance Spa’s Technical Support at Raindance Spa 866-996-2623.
-
Page 4: Customer Spa Information
SPA INFORMATION Date purchased: Date installed: Dealer name: Dealer address: Dealer telephone: Spa model and serial number:... -
Page 5: Table Of Contents
Table of Contents Please take the time to read the content in its entirety to avoid any warranty issues. Customer Spa Information Important Safety Instructions Site Selection Startup, Draining & Diverter Valves 11-12 General Maintenance Electrical Requirements and Servicing 14-15 Filter Maintenance Care of Exterior and Chemicals 16-17... -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS!!!! SAVE THESE INSTRUCTIONS!! When installing and using this electrical equipment, basic safety precautions should always be followed including the following: 1. Danger: To reduce the risk of injury, do not ever permit children to use the spa without adult supervision. - Page 7 pack. Before each use, with the plug connected to the power supply and with the unit operating, push the Test Button. The unit should now operate normally. If the interrupter fails to operate in this manner, there is a ground current flowing indicating the possibility of an electric shock.
- Page 8 WARNING: The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia in hot tubs and spas. 11. Audio/Video Equipped Units: The instruction manual for spas equipped with audio/video components shall be provided with the following or equivalent: CAUTION-Risk of Electric Shock.
- Page 9 components (for example, cable, additional speakers, headphones, additional audio/video components, etc.) to the system. These units are not provided with an outdoor antenna; when provided, it should be installed on accordance with Article 810 of the National Electrical Code, ANSI/NFPA 70. DO NOT service this product yourself as opening or removing covers may expose you to dangerous voltage or other risk of injury.
-
Page 10: Site Selection
Site Selection IMPORTANT: Site selection and preparation are your responsibility. Carefully read these instructions and consult your authorized Raindance Spa dealer if you have any questions. Manufacturer recommends a poured, reinforced concrete slab with a minimum thickness of 5 inches. Wood decking is also acceptable provided it is constructed so that it meets the requirements outlined below. -
Page 11: Startup, Draining & Diverter Valves
1” below pillows, re-install filter cartridge and housing assembly locking it back in place replacing filter lid. Fiberoptic Lighting All replacement lighting must be provided by Raindance Spas or J & J Electronics. Warranty will be void with any other replacement. Draining and Refilling Spa Draining: Turn the power off to the system by turning off the GFCI breaker. - Page 12 Filling: Water level is centered in area of weir door or 1 inch above extended skimmer opening. Never fill past the recommended level. Check to see if all slice valves are open. The slice valves should have the handles pulled out as far as possible when open. The drain bib should be closed and drain cap installed.
-
Page 13: General Maintenance
General Maintenance Every two to five months, depending on frequency of use, drain your spa, clean with spa multi-purpose cleaner (found in your chemical maintenance kit) and polish with a silicone sealant polish. To temporarily remove foam, apply anti-foaming agent to foamy areas. To correct the condition, be sure the water is balanced. -
Page 14: Electrical Requirements And Servicing
Electrical Requirements and Servicing The Spa shall be hooked up by a licensed electrician and observing all municipal codes. Codes may vary from state to state. Check with a local electrician to find out wiring requirements for your area. Minimum specifications: A # 6/3 wire ( this is a 4 wire system as the ground wire is not referred to) making up a #6 Black (hot), a #6 Red (hot), a #6 White (neutral), and a #6 Green (ground). -
Page 15: Filter Maintenance
8. To gain access to the spa’s power terminal block, remove the screws and cabinet panel setting it aside, then remove the securing screws from the panel on the control equipment pack system. 9. Select the power supply inlet you want to use and remove the cabinet panel from the front of the spa to allow you to feed the cable through to the control box. -
Page 16: Care Of Exterior And Chemicals
NOTES: Iron and copper in the water can stain the spa shell if allowed to go unchecked. Ask your Raindance Spa’s technician about a stain and scale inhibitor to use if your spa water has a high concentration of dissolved minerals. - Page 17 Bromine is the most widely used chemical as a sanitizer in spas. A pH level of 7.2-7.8 is considered a satisfactory level with 7.4 being the ideal level. At this level, your sanitizer works more effectively and the water is close to a neutral pH level.
-
Page 18: Ozonator
United States to utilize an ozone-only oxidation and disinfecting system. Despite its long history of use as a drinking water oxidizer and sanitizer, ozone has only seen significant use in pools and spas in the U.S. in the last 15 to 20 years. -
Page 19: Care Of The Spa Pillows
What Does Ozone Do? Ozone destroys bacteria, viruses, mold and mildew. Ozone eliminates spores, cysts, yeast, and fungus. Ozone eliminates oils and other contaminants in water. Ozone keeps water clean and sparkling clear. Ozone keeps water fresh. CARE OF THE SPA PILLOWS The spa pillows will provide years of comfort if treated with care. -
Page 20: Do's And Don'ts
DO Maintain the pH level within the recommended range of 7.4 to 7.6. DO Maintain proper chemical balance to reduce the risk of catching or spreading infections. DO Use granulated chlorine/ bromine produced specifically for portable spas. DO Make sure the spa is connected to a Ground Fault Circuit Interrupter (GRCI) protected circuit. - Page 21 care products can cause damage to spa and equipment. DO NOT Allow anyone to be in the spa while chemicals are being added or are dissolving. DO NOT Use incorrect products such as Trichlor, which has a very low pH (2.6), dissolves very slowly, is highly concentrated, and was designed for concrete or plaster swimming pools.
-
Page 22: Wiring Diagram
Wiring Diagram Remove Power from the spa/hot tub and circuit breaker panel BEFORE working on electrical equipment! Failure to comply with this requirement, can lead to electrical shock and/or electrocution! This is a GENERAL GUIDE ONLY! USE this information at your OWN RISK! Consult with or hire a licensed electrician before beginning any work of this type. -
Page 23: Parts Descriptions And Pictures

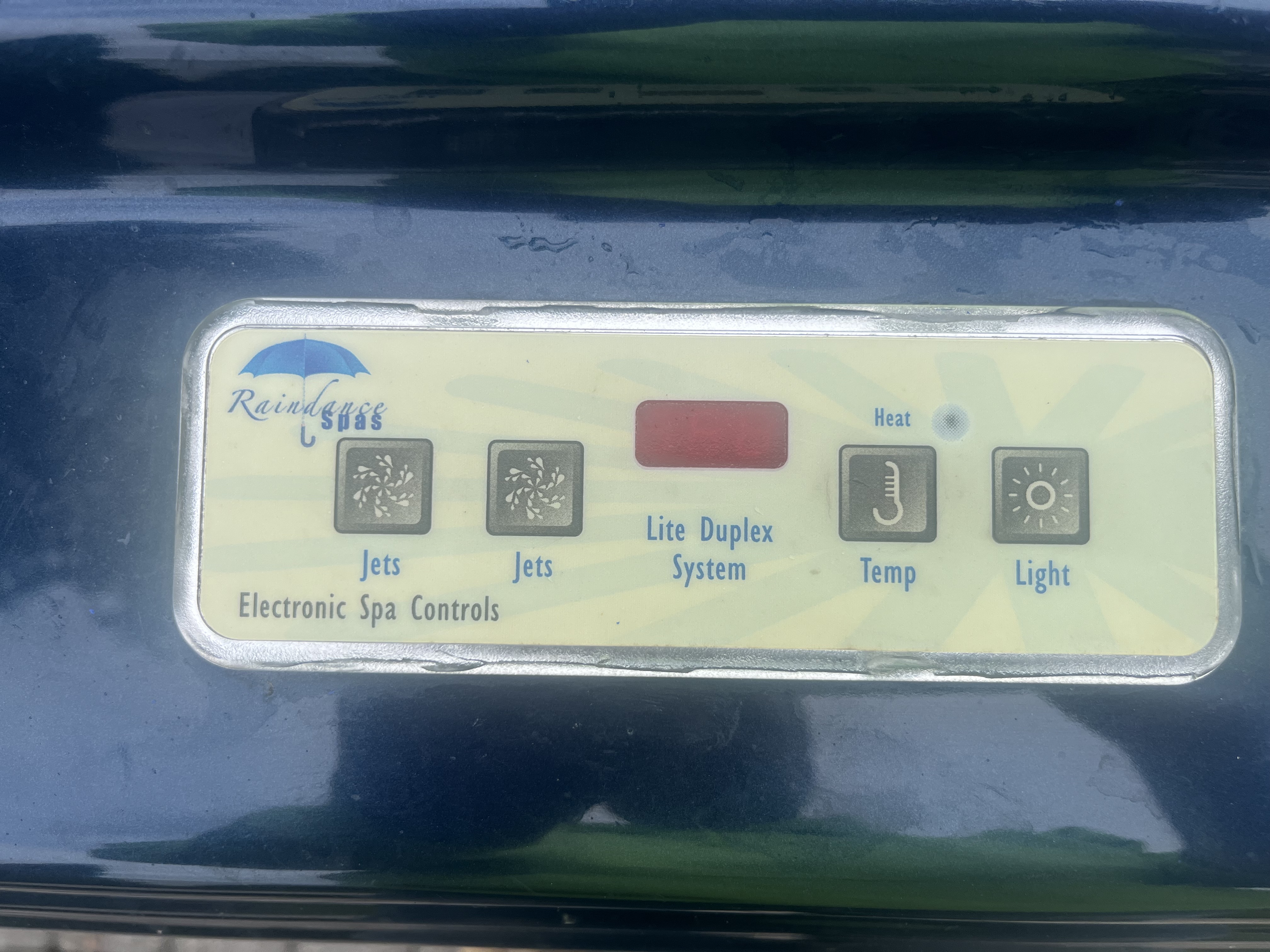

Parts Pillows Stereo Components Stereo Speaker Power Cord Stereo Power Topside Adapter Spa Pack Spa Keypad... - Page 24 Parts Cont. Ozonator Filters Spa Pumps Pump & Motor Bleed Valve Bleed Valve Drop In Filter Plumbing Components Diverter Assembly Waterfall Assembly Diverter Flex Pipe Gate Valve Drain Bib Filter Basket Waterfall Knob 6 port manifold 10 port manifold Filter Basket Air Diverter Suction Valve Master Jet...
- Page 25 Parts Cont. Cabinet Pieces Synthetic Round Slatted Slatted Synthetic Cabinet Corner Cabinet Cabinet Light Components Light Assembly Light Subzero Insulation...
-
Page 27: Diagnostic Messages
Diagnostic Messages Message Meaning Action Required No message on display. The control panel will be disabled until power returns. Spa settings Power has been cut off to the spa. will be preserved until next power up. Temperature unknown. After the pump has been running for 2 minutes, the current water temperature will be displayed. -
Page 28: Limitations And Disclaimers
Raindance Spas is not responsible for the cost of chemicals and water for warranty issues. If a spa cannot be repaired in the field and must be returned to the factory, approval must be obtained by Raindance Spas Cus- tomer Care Department.
