Dreamsat 700 Instruction Manual

Usb memory
Hide thumbs
Table of Contents

Advertisement

Quick Links

English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dreamsat 700

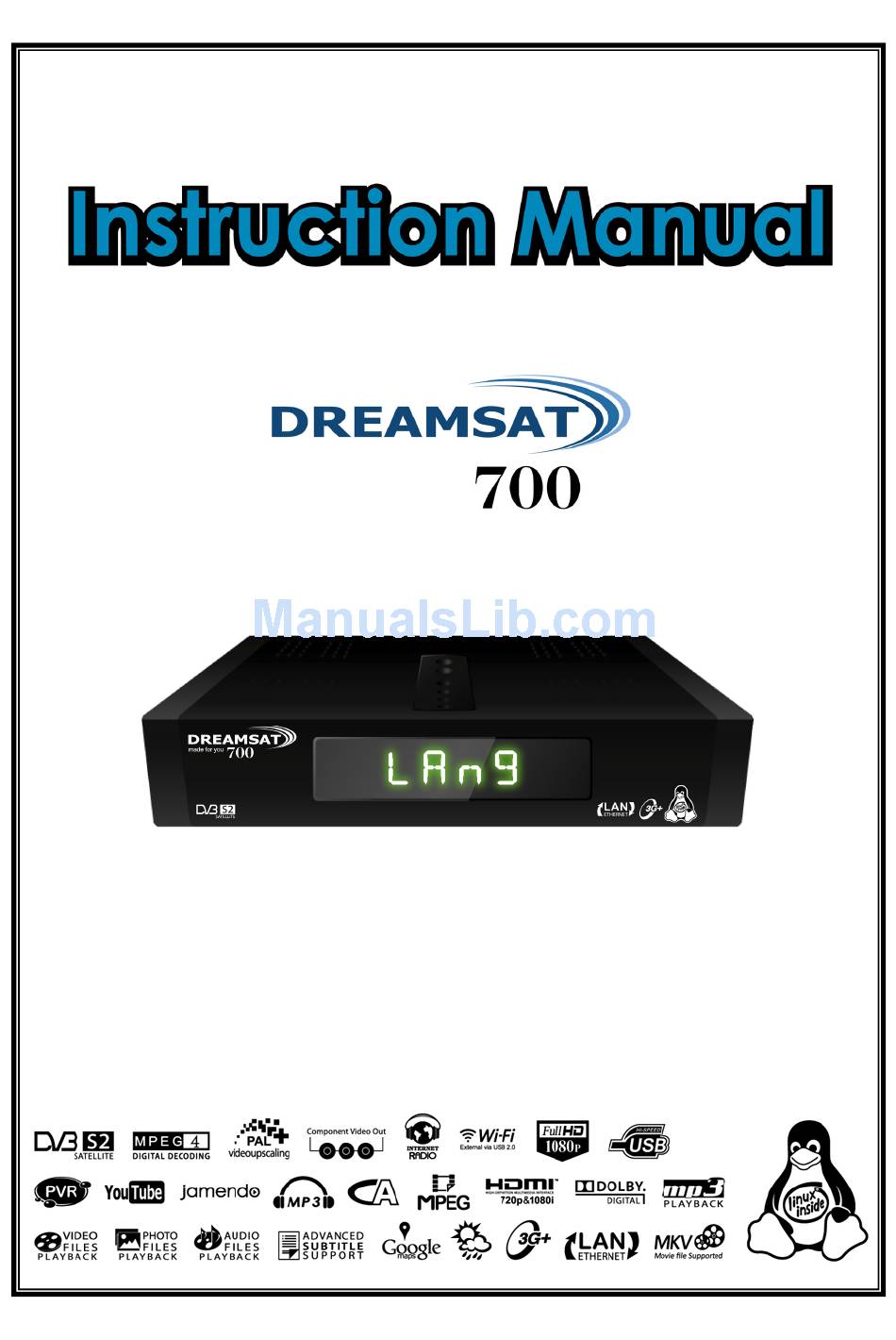

  • Page 1 English...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS WARNING/REMEMBER/CAUTION ---------------------------------------------------------------------- 6 SAFETY MEASURES----------------------------------------------------------------------------------------7 ABOUT THE INSTRUCTION MANUAL --------------------------------------------------------------------8 MARKETING AND SIGNS APPLIED TO THE RECEIVER ------------------------------------------------8 BASIC INFORMATION ABOUT THE RECEIVER ---------------------------------------------------------9 1. MAIN FEATURES 2. CONTENTS OF BOX 3. IMPORTANT INSTRUCTIONS CONCERNING HANDLING THE RECEIVER 4.
  • Page 4 9.7 AUDIO CHANNEL ----------------------------------------------------------------18 9.8 AUDIO LANGUAGE 9.9 FREEZE MODE 9.10 TELETEXT 9.11 EDIT CHANNEL LIST, EVENT LIST 9.12 MEDIA ---------------------------------------------------------------------------19 9.12.1 RECORDINGS & MOVIES 9.12.2 MUSIC 9.12.3 PHOTOS 9.13 Jump Time ----------------------------------------------------------------------20 9.14 MULTI FEED 9.15 SUBTITLE LANGUAGE 9.16 EDIT/SEARCH WINDOW 10.
  • Page 5 16. USER -------------------------------------------------------------------------------------------------33 16.1 MENU & AUDIO LANGUAGE 16.2 TIME & DATE 16.3 PARENTAL LOCK ---------------------------------------------------------------34 16.4 MENU & CHANNEL LOCK 16.5 PVR SET-UP 17. MULTIMEDIA ---------------------------------------------------------------------------------------35 17.1 FILE BROWSER 18. WEB----------- --------------------------------------------------------------------------------------35 SPECIFICATION ----------------------------------------------------------------------------------------36...

  • Page 6: Warning/Remember/Caution

    WARNING !!! Supported network features as internet radio, Youtube, etc depend on your network connection speed and quality and the server settings (limitations, bandwidth, location) which you are accessing. Playback of copy protected content, damaged files, etc. may fail or be incorrect.

  • Page 7: Safety Measures

    SAFETY MEASURES We request that you read the instruction manual and recommendations set forward therein. Also remember to correctly position the satellite antenna! In order to avoid an electric shock, never open the housing. Damage to the warranty seal shall void the warranty. Disconnect the receiver from the mains during thunderstorms or when it is not to be used for an extended period of time.

  • Page 8: About The Instruction Manual

    ABOUT THE INSTRUCTION MANUAL We have made every effort to provide the most current information about its products. We do not grant any guarantee as to the contents of the present instruction manual and disclaims any implied guarantees concerning market value or suitability for specific purposes. The information contained herein is an instruction intended to enable the correct usage and maintenance of the receiver.

  • Page 9: Basic Information About The Receiver

    BASIC INFORMATION ABOUT THE RECEIVER 1. Main features Reception of high definition channels Upscaling of PAL signals to 1080 P resolution 20 programmable timers Separate favorite, TV and Radio channels list Quick channel search function (Quick Find) Teletext and subtitle display DiSEqC 1.0, 1.1 and DiSEqC 1.2, USALS MPEG-2, MPEG-4, MPEG-4 AVC/H.264 standards Compatible with DVB-S and DVB-S2 systems...

  • Page 10: Remote Control

    4. Remote control STAND BY Switch between operation and STAND-BY Stand-by/deep Stand-by mode and to boot. VOL+/VOL- Adjust the audio volume. CH UP/DOWN Change channels (next/previous). To go to Picture in Picture mode PIP (another program's video Play back in a sub screen available while watching a program) POSITION To move sub screen's position...
  • Page 11 MUTE Turn the sound on/off. TV/RADIO LAST Change between TV and Radio mode. LAST Return to previous channel. V. Format Change the screen resolution. NUMERIC KEYS : Enter a channel number directly. MENU: Enter values. Enter/exit TELETEXT Enter/exit the zoom mode. Pause a live program.

  • Page 12: Main Unit Description

    5. Main unit description...

  • Page 13: Power

    MAIN POWER ADAPTOR (DC IN) Connect the supplied power adaptor to this socket. The flat side of the plug with the arrow should point up. Please use only the original power adaptor supplied with the device. IR (Infrared Sensor) Connect the supplied infrared sensor to this socket. It received commands from the remote control unit and should be place near the front of you TV.

  • Page 14: Connection Overview

    6. Connection overview The following illustrations show cable connections for a television and other devices connected to the receiver. If you require any assistance in connecting individual devices, contact your local technician. Before connecting or altering connections, disconnect the receiver from the mains.

  • Page 15: Antenna

    6.1 Power Supply Connect the DC cable of the mains adaptor to the DC IN jack of this receiver. Then insert the plug of the mains adaptor into a mains socket. 6.2 IR (Infrared Sensor) Connect the cable of the infrared sensor to the IR jack of this receiver. Place the infrared sensor near the front of the TV set so that it can be reached unimpeded by the infrared signal of the re mote control from your favorite seating place.

  • Page 16: First Installation

    8. First installation After you turned on your receiver for the first time or after a factory reset, the installation wizard will start automatically. 8.1 Operating the menu Select an option with the keys. ▲ / ▼ , Enter an option with the OK key. 8.2 Language selection Menu language Select the menu language.

  • Page 17: Daily Usage

    9. DAILY USAGE 9.1 Volume control Volume Press VOL+/VOL-or keys (while watching a program) to adjust the volume. Mute Press MUTE key to turn the sound On and Off. 9.2 Changing channels Change Press CH. UP/DOWN, k eys or enter the channel number with the 0-9 ▲...

  • Page 18: Audio Channel

    is displayed for programs in High Definition. is displayed, if subtitle languages are available. is displayed, if Teletext is available. is displayed, if Multifeeds are available. is displayed for locked channels. is displayed for pay TV channels. is displayed for programs in Dolby Digital. displays the audio channels (mono, stereo).

  • Page 19: Media

    Select an event with the k eys. Press (red) key to delete an event, ▲ ▼ press (green) key to delete all events. 9.12 Media Press MEDIA key to view REC, MOVIES, MUSIC and PHOTOS. 9.12.1 Recordings & movies Recording format Trp.

  • Page 20: Jump Time

    List Select a photo and press OK key to preview the photo. Press OK key again to view the photo in full screen. Thumbnails Select a photo and press OK key to view the photo in full screen. Select the next/previous photo with the t/u keys. Thumbnails/ list Press (yellow) key to change between thumbnails and list mode.

  • Page 21: Program Guide

    10. Program guide Press EPG key to display the electronic program guide for current, next and scheduled programs. Now/next schedule. Select a channel with the keys to display the now/next schedule. ▲ ▼ Enter the now/next schedule with the keys. Press OK key to change to the program.

  • Page 22: Recording

    11. RECORDING 11.1 Recording guide USB memory To record programs a storage device (USB Memory 2.0) must be connected formatted in FAT32, EXT2, EXT3. To format an USB memory larger than 32GB with your windows PC in FAT32, download the Fat32Formatter program from the internet to your PC.

  • Page 23: Timeshift Recording

    Duration Press the keys to change the duration (max. 240 min.) in 10 min. steps. Stop Press OK key to stop a recording. 11.3 Timeshift recording Timeshift enables you to record and playback a program you are watching, while it is still being broadcasted.

  • Page 24: Create & Edit

    13.Create & Edit 13.1 Edit channel Delete Press (red) key delete a channel. Lock/unlock Press (green) key to lock/unlock a channel. Move Press (yellow) key to move the position of a channel or multiple channels at once. Press (yellow) key to select a channel or multiple channels. Press k eys to select the new position.

  • Page 25: Delete Satellite & Transponder

    Edit the 10 user lists. List Move between columns with the keys and select an option or channel with / OK keys. ▲ ▼ Rename Select a list and press (yellow) key to rename the user list. Edit Select a list and press (red) key to edit.

  • Page 26: Installation

    14. Installation 14.1 Antenna Select the Antenna type. Antenna Select the Antenna (A=LNB A). Fixed Select this option for a fixed antenna. DiSEqC 1.2 Select this option for a DiSEqC 1.2 motor. USALS Select this option for an USALS motor. Enter the longitude (East/West) and latitude (North/South) of your location.

  • Page 27: Diseqc 1.2

    Satellite Select a satellite. Transponder Select a transponder. Select the LNB frequency. 22Khz Select On or Off. DiSEqC Select the DiSEqC (A, B, C, D)/Mini A, B port for the selected satellite. DiSEqC 1.1 Select the DiSEqC port (1-16) for the selected satellite. Satellite position This option is activated, if you selected Unicable/SCD antenna in the Antenna menu.

  • Page 28: Blind Scan

    Transponder Select a transponder. Go to position Press OK key to move the motor to the stored position. Move Press the (West/East) keys to move the motor to the desired position/limits. Steps Select the motor steps (1-127). Move in steps Press the (West/East) keys to move the motor in the selected steps.

  • Page 29: Usb Update

    Video PID Enter the Video PID. Audio PID Enter the Audio PID. PCR PID Enter the PCR PID. Save Press MENU key to save the changes. 14.5 USB update Download Download from the latest system software to your PC and transfer the file to an USB memory. Connect the USB memory to your receiver.

  • Page 30: Settings

    15. Settings When you press OK button at Network Connection on Settings column, you will see the three choices which are Cable, WIFI and 3G Modem. Please select one of the connection method you will use. 15.1 Network connection When you select Cable, you will see the below screen. During booting your receiver will connect automatically to the network.

  • Page 31: Tv Out

    When you select WIFI, you will see the below screen. When you select 3G Modem, you will see the below screen. 15.2 uPnP Not available at the moment. 15.3 TV OUT Screen format Select the screen format(Auto, Pan & Scan, 4:3/Letterbox). Menu transparency Select the transparency(50%-100%).

  • Page 32: Software Version

    Information bar Select the automatic display time of the information bar for TV, movies, recordings. If you select Off, the information bar will not be displayed. TV scart signal Select the TV scart output option (CVBS/RGB). Dolby Digital Select On to output dolby digital audio via S/PDIF. CI message Select On to display messages of the CAM and card.
  • Page 33 16. User 16.1 Menu & audio language Menu language Select the menu language. Audio language Select the standard audio language for programs. 16. 2 Time & date Mode Select an option (auto/manual). Date Enter the date manually. Time Enter the time manually.
  • Page 34 Select your local zone. Summer Time Select the option (On/Off). Sleep time Set the time to turn off your receiver automatically. Wake up time Set the time to turn on your receiver automatically. 16.3 Parental Lock The 4 digit PIN code is initially set to 0000. Change Enter the New PIN code twice for confirmation and the Current PIN code to change the PIN code.
  • Page 35 17. Multi Media Please press button on live channel or main channel to enter Multi Media menu. 17.1 File Browser Edit files (recordings, movies, MP3s, Photos). New folder Press (yellow) key to create a new folder in the selected directory. Delete Press (blue) key to delete.
  • Page 36 19. Specification 19.1 Operating System Linux Kernal Version 2.6 19.2 Tuner Frequency Range 950MHz to 2150MHz RF Input/Output Connector F-type Female (75ohm) Input Signal Level -65 dBm~ -25 dBm Demodulation Standard DVB-S, DVB-S2 : QPSK, 8PSK Symbol Rate DVB-S (QPSK) : 1~45Msps DVB-S2 (8PSK/QPSK) : 10~30Msps Multi Decoding Method LDPC/BCH DVB-S2 (1/2, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10) LNB Power...
