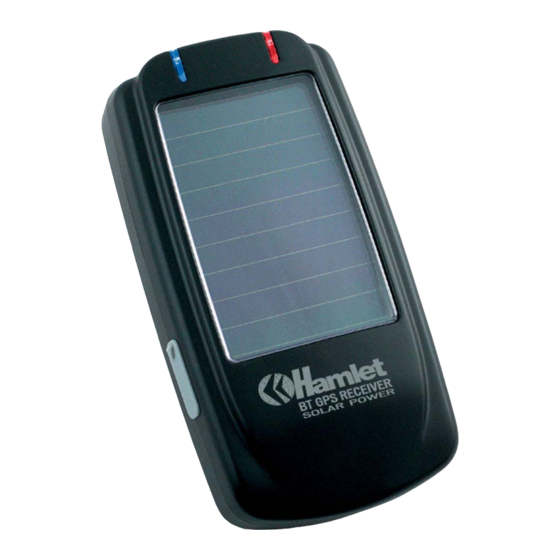

Hamlet SOLAR BLUETOOTH GPS RECEIVER Quick Installation Manual

Hamlet SOLAR BLUETOOTH GPS RECEIVER Quick Installation Manual

Solar bluetooth gps receiver hamlet

Advertisement

Quick Links

RICEVITORE GPS SOLARE BLUETOOTH
SOLAR BLUETOOTH GPS RECEIVER
Guida rapida di Installazione:
Quick Installation Guide:
www.hamletcom.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SOLAR BLUETOOTH GPS RECEIVER and is the answer not in the manual?

Questions and answers

Summary of Contents for Hamlet SOLAR BLUETOOTH GPS RECEIVER

  • Page 1 RICEVITORE GPS SOLARE BLUETOOTH SOLAR BLUETOOTH GPS RECEIVER Guida rapida di Installazione: Quick Installation Guide: www.hamletcom.com...
  • Page 2 Dear Customer, Thanks for choosing Hamlet. Please carefully follow the instructions for its use and maintenance and, once this item has run its life span, we kindly ask You to: dispose of it in an...
  • Page 3: Connect To Your Pc/Pda

    E. Connect to Solar Bluetooth GPS Receiver and then make sure baud rate set at 9600 bps(standard) in your application program. F. In firstly Use of this Solar Bluetooth GPS Receiver ,we strongly recommend you to bring Solar Bluetooth GPS Receiver User Manual -3- Bluetooth GPS receiver outdoor or...
  • Page 4 3) Mettere in funzione il ricevitore GPS per la prima volta all’aperto per almeno 15-20 minuti. 3) In firstly Use of this Receiver, we strongly recommend to bring your Solar Bluetooth GPS Receiver outdoor and open sky at least 15~20 minutes for almanac update. Hardware - Software/Hardware Use:...
  • Page 5 1) Spia Bluetooth - Bluetooth indicator 2) Spia Power/GPS - Power/GPS LED 3) Interruttore Power - Power switch 4) Ingresso cavo USB - Charge plug 5) Pannello Solare - Solar Panel 6) Antenna esterna MMCX - External Antenna MMCX Plug 7) Antenna interna - Active antenna inside (face to open sky)
  • Page 6 Verde Lampeggia con 3 secondi di Batteria scarica intervallo Green Blinking with 3 secs interval Battery low Verde Lampeggia con 2 secondi di Ricarica Green intervallo Blinking with 2 sec interval Charging Led Power/GPS Acquisition LED Verde Acceso Ricarica (Rosso/Verde) completata Power/GPS (Quando si stacca...
  • Page 7 2) Controllare se esiste qualche configurazione di porta Bluetooth di questo tipo: 2) Check your Bluetooth manager if there exist any configuration of Bluetooth Serial Port Profile like this: Attenzione: Questo è solo un esempio di configurazione, le immagini possono variare a seconda del software Bluetooth che si utilizza.
  • Page 8 GPS è partito e sta acquisendo le informazioni sulla posizione. 4) Power on your Solar Bluetooth GPS Receiver . If the battery is ready, you should see 2 LED light up: the blue LED blink 3 times/sec means Bluetooth is activated and waiting for connection.
  • Page 9 6) Cliccare su “View devices in range” e apparirà l’icona della figura seguente: 6) Click the [View devices in range] and you should find a [Bluetooth GPS] show as below: 7) Tasto destro sull’icona, selezionare “Discover Available Services” 7) Right click on the icon, select the [Discover Available Services]:...
  • Page 10 8) Si dovrebbe trovare “service SPP slave”, tasto destro del mouse, cliccare ”Connect to Bluetooth Serial Port”: 8) You should find the service SPP slave, right click and select [Connect to Bluetooth Serial Port]: 9) Appare questa schermata: 9) The follow message will show:...
  • Page 11 10) e poi questa schermata: 10) And the connection successful message: 11) A questo punto si vedrà l’icona cambiata “Connected”: 11) Back to the Bluetooth service view, you should see the icon changed to [Connected]:...
  • Page 12: Configuration Setup With Pda Connection

    GPS è partito e sta acquisendo le informazioni sulla posizione. 2) Power on the Solar Bluetooth GPS Receiver. If the battery is ready, you should see 2 LEDs indication: the blue for Bluetooth blinks 3 times/sec. It means the Solar Bluetooth GPS Receiver Bluetooth module is activated and waiting for connection.
  • Page 13 4) If this is your first time to use Bluetooth GPS, click the Bluetooth mark at the bottom as below: 5) Quando appare la schermata che segue, selezionare “Explore a Bluetooth device” e cliccare “Next”; nella pagina successiva cliccare il box per cercare l’apparecchio Bluetooth.
  • Page 14 6) Tornare al menu “Bluetooth manager” doppio click sull’icona per collegarsi al ricevitore solare BT GPS; se la connessione riesce appare una freccia verde in basso a destra a video. 6) Back to the main screen of [Bluetooth manager] as below. Please double-click the icon to connect Solar Bluetooth GPS Receiver .
  • Page 15 2) Inserire il CD-Rom nel lettore CD del PC. Se funziona correttamente, partirà in auto-run e potrete vedere il messaggio di benvenuto: 2) Insert the CD-Rom into your CD drive. If your auto-run function works, you will see the welcome screen as below:...
  • Page 16 3) Selezionare la lingua prescelta, per esempio “English”: 3) Select the language you preferred. We choose the “English” here: 4) Cliccare “Tools”: 4) Click the [Tools] :...
  • Page 17 FAQ: Problema Causa Soluzione Error/Problem Cause Trouble shooting Non si trova Installazione non Verificare se il Ricevitore l’apparecchio eseguita in modo GPS è installato in modo GPS tramite l’ corretto o batteria corretto, e controllare il interfaccia BT scarica livello di carica della batteria Can not find Install not correct or...
  • Page 18 Problema Causa Soluzione Error/Problem Cause Trouble shooting software Or check if there is any password protection Non c’è il (1) Alcuni PC/PDA (1) Disattivare la codice NMEA vanno in modalità modalità stand by, e (GPS data stand by, se non cercare di connettersi di flow) utilizzati per un certo...
