Summary of Contents for Smarty JR S-JR67

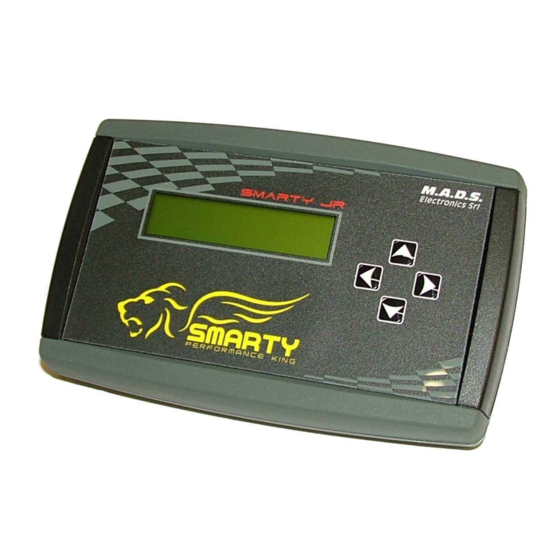

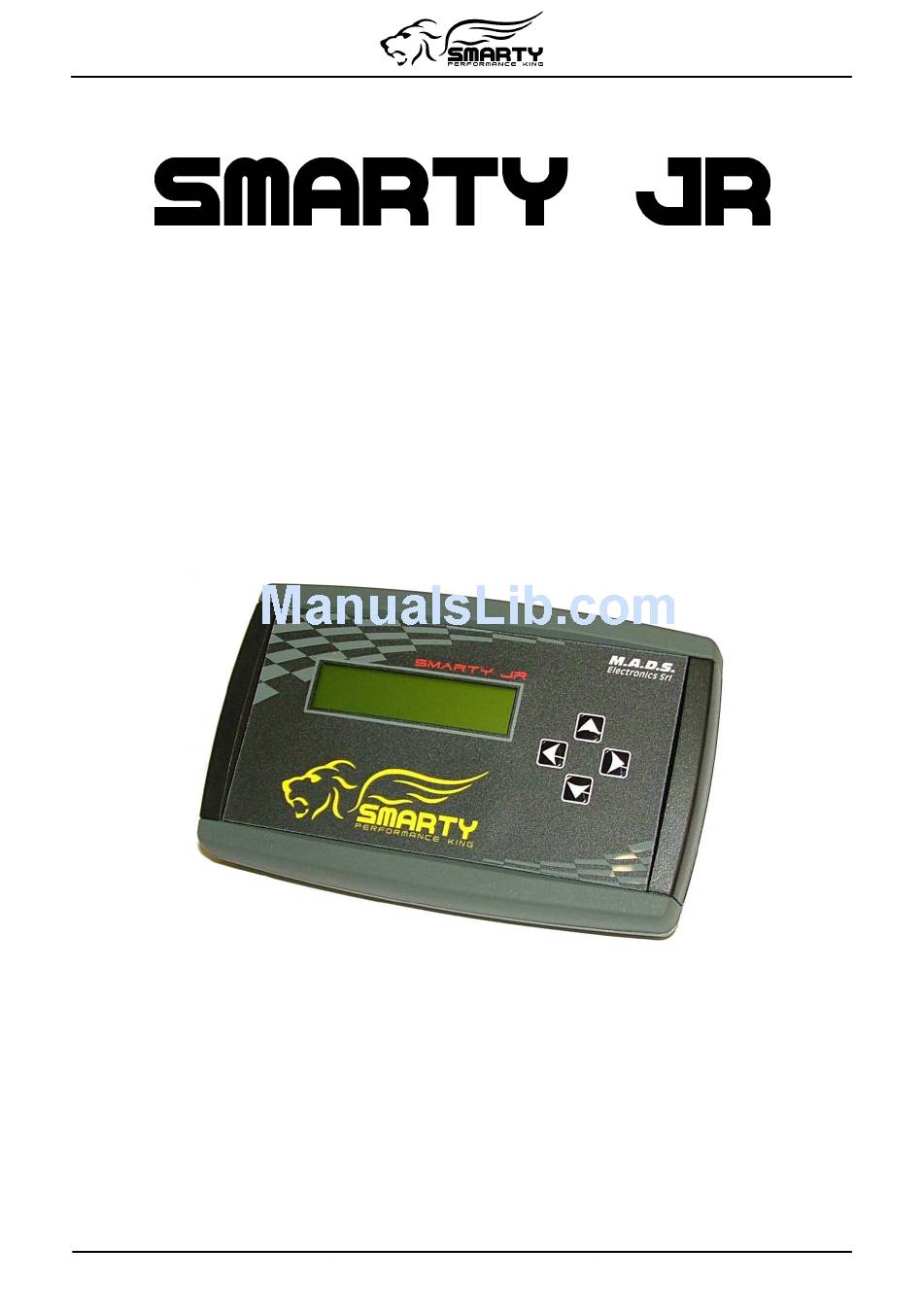

- Page 1 S-JR67 Micro Tuner model Common Rail Dodge Ram 6.7L, 24 Valve, Cummins Diesel Engine Instruction Manual PLEASE READ THIS ENTIRE INSTRUCTION MANUAL BEFORE PROCEEDING www.madselectronics.com Rev. 6.05A Page 1 of 16...
- Page 2 THIS IS A HIGH PERFORMANCE PRODUCT USE AT YOUR OWN RISK This product is intended for OFF ROAD USE ONLY This product is not intended to be used to break the law Do not use this product until you have read the following agreement. This agreement sets forth the terms and conditions for the use of this product.
- Page 3 CAUTION This MADS product is intended for use on unmodified stock engines. Remove any performance enhancing electronic devices and make sure the ECM has been returned to STOCK if you have used another manufacturer’s programmer before the Smarty Micro Tuner. The use of this product to change the performance characteristics of your vehicle could invalidate the warranty provided by the vehicle manufacturer.
-
Page 4: Table Of Contents
Index 1.Before You Begin..........................5 Your vehicle’s STOCK program......................5 Service Centers............................5 Locking and Unlocking Smarty......................5 Vehicle preparation..........................5 Smarty preparation..........................5 2.Smarty Overview..........................5 Keyboard operation..........................5 Connectors..............................5 3.Connecting Smarty to your vehicle....................6 4.Updating the ECM..........................6 First time update............................6 Changing Software..........................7 Recovery of the ECM ...........................9 5.Power on Demand..........................10 6.Adjusting optional parameters.....................10 Torque..............................11... -
Page 5: Before You Begin
1. Before You Begin Your vehicle’s STOCK program Your vehicle’s ECM must contain the manufacturer’s STOCK factory program. If you have used a programmer from another aftermarket company you must use their product to return your ECM back to STOCK condition before proceeding. If you have a performance-enhancing device installed, it must be removed. -
Page 6: Connecting Smarty To Your Vehicle
• USB Connector: Used for connecting Smarty to a personal computer for updates. The update softwares can be downloaded from MADS internet site (www.madselectronics.com). A USB cable is not included. Standard USB 1.1 or USB 2.0 cables, with maximum length of 1.5m, can be used to connect Smarty to your personal computer. -
Page 7: Changing Software
first programming, the following screen will appear which indicates a STOCK ECM program is installed: Smarty will read the serial number of your vehicle and the serial number of your ECM, then store them into its onboard memory for future reference. From this moment on, Smarty will work only with your vehicle until your vehicle is restored back to the stock settings by Smarty. - Page 8 Once Smarty is VIN# Locked, the ABS control system can be accessed in order to correct the wheel height. Press the key, and Smarty displays the following screen: Press the key to select ECM Update. Then the Options menu appears: From the Options menu, press to select Connect Truck.
-
Page 9: Recovery Of The Ecm
Change CaTCHER programs You can choose one of three different CaTCHER versions according to the desired performance. Use the up and down arrow to select the CaTCHER level, that corresponds with the software number to be programmed into your ECM. When you have selected the preferred CaTCHER software number press the key to confirm your selection and to begin the updating session. -
Page 10: Power On Demand
Smarty will try to establish the communication with the ECM. The connection cannot be established because the last updating session has been interrupted. Smarty knows that the last update has not been performed correctly, and will recognise the not operational ECM condition. Smarty shows the following message: A previous update has been interrupted Press... -
Page 11: Torque
To confirm the selected value, press the key. You can return back one step, in any moment with the key. Torque (not available for MY 2010 and above) The Torque selection can be programmed 1 - Stock, 2 - Mild, 3 - Soft (less than #2) or 4 - Light (less than #3). -
Page 12: Reading Dtc's
8. Reading DTC’s Reading Diagnostic Trouble Codes The DTC (Diagnostic Trouble Code) reader function present in Smarty Micro Tuner is for convenience purpose only. MADS makes no warranty to the accuracy of the interpretations. The description of all the DTC is shown on Smarty’s display. Many logged codes are transitory, they are automatically reset. -
Page 13: Abs Update
9. ABS Update Tire height update Once Smarty is VIN# Locked (i.e. a CaTCHER software has been loaded in the ECM) the speedometer of the vehicle can be adjusted according to the tire height. From the main menu, shown below, press the key. -
Page 14: Updating Smarty
10. Updating Smarty Both the internal firmware and the tuning data information can be updated through USB connector. Please see MADS internet site (www.madselectronics.com) for more details and software download. Page 14 of 16... -
Page 15: Appendix A: Error Messages Description
Appendix A: Error messages description This section contains all the possible error messages shown by Smarty: Error message Cause Solution CAN ERROR # A problem in the CAN Bus Check connection cable or contact communication MADS if the problem persists CCD ERROR # The communication with Check connection cable or check ABS... -
Page 16: Warranty
Warranty How Do You Get Service? If something goes wrong with your Product during the warranty period, use the following procedure to return the Product to MADS Company. 1. Restore the STOCK software to your vehicle ECM. DO NOT RETURN A VIN # LOCKED SMARTY. Download and fill out the Assistance Request Module available from MADS internet site or send an e-mail to MADS (e-mail information is available from MADS internet site) Include the following: •...
