Summary of Contents for Sansonic HNB-A

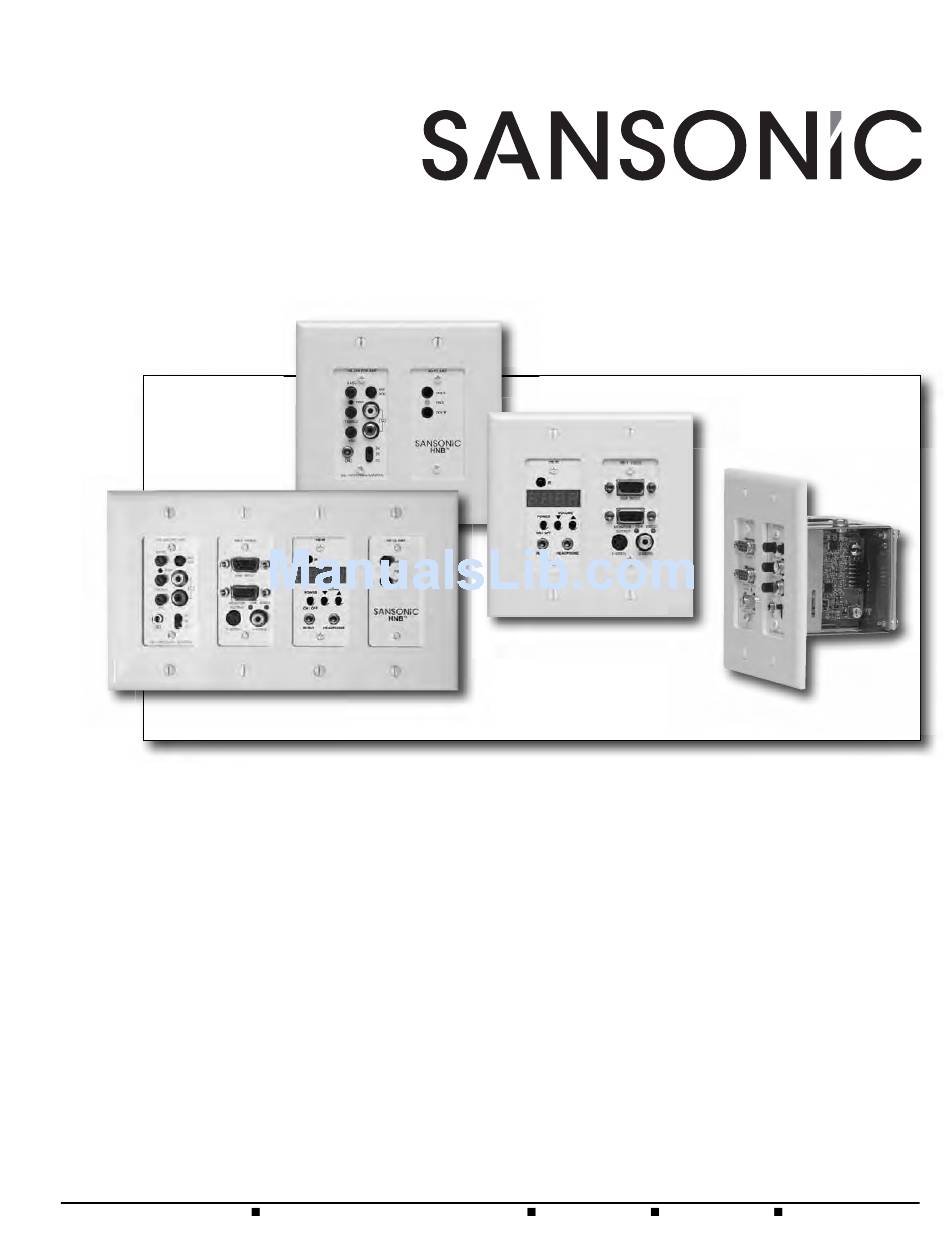

- Page 1 Installation and Technical Application Guide HNB-A and HNB-B HNB™ Modular Digital Audio and Video Mixer Amplifiers Sansonic Electronics USA LLC 9950 E. Baldwin Place, El Monte CA 91731 (T) 626-454-8203 (F) 626-433-1079 (W) www.sansonic.net...
- Page 2 PROPRIETARY NOTICE The information and design disclosed herein were originated by, and This Installation Guide is published by Sansonic which is responsible are the exclusive property of, Sansonic. Sansonic reserves all patent for its contents. Sansonic makes every effort to provide accurate...
- Page 3 - Assorted plug-in connectors and hardware hardware hardware Package requires hardware Package requires equal quantity HNB-A Package requires equal quantity HNB-A equal quantity HNB-A Sansonic Electronics USA LLC 9950 E. Baldwin Place, El Monte CA 91731 (T) 626-454-8203 (F) 626-433-1079...
- Page 4 4 or 6-gang 3.5” DEEP electrical boxes allowing for expansion with HNB-B and/or HNB-B The HNB-A and HNB-B systems are capable of supporting numerous applications, + HNB-C (wireless). Note: 2-gang including but not limited to: ALL EDUCATION classrooms, CORPORATE wall plates are provided.
- Page 5 • CAT5e UTP interface to expansion HNB-B (Video/IR) or HNB-C (Wireless) units. • 24VDC/2.5A UL-CUL wall power supply / Class 2 low-voltage. HNB-A + HNB-B: AUDIO + VIDEO + IR system HNB-B Contents: HNB-A Contents: HNB-2-gang metal chassis HNB-2-gang metal chassis...
- Page 6 (translation) all mics) and 5.2. Solid lines = Wired A/V systems Broken lines = Wireless add-on capability HNB Competitive Feature Comparison HNB-A + HNB-B + HNB-C (AUDIO + VIDEO + WIRELESS) Sansonic Manufacturer Audio Enhancement Lightspeed Teach Logic Front Row...
- Page 7 Outputs (R + L) 4Ω (optimum) or 8Ω (1) RJ45 video out (HB-V) and video input (HB-VR). (3) RJ45 Audio/Power input and output between HNB-A + B. Output Regulation Less than 2dB, no load to full load at 1kHz. (1) IR LED remote 3.5mm jack.
- Page 8 Page 8 Installation and Technical Application Guide Modular Digital Mixer Amplifiers for Audio and Video Dimensions HNB-A and HNB-B HNB-A (shown without cover plate) HNB-B (shown with cover plate) Sansonic Electronics USA LLC 9950 E. Baldwin Place, El Monte CA 91731...
- Page 9 Page 9 Installation and Technical Application Guide Modular Digital Mixer Amplifiers for Audio and Video HNB-A + HNB-B Signal Flow Block Diagrams Sansonic Electronics USA LLC 9950 E. Baldwin Place, El Monte CA 91731 (T) 626-454-8203 (F) 626-433-1079 (W) www.sansonic.net...
- Page 10 Preamplifier Module (HB-2PA) The HNB preamplifier module HB-2PA is an integrated, high fidelity audio mixer that can be used in the LEFT SLOT of EITHER the HNB-A or the HNB-B chassis. It provides multiple balanced line inputs at nominal 1V/600 ohm line level (A+B+C) via phoenix, RCA and 3.5mm connections that can be selected...
- Page 11 • Visible active ‘Power’ status and ‘Video Signal’ LEDs (Green). • Power 5V nominal via HNB-A at 24VDC/2.5A from common power supply. Video Receiver (HB-VR) The HNB video receiver HB-VR is an integrated high performance video receiver used to receive VGA (RGB), composite video and s-video signals from its companion HB-V transmit module.
- Page 12 50 feet / 15 meters to control and shape HNB audio. Note: When the HB-IR module is used it MUST insert into the HNB-A LEFT SLOT next to the HB-1S amplifier module.
- Page 13 HNB-B Chassis Front HNB-B Chassis Rear J1 ....HB ‘LEFT module slot (HB-2PA preamp) J3 ..Interface I/O to HNB-A unit / CAT5e UTP up to 100’/33M J2 ....HB ‘RIGHT’ module slot (HB-V video) Sansonic Electronics USA LLC 9950 E. Baldwin Place, El Monte CA 91731...
- Page 14 Electrical Outlet Box 4” Square x 3.5” DEEP is required for HNB-A, B, or C units. See RACO (www.hubbell-raco.com) models; #255 or #256 (or equiva- lent) for UL / NEMA rated box. You may “stack” electrical boxes or utilize appropriate Mud-ring to achieve 3.5” DEEP within the electrical box (refer to Raco #781 or #795 at 1.25”...
- Page 15 Installation and Technical Application Guide Modular Digital Mixer Amplifiers for Audio and Video HNB-A Master Override Input Connection, Adjustment and Operation ‘MO’ Master Override initiates an automatic ‘MUTE’ at 10ms attack and release at 3-5 seconds of ALL HNB audio sources.
- Page 16 Page 16 Installation and Technical Application Guide Modular Digital Mixer Amplifiers for Audio and Video HNB-A Audio Line Output: (1V, 600ohm, -10db nominal, Mono or Stereo) HNB-A Security Input and Automatic Alarm Activation Security Override initiates an automatic ‘MUTE’ at 10ms attack and release at 3-5 seconds of ALL HNB audio sources.
- Page 17 The ‘EAO’ circuit connects to a ‘Normally Open’ relay from a supervised fire panel and will automatically MUTE all audio output from the HNB-A unit. When this relay opens and power is removed, the original audio source will return. Note: ‘EAO’ is a ‘2-wire’ connection which is NOT polarity sensitive.
- Page 18 Page 18 Installation and Technical Application Guide Modular Digital Mixer Amplifiers for Audio and Video HNB-A RJ45 Connector Color Codes Terminations: HNB-A to HNB-B (HNB-C) Note: Wiring between HNB-A, HNB-B, and HNB-C units is accomplished via CAT5e UTP cabling which is operational up to 100 feet between units.
- Page 19 Page 19 Installation and Technical Application Guide Modular Digital Mixer Amplifiers for Audio and Video SECTION 5.0 - HNB-A + HNB-B SPEAKER WIRING HNB-A output connections for speaker wiring Sansonic Electronics USA LLC 9950 E. Baldwin Place, El Monte CA 91731...
- Page 20 AWG stranded cable connections.The HNB-70V2X two-channel transformer is ordered separately Shown open Shown with top cover plate SECTION 6.0 - HNB-A + HNB-B MODULE CONNECTIONS AND ADJUSTMENT HB-1S Amp card: Adjustment and Location Sansonic Electronics USA LLC 9950 E. Baldwin Place, El Monte CA 91731...
- Page 21 ‘ON TOP’ of the original audio source. The input audio level IS ADJUSTABLE and can be set different than the original source material. Sansonic Electronics USA LLC 9950 E. Baldwin Place, El Monte CA 91731 (T) 626-454-8203 (F) 626-433-1079 (W) www.sansonic.net...
- Page 22 Installation and Technical Application Guide Modular Digital Mixer Amplifiers for Audio and Video HB-V video card: Location HB-V video card + HB-VR receiver: Connections Sansonic Electronics USA LLC 9950 E. Baldwin Place, El Monte CA 91731 (T) 626-454-8203 (F) 626-433-1079...
- Page 23 TION’ and CHOOSE: 1280 x 768 or 1024 x the upper right corner. CLICK on ’PROPERTIES’. 768 (optimum for HNB), or 800 x 600. Sansonic Electronics USA LLC 9950 E. Baldwin Place, El Monte CA 91731 (T) 626-454-8203 (F) 626-433-1079...
- Page 24 Page 24 Installation and Technical Application Guide Modular Digital Mixer Amplifiers for Audio and Video HB-IR IR Control Card: Location and Adjustment Sansonic Electronics USA LLC 9950 E. Baldwin Place, El Monte CA 91731 (T) 626-454-8203 (F) 626-433-1079 (W) www.sansonic.net...
- Page 25 HB-IRRC hand-held remote control requires an HNB system equipped with an HB-IR ‘IR’ remote module. See section 6.7 Power Supply - Cord Extension Sansonic Electronics USA LLC 9950 E. Baldwin Place, El Monte CA 91731 (T) 626-454-8203 (F) 626-433-1079 (W) www.sansonic.net...
- Page 26 HB card panels and backplane in J1 and J2 positions for Projector and source are transmitting and set to compatible source both HNB-A and HNB-B (Green LED). If there is no power LED and resolution (see section 6.6). NOTE: Image quality such as;...
- Page 27 LLC obligations and conditions which must be met to activate them. Place, El Monte, CA 91731 (T) 626-454-8203, (F) 626-466-1338 Sansonic Electronics USA LLC does not assume nor does it author- www.sansonic.net. ize any person to assume or extend on its behalf any other warranty After an inspection has been conducted by Sansonic Electronics USA obligation or liability.
- Page 28 Ask about Sansonic’s other HNB Series Digital Amplifiers HNB-C components (requires HNB-A system) HNB™ Modular Digital Wireless Mixer Amplifier HNB-C System may be added to HNB-A or HNB-A + HNB-B HNB™ Digital Audio Mixer Amplifier Model HNB-PA225 HNB™ Modular Digital Audio Power Amplifiers 9950 E.
