Summary of Contents for Air Boss 824252PAT

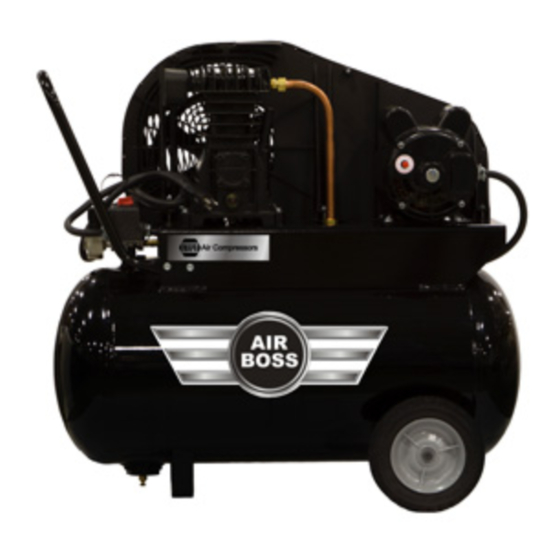

- Page 1 Air Compressor Manual Models: 824252PAT 824253PAT 824256VAT 824276VAT Service and Support: 866-869-3114 Rev0411 Pt# 1312100710...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE Safety Guidelines - Definitions Before Using the Air Compressor When Installing or Moving the Compressor Before Each Use Follow Safety Precautions for Electrical Connection Plan Ahead to Protect Your Eyes, Hands, Face & Ears When Operating Spraying Precautions Perform These Maintenance Operations Warning Labels... -
Page 3: Safety Guidelines - Definitions
SAFETY GUIDELINES - DEFINITIONS Safety is a combination of common sense, staying alert and knowing how your compressor works. Read this manual to understand this compressor. DANGER means if safety information is not followed someone will be seriously injured or killed WARNING means if safety information is not followed someone could be seriously injured or killed CAUTION... -
Page 4: When Installing Or Moving The Compressor
Never install a shut off valve between the compres- sor pump and tank. Personal injury and/or equipment damage could occur. Note: Tank Outlet Size: 1/4” NPT for Models 824252PAT & 824253PAT ½” NPT for Models 824256VAT & 824276VAT Before each use... -
Page 5: When Operating
Follow the safety precautions for electrical connections 1. Follow all local electrical and safety codes, 3. Protect wires from contact with sharp objects. as well as the National Electric Code (NEC) and the Occupational Safety and Health Act (OSHA). CAUTION 2. -
Page 6: Spraying Precautions
Spraying precautions WARNING 1. Do Not spray in the vicinity of open flames or other places where a spark can cause Never point a spray gun at yourself or any ignition. Do Not smoke when spraying other person or animal. Accidental discharge paint, insecticides, or other flammable may result in serious injury. -
Page 7: Warning Labels
WARNING LABELS WIRING Find and read all warning labels found on the air compressor. Sample Warning Labels shown. Your decals may vary. GLOSSARY OF TERMS Air Filter Pressure Switch Porous element contained within a metal or Device which automatically controls the on/off plastic housing attached to the compressor cycling of the compressor. -
Page 8: Starting The Compressor
Electrical connections proper circuit protection. Your compressor must be properly is wired at the factory for operation using grounded. Ground the voltage shown. Connect the compressor 824252PAT connections should be 824253PAT 82476VAT to a power source with the correct breaker Model... - Page 9 TROUBLESHOOTING GUIDE Low discharge pressure 1. Compressor too small for 1. Reduce air demand or use a compressor application with more air capacity. 2. Listen for air leaks. Apply a soap solution 2. Air leaks to all fittings and connections. Bubbles will form at points of leakage.
- Page 10 TROUBLESHOOTING GUIDE (Continued) Pressure switch un- 1. Malfunctioning check valve 1. Replace check valve if unloader bleeds loader constantly constantly. leaking air Do not remove check valve DANGER with air pressure in tank Pressure switch not 1. Malfunctioning pressure 1. Replace pressure switch if it does not release unloading switch air pressure briefly when unit shuts off.
- Page 11 Beltguard Pump 82-1312100119 82-6214343100 & 82-2236110472 Motor 82-1312100388 Handle 82-2236107285 Regulator 82-1312100002 Discharge Tube Pressure Switch 82-1312100213 82-1312100455 Tank 824252PAT 82-1312100474 Drive Pulley 82-1312100440 Safety Valve 82-1312100005 Gauge 82-1312100006 Belt 82-1312100129 Wheel Check Valve 82-1312100168 Drain 82-1312100060 Unloader Line 82-1312100026...
- Page 12 824256VAT 824276VAT 1. Compressor 82-1312100119 82-1312100123 2. Air Filter 82-2236102108 82-2236102108 3. Electric Motor 82-1312100388 82-1312100390 4. Safety Valve 82-1312100005 82-1312100005 5. Pressure Switch 82-1312100455 82-1312100455 6. Pressure Gauge 82-1312100006 82-1312100006 7. Tank Drain 82-1312100360 82-1312100360 8. Check Valve 82-1312100168 82-1312100168 9.
- Page 13 Compressor Pump Compressor Pump 82-1312100119 82-1312100119 Page 10...
- Page 14 Compressor Pump 82-1312100119 Valve Assembly Kit 82-6229024900 Conrod Kit 82-9428010 Crankshaft Kit 82-9428020 Crankcase Bottom Kit 82-6229022500 Cylinder Kit 82-6229022900 Shaft Seal Kit 82-9428050 Head Kit 82-6229023900 Flywheel Kit 82-6229023400 Top Gasket Kit 82-6229023600 Oil Level Kit 82-9428100-KIT Air Filter Kit 82-6229020500 Ring Kit (2 Required) 82-9428120...
- Page 15 AIR COMPRESSOR WARRANTY POLICY Atlas Copco Compressors, LLC makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for a period of one year from date of purchase.
