ElcoBrandt ATLANTIS Technical Training Manual

Aaa class
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Brandt Customer Services
The ATLANTIS
Dishwasher
H
w sh
A
C
H
C
SET
T E C H N I C A L
TRAINING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATLANTIS and is the answer not in the manual?

Questions and answers

Summary of Contents for ElcoBrandt ATLANTIS

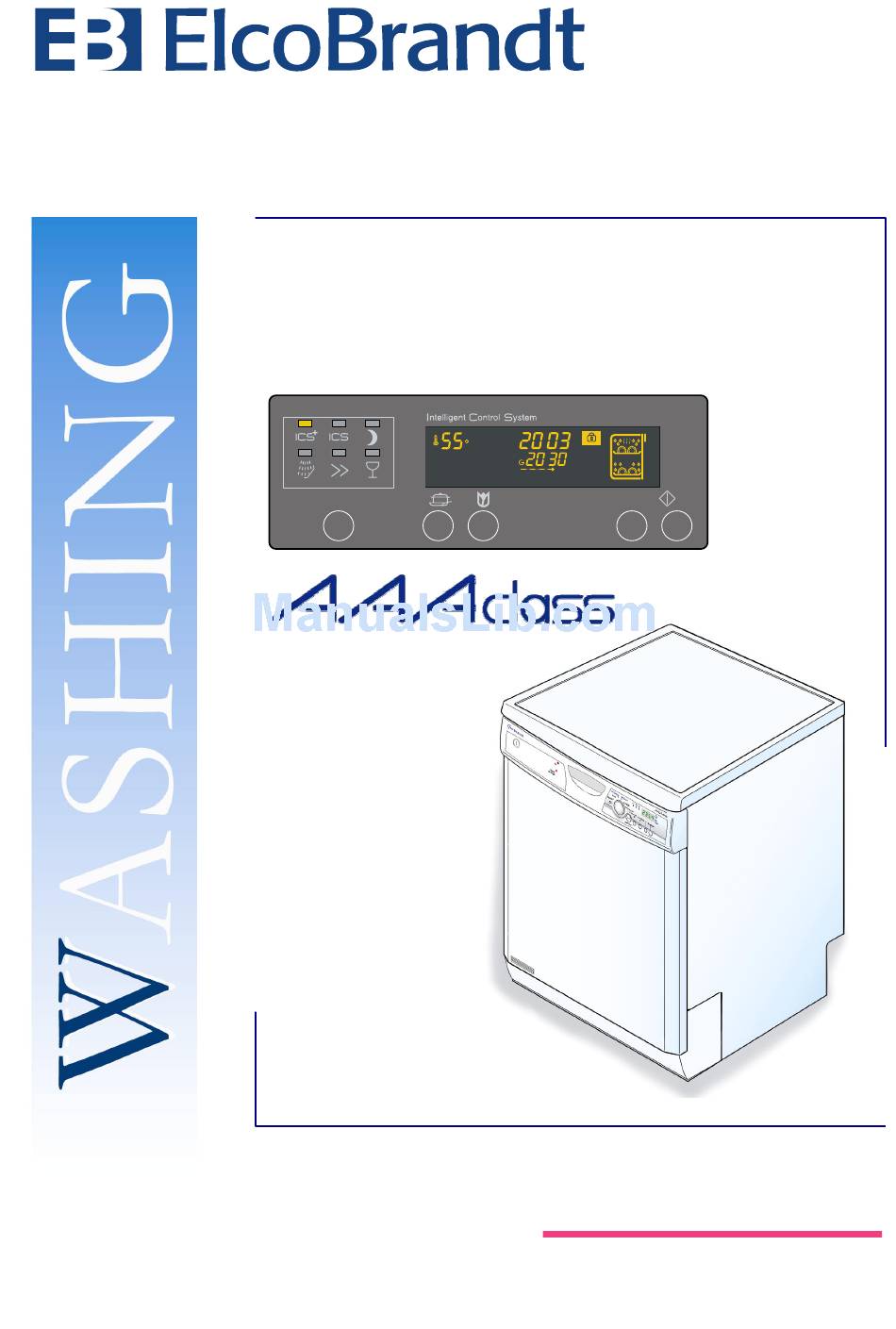

  • Page 1 Brandt Customer Services The ATLANTIS Dishwasher w sh T E C H N I C A L TRAINING...

  • Page 3: Table Of Contents

    6.18. - Synoptic ................................39 6.19. - The block diagram of the Atlantis dishwasher with electronic access ............40 6.20. - The block diagram of the Atlantis dishwasher with mechanic access without flow meter......41 7 - OPERATION SERVICE............................42 7.1. - The diagnosis assistance programme (DAP) ....................42 7.2.

  • Page 5: Introduction

    To do so, he has to make a precise diagnostic in order to adopt the appropriate for the encountered problem. The new ATLANTIS dishwasher proposes a programme of aid to diagnostic intended for the after-sales department. Only the rigorous and systematic implementation of this programme can definitely assure the action reliability.

  • Page 7: The Energy Label

    THE ATLANTIS DISHWASHER ENERGY Technical Training Energy Dishwasher LOGO 2 - THE ENERGY LABEL Manufacturer A B C 1 2 3 Model 2.1. - What you must know More efficient Washing machine, dryer and dishwasher are three appliances likely to weigh heavy on the electricity invoice if you choose model poorly classified from the energetic point of view.

  • Page 8: The Dishwasher

    Noise remains a selection criterion essential despite the fact that indicating it on the "Energy Label" is not compulsory. For the ATLANTIS dishwasher, the level is comprised between 45 and 51 decibels (dB). It must be known that a variation by 3 decibels multiplies by two the sound volume and this is only below 50 decibels that the dishwasher can be operated late at night.

  • Page 9: Operating Principle

    The mechanical action (aspersion) Its purpose is to project the detergent bath onto dishes to remove and drag the dirt. The ATLANTIS dishwasher is provided with 4 spraying levels: • Two that spray the lower and upper baskets •...

  • Page 10: The Water

    THE ATLANTIS DISHWASHER THE WATER Technical Training 4 - THE WATER The water covers, in the nature, a cycle due to its continuous evaporation under the action of the sun heat; this vapour is condensed into fine droplets to produce clouds, which are transformed into rain when they meet a cold air draft.

  • Page 11: The Water Softening : A Vital Function

    To regenerate the resins, it is necessary to eliminate the limestone from them with sodium (salt). This regeneration, automatic and "floating" on "all electronic" ATLANTIS dishwashers, is initiated by the board according to the adjustment performed on the putting into service and to the number of filling baths already performed.

  • Page 12: The Ph (Hydrogen Potential)

    THE ATLANTIS DISHWASHER THE WATER Technical Training 4.5. - The pH (hydrogen potential) Maybe, you have already remarked on labels of cleaning products or drinks the pH indication followed by a number. Maybe, you know that the pH is related to the acidity of a solution, sometimes verifiable by its taste.

  • Page 13: The Detergents

    THE ATLANTIS DISHWASHER THE DETERGENTS Technical Training 5 - THE DETERGENTS 5.1. - The products 5.1.1. - The detergents Contrary to many received ideas, all detergents are not identical. They contain specific ingredients. So each type of detergent has its own features and will be particularly suited to such or such type of wash or of dishes.

  • Page 14: The Atlantis Diswasher

    THE ATLANTIS DISWASHER 6.1. - Presentation The ATLANTIS frame proposes a large choice of models: free-standing with rounded design or flat design with frame decor, or built-in and also many options (alternate spraying, saucepan nozzle, insulation, fan, condenser, turbidimeter, mezzanines …).
  • Page 15 THE ATLANTIS DISHWASHER THE RANGE Technical Training w sh Display 2 digits • On/Off button • Salt light • Rinsing light • Programme buttons • Display • Delayed start • Start/Cancel button w sh Display 2 digits Display 3 digits...

  • Page 16: Identification Of The Reference

    THE ATLANTIS DISHWASHER IDENTIFICATION Technical Training 6.2. - Identification of the reference The identification plate is on the right hand side of the double door. Trademark Serial number : - Year - Week - Number of order Commercial reference Factory reference...

  • Page 17: Fitting

    THE ATLANTIS DISHWASHER FITTING Technical Training 6.3. - Fitting 6.3.1. - Levelling by adjusting the feet The dishwasher must be well balanced ad stable. The four feet can be adjusted, so adjust them if the necessary using a screwdriver. If the feet are poorly adjusted, this decentres the door and makes the dishwasher wobble, causing leaks.

  • Page 18: Adjusting The Water Softener

    THE ATLANTIS DISHWASHER FITTING Technical Training 6.4. - Adjusting the water softener Measuring the water hardness After checking the hardness of the water from the tap, either with the help of the small strip provided with the appliance, or with the AQUA-TEST, adjust the softener on the position which corresponds to the degree of hardness you have measured.

  • Page 19: Setting Of The Rinsing Agent Dispenser

    THE ATLANTIS DISHWASHER FITTING Technical Training Filling the regenerating salt reservoir In order for the softener to work correctly, when the machine is first put to use the salt container should be filled with water (after the regenerative salt has been poured in). Be sure to screw the salt container's lid down securely.

  • Page 20: Use Of The Sensors In New Wash Recipes Classified A A A

    THE ATLANTIS DISHWASHER FUNCTION Technical Training 6.6. - Use of the sensors in new wash recipes classified A A A The intelligent use of some sensors enables the electronics to adapt the run of its auto-programs, in order to guarantee the result while trying to save water, energy and time, and this, whatever the load or dirt rate is.

  • Page 21: Other Possibilities Offered By The Electronics

    THE ATLANTIS DISHWASHER FUNCTION Technical Training 6.7. - Other possibilities offered by the electronics Display of savings achieved on completion of a cycle This display of achieved energy and time savings depends on what the sensors have detected. It only takes place on completion of models with automatic programs.

  • Page 22: Hydraulic Diagram

    THE ATLANTIS DISHWASHER FUNCTION Technical Training 6.11. - Hydraulic diagram Tank Distributor Small shower Condenser * Draining hose I II III Upper spray Flow-meter Pressure switch Lower spray N1 / Overflow Filters Resin tray EV2 * Heating tunnel EVS *...

  • Page 23: The Filling Of The Atlantis Dishwasher With Flow Meter

    FUNCTION Technical Training 6.12. - The filling of the Atlantis dishwasher with flow meter The association of a pressure controller with a flow-meter is used to perfectly control the quantity of water admitted during each filling and to announce a total consumption of 12 litres on certain models.
  • Page 24 THE ATLANTIS DISHWASHER FUNCTION Technical Training • Water pump supplying and stand by of water valve 1 supplying. As soon as the pump is working, the different spraying circuits fill themselves, switching down the contact to low level of the pressure switch.

  • Page 25: The "Floating" Regeneration

    THE ATLANTIS DISHWASHER FUNCTION Technical Training • 6.14. - The "floating" regeneration The regeneration controlled by the electronics is not necessarily performed during each cycle. It is said "floating", as it can be integrated in masked time into the program (the total cycle duration is the same with or without regeneration).

  • Page 26: The Drying

    FUNCTION Technical Training 6.15. - The drying The ATLANTIS dishwasher presents three levels of drying, depending on the model : • Level 1 "C" (natural drying) During the rinse process, the temperature of the dishes is taken up to 73°C. At the end of the programme, a drying phase of about 15 minutes enables the dishes, well drained through the action of the rinsing agent, to evaporate the residual film of humidity by restoring part of the heat accumulated.
  • Page 27 THE ATLANTIS DISHWASHER FUNCTION Technical Training 6.15.1. - The extra drying option Mechanical access model (Nm) - Consultation of setting 1 : the programmes knob must be adjusted to « 0 » position 2 : Turn the programmes knob to the option desired 3 : The light «...

  • Page 28: The Different Components

    THE ATLANTIS DISHWASHER THE COMPONENTS Technical Training 6.16. - The different components Designation Function Characteristics "Aqua stop". The supply pipe is Water supply pipe equipped with a control valve to the tap which cuts off the water supply in the...
  • Page 29 THE ATLANTIS DISHWASHER THE COMPONENTS Technical Training Designation Function Characteristics Distributor Ensures the water distribution for wash Water distribution for filling with soft water and regeneration. (system to distributor, and then distributor to resins and resins to tank). Ensures evacuation of the steam...
  • Page 30 THE ATLANTIS DISHWASHER THE COMPONENTS Technical Training Designation Function Characteristics • Salt compartment 1,4 Kg Softener It consists of a salt container and a resin • Resin tray 0,60 L tray joined by a pipe into which the Resins regeneration control valve (EVR) is inserted.

  • Page 31: Pressure Switch

    THE ATLANTIS DISHWASHER THE COMPONENTS Technical Training Designation Function Characteristics • Low level : 11/12 Pressure switch The water level is controlled by a • High level : 11/13 (1,85 litres) compression chamber in the hydraulic • Safety : 21/23 unit and a pressure switch.
  • Page 32 THE ATLANTIS DISHWASHER THE COMPONENTS Technical Training Designation Function Characteristics Cycling pump The pump pulses the water to the lower Synchronous circulation pump winch and upper winch, ceiling small • 50 l/min shower and product box. • 220 / 240 V~ •...
  • Page 33 Function Characteristics Alternated spraying This system is used to both save water flap valve and reduce the sound level of ATLANTIS dishwashers. Upper spray Lower spray The micro motor of the back-geared motor drives a disc with alternately obstructs the way to the lower spray (240mbar) or the way to the upper spray (140mbar) .
  • Page 34 THE ATLANTIS DISHWASHER THE COMPONENTS Technical Training Designation Function Characteristics Filters Ensures perfect recycling of the The filters are located in the middle of the detergent bath throughout the program tub and must be cleaned regularly to ensure - main filter (1) optimum washing results.
  • Page 35 THE ATLANTIS DISHWASHER THE COMPONENTS Technical Training Designation Function Characteristics Drying fan Motor Ensure evacuation of the steam • 220/240V~ contained in the tank 380 Ω. • Thermo activator • 220/240V~ • 1 kΩ. Access board The access board manages The access cards are thus specific of each model.

  • Page 36: The Washing Programmes

    THE ATLANTIS DISWASHER PROGRAMMATION Technical Training 6.17. - The washing programmes DRENCHING : • Cold pre-wash INTENSIVE : • Washing at 65°C • Rinse • Hot rinse • Drying ICS + : Auto-programme adapted to the amount of items and levels of residue.
  • Page 37 THE ATLANTIS DISWASHER PROGRAMMING Technical Training 6.17.1. - Programmes - 37 - LA3-ATLANTIS-002UK-04/04...
  • Page 38 THE ATLANTIS DISWASHER PROGRAMMING Technical Training - 38 - LA3-ATLANTIS-002UK-04/04...

  • Page 39: Synoptic

    THE ATLANTIS DISWASHER SYNOPTIC Technical Training 6.18. - Synoptic Is the access that differentiates the five levels of programming ‘All electronic’ dishwashers L0 to L1 are fitted with access printed circuit boards. ‘Mechanical access’ models are fitted with selectors and are not provided with access boards in front strip.

  • Page 40: The Block Diagram Of The Atlantis Dishwasher With Electronic Access

    THE ATLANTIS DISHWASHER BLOCK DIAGRAM Technical Training 6.19. - The block diagram of the Atlantis dishwasher with electronic access - 40 - LA3-ATLANTIS-002UK-04/04...

  • Page 41: The Block Diagram Of The Atlantis Dishwasher With Mechanic Access Without Flow Meter

    THE ATLANTIS DISHWASHER BLOCK DIAGRAM Technical Training 6.20. - The block diagram of the Atlantis dishwasher with mechanic access without flow meter - 41 - LA3-ATLANTIS-002UK-04/04...

  • Page 42: Operation Service

    THE ATLANTIS DISHWASHER OPERATION SERVICE Technical Training OPERATION SERVICE 7.1. - The diagnosis assistance programme (DAP) Complete DAPs are used to control all the appliance functions and give a certain number of codes used to know the faulty function. Positions, names of Leds and buttons differ according to the product and the programming level.
  • Page 43 THE ATLANTIS DISHWASHER OPERATION SERVICE Technical Training Action Step Remarks Press the “start” The Leds and the digits light + « Bip » Launching (according to model) ? You are not in the Test programme 5 times within 5 You are in the Test programme...

  • Page 44: Checks And Measurements Possible At Power Board Terminal Strips

    The access board is checked with the DAP (step 01). 7.2.1. - The Atlantis dishwasher with electronic access (L0 to L3) On the voltmeter CAUTION: The reference is J1/3 (neutral).
  • Page 45 THE ATLANTIS DISHWASHER OPERATION SERVICE Technical Training On the ohmmeter CAUTION: All the measurements are made with connectors disconnected from the power board. Components Mark Values Remark N.T.C C1/1 Blue C1/3 Blue At 25°C 47 kΩ Dry sensor C7B/1 or 2...
  • Page 46 THE ATLANTIS DISHWASHER OPERATION SERVICE Technical Training 7.2.2. - The Atlantis dishwasher with mechanical access (Lm) The Atlantis dishwasher with mechanical access (Lm) are not all fitted with flow meter. On the voltmeter CAUTION: The reference is J1/3 (neutral). Mark...

  • Page 47: The Electronics-Controlled Safety Devices

    THE ATLANTIS DISHWASHER OPERATION SERVICE Technical Training On the ohmmeter CAUTION: All the measurements are made with connectors disconnected from the power board. Components Mark Values Remark 0 Ω Position "drenching" C2/6 Orange C2/5 Orange (T1) Position "0" or "stop"...

  • Page 48: Water Height In Tank From Pressure Controller Switching

    For models with time display, the clock is reset to 0 and flashes. 7.3.1. - Safety devices of Atlantis dishwasher without flow meter Cycling pump shorted The current is nil, the programme is not cancelled. The filling stops 10 seconds after level N1 Cycling pump blocked The current is too high, the programme is cancelled.
  • Page 50 SAS au capital de 2.500.000 € – RCS Pontoise B 440 303 303 SIRET 440 303 303 00026 APE514F Service formation : Agrément N° 11 95 00 685 95 Tél : 33 (0)1 34 21 48 00 - Fax : 33 (0)1 34 30 68 42 – E-mail : formationtechnique@elcobrandt.com...
