Summary of Contents for Uninterruptible Power System 400
-

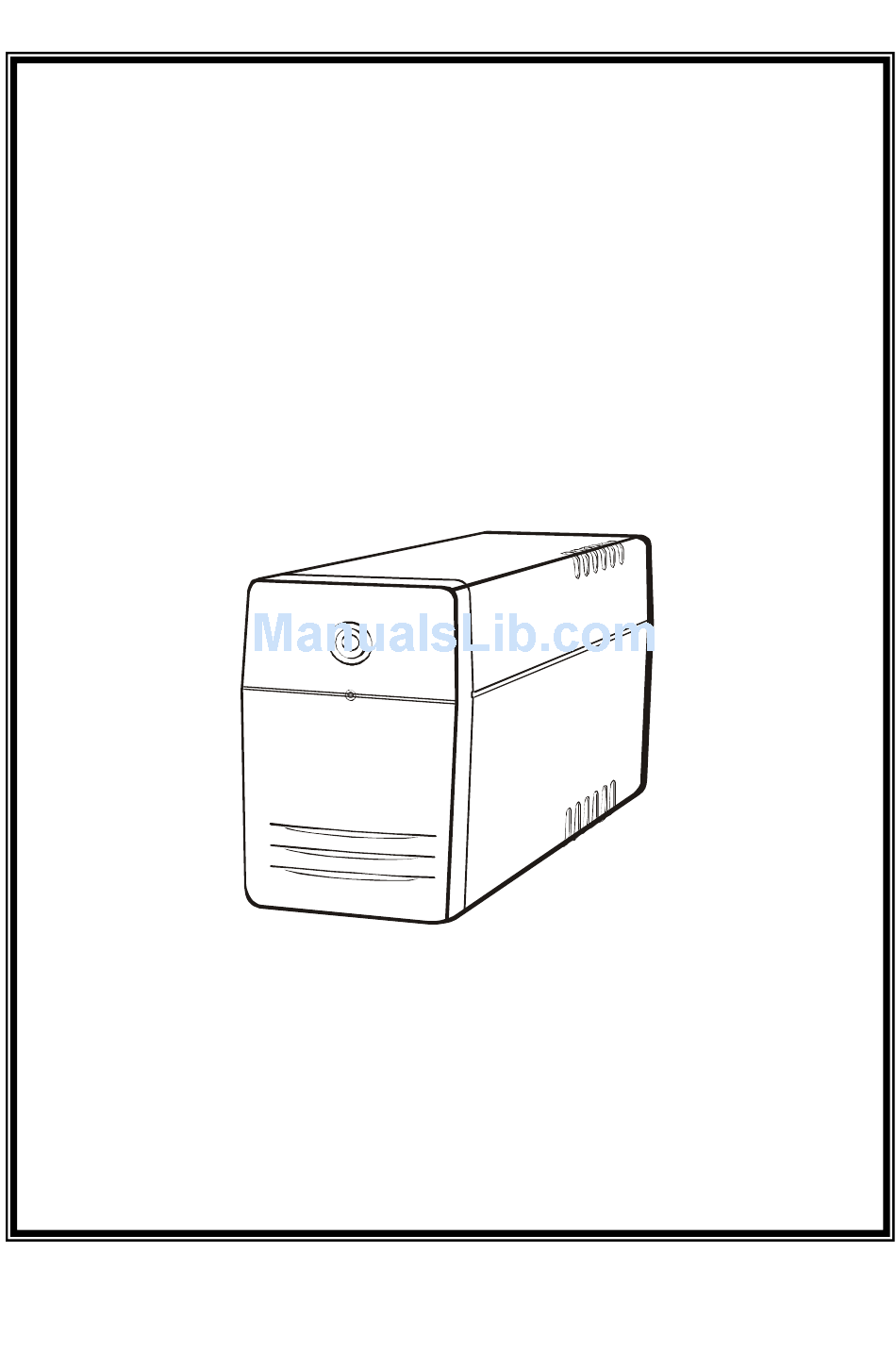

Page 1: User Manual
USER MANUAL Line Interactive UPS Uninterruptible Power System... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS – This manual contains important instructions for models Line Interactive 400, 600, and 800 that should be followed during installation and maintenance of the UPS and batteries. -
Page 3: Safety Caution
Safety – CAUTION! This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit. The unit contains no user serviceable parts. Only factory service personnel may perform repairs. Internal battery voltage is 12Vdc. Sealed, lead-acid, 6 cells battery. ... -
Page 4: Wichtige Sicherheitshinweise
Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries and the required precautions. Keep unauthorized personnel away from batteries. When replacing batteries, replace with the same type and number of the sealed lead-acid batteries. The maximum ambient temperature rating is 40℃. -
Page 5: Installation And Operation
1. Introduction This UPS is specially designed for Personal Computer with multi-functions. Its light weight, compact design perfect fits to the limited working environment. The line of UPS is equipped with boost and buck AVR to stabilize input voltage range. It is also built-in with DC start function. This function enables the UPS to be started up without AC power supplied. - Page 6 2. Charging This unit is shipped from the factory with its internal battery fully charged, however, some charge may be lost during shipping and the battery should be recharged prior to use. Plug the unit into an appropriate power supply and allow the UPS to charge fully by leaving it plugged in for at least 8 hours with no load (no electrical devices such as computers, monitors, etc.) connected.
- Page 7 4. Connection Plug the UPS into a 2-pole, 3-wire grounded receptacle. Then connect one computer-related device into each of the power receptacles supplied on the back of the UPS. 5. Turn On/Off To turn on the UPS unit, press the power switch lightly. To turn off the UPS unit, press the power switch again.
-
Page 8: System Description
3. System Description Front panel: 1. Power Switch 2. LED Indicators – AC Mode: Green lighting Battery Mode: Green flashing Back Panel 1. Output receptacles 4. USB Communication Port 2. AC input with AC fuse 3. Modem/Phoneline Surge Protection... -
Page 9: Troubleshooting
4. Trouble Shooting Symptom Possible Cause Remedy No LED display 1. Missing battery. 1. Charge battery up to 8 on the front hours. panel. 2. Battery defect. 2. Replace with the same type battery. 3. Power switch is not 3. Press a power switch again. pressed. - Page 10 5. Specification MODEL CAPACITY VA/W 400VA/240W 600VA/360W 800VA/480W Voltage 110/120VAC or 220/230/240VAC INPUT Voltage Range 81-140VAC or 162-290VAC Frequency 45-65 Hz (Auto Sensing) Voltage 110/120/220/230/240VAC Voltage Regulation +/-10% (Batt. Mode) OUTPUT Frequency 50Hz or 60Hz Frequency Regulation +/-1 Hz (Batt. Mode) Output Waveform Modified Sinewave 6V4Ah x 2 or...
