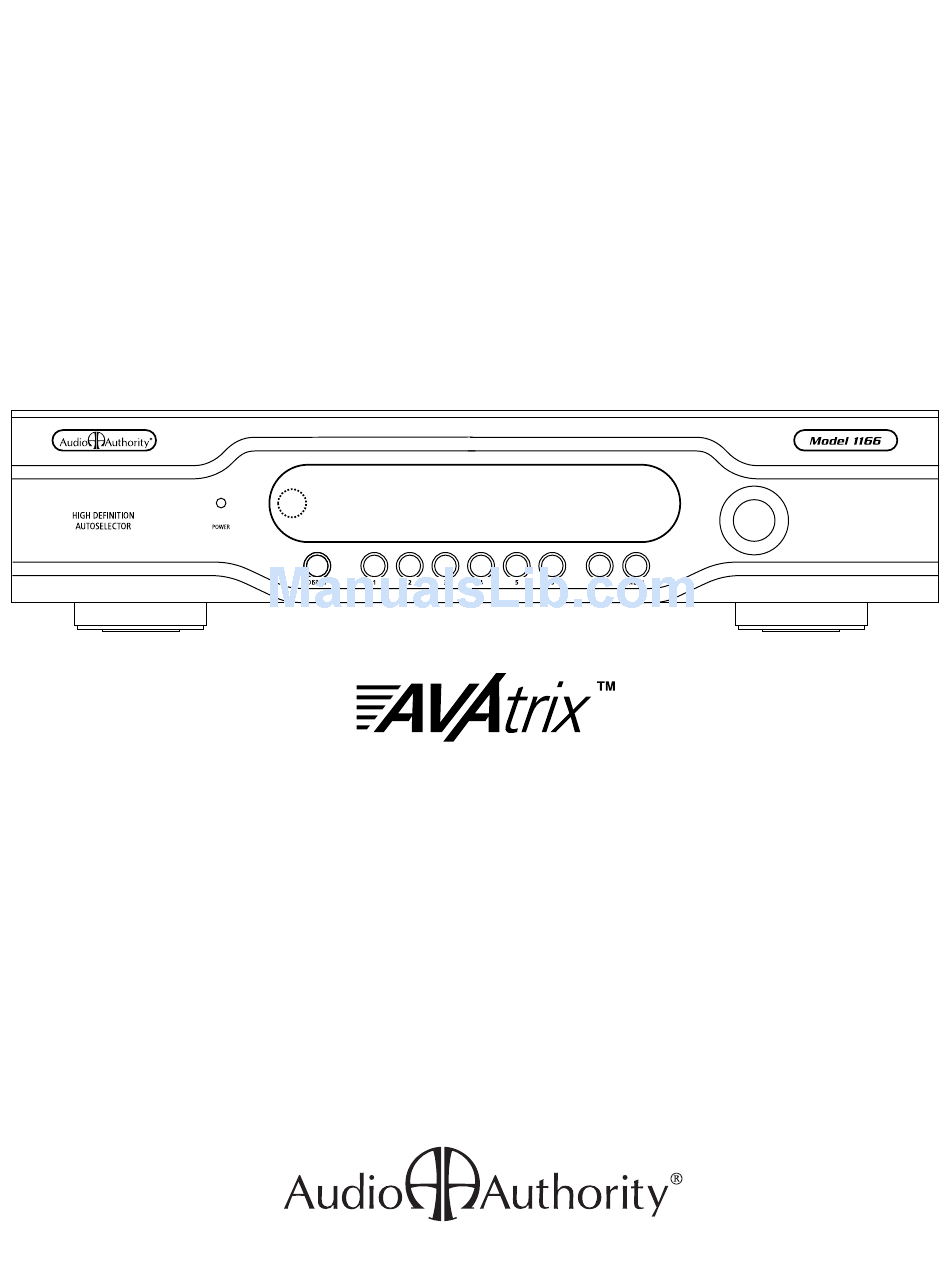

- Page 1 Installation and Operation HD Home Theater Routing System Model 1156 and 1166 High Definition AutoSelector ™...
-
Page 2: Specifications
Model 1156 High Definition Component Video AutoSelector™ Audio Authority and the Double-A Symbol are registered trademarks of Audio Authority Corp. AutoSelect is a trademark of Audio Authority. Copyright February, 2007, all rights reserved. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. -
Page 3: Table Of Contents
• Do not expose this unit to excessive heat. • Install only in dry, indoor locations. • Do not obstruct the ventilation slots. • Clean the unit only with a dry or slightly dampened soft cloth. Audio Authority AVAtrix, 1156 and 1166 User Manual... -
Page 4: Getting Started
Wallplate can also be controlled by the Model 1166. The 1176 delivers component video, digital and analog audio to each 9878 Wallplate over two Cat 5 cables. The AVAtrix is expandable up to 36 remote Wallplate outputs. -
Page 5: Other Materials You May Need
• Model 1362 Up Converter—converts composite or S-video signals to component video or VGA. • Model 1365 Video Scaler—converts YPbPr to RGVHV or VGA to YPbPr. • Audio Authority DVI and HDMI high quality connecting cables and DVI-HDMI adapters. Video Converter Illustrations... -
Page 6: Panel Descriptions
800/322-8346 *SCAN keys used to browse www.audioauthority.com 1166 inputs or navigation *Alpha keys used for navigation * These keys only work when an 1176 Matrix Router is part of the system. Audio Authority AVAtrix, 1156 and 1166 User Manual... - Page 7 Audio Authority AVAtrix, 1156 and 1166 User Manual...
-
Page 8: Installation
Model 1166. Apply power, go to the SETUP menu, choose SAVE/LOAD FILE, and follow the instructions on the screen. 2. Stacking. Follow these steps if you are installing Models 1170, 1172, 1176 or other Audio Authority stacking models with your 1156 or 1166. Disconnect power before performing these steps. - Page 9 COVER AND INSTALL ON LAST EXPANDER THREADED STUDS CABLE 1170 or 1176 Stacking Components This diagram shows the parts and locations for stacking components. The procedure must be performed with the units upside down. Audio Authority AVAtrix, 1156 and 1166 User Manual...
- Page 10 Use good quality cables and keep the runs under 6 feet if possible, especially for DVI and compo- nent video connections—Audio Authority cables are recommended. d. In the event of very long DVI cable runs, add an Audio Authority Model 1351 Repeater. Please see the diagram on page 5.
- Page 11 If a source has HDMI but not DVI output, connect Audio Authority Model 1312 between the source and its DVI and digital audio jacks on the Model 1166. h. Connect the television monitor and audio system to the Output jacks, using DVI only, or both DVI and component video ports if desired.
- Page 12 “enter” key to prompt the Model 1166 to switch when a channel has been selected. b. Audio Authority Model 1108 IR Router (included in AVAtrix) addresses the problem of controlling multiple identical sources from a Wallplate. The Model 1108, when used with individual IR emitters attached to the sources, routes the IR command from a Wallplate to the appropriate source only.
-
Page 13: Troubleshooting
If the 1156 or 1166 system fails to respond as expected, use the outline below to find the cause or narrow the possibilities. If your question is not answered in this guide, call Audio Authority Technical Support at 800-322-8346. Visit www.audioauthority.com for firmware upgrades and other information. -
Page 14: Entering Source Names And Custom Zones
characters per line. Diagnostics 116 Address Diagnostic shows letter address of all detected 116 expanders. Other diagnostics may be added in later system firmware releases. Audio Authority AVAtrix, 1156 and 1166 User Manual... -
Page 15: Setup Menu Chart
Plate 2 belongs to BED1 (Zone 3) and so on. It is usually helpful to write down a list of Wallplates for each zone before assigning zones, especially if your system is very large or complex. Audio Authority AVAtrix, 1156 and 1166 User Manual... -
Page 16: Residential Operation
The Model 1166 or 1156 allows you to select which of up to six video/audio sources to play through your home theater system. In addition, if you have an AVAtrix, the source being displayed at each Wallplate can be controlled by the Model 1156/66 and, if the Wallplate location is equipped with an infrared receiver, the source can be selected using an infrared remote control in the room where the Wallplate is located. -
Page 17: Professional Operation
Professional Operation The Professional mode is designed to allow easy control of 1176 (AVAtrix) remote Wallplate outputs from the Model 1166 or 1156. If your system does not include an 1176, use the Residential Mode. Switch between Residential and Professional by touching the front panel Menu key or by pressing the Zero key on the remote. -
Page 18: Hookup Diagrams For 1156/66, 1170 And 1176
HOME THEATER RECEIVER DIGITAL RECEIVER OR AMPLIFIER Power Supply LEGEND VC Video-component VD Video-DVI IR to 1166 AC Audio-coax (Digital) From Home AO Audio-optical (Digital) Theater AA Audio-analog Stereo RS-232 to 1166 Controller Audio Authority AVAtrix, 1156 and 1166 User Manual... - Page 19 This system capacity is IR Receiver 12 Model 9878 Wallplates (each has selectable input) ANTENNA DIGITAL AUDIO IR REMOTE LEFT RIGHT VIDEO AUDIO www.audioauthority.com MODEL 9878 1105 Universal Remote Remote Control Control Audio Authority AVAtrix, 1156 and 1166 User Manual...
- Page 20 This system capacity is 12 Model 9878 Wallplates (all units display the same input as 1166 Main Output) Model Detail ANTENNA DIGITAL AUDIO IR REMOTE LEFT RIGHT VIDEO AUDIO www.audioauthority.com MODEL 9878 Audio Authority AVAtrix, 1156 and 1166 User Manual...
-
Page 21: Appendix A: Using Compatible Ir Products
Appendix A: Using Compatible Infrared Products Unlike other Audio Authority products, the 1100 series has an active, 12 volt IR pathway that allows it to power the IR receivers connected to the Wallplates, and drive emitters connected to the 1156/66. Do not use Unlike other Audio Authority products, the 1100 series has an active IR pathway, allowing it to powered IR systems that are designed to use a separate power source or your equipment could be damaged. -
Page 22: Appendix B: Rs-232 Control Guidelines
[?,{+,-},P] (P,{+,-}) Query status of Display ONE of the enclosed characters. For example, {L,U} Screen would mean either of the two characters L or U. [?,{+,-},A] (A,{+,-}) Query status of AutoSelect function Audio Authority AVAtrix, 1156 and 1166 User Manual... - Page 23 Query status of display screen (Professional, Residential, or Setup) ?{N,Q,V,W,Y} ={+,-} Query status of setting (see above for descriptions) Query status of main output ?Uxn Query status of any single Wallplate output Audio Authority AVAtrix, 1156 and 1166 User Manual...
-
Page 24: Warranty
Authority guarantees that we will replace the defective product at no cost. Freight charges for the re- placement unit will be paid by Audio Authority (Ground service only). A copy of the original invoice from an Authorized Reseller showing the item number and date of purchase (proof-of-purchase) must be submitted with the defective unit to constitute a valid in-warranty claim.
