Meiji Techno FL-PWJ Instruction Manual

Meiji techno power supply and lamphouse

Advertisement

Quick Links

Model FL-PWJ Power Supply
Model FL-LHJ Lamphouse
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FL-PWJ and is the answer not in the manual?

Questions and answers

Summary of Contents for Meiji Techno FL-PWJ

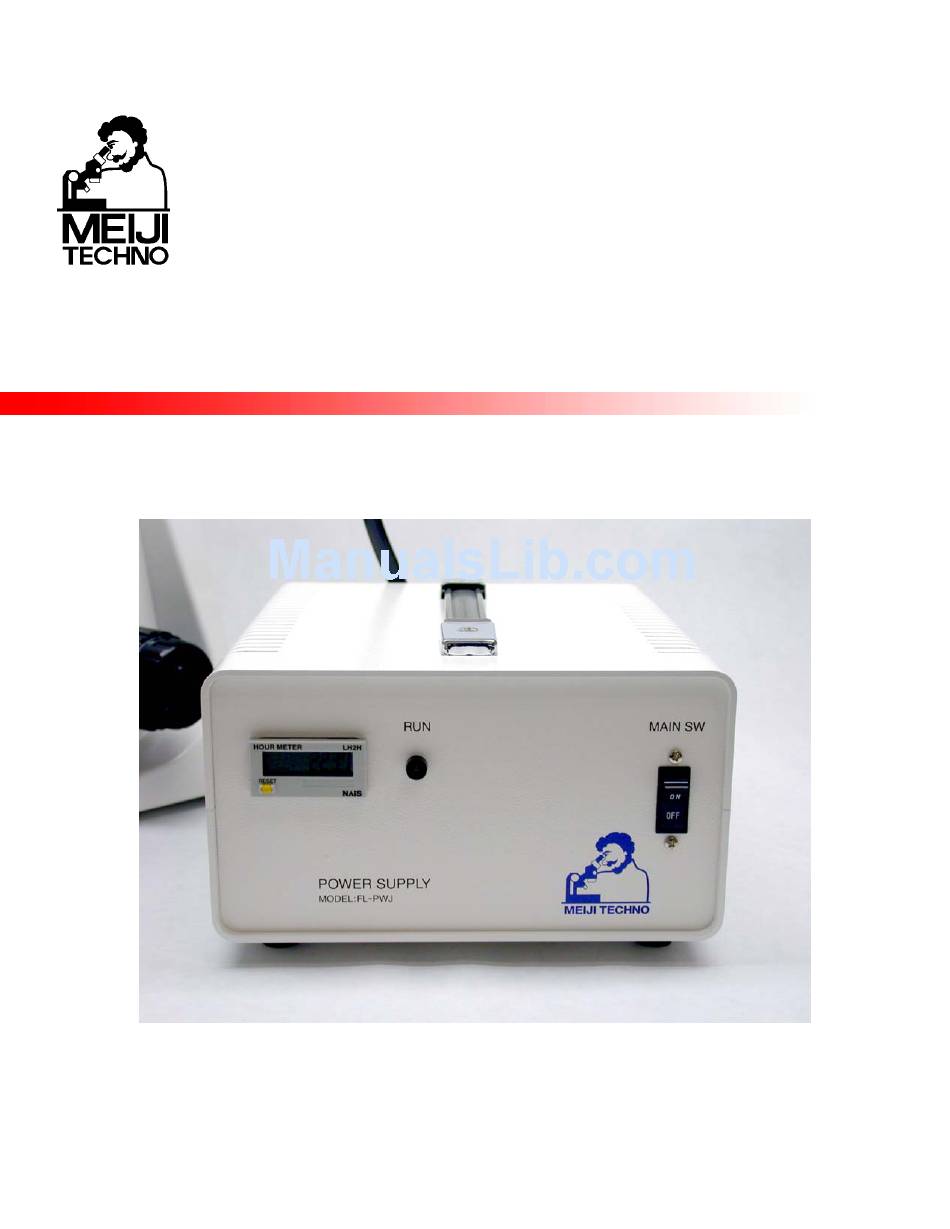

  • Page 1 Model FL-PWJ Power Supply Model FL-LHJ Lamphouse Instruction Manual...
  • Page 2: Table Of Contents

    Table of Contents 1.0 Introduction 1.1 Power Supply & Lamphouse Features 1.2 General Safety Guidelines 1.3 Warning/Caution symbols used in this manual 1.4 Intended Product Use Statement 1.5 Product Safety Information 1.6 Warranty Notes 2.0 The Components 2.1 Installation Site 2.2 Unpacking 2.3 Set Up 2.4 Bulb Installation or Replacement, Step-by-Step...
  • Page 3: Introduction

    The Meiji Techno FL-PWJ Epi-Fluorescence Illuminator Power Supply is a precision engineered product incorporating efficient, silent-running switchmode power supply technology delivering smooth, regulated current. The FL-PWJ Power Supply is designed only to support 100 watt HBO DC arc lamps. The advanced switchmode design provides constant, low-noise DC power that automatically adjusts for the condition of the DC lamp in circuit.
  • Page 4: Power Supply & Lamphouse Features

    1.2 General Safety Guidelines This manual contains important safety instructions and information concerning the installation, operation and maintenance of the FL-PWJ Power Supply. This manual should be read carefully before any attempt is made to operate this equipment. To ensure safe operation the user must read and adhere to all of the directions put forth in this manual.
  • Page 5: Intended Product Use Statement

    In no event shall Meiji Techno be liable to any person for any incidental, indirect or consequential damages, arising out of or in connection with the use or performance of a modified or altered product.
  • Page 6: Warranty Notes

    Meiji Techno warrants this product against defects in material and/or workmanship for one year from the date of the original purchase to the original purchaser. Meiji Techno will repair or replace, at its option, any product which under normal conditions of use and service proves to be defective in material or workmanship.
  • Page 7 Service life of a product is dependent upon the care it receives and the conditions under which it has to operate. In no event shall Meiji Techno be liable for incidental or consequential damages.
  • Page 8: The Components

    The terms of this warranty may not be varied by any person, whether or not purporting to represent or act on behalf of Meiji Techno. This warranty is provided is in lieu of any and all other warranties, expressed or implied, whether for merchantability or fitness for a particular purpose or otherwise.
  • Page 9: Installation Site

    1. Power Switch 2. Run Indicator Lamp 3. Panel Mounted Elapsed Time Meter 4. Reset Button The image above indicates the main components of the back panel. 5. Output Port (The Lamphouse harness plugs into this connector.) 6. IEC Standard inlet connector for standard IEC powercord sets. 7.
  • Page 10: Unpacking

    The system should be operated in a room with as little dust as practically possible. Keep the power supply and lamphouse away from solvents, chemical fumes and excessive humidity. Also try to avoid big swings in ambient temperature, direct sunlight and excessive vibration. The power supply needs adequate room around the housing to receive airflow.
  • Page 11: Set Up

    2.3 Set Up • As a first step, remove all components from the shipping container and remove the packing materials. Save the container and packing in a dry location. • Remove the access plate on the lamp house by unscrewing the two knobs counter-clockwise until they stop and gently removing the access plate.
  • Page 12 • Mount the lamp house onto the microscope. The three screws that engage the dovetail fitting should be equally tight, the lamp house should be mounted perpendicular and the lamp house should not be able to turn in its mount when tightened properly. •...
  • Page 13 2.4 Bulb Installation It is critical to properly install the bulb in the socket. Reversed polarity can dramatically shorten the life expectancy of the particular bulb to as little as one or two minutes followed by a very loud explosion. The writing on the base of the bulb goes down on Mercury lamps.
  • Page 14 3. Slide desired lamp into the lamp holder. 4. Slide the bulb clamp onto the negative (-) end of the lamp. 5. Hold the bulb clamp and trigger lead. Using the supplied allen wrench, tighten the clamping screws snugly and evenly. Be careful not to place ANY stress on the lamp.
  • Page 15: Bulb Alignment For Tc Models

    2.5 Bulb Alignment – TC Models After the bulb has burned in, the system is ready for arc lamp alignment. There are many methods to accomplish arc lamp alignment if one were to go look on the internet. The following is only one of many methods. If the arc lamp is not already burning, turn on the power supply and let the arc lamp “settle”...
  • Page 16 similar. Open the filter slider on the illuminator so that the light travels through the system. Engage the field iris diaphragm all the way open. Engage the fluorescence filter slider to a position where the plastic specimen fluoresces. If the FOV is too bright to look at, use a different specimen that is less affected, what is important is the specimen is consistent or even across the FOV.
  • Page 17 Check the effect achieved when the collector lens focus knob is adjusted and continue to make minor adjustments to the arc position and the mirror position until the light is as even and centered in the FOV as possible. Remove the plastic slide and place a known good biological fluorescence sample on the stage and again check the effect achieved when the collector lens knob is adjusted and continue to make minor adjustments to the arc position and the mirror position until the FOV displays an even an image as possible.
  • Page 18 similar. Open the filter slider on the illuminator so that the light travels through the system. Engage the field iris diaphragm all the way open. Engage the fluorescence filter selector wheel into a position where the plastic specimen fluoresces. If the FOV is too bright to look at, use a different specimen that is less affected, what is important is that the specimen is consistent or even across the FOV.
  • Page 19: Operation

    Check the effect achieved when the collector lens focus knob is adjusted and continue to make minor adjustments to the arc position and the mirror position until the light is as even in the FOV as possible. Remove the plastic slide and place a known good biological fluorescence sample on the stage and again check the effect achieved when the collector lens knob is adjusted and continue to make minor adjustments to the arc position and the mirror position until the FOV displays an even an image as possible.
  • Page 20: Uv Light Safety Considerations

    Always disconnect the power cord from the back of the power supply when not being used, when cleaning your instrument or when making any repairs. Avoid Dismantling Never attempt to dismantle the power supply. This will void your warranty and could possibly lead to the product no longer performing accurately.
  • Page 21: Maintenance And Cleaning

    UV light causes sunburn. Long term exposure can result in loss of skin elasticity initially and carcinoma eventually. Absorption of UV light by the eyes will cause inflammation of the cornea called photo keratisis. Continued exposure can lead to the formation of cataracts on the eye lens.
  • Page 22: Troubleshooting

    • In warm humid climates, take special care to prevent your equipment from exposure to fungal growth. Dust Protection Be sure to use the supplied dust cover with your microscope after each work session. Cleaning Dust and fibers can cause “background fluorescence” during fluorescence microscopy so keeping your microscope clean can help the overall quality of your work.
  • Page 23: Fluorescence Lamp Does Not Work

    Meiji Techno products are manufactured in Japan under ISO9000 manufacturing standards. However, if you ever have any difficulty with any Meiji product, feel free to contact us at: Meiji Techno America 3010 Olcott St Santa Clara, CA 95054 800.832.0060 408.970.4799 FAX technicalsupport@meijitechno.com...
  • Page 24: Specifications

    Refer to the companion manual of the Nobska Lamphouse for more on troubleshooting and replacement of the 100W Mercury Lamp. Replacing the mercury HBO lamp within the Nobska housing is not very complex but there is a followed procedure that will make the process easier and less dangerous.
  • Page 25 Input 90 – 132 VAC 50-60Hz Output 20VDC @ 5A Output Stability (Ripple) < 2.5% P-P Starting Voltage Peak 2.3KV DC Operating Temperature 0 – 40 degrees C Operating Humidity 20% - 85% RH Storage Temperature -20 – 70 degrees C Storage Humidity 10% - 90% RH Supplied Accessories...
  • Page 26 Meiji Techno Co. Ltd. Toll free: (800) 832-0060 MEIJI TECHNO AMERICA Phone: (408) 970-4799 3010 Olcott St Fax: (408) 970-5054 Santa Clara, CA 95054 Email: sales@meijitechno.com Web: http://www.meijitechno.com MEIJI TECHNO CO., LTD. Phone: 049-259-0111 322-1, Chikumazawa, Fax: 049-259-0113 Miyoshi machi, Iruma-gun E-mail: meiji@meijitechno.co.jp...
