Antex electronics DMX-4 User Manual

Antex electronics usb mixer user manual
Hide thumbs

Advertisement

Quick Links

Download this manual
DMX-4
USB Mixer
User
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DMX-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Antex electronics DMX-4

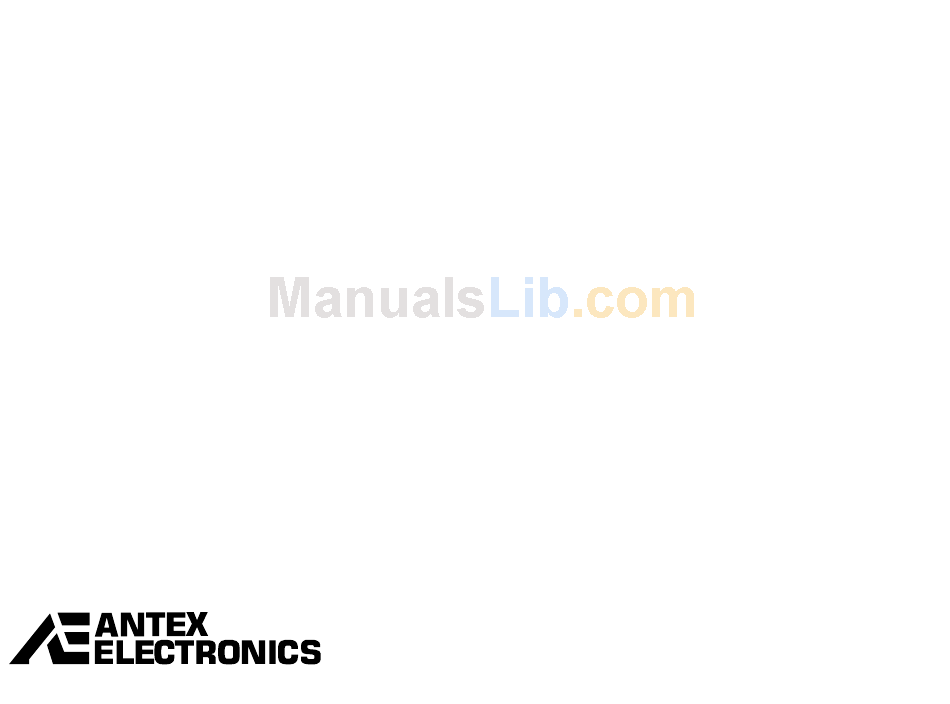

  • Page 1 DMX-4 USB Mixer User Manual...

  • Page 2: Important Safety Instructions

    DMX-4 USB Mixer User Manual Antex Electronics Corporation 19821 Hamilton Avenue Torrance, California 90502 www.antex.com Copyright © 2008 Antex Electronics Corporation. All Rights Reserved. No portion of this manual may be reproduced without prior written consent from Antex Electronics. Part number 9000-2489-7006 Rev B.
  • Page 3 DMX-4 USB Mixer User Manual inside. Refer all servicing to qualified service personnel. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. Damage Requiring Service – Unplug this product from...

  • Page 4: General Description

    3 and 4 are left and right of Wave Device 2. Power input to the DMX-4 can be from +5 to +15 VDC. Power consumption is about 5 watts. The unit is supplied with a 9V international wall adapter, but can also be powered by battery packs or from an automobile accessory plug (“cigarette lighter”).
  • Page 5 “.NET Framework 2.0” in the Search box.) Follow the instructions to download and install .NET Framework 2.0. Go to software driver for the DMX-4. The installation process is fairly straightforward, using the InstallShield. Run the “Setup.exe” program. The first dialog box will say “Preparing to Install…”...
  • Page 6 DMX-4 USB Mixer User Manual Enter the User Name and Organization, click “Next”. DMX-4 USB Mixer User Manual Unless you need to change the destination folder, click “Next”. The next dialog box will say “Ready to Install the Program”. Click “Install”.
  • Page 7 If you see a dialog box like the one above, click “Continue Anyway”. DMX-4 USB Mixer User Manual Make sure the USB cable is plugged in and the DMX-4 is powered up. Click “OK”. Click the “No, not this time” option (this is NOT the...
  • Page 8 DMX-4 USB Mixer User Manual The “Install the software automatically (Recommended)” should be selected. Click “Next”. After the driver is loaded, click “Finish”. DMX-4 USB Mixer User Manual The New Hardware Wizard will open again, this time to load the audio driver. Select the “No, not this time”...
  • Page 9 Antex Mixer program. DMX-4 USB Mixer User Manual Installing the Software - Vista Go to software driver for the DMX-4. The installation process is fairly straightforward, using the Installshield. Run the “Setup.exe” program. The first dialog box will say “Preparing to Install…”...
  • Page 10 After the program is installed, a dialog box will appear that says “InstallShield Wizard Completed”. Click “Finish”. DMX-4 USB Mixer User Manual Make sure either the USB cable is unplugged, or power is removed from the DMX-4. Then click “OK”. Click “Install this driver software anyway”.
  • Page 11 100 to 240 VAC. Do NOT use above 240 VAC. The DMX-4 can also be powered from any DC source from +5 to +15VDC. This includes battery packs or the “cigarette lighter” of an automobile.
  • Page 12 USB 1.1. Plug directly into one of the computer’s USB ports. Do not go through a hub. Note that the USB cable plugs into the DMX-4 with the beveled side (and the molded USB logo) facing down. Input Connections Dynamic or electret condenser microphones can be used with the DMX-4.
  • Page 13 DMX-4 USB Mixer User Manual typically receive a mix of all inputs except him or herself. DMX-4 USB Mixer User Manual Using the Antex Mixer Program...
  • Page 14 Line and Microphone The “Line” and “Microphone” buttons select the type of input you are connecting to the DMX-4. The difference is the signal level and the amount of gain required. Microphones have a low signal level and require higher gain.
  • Page 15 DMX-4 USB Mixer User Manual DMX-4 USB Mixer User Manual is done digitally in your PC, and not in the DMX-4 circuitry. When “Line” is selected, the gain is fixed at 0dB for inputs 1 and 2. If you attempt to move the slider with the mouse, it will snap back.

  • Page 16: Specifications

    DMX-4 USB Mixer User Manual DMX-4 USB Mixer User Manual Specifications: Inputs: Number Connector Type Gain adjustment: Channels 1 & 2, (mic setting) Channels 1 & 2, (line setting) Channels 3 & 4, (mic setting) Channels 3 & 4, (line setting)
  • Page 17 DMX-4 USB Mixer User Manual Gain adjustment -102 to +25.5dB THD+N -84dB (note 2) Note 2. A weighted. Test conditions: Test signal of – 30dBV amplitude input into microphone input. Input gain slider set to +30dB, Monitor gain slider set to 0dB.
  • Page 18 DMX-4 USB Mixer User Manual EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT. This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING AN IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.
