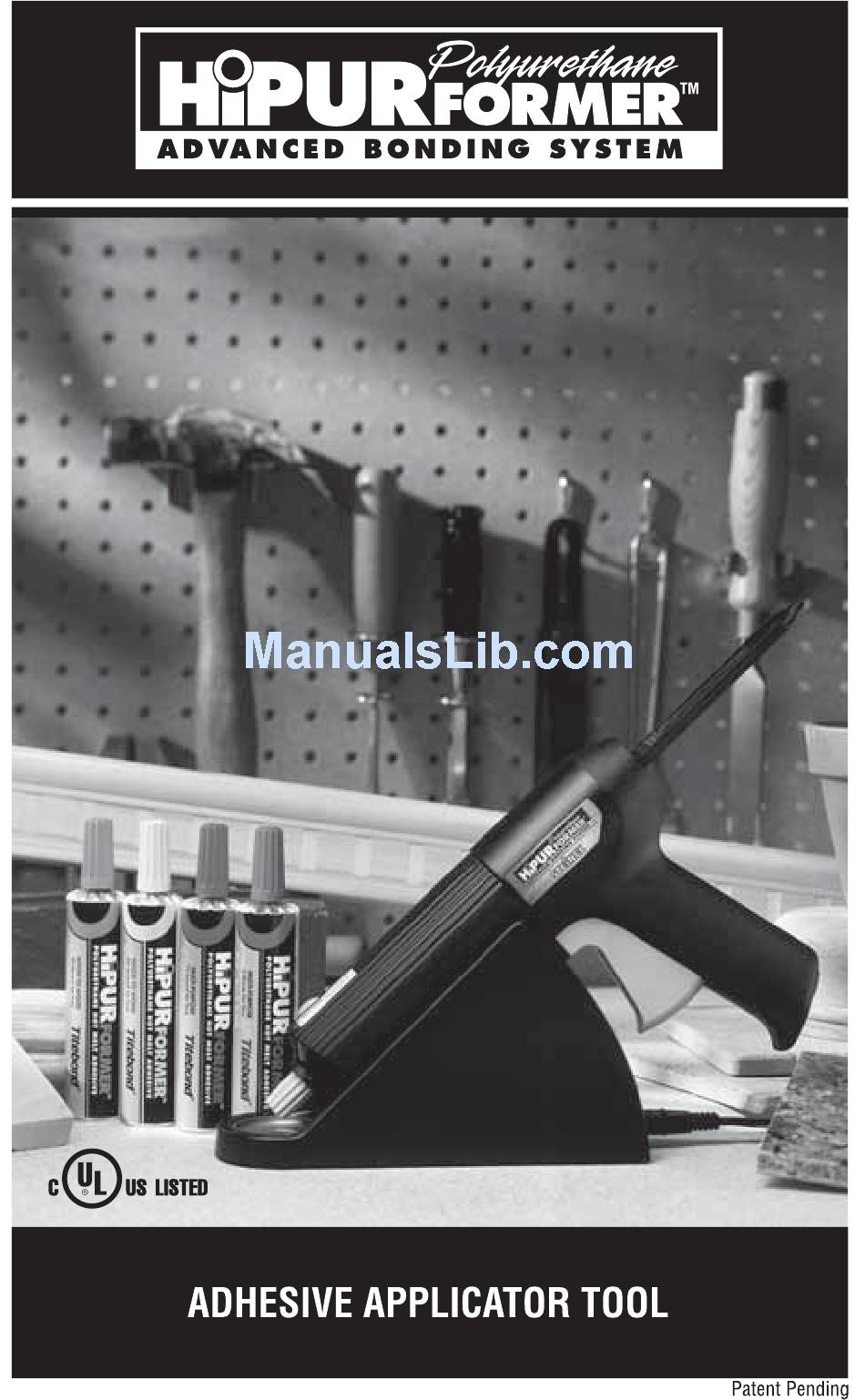

Summary of Contents for STEINEL HiPURformer
-
Page 2: Technical Specifications
Output: 12 watts in standby phase, 200 watts while heating Heat-up Time: 10-13 minutes Working Temperature: 212-284°F Maximum Working Time: Approximately 20 minutes away from base unit Cartridge: Works with all HiPURformer™ 50 gram cartridges 1 feed rod 2 cartridge cap holder 3 trigger... -
Page 3: Important Safety Instructions
OPERATING INSTRUCTIONS Congratulations on your purchase of a HiPURformer™ polyurethane reactive hot melt adhesive applicator. You have chosen a high quality product that has been manufactured, tested and packed with the greatest care. Please read these operating instructions carefully before using your adhesive applicator and retain them for future reference. - Page 4 ABOUT HiPURformer™ POLYURETHANE REACTIVE HOT MELT ADHESIVES The HiPURformer™ Adhesive Applicator has been specially designed for use with HiPURformer™ polyurethane reactive hot melt adhesive cartridges. HiPURformer™ adhesives are extremely versatile and offer many advantages over traditional hot melts. • High-strength, permanent bonds •...
-
Page 5: Getting Started
GETTING STARTED 1. Plug base station into power source. Green diode will light up. 2. Depress trigger and turn heating cylinder counterclockwise to separate the two applicator components. Remove adhesive cartridge from foil pouch and insert into heating cylinder. 3. Reassemble the applicator by retracting the feed rod and twisting the cylinder until it locks into place. -
Page 6: For Best Results
• During prolonged work breaks (over 60 minutes), replace the cartridge cap securely while the adhesive is hot and unplug the unit. • When finished using the HiPURformer™ Advanced Bonding System, extrude about one inch of adhesive from the cartridge nozzle, then immediately replace the cartridge cap tightly while the adhesive is hot. -
Page 7: Limited Warranty
Repair Service: Units returned for repair outside the terms of the Limited Warranty Statement are subject to standard repair charges. SPARE PARTS (refer to diagram on page 2) Spare parts may be ordered by calling STEINEL at 1-800-852-4343 or visit our website at www.steinel.net. Please have your Visa or Mastercard ready. Description... -
Page 8: Troubleshooting
BOND STRENGTH OF HiPURformer™ ADHESIVES Strength Development WW30 WW60 MP75 MP300 Maple to Maple 10 minutes 650 psi 600 psi 270 psi 118 psi 1 hour 1090 psi 1130 psi 600 psi 478 psi 24 hours 1360 psi 1480 psi... - Page 9 NOTES...
- Page 10 FF 662 8/4/04 LB...
