Summary of Contents for Fosgate Audionics FAP V1

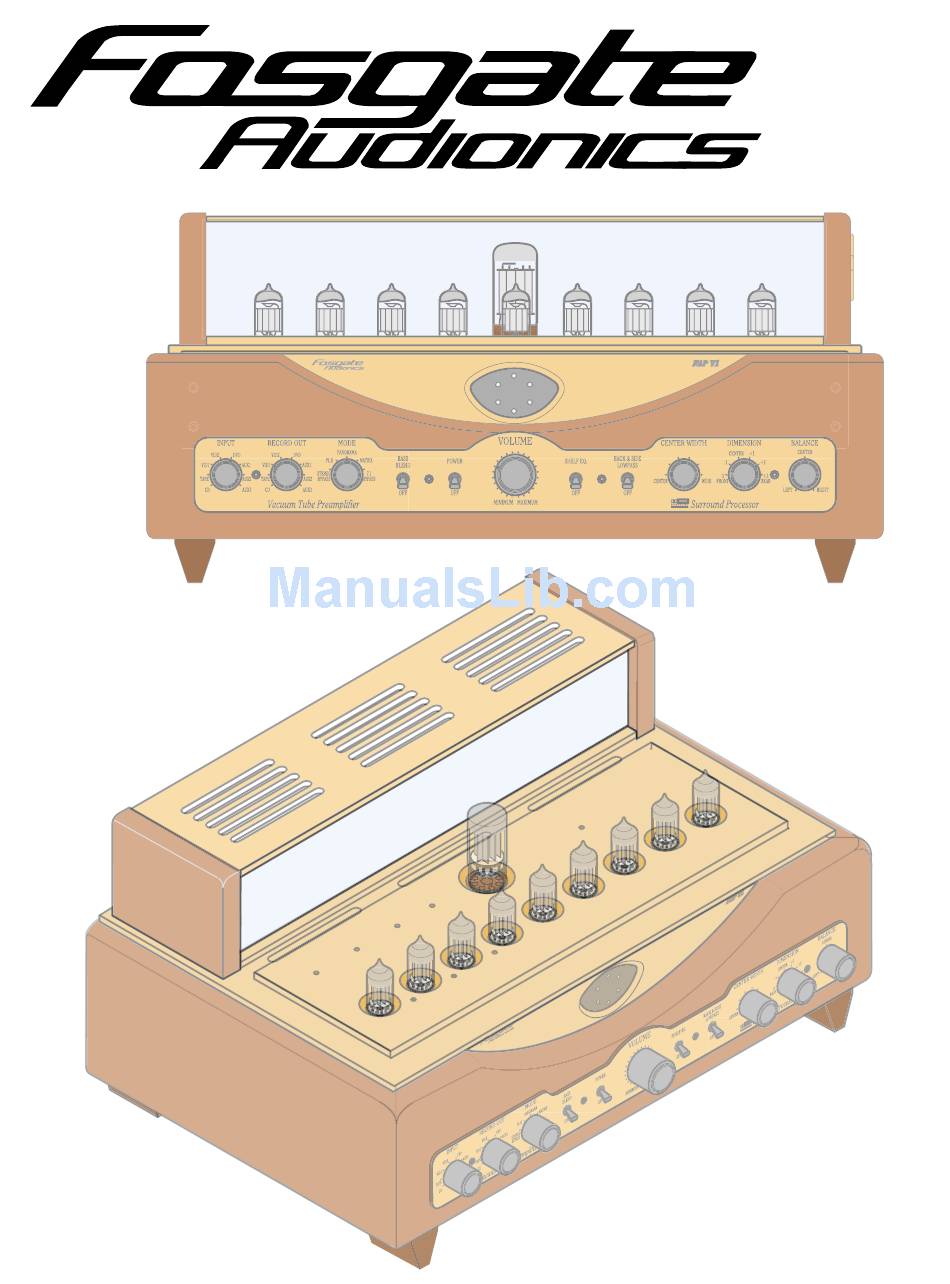

- Page 1 F F A A P P V V 1 1...
-
Page 2: Table Of Contents
Jim Fosgate, a pioneer in the field of surround sound processing. The FAP V1 is one of only 50 hand signed special edition units, truly a work of art both internally and externally. -
Page 3: Chapter 1 - Safety And Introduction
Chapter 1 F F A A P P V V 1 1 Safety Introduction "I have been a dedicated tube listener for the past 23 years." Jim Fosgate... -
Page 4: Safety Precautions
DAMAGE REQUIRING SERVICE VENTILATION Fosgate audionics equipment should be serviced by qualified service personnel when: The equipment should be used in an area suitable for proper ventilation. Care should be taken not to impede airflow in and A. -
Page 5: An Introduction By Jim Fosgate
"cross talk cancellation" to obtain a high degree of channel separation. In the FAP V1 the tubes are passing the audio signals from the input to the output. The solid-state devices are used in the steering logic section and are part of the "cancellation circuitry". These circuits are remov- ing certain information from the appropriate channels to control channel separation. -
Page 6: Timeline Of Fosgate Audionics
Timeline... -
Page 7: Chapter 2 - Accessories And Assembly
Chapter 2 F F A A P P V V 1 1 Accessories Assembly "The FAP V1 has been designed with a "no compromise all tube" analogue audio path." Jim Fosgate... -
Page 8: Unpacking
Rectifier Tube 1. Install the Rectifier tube, ensuring the tube is aligned The FAP V1 is heavy and has many front mounted controls and rear with the notch on the socket. panel connectors, take care when lifting it so as not to cause damage. -
Page 9: Chapter 3 - Features And Controls
Chapter 3 F F A A P P V V 1 1 Features Controls "I prefer the Panorama mode for most music and about half of my movies." Jim Fosgate... -
Page 10: Features
Your new FAP V1 Preamp/Processor is a combination of proven analog amplification and the latest surround processing technologies. The FAP V1 provides maximum system connection flexibility, 7.1 Input and Output connections and an array of controls to fine tune the output sound you're seeking. -
Page 11: Controls
Capacitor and Polypropylene Film and Foil Capacitor. © 1992-1997 Dolby Laboratories, Inc. All rights reserved. The FAP V1 has many controls to accommodate a wide variety of recorded material and personal taste. 1. The INPUT selector – Used to select different two PANORAMA –... - Page 12 Controls 4. The BASS BLEND switch – Directs the bass 9. The CENTER WIDTH selector – Used to adjust the recorded in the center to the left and right speakers. "width" of the center front image. When the bass blend control is switched "ON" the When this selector is in the CENTER position (full bass located in the center front channel is also counterclockwise) the center channel speaker carries...
- Page 13 Controls F F A A P P V V 1 1 Back Panel Controls 12. The FRONT HIGH PASS switch – When "ON" is a low frequency filter that places a -3dB@80Hz at the Left Front and Right Front outputs. 13.
- Page 14 Controls * All of the controls mentioned may seem a bit confusing at first, but after some listening experience you will find them to be a valuable tool in adjusting the soundfield to suit your personal preference and accommodate different recording techniques.
-
Page 15: Chapter 4 - Installation And Connection
Chapter 4 F F A A P P V V 1 1 Installation Connection "Organ pedal notes must be heard and felt to be believed!" Jim Fosgate 1 1 5 5... -
Page 16: Location
Installation A surround system must be of the highest quality to realize the full potential of the FAP V1. The entire system cannot have any weak links in the audio chain, and must be properly installed and adjusted. To hear the true "tube sound" of your FAP V1, the use of tube electronics including program source and power amplifiers is highly recommended. -
Page 17: Connecting Audio Components
Connect the L and R channel outputs on the CD player to the CD input jacks. Audio Recorder A recording device such as a cassette deck, MD recorder, DAT deck or CD recorder can be connected to the FAP V1 using following method. -
Page 18: Connecting Video Components
(special cable sets for this are available from numerous sources) from your player to the eight (8) input jacks labeled 7.1 INPUTS on the rear panel of the FAP V1. Be sure match the connections—left to left, right to right, and so on. -
Page 19: Connecting An External Amplifier
FAA 1000.5 Power Amplifier. The FAP V1 can output up to 7.1 channels of sound (seven satellite and one subwoofer channel) depending on source components and material. The output jacks supplied by the FAP V1 are: Left Front, Center, Right Front, Left Side, Right Side, Left Back, Right Back, and Subwoofer. -
Page 20: Connecting A 7.1 Multichannel Device
Use the audio jacks labeled 7.1 INPUTS to connect the FAP V1 to an 7.1 Multichannel device such as the Fosgate Audionics FAP T1 Preamp/Processor. The input jacks on the FAP V1 are: Left Front, Center, Right Front, Left Side, Right Side, Left Back, Right Back, and Subwoofer. Use the following diagram for connecting your system. -
Page 21: Speaker Configuration
Connection F F A A P P V V 1 1 SPEAKER CONFIGURATION You are now ready to configure the FAP V1 for your particular loudspeaker system. Before proceeding please read the following information carefully: Speaker Placement The best speaker placement for your particular room will depend on its size, furnishings, seating arrangement, the acoustical properties of the space, including wall type, coverings, and various other factors. - Page 22 Subwoofer Subwoofer placement can frequently be a trial and error affair as bass energy set up "standing waves" in most every room. These standing waves can cause areas with too much bass, areas with too little bass, and areas in between. You may have to move the subwoofer and or the prime listening area to improve the bass response.
-
Page 23: Chapter 5 - Calibration And Troubleshooting
Chapter 5 F F A A P P V V 1 1 Calibration TroubleShooting "I prefer mine to be adjusted "dead on" with the meter" Jim Fosgate. 2 2 3 3... -
Page 24: Test Disc
17. 1kHz Test Tone for RF 28. 50Hz Test Tone for CF After you have completed the setup of your FAP V1 and your audio system is ready for speaker calibration, please insert the test disc in your CD/DVD player. -
Page 25: Getting Started
For example purposes we will use 80dB as our target SPL level. Step 1: Ask your friend or family member to either hold the SPL meter or stand near the FAP V1 to adjust the channel level trim controls. (You will perform the other task). - Page 26 RF channel that you executed for the CF speaker. You will need to adjust the remaining 6. Using the top panel trim pots on the FAP V1 and tracks 4 – 9 speakers in your system to the exact same SPL level to on the setup disc, decrease the level of the top panel trim pots ensure proper soundstage performance.
-
Page 27: Troubleshooting
This may direct you to a problematic tube that would need replacement. Whenever troubleshooting connections to or from your FAP V1 take the time to ensure the power for the unit is turned off and ample time has been given for the unit to cool. -
Page 28: Care And Maintenance
• Avoid mars and scratches when moving the FAP V1 or handling items near the FAP V1. Wood is a soft material that can become damaged when hit by other objects. If you need to move the FAP V1 ask for a friend to assist lifting and guiding the FAP V1 to the desired location, if possible wrap the FAP V1 in a protective cloth while moving or transporting your unit. -
Page 29: Chapter 6 - Specifications And Warranty
Chapter 6 F F A A P P V V 1 1 Specifications Warranty "The hi-frequency shelf filter switch places a 4.5 dB in the output stage." Jim Fosgate 2 2 9 9... - Page 30 Specifications Model FAP V1 Input Impedance 200kΩ (ohms) Output Impedance (Main RCA) 750Ω (ohms) Rated Output 2.0V rms Maximum Output 15.0V rms (1% THD+N, 20-20kHz, 100k Ohm Load, Stereo Bypass Shelf EQ. (Low Pass Filter) -3dB@5kHz Front High Pass -3dB@80Hz...
- Page 31 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Fosgate Audionics any other liability in connection with the sale of the product.
- Page 32 A Division of Rockford Corporation 546 SOUTH ROCKFORD DRIVE TEMPE, ARIZONA 85281 U.S.A. 1-866-777-7282 www.fosgateaudionics.com 08/03 BM Printed in U.S.A. MAN-4368-A...
