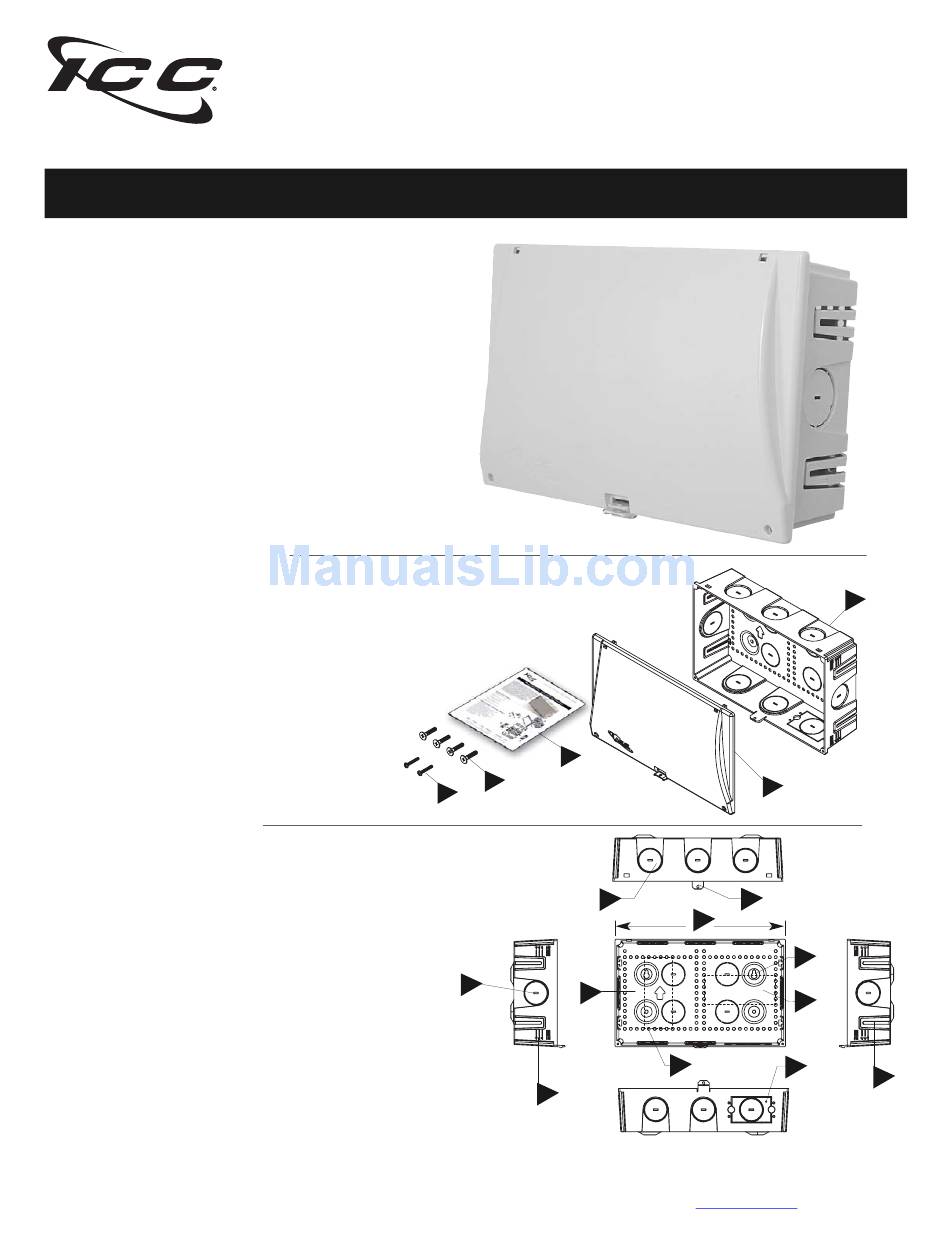

9 " P L A S T I C N E T. M E D I A C E N T E R

ICRESDC9PE

ICC's new 9" Plastic Net.Media Center is designed to be

installed in a residence; such as small homes, multi-unit

dwellings and retrofitting existing homes and serve as the

central distribution point for voice, data, audio and video

connectivity. Its compact size makes it perfect for smaller

types of structured cabling installations allowing it to fit

in tight and confined areas. The base is designed to fit

between 16" wall studs and offers a variety of mounting

options. It can be installed inside the wall for a professional

clean appearance, or wall mounted if the walls have

already been installed and painted. ICC's 9" Plastic

Net.Media Center can be configured with any ICC

Net.Media Center connectivity module.

Holds up to 4 mounting modules.

Package Content/Contenido

1. Enclosure 1ea.

Caja (14.25" x 9.00" x 3.625")

2. Cover 1ea.

Cubierto (15.00" x 9.40" x 1.00")

3. Installation Instructions 1ea.

Manual de instalacion

4. #10 x 1" Wood Screws 4 pieces

Tornillo de Madera

5. #6-32 x 1" Machine Screw 2 pieces

Tornillos

Features / Caracteristicas

A. Light-weight ABS plastic construction

Construcion de plastico ligero ABS

B. Holds up to 4 mounting modules

Soporta hasta cuatro modulos

C. 110 power knockout for an AC power outlet (optional)

Accepta cajas electricas de 110V

D. 3 top, 3 bottom, 4 rear, and 2 side cable entry knockouts

Entradas y salidas para cable

E. 4 surface screw mounts

Cuatro agujeros para montar en superficie

F. Extendable mounting tabs

Lenguetas extensibles para montar entre postes

G. Padlock option for additional security (padlock not included)

Opcion para candado de seguridad

H. Dry wall markings

Marcas de guia para pared

PremiumProducts I ProvenPerformance I CompetitivePrices

Call us: 888-ASK-4-ICC

I N S T A L L A T I O N

Left

E-mail us: csr@icc.com I Go on-line:

I N S T R U C T I O N S

www.icc.com

ISO 9001:2000 Registered

Top

Right

Bottom

Table of Contents

Need help?

Do you have a question about the ICRESDC9PE and is the answer not in the manual?

Questions and answers

Summary of Contents for ICC ICRESDC9PE

Page 1 E-mail us: csr@icc.com I Go on-line: www.icc.com © Copyright 2008, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved. 0808 ISO 9001:2000 Registered © Copyright 2009, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved.
Page 2 I N S T A L L A T I O N I N S T R U C T I O N S Step 1: With the supplied mounting screws, install the enclosure between wall studs or surface mount. Instalacion de caja entre poste o superficies.
Page 3 Telephone Module with RJ31X Jack ICC’s Telephone Module with RJ31X Jack is an 8-port bridged telephone solution. The module offers a 110 IDC input and an expan- sion jack for additional connectivity. It supports up to 8 telephone outlets for phone, fax, modem devices, and has access up to 4 incoming phone lines.
Page 4 ASSEMBLY INSTRUCTIONS Step 4. 4. Connect the incoming phone line to the 110 IDC labeled “From Source.” Use a 110 punch down tool to terminate each wire between contact blades. Identify each outlet cable and connect to 110 block labeled “To Location.” Punch down twisted pairs depending on which lines are desired to be activated at each location.
Page 5 CUSTOMER CARE / TECHNICAL SUPPORT • CSR@ICC.COM / 888-275-4422 (ASK-4-ICC) 16800 Edwards Road, Cerritos CA 90703 • 562-356-3111 • Fax 562-356-3100 MSR-0411-2 REV C © Copyright 2006, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved.
Page 6 ASSEMBLY INSTRUCTIONS Step 4. 4. Prepare an incoming coaxial cable and outgoing coaxial cable by using ICC’s coax cable stripper tool (ICACSCSCTV), All-in-One Universal Compression tool (ICACSCT01U), and F-type compression connectors (ICRDSAV01F for RG-6, and ICRDSAV04F for RG-6 Quad-Shield). Connect the incoming cable to the “IN”...
