Eva-Dry EDV-4000 Instruction Manual

Dehumidifier/dryer
Hide thumbs Also See for EDV-4000:

Advertisement

Dehumidifier/Dryer
Model: EDV-4000
Please read the instruction manual before operating.
Keep in a safe place for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDV-4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eva-Dry EDV-4000

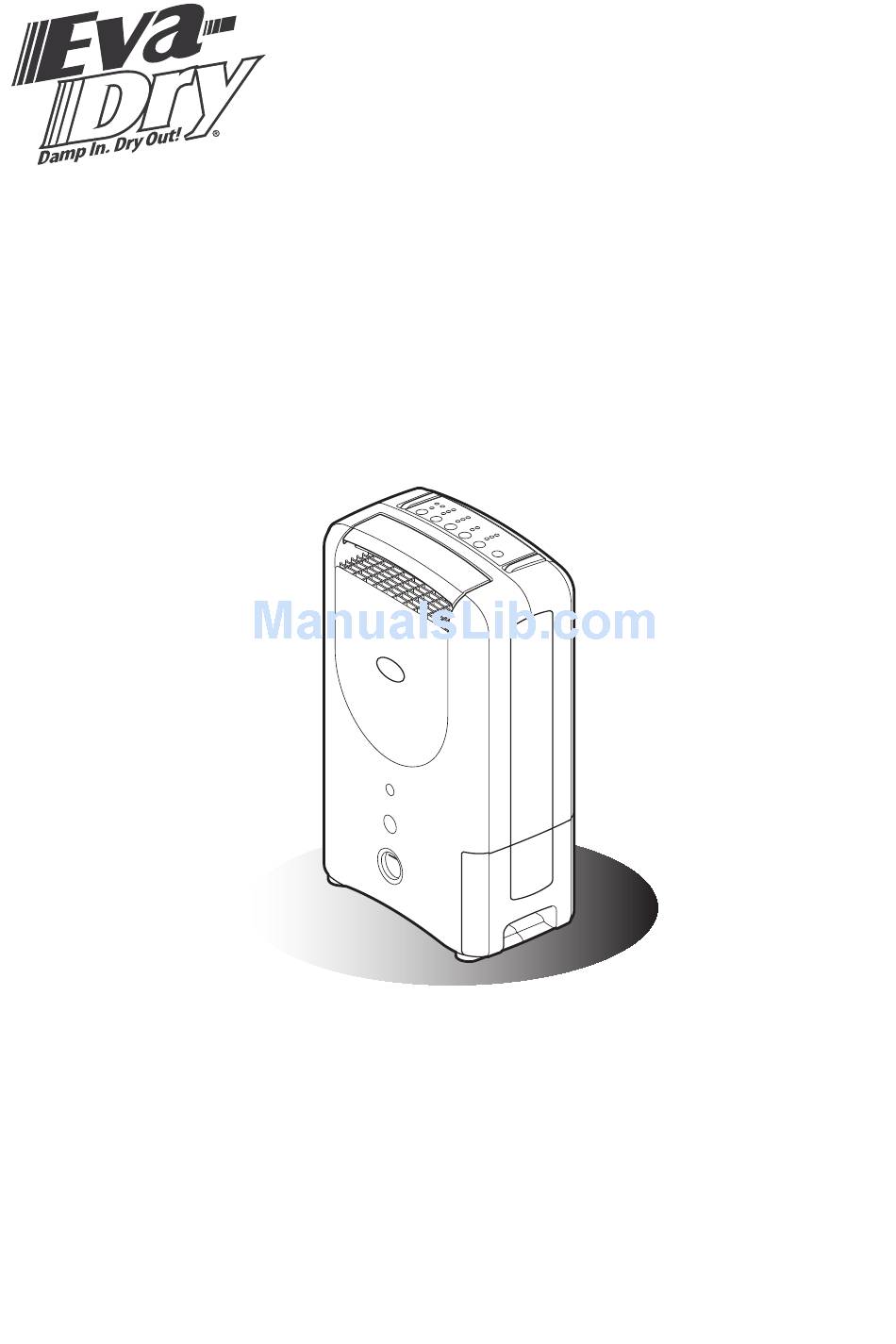

  • Page 1 Dehumidifier/Dryer Model: EDV-4000 Please read the instruction manual before operating. Keep in a safe place for future reference...
  • Page 3: Important Safety Instructions

    Return to an authorized service facility for examination and repair. 2. EDV-4000 should always be kept in an upright position to avoid any damage. Place the unit on a flat stable surface. 3. Check the household voltage to ensure it matches the units rated specification before operating.
  • Page 4 FEATURES Compressorless dehumidifier ~ uses desiccant rotor technology Environmentally friendly with no harmful gasses and quiet in operation Moisture removal ~ 7 Liters/day (68 F RH60%) Water tank capacity ~ 2 Liters Special silver coating within the filter ~ kills bacteria on contact, improving the quality of air in your home or office Built-in ioniser Electronic louver...
  • Page 5: Product Description

    PRODUCT DESCRIPTION Control panel 3 automatic louver settings Air outlet Operation light illuminates when running Bucket Plug Hand grip to pull out the bucket Handle Air inlet Air filter (Nano silver) Continuous drain hole Water level indicator (both sides)
  • Page 6: The Control Panel

    THE CONTROL PANEL Ioniser indicator Water Full indicator Indicator lights up when the bucket is full of water or incorrectly installed. Check indicator Indicator lights up when the unit malfunctions. Timer indicators Louver setting indicators Full Function indicators FULL CHECK WIDE HIGH FRONT...
  • Page 7: Unit Setup

    UNIT SETUP Place the unit in an upright position on a stable, flat surface. Please ensure the unit is a safe distance away above 24" from a wall or furniture (see the right graphic). Air outlet Please keep clothes at a safe distance of 16"...
  • Page 8 OPERATING INSTRUCTIONS FULL CHECK WIDE HIGH FRONT TURBO SAVING AUTO ON/OFF DRYER AUTO TIMER SWING MODE ON and OFF Connect the power plug to the appropriate electrical socket outlet. Press the ON/OFF button to turn the appliance ON. Press the ON/OFF button again to turn the appliance OFF. Note: In the event of a power failure Once the power is restored after a power failure, the appliance will continue to operate at the selected settings prior to the power failure.
  • Page 9 OPERATING INSTRUCTIONS AUTO DRY MODE Press the "AUTO DRY" Key for automatic dehumidification. AUTO HIGH DESCRIPTION MODE To keep the room at a comfortable Relative Humidity (RH) level AUTO The unit automatically keeps room humidity at 55~60% RH. To run low fan speed The unit automatically dehumidifies in low fan speed and low noise.
  • Page 10: Timer Mode

    OPERATING INSTRUCTIONS AUTO SWING LOUVER Press the "SWING" Key to select air louver angle. WIDE FRONT HOLD (LED OFF) DESCRIPTION MODE The automatic louver swings in an upward range of approx 100 The automatic louver swings in a front FRONT FRONT range of approx 50 WIDE...
  • Page 11 PLEASE NOTE Smell coming from this unit When you first use the unit and periodically afterwards you might notice a smell coming from it. This is caused by the Zeolite desiccant material and is not a sign that it is faulty, nor is it harmful to humans or pets.
  • Page 12: To Empty The Bucket

    TO EMPTY THE BUCKET 1. When the bucket is full, the "FULL" LED lights and the unit stops in a few minutes. 2. Do not move the unit or remove the bucket, if the machine is still operating, water may leak, damage the unit or cause an electric shock. 3.
  • Page 13: Maintenance

    MAINTENANCE Cleaning the unit 1. Turn off the unit, wait for the fan to stop and unplug from the power socket. 2. Clean the surface with a soft damp cloth. 3. Dry thoroughly with a towel after cleaning. 4. In order to avoid damage, do not wash the machine with water, or let water drip into the air inlet or outlet.
  • Page 14: Troubleshooting

    If it is dirty, remove any obstacle that covers the air inlet or outlet, and wait for at least ten minutes before plugging in and switching back on. 2. Please contact Eva-Dry if problem continues. Do not try to repair it by yourself, as this could cause an electrical shock and...
  • Page 15: Specifications

    SPECIFICATIONS Model: EDV-4000 Operating Temperature Range: 34ºF - 104ºF Dehumidification: 7 Liters / day Water tank capacity: 2 Liters Power: High 615W, Low 330W Voltage: 120V ~ 60Hz N.W: 13.5lbs G.W: 15.5lbs Product size: 18"H x 11.5"W x 7"D...
  • Page 16: One-Year Limited Warranty

    ONE YEAR LIMITED WARRANTY EDV-4000 Dehumidifier/Dryer Eva -dry Dehumidifiers guarantees the EDV-4000 Dehumidifier/ Dryer free from defects in materials and workmanship for a period of One year from the date of purchase. Coverage is valid only with proof of purchase.
