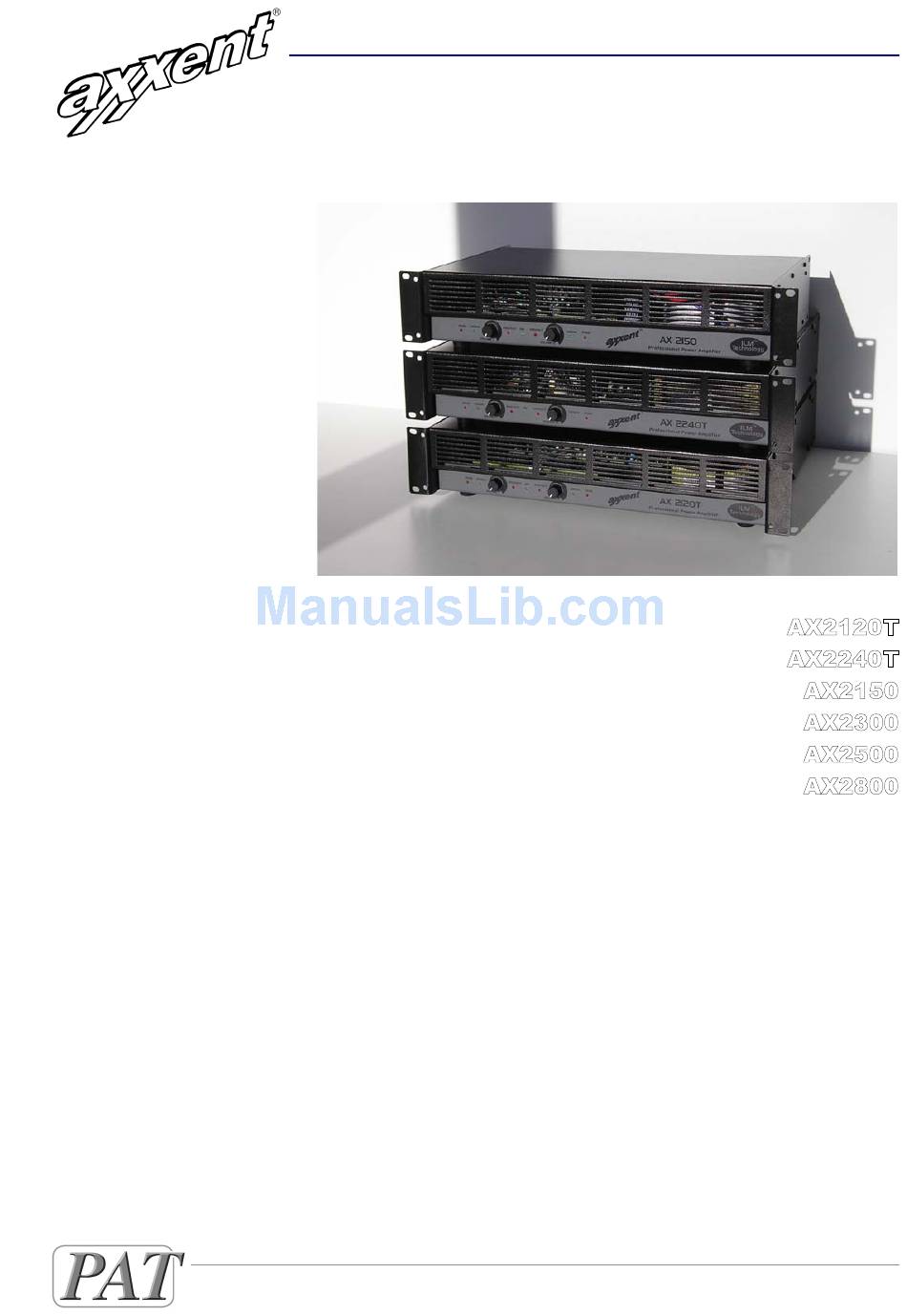

- Page 1 Bedienerhandbuch Professional Amplifiers AX Series – Manual AX2120T AX2240T AX2150 AX2300 AX2500 AX2800 Josef Becker Pro Audio Technik · Zum Wartturm 15 · D-63571 Gelnhausen (Germany) Fon: +49-6051-9140-0 Fax: 9140-59 mail@proaudio-technik.de · www.proaudio-technik.de ·...
-
Page 2: Fcc Interference Statement
Professional Amplifiers AX Series – Manual IMPORTANT SAFETY PRECAUTIONS & EXPLANATION OF SYMBOLS CAUTION: TO REDUCE THE RISK OF ELECTRIC CAUTION SHOCK, DO NOT REMOVE THE COVER. NO USER- RISK OF ELECTRIC SHOCK SERVICEABLE PARTS INSIDE. REFER SERVICING DO NOT OPEN TO QUALIFIED PERSONNEL. -
Page 3: Introduction And Overview
Professional Amplifiers AX Series – Manual Introduction and overview Bedienerhandbuch With your choice of this Axxent professional amplifier you have decided on a high quality, reliable and rugged part of your sound system. In order to gain the maximum performance from this amplifier, we recommend to carefully read this manual. - Page 4 Professional Amplifiers AX Series – Manual Content of the packaging box The original packaging contains the following components: Bedienerhandbuch (Please always use the original box when shipping the unit e.g. for service) Bedienerhandbuch • Amplifier • User manual Auspacken Auspacken •...
- Page 5 Professional Amplifiers AX Series – Manual Bedienerhandbuch Connection to power line Make sure that the power on/off switch of the unit is in „off“ position before you connect Bedienerhandbuch Bedienerhandbuch the raer IEC power plug with a 230 V power outlet. Netzanschluss Inputs Schließen Sie den Netzstrom an der IEC-Buchse auf der Rückseite des Verstärkers an.
-
Page 6: Front Panel
Bedienerhandbuch Isolierte verteilte Ausgänge Isolierte verteilte Ausgänge Constant voltage outputs Modelle AX2120T und AX2240T Modelle AX2120T und AX2240T (models AX2120T and AX2240T) Isolierte 100V Ausgangsanschlüsse sind für die genannten AX-T Modelle Constant voltage outputs (100 volts) are available on the above an der Rückseite der Gehäuse über berührungssichere Schraubklemmen... -
Page 7: Volume Controls
Professional Amplifiers AX Series – Manual PROTECT Two red LED indicators per channel In normal operation the LED remains off. If the LED comes up the thermal protection circuit is activated. If the amplifier is becoming too hot, please leave the unit on, so that the neccessary cooling by he automatic regulated fan brings the amp to normal operating temperature again. - Page 8 ® AX-T-SERIES 100 V Professional Amplifiers Technical Specifications Output Power (100 V, 1 kHz, 1% THD) LED Indicators Model AX 2120T: 2 x 120 W for on/off, signal present, activation of protection Model AX 2240T: 2 x 240 W circuits and signal overload (peak and protect) Input Sensitivity Power Supply 230 V AC, 50 Hz Power Consumption...
-
Page 9: Technical Specifications
® AX-SERIES Professional Amplifiers Technical Specifications Output Power AX 2150 AX 2300 AX 2500 AX 2800 Power Cunsumption AX 2150 AX 2300 AX 2500 AX 2800 Full Power 660 W 1130 W 1640 W 2280 W (4 Ω, 1 kHz, 1% THD) 2 x 150 W 2 x 300 W 2 x 500 W...
