Summary of Contents for Meeletronics Venture AF52

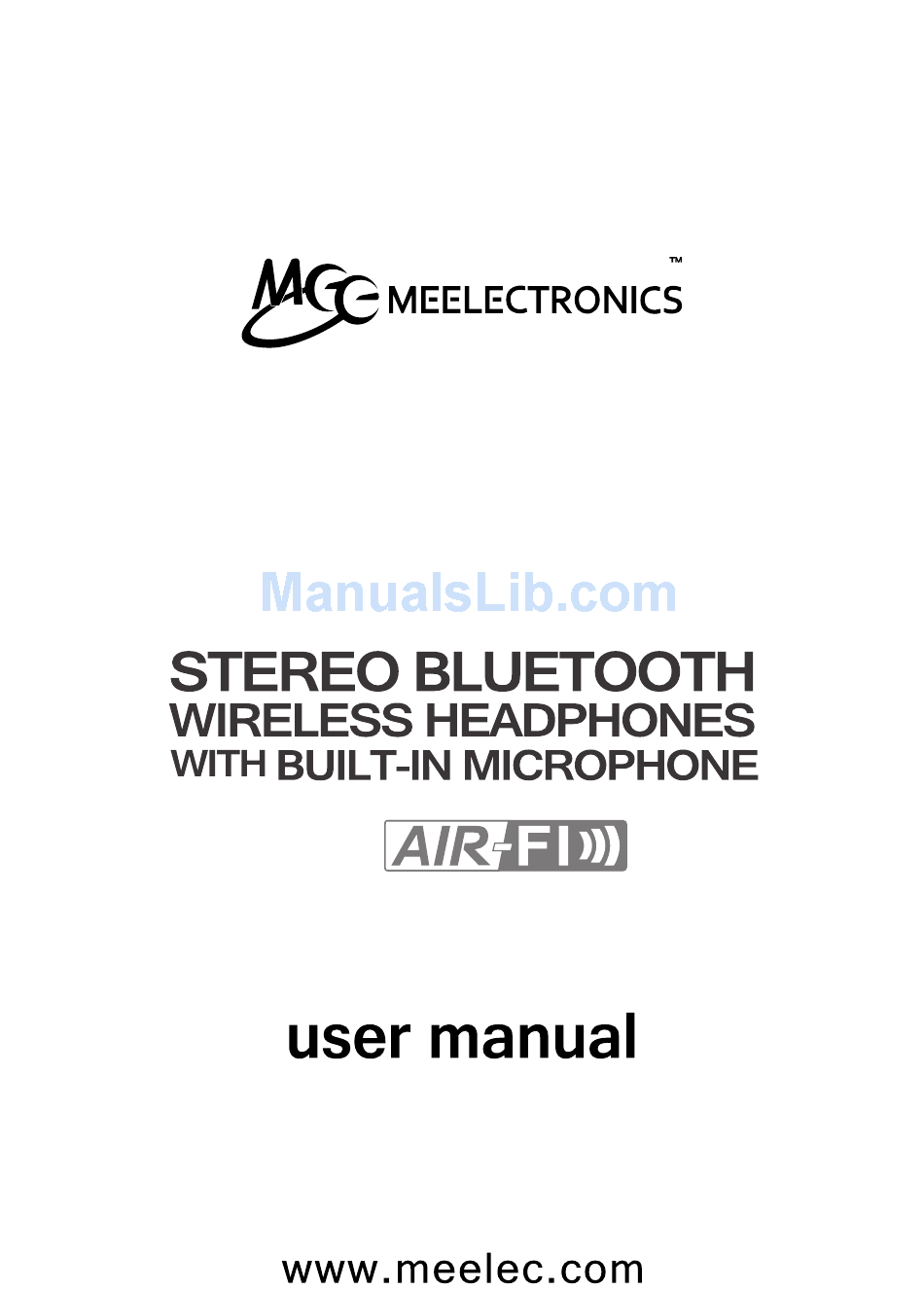

Page 1 VENTURE model: AF52 part of the series...
Page 2 VENTURE Thank you for your purchase of the MEElectronics Air-Fi Venture AF52 Stereo Bluetooth Wireless Headphones with Microphone...
Page 3: Table Of Contents
Package Contents Bluetooth Information Warning FCC Warning Safety and Care Product Overview Charging Turning On and Off Pairing with Bluetooth Devices iPhone , iPad , and iPod touch ® ® ® Android Phones and Tablets ™ Windows 7 Computers and Laptops Other Phones, Tablets, and Devices Connecting to Paired Devices Controlling Volume...
Page 4: Package Contents
VENTURE Stereo Mini-USB Bluetooth Charging Wireless Cable Headphones Storage Audio Pouch Cable User Manual Note: An online version of this manual is available on meelec.com...
Page 5: Bluetooth Information
Bluetooth is a short-distance two-way wireless communication technology capable of transmitting data, commands, and audio between devices. The Venture can connect with many devices such as mobile phones, tablets, PDAs, computers, media players, and more through a process called pairing. Before you can use your Venture with your device they will need to be paired.
Page 6: Fcc Warning
FCC Warning Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 7: Safety And Care
Safety and Care When not in use, power the device off and store it in the included protective bag. Clean with a soft, debris-free cloth. If necessary dampen the cloth with a diluted soap water solution. Never use chemical cleaners on the headphone. Leather conditioner and cleaner can be used on the ear pads.
Page 8: Product Overview
Product Overview AF52 Stereo Bluetooth Wireless Headphones Left Ear Cup Right Ear Cup microphone mini-USB port for charging LED indicator next track power on/off button play/pause button volume down previous track volume up 3.5mm audio jack...
Page 9: Charging
Charging *** You must completely charge the headset before the first use *** Connect a mini USB charging cable to a powered USB source such as a wall charger, powered on computer, USB hub connected to a powered on computer, or car USB port. While not required, it is recommended to turn the Venture off before charging.
Page 10: Turning On And Off
Turning On and Off To turn on, press and hold the Power button for approximately 3 seconds. The Venture will say “power on” and the blue indicator light will flash once every 5 seconds to show the power is on. The LED indicator will continue to display a single blue flash every 5 seconds while the unit is on and not connected to a device.
Page 11: Pairing With Bluetooth Devices
Pairing with Bluetooth Devices *** It is only necessary to pair your Venture once with each device *** iPhone, iPad, and iPod Touch On your iPhone/iPad/iPod Touch, go to Settings Select Bluetooth (on older devices or old versions of iOS, you may need to select General first) Make sure the Venture is off and within 1 meter of your device On your iPhone/iPad/iPod Touch make sure Bluetooth is turned...
Page 12: Android Phones And Tablets
Pairing (Continued) Android Phones and Tablets On your Android phone or tablet, navigate to the Settings menu Select Wireless & Networks Make sure the Venture is off and within 1 meter of your device Make sure Bluetooth is enabled Initiate pairing mode by holding the power button for 7 seconds, until you hear “pairing.”...
Page 13: Windows 7 Computers And Laptops
Pairing (Continued) Windows 7 Computers and Laptops Note: The Windows 7 operating system does not have built-in Bluetooth drivers; drivers are provided by the Bluetooth transmitter manufacturer. Actual pairing and connecting process can vary depending on the Bluetooth device drivers and computer configuration. Press on the Bluetooth icon in the notification area of your taskbar and select Add a Device The Add a device popup window will appear with “Select a...
Page 14 Pairing (Continued) Windows 7 Computers and Laptops (Continued) Now the Venture must be configured for audio and microphone use (enable Bluetooth audio) Right press on the speaker in your notification area, or go to Start Control Panel Hardware and Sound Manage Audio Devices A popup window with “Sound”...
Page 15: Other Phones, Tablets, And Devices
Pairing (Continued) Other Phones, Tablets, and Devices Please refer to your device manual for instructions on how to pair Bluetooth devices On your device, turn Bluetooth on and go to the appropriate pairing window Make sure the Venture is off and within 1 meter of your device Make sure Bluetooth is enabled on your device and you are in the Bluetooth screen Initiate pairing mode by holding the power button...
Page 16: Connecting To Paired Devices
Connecting to Paired Devices *** The Venture must have been paired with your device before it will connect. Pairing only needs to be done before the first use. *** When the Venture is turned on and not in pairing mode, it should connect to the last connected device automatically.
Page 17: Controlling Volume
Controlling Volume When Media is Playing: Volume adjustments will change the volume on the Venture, not the connected device; the connected device volume can be controlled on the device. If the volume is not loud enough or too loud, adjust the volume on your device.
Page 18: Controlling Phone Calls
Controlling Phone Calls Status Function Operation Answer a call Single press the Power button Incoming Reject a call Press and hold the Power button until call you hear a long tone or single press the Power button rapidly twice Voice dial / Siri Single press the Power button Device...
Page 19 Controlling Phone Calls (Cont.) Status Function Operation Call in progress, Switch from phone Single press the Power button phone handset handset to Venture active Answer new call Call in Single press the Power button and end current call progress, second Answer new call Press and hold the Power button...
Page 20: Controlling Media Playback
Controlling Media Playback Go to the music player on the connected device. Status Function Operation Play media Press the Play/Pause button Adjust volume The Venture volume cannot be media playing adjusted when media is not playing Pause media Press the Play/Pause button Media playing playback...
Page 21: Using As A Wired Headphone
Using as Wired Headphone The Venture comes with a 3.5mm audio jack on the back of the left ear cup and an audio cable for wired use. This is convenient for use where Bluetooth isn’t allowed such as on an airplane, when the battery is depleted, if you want to listen to media from a different device that isn’t paired, or just to save battery power.
Page 22: Status, Button Functions, Light Patterns
Status, Button Functions, Light Patterns, and Sounds Charging Status LED Indicator Charging Red LED on Charging complete Red LED off Status Indicators and Button Functions Status Button Functions LED Indicator Sounds Turn on Press and hold Power Blue LED will flash Venture will say button for 3 seconds...
Page 23 Status, Button Functions, Light Patterns, and Sounds (Cont.) Status Indicators and Button Functions (Cont.) Status Button Functions LED Indicator Sounds Activate voice Single press Short tone the Power button command/dialing – single press Play or pause Single press the media Play/Pause button Skip to next Press Next button...
Page 24: Specifications
Specifications Microphone Specifications Microphone Unit 6.5mm Directivity omnidirectional S.P.L -58±2dB Impedance ≤2.2K Frequency Response 10Hz-20,000Hz Operating Voltage 4.5V Speaker Specifications Speaker diameter 40mm Impedance Sensitivity 103±3dB at 1KHZ Rated power 20mW Maximum power 50mW Frequency response 18Hz-20,000Hz Power Specifications Battery type Built-in 400mAh Lithium-polymer rechargeable battery Mini-USB...
Page 25: Troubleshooting
Troubleshooting Issue Resolution Crackling noise, Make sure you are within range of your Bluetooth-enabled static, interference device Bluetooth devices are susceptible to interference from other Bluetooth devices, microwave ovens, power stations and transmission lines, Direct Satellite Service (DSS), and wireless devices operating on the 2.4 GHz band.
Page 26 Warranty The Air-Fi Venture AF52 is covered by a 1 year manufacturer warranty against manufacturing defects. Cleaning the Venture when necessary will extend the life of your headphone. For issues with your product, contact customerservice@meelec.com. Contact warranty@meelec.com for warranty claims from: Within the US or Canada from an authorized reseller (see www.meelec.com/wheretobuy)
Page 27 NOTES MEElectronics and its logo are registered trademarks of S2E, Inc. All rights reserved. ® ® ® ® iPod , iPhone , iPad , and Mac are registered trademarks of Apple Inc. ™ Android is a trademark of Google Inc. Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
