Summary of Contents for Siebring 7500S

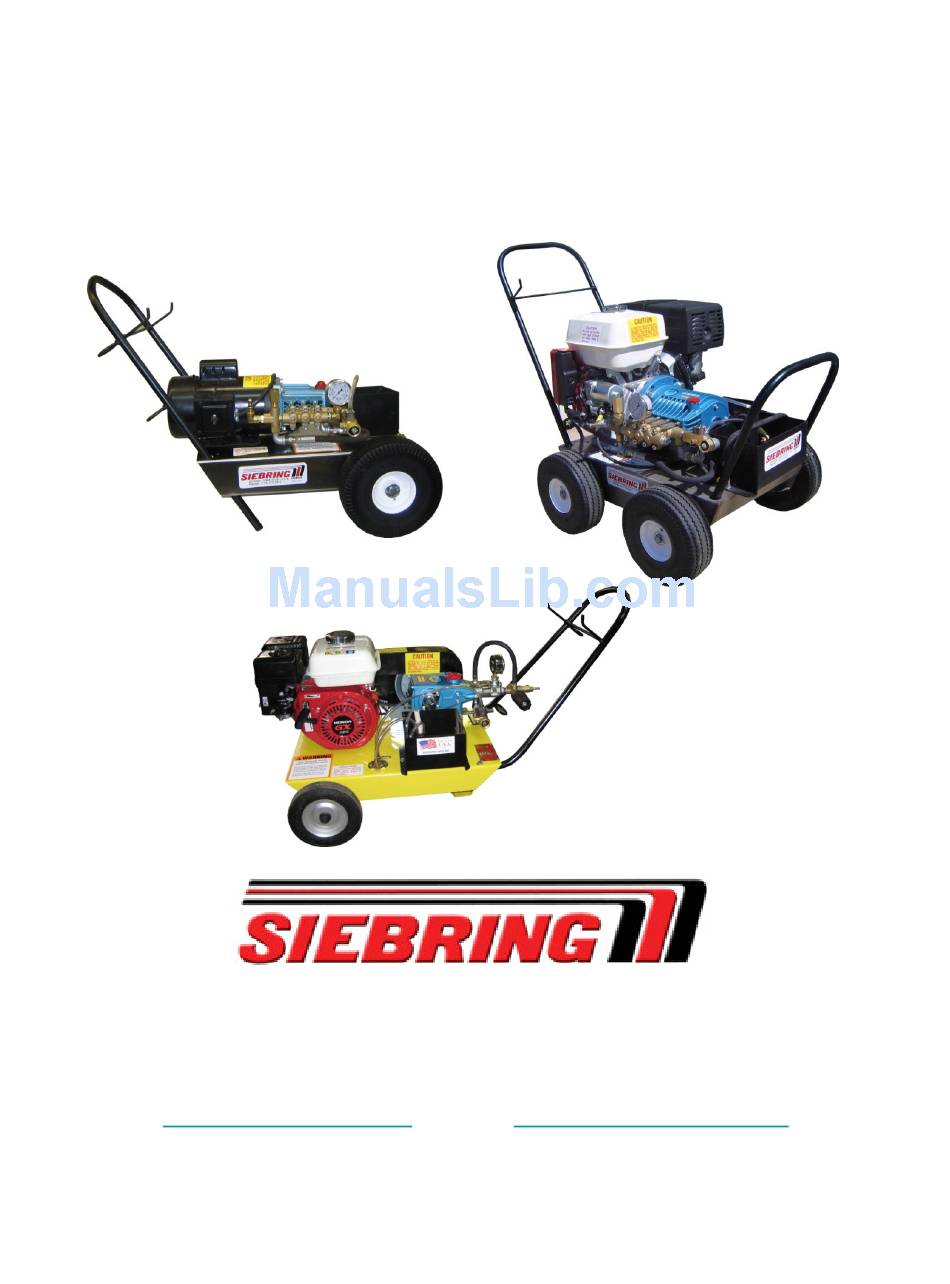

- Page 1 PRESSURE WASHERS INSTRUCTIONS Manufacturers of Quality Equipment Since 1910 PO Box 658 303 S. Main St. George, IA. 51237 Phone 888-475-3317 Fax 712-475-3490 www.siebringmfg.com Email sales@siebringmfg.com...
-
Page 3: Table Of Contents
13. PRESSURE SENSITIVE REGULATING UNLOADER – BYPASS MDOE 14. UNLOADER – DECRIPTION & TROUBLESHOOTING 15. UNLOADER – GOLDEN EAGLE 7100 16. UNLOADER – CAT 7500S 17. UNLOADER – CAT 7534 18. UNLOADER – CAT 7600S 19. UNLOADER – CAT 7672 20. -
Page 4: Introduction
In the mid sixties, Siebring was again was on the ground floor with new developments, incorporating new designs, higher pressure pump applications and the like. -
Page 5: Operator Safety
OPERATOR SAFETY INSTRUCTIONS DANGER! DO NOT ATTEMPT TO INSTALL OR OPERATE THIS MACHINE UNTIL YOU HAVE READ THIS MANUAL. IF YOU OR YOUR OPERATOR CANNOT READ ENGLISH, HAVE THIS MANUAL EXPLAINED FULLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. DANGER! (Electric Models) THIS MACHINE MUST BE PROPERLY GROUNDED TO AVOID FATAL ELECTRICAL SHOCK IN THE EVENT THAT IT BECOMES ACCIDENTALLY GROUNDED. -
Page 6: Personal Safety
PERSONAL SAFETY -Wear safety glasses at all times when working on pumps. -Wear a face shield and proper protective gear when pumping hazardous chemicals. -Keep the work area clean, uncluttered and properly lighted. Secure and stow all unused tools and equipment. -Keep visitors at a safe distance form work area. -
Page 7: General Safety
GENERAL SAFETY A safety pressure relief device is installed at the factory. Removal of this device could void the unit warranty and cause injury to personnel. WARNING – Do not pump flammable or explosive fluids such as gasoline, fuel oil, kerosene, etc. -
Page 8: General Operating Instructions
General Operating Instructions Check Oil Level (See Honda gas engine Owner’s Manual for additional information). Check CAT pump oil level. Oil level must be up to the red center dot (see CAT Service Manual). Connect pressure water supply hose or immerse suction hose in adequate clean water supply. - Page 9 TEMPERATURE CONTROL – 430027 Adjust temperature control to the desired temperature. TEMPERATURE CONTROL COLD Typical Wiring To Flow Switch To Control Switch OPERATION – DEMA INJECTOR 203B / 204B Warning: Use care when handling hazardous chemicals. Warning: Setting the water bypass screw too far in could starve and damage the pump. See figure below for location of water bypass screw and fine metering adjustment screw.
-
Page 10: Flow Switch
Gems (Thomas Products) FS-925 Flow Switch Hermetically sealed No.18 AWG Leads SPDT switch Spring Permanent Magnet Piston Operating Principle - A magnet-equipped piston, displaced by the pressure differential from fluid flow, magnetically actuates a hermetically sealed, SPDT reed switch within the unit. -
Page 11: Flow Control
Jumper across red / yellow terminal and check for machine operation. If machine operates normally, replace switch. Remove jumper. Repairs and replacement – Field repairs, except for the replacement of the cover can not be made. Contact Siebring Manufacturing for replacement flow switch. - Page 12 Honeywell Aquastat Controller L4006A Copper Capillary Tube (to sensing bulb) Differential Adjustment Wheel Wire Terminal Screws Set-point Indicating Dial Operation - L4006A breaks the circuit on a temperature rise to the control setting. High limit controller: Shuts off burner when water temperature exceeds high limit setting. Burner restarts when temperature drops to high limit setting.
- Page 13 Pressure Sensitive Regulating Unloader This type of unloader may be referred to as a “Trapped Pressure” type or just "Pressure" type. This type of valve opens to bypass when it senses the pressure build up of the pump output having nowhere to go. The main characteristic of this most commonly used valve is how it traps the pressure in the hose when the trigger of the pressure gun is released and unloading excess pressure between the pump &...
- Page 14 Pressure Sensitive Regulating Unloader Spray Mode Gun trigger is depressed with gun in use. Pump flow enters from the left of the diagram (inlet port), passes through the unloader, out of the outlet port, to the gun. CAUTION: A minimum bypass of 5 - 10% of the UNLOADER RATED FLOW CAPACITY is required for proper unloader performance.
- Page 15 Pressure Sensitive Regulating Unloader Bypass Mode WARNING: DO NOT OPERATE IN BYPASS Gun trigger valve is closed, gun is MODE LONGER THAN not in use. Pump flow enters from 2 MINUTES. the left of the diagram (inlet port), dead ends against output check valve, overcomes the spring pressure holding the piston assembly and is forced down...
- Page 16 Adjustable Pressure Regulating Unloader The following Unloader models are used on Siebring Pressure Washer applications: Cat Pump model 7500, 7534, 7600 & 7672. J.E. Adams Golden Eagle model 7100. Operation – The unloader holds established system pressure in the discharge line when the trigger gun is closed, solenoid valve is closed (gate) valve is closed or the nozzle is clogged, bypassing the unrequired flow between the pump and the unloader.
- Page 17 OLDEN AGLE 7100 NLOADER 800 - 2000 PSI...
- Page 22 IMPORTANT PARTS FOR SIEBRING WASHERS Model P.S.I. G.P.M. TIP / NOZZLE DEMA INJECTOR CWH704 9 TIP 204B CDD1003 / CWH103 1000 6 TIP 203B CDD1204 1200 7 NOZZLE 204B CDD1503 1500 6 NOZZLE 203B CDD2004 / CW2004 2000 5 NOZZLE...
-
Page 23: Troubleshooting Index
TROUBLESHOOTING INDEX A. PRESSURE DROP (NEW INSTALLATION) B. PRESSURE DROP AFTER MACHINE IS IN SERVICE C. PULSATION IN HOSE D. UNLOADER CYCLES RAPIDLY E. FLOW SWITCH FAILS MOTOR STOPS AFTER SHORT DURATION G. PUMP MOTOR FAILS TO START H. PUMP MOTOR FAILS TO STOP AUTOMATIC PUMP AND BURNER SHUT DOWN SYSTEM BURNER MOTOR FAILS TO START K. - Page 24 TROUBLESHOOTING PRESSURE DROP (new installation) Inadequate water supply. Adjust water regulator on intake (turn screw downward). Increase water supply to 30 P.S.I. minimum. Improper nozzle size. Consult manufacturer. Open solution injector. Close injector solution supply valve when not in use. PRESSURE DROP AFTER MACHINE IS IN SERVICE Unloader cup or wall scored or worn.
-
Page 25: Troubleshooting Continued
TROUBLESHOOTING (CONTINUED) UNLOADER CYCLES RAPIDLY Rapid in-out movement of unloader plunger (units without complete shutoff). Leak in high pressure line, gun leak, or a “weep” type gun is in use. Defective poppet (nylon plunger in in lower portion of unloader). Poppet may be deformed or sticking. - Page 26 TROUBLESHOOTING (CONTINUED) PUMP MOTOR FAILS TO STOP Flow switch on “complete shut-off units” plunger sticks. Free the magnetic plunger within the flow switch. Remove plunger and coat with Vaseline. Check for ½” non-metallic spacer in place between mounting area and switch body (see page 8 for more info.). Air in coil or air in piping of facility.
-
Page 27: Troubleshooting Continued
TROUBLESHOOTING (CONTINUED) BURNER MOTOR FAILS TO START Check burner switch on side of burner. Up is “on” may be defective Water temperature control stuck “open.” Jumper wire terminals on temp switch momentarily. If burner starts, replace temperature switch. Defective flow switch. Jumper wire terminals on flow switch momentarily. -
Page 28: Troubleshooting Continued
TROUBLESHOOTING (CONTINUED) INTERMITTENT FLAME Dirty oil supply, water in fuel tank. Check filter and nozzle for cleanliness. Clear tank and filter of water. Low oil supply Raise fuel level in supply tank. Oil line cracks and/or loose connections. Tighten or replace parts to prevent air bubbles (suction leaks) in oil line. WATER LEAKING FROM HEATING COIL COMPARTMENT Drips Condensation drips (several per minute) are normal. -
Page 29: Troubleshooting Continued
TROUBLESHOOTING (CONTINUED) WATER OR OIL LEAKING FROM BOTTOM OF PUMP Water – noticeable amounts. Inlet water seals on pistons failing. See appropriate pump manual. Cracked pump manifold from freezing – replace. Oil – noticeable amounts. Leak and failure of oil seals on pistons. Return to Siebrings for repair (notify to verify condition). - Page 30 DELIMING INSTRUCTIONS FOR HOT WATER COIL CAUTION: Do not use this procedure on a coil that is completely plugged. For severe cases, call Siebring Manufacturing. Disconnect the steam hose at the unit. In a plastic container, put 2 ½ gallons of water and into this very slowly add one gallon of muriatic acid.
- Page 31 WINTERIZING A PUMP (CAT Pump Tech Bulletin 083) Standard Shut Down • Flush pump and chemical injector with fresh water. • Turn off power supply • Squeeze trigger gun to relieve pressure • Disconnect inlet and discharge plumbing System Flush (Winterizing) •...
- Page 32 Wire Size for 115 & 230 Volt Single Phase Circuits Distance – Motor to Fuse or Motor to Meter Box MOTOR 100 FT. 200 FT. 300 FT. 500 FT. 115V 230V 115V 230V 115V 230V 115V 230V # 14 # 14 # 10 # 12 # 10...
- Page 33 PARTS CWG704, CDD1003 - CDD2004 HANDLE MOTOR – SPECIFY SIZE BY HP MAGNETIC STARTER – 1200 PSI MACHINES AND HIGHER TOGGLE SWITCH – 1000 PSI MACHINES AND LOWER GAUGE UNLOADER – SPECIFY WASHER MODEL PUMP – SPECIFY MODEL BYPASS HOSE ¼”...
- Page 34 CD11 CD26 CD12 CD10 CD15 CD14 CD13...
- Page 35 CD23 CD22 CD17 CD25 CD18 CD30 CD24 CD19 CD29 CD15 CD16 CD21 CD28 CD27 CD20...
-
Page 36: Cwg704 (Beech) Parts
CWG704 (Beech) Parts (Additional and/or similar parts may be listed on previous pages) CD34 CD37 CD32 CD33 CD31 CD12 CD34 CD13 CD14 CD26 CD11 CD36 GAUGE, 1500 PSI UNLOADER, ADAMS 7100 430 CAT PUMP BYPASS HOSE ¼” BALL VALVE W/BRACKET CD11 SOAP BOX CD12... - Page 37 HHD3004 Typical Wiring, Hot Pressure Washer FLOW SWITCH 110V 220V RELAY PUMP BURNER CONTROL SWITCH SQUARE D RESE PUMP MOTOR BURNER WATER TEMP CONTROLLER...
- Page 38 CAUTION FUEL TANK USE NO. 1 OR NO. 2 HOME HEATING OIL Hot Washers, SG-10 No Kerosene, no Bio-mix over 10 % Hot Washers, SG-10 CAUTION TO COMPLETELY PROTECT FROM FREEZING, BLOW ALL WATER OUT WITH AIR PRESSURE. THEN SUCK IN 1 QUART OF ANTIFREEZE WITH A SHORT INTAKE HOSE.
- Page 39 WARNING ! ! ! ! HIGH PRESSURE WATER INJECTION HAZARD EXISITS. Do not allow water to contact the human body. Under high pressure, it will penetrate the skin and can cause serious infection or injury. This unit to be operated only by competent, cautious personnel.
- Page 40 Hot Washers, SG-10 WATER DRIPPING FROM THE FRONT OF THE MACHINE IS NOT A LEAK IN THE COIL. IT IS NORMAL AND CAUSED BY CONDENSATION. SIEBRING MANUFACTURING, INC. GEORGE, IOWA BACK FLUSH ASSEMBLY THIS ACCESSORY IS TO BE USED FOR...
