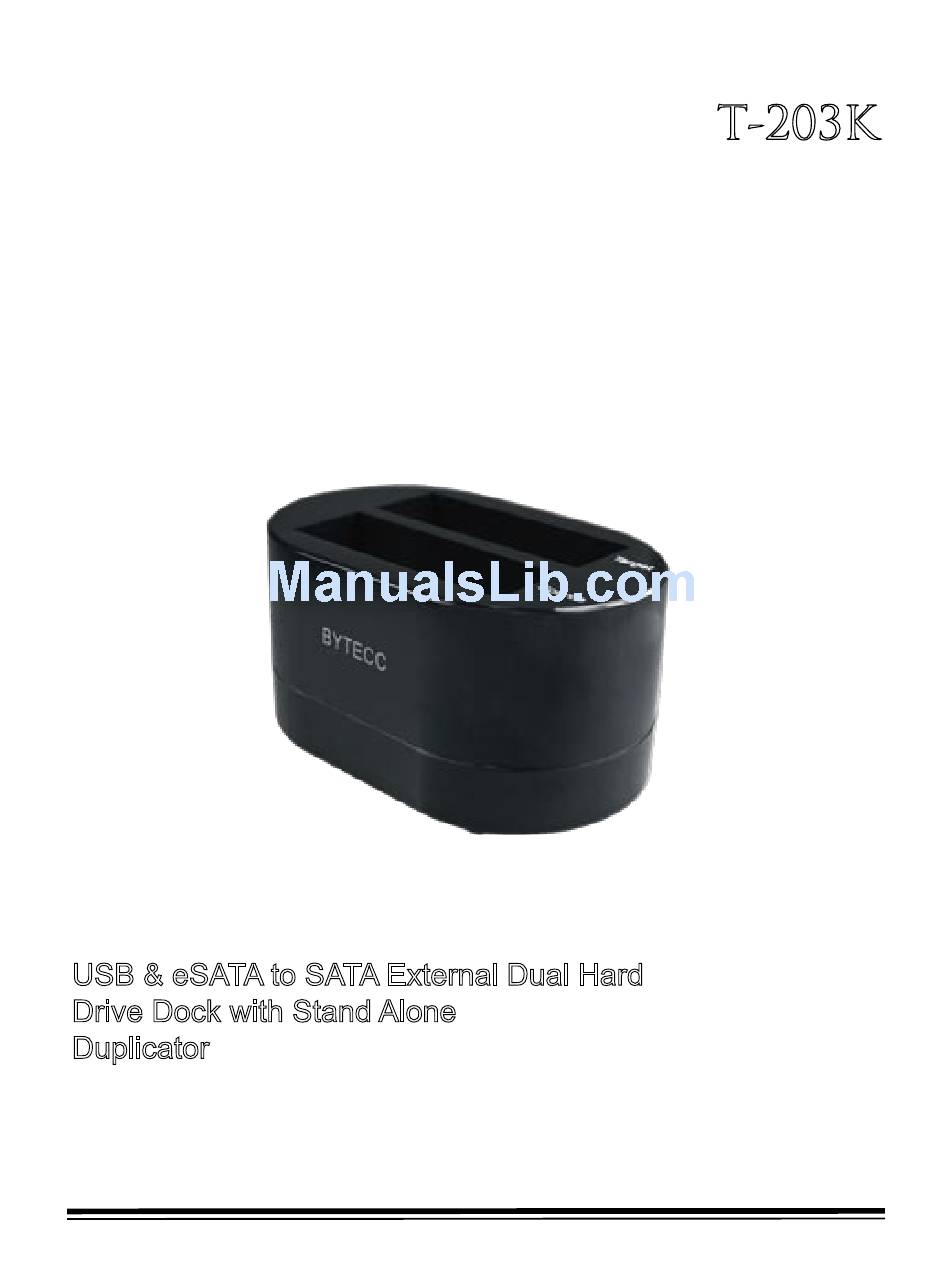

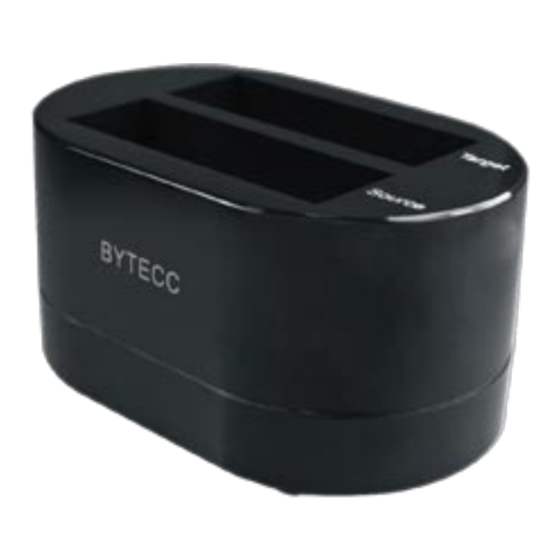

- Page 1 T-203K Instruction Manual Serial ATA Hard Drive Dock USB & eSATA to SATA External Dual Hard Drive Dock with Stand Alone Duplicator page...
-
Page 2: Features
Table of Contents Features ................2 Specifications ..............3 Introduction ..............3 Packaging Contents............3 System Requirements............4 Installation ................. 5 Hardware Installation............6 Driver Installation............. 7 Features: • Stand Alone Duplicator • Install And Access Hard Drive in Seconds •... -
Page 3: Specifications
Specifications: USB 2.0 & eSATA BUS Interface: 1XUSBtype B 1X eSATA External Connectors: 1X DIN power connector Chipset: JMICRON JMB352 Hard Drive bays: 2.5” and 3.5” SATA 1.5 Hard Drive Compatibility: and 3Gb/s Windows 2000/XP/Server 2003/Vista , Mac OS X, Compatible Operating Systems: Linux 168*109*81mm... -
Page 4: System Requirements
System Requirements • PC Systems Intel Pentium-III 500MHz equivalent or faster Windows 2000/XP/2003 Server/ Vista, Linux kernel 10.4.x or later. CD-ROM drive 64 MB of RAM (minimum) 250 MB of free disk space Super VGA (800 x 600) or higher resolution display with at least 256 colors Mouse or compatible pointing device SATA connection: SATA Host controller with Port Multiplier... -
Page 5: Installation
host port in a similar manner to that of a USB hub. If a host is not PM-aware, only a single drive is presented Installation: TOP VIEW Drive Bay (Source) Drive (Destination) REAR VIEW Duplicate start button Power Swith type B eSATA Input page... -
Page 6: Hardware Installation
Hardware Installation: JBOD Mode Connect the external power adapter to the Hard Drive Dock Install 1 or 2 hard drives into the dock in either drive bay Connect the USB cable or eSATA cable from the hard drive dock to the computer system and then press the power button The operating system should now detect the hard drive(s) and make them available... -
Page 7: Driver Installation
HDD Active LED HDD Active LED Mode LED (source bay) (source bay) Driver Installation: Windows 2000/XP/Vista, Mac OS X, Linux kernel No driver installation is required for these operating systems, as this hard drive dock is natively supported, so the drivers are already installed page...
