User Manual

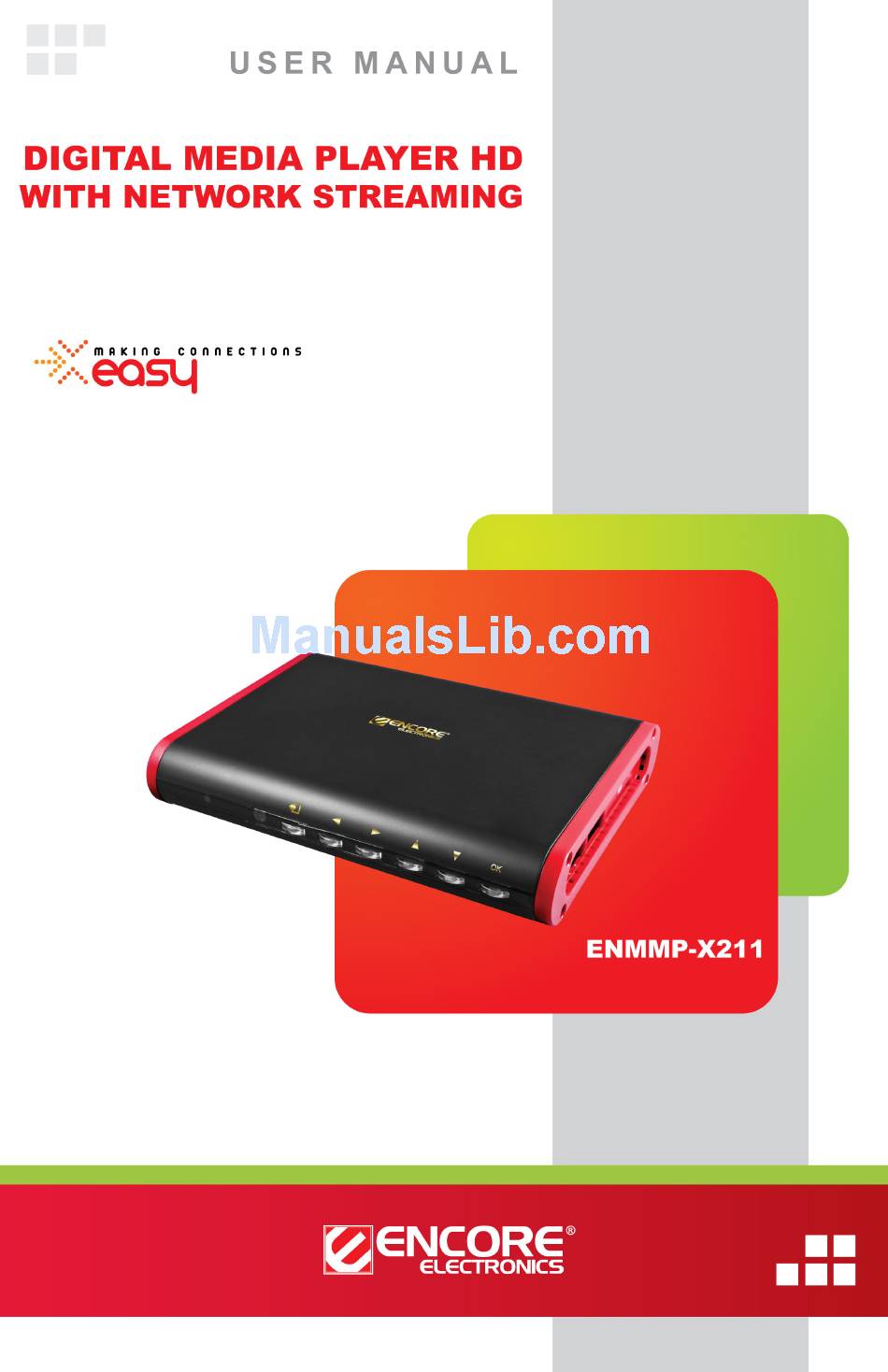

© 2010 Encore Electronics, Inc. All rights reserved.COVER
© 2010 Encore Electronics, Inc.
Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
All trademarks and brand names are the properties of their respective holders.
Advertisement
Table of Contents
Related Manuals for Encore ENMMP-X211
Summary of Contents for Encore ENMMP-X211
- Page 1 © 2010 Encore Electronics, Inc. All rights reserved.COVER © 2010 Encore Electronics, Inc. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders.
-
Page 2: Table Of Contents
Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. All trademarks and brand names are the properties of their respective holders. © 2010 Encore Electronics, Inc. All rights reserved. www.encore-usa.com... -
Page 3: Chapter 1: Introduction
Chapter 1: INTRODUCTION ENMMP-X211 is a Digital Media Player HD with Network Streaming supports intranet share with the 10/100M Ethernet network .It can decode Flash, Real Video (720P), MPEG-1/2/4 (1080P) and H.264 (1080P) of the multimedia files which are stored on the USB storage and the card reader. -
Page 4: Specifications
1.3 Specifications Input 2 x USB 2.0 ports to connect to external USB hard drives, flash drives, or other USB storage devices (backward compatible with USB 1.x) ® ® Memory Card Reader Support SD and MMC cards Network (LAN) 1 x 10/100 Ethernet with RJ-45 connector Digital Output Video Format 1080p, 1080i, 720p... -
Page 5: Package Contents
Extra Features Convenience Remote control included and PC-free operation UPnP Support Dimensions 150 x 105 x 250 mm (W x H x D) 1.4 Package Contents ENMMP-X211 Remote control Audio cable Video cable YPbPr Cable HDMI cable Power adaptor User manual... -
Page 6: Chapter 2: Getting Started
Chapter 2: Getting Started 2.1 Connect ENMMP-X211 www.encore-usa.com... -
Page 7: Back Panel Connectors
2.2 Back panel connectors There is no particular order which cable should be connected first except AC adapter, it is strongly recommended to connect AC adapter as last step upon finishing all the connections. Please follow below illustration to make correct connections; make sure all systems are powered off. -
Page 8: Front Panel Button
2.4 Front panel button Remote receiver Exit Cursor left Cursor right Cursor up Cursor down OK / Confirm www.encore-usa.com... -
Page 9: Chapter 3: Using The Remote Control
Chapter 3: Using the Remote Control Aim the front of remote control at the remote control receiver and press the control buttons as you would on the IR receiver. 3.1 Installing batteries Open the back cover of remote controller and put in two AAA batteries (alkaline battery recommended). - Page 10 Search supported media file Rewind Fast Forward Previous Next Play / Pause Stop Movie Go to the movie page Music Go to the Music page Photo Go to the Photo page Network Go to the network page if the UPNP Server is exist Arrow up Arrow down Arrow Left / Right...
-
Page 11: Chapter 4: Using The Enmmp-X211
Chapter 4: Using the ENMMP-X211 4.1 How to use MENU Plug-in the Power, device will start loading data. Use Left/Right direction keys on remote control to make selection around the menu screen and click “OK” button on the remote control to confirm it. -
Page 12: System Setting
4.2 System setting Click the “Setting” icon on the remote control. Use Up/Down direction keys on remote control to make selection around the menu screen and click “OK” button to configure your settings. Display: Display: You can set your TV setting as “PAL, NTSC, 480i, 576i, 480p, 576p, 720i, 720p, 1080i, 1080p”. - Page 13 Thumbnail: ENMMP-X211 shows an overview of multiple images. List: ENMMP-X211 shows all of the folders and images as a list and displays the overview and the details of the photo you selected on the left. It only works if the images are contained in the folder.
- Page 14 Directory: Enable: ENMMP-X211 shows both folders and the image files. Disable: ENMMP-X211 will only list all of the images which are stored on the current storage device. Repeat: Repeat all: Repeat all of the photos stored on the current storage device.
- Page 15 Directory: Enable: ENMMP-X211 shows both folders and the movie files. Disable: ENMMP-X211 only lists all of the movie files which are stored on the current storage device. Repeat： ： ： ： Repeat all: Repeat all of the movies stored on the current storage device.
- Page 16 By file name: To arrange items by file name By file date: To arrange items by modified date Directory: Enable: ENMMP-X211 shows both folders and *.txt files Disable: ENMMP-X211 only lists all of the *.txt files which are stored on the current storage device. Font color: www.encore-usa.com...
-
Page 17: Running The Movie Player
Switch the font color among black, white, blue and green. Background color: Switch the different background effect Auto browser speed: Set your browser speed to Normal, Slow, and Fast. Resume Play： ： ： ： On / Off 4.3 Running the Movie Player Click the “Movie”... -
Page 18: Running The Music Player
Use remote control button to play video. 4.4 Running the music player Click the “Music” icon on the remote control. Use Up/Down direction keys on remote control to select the music file. Press “OK” button to start. www.encore-usa.com... -
Page 19: Running The Photo Browser
In the playback mode, the details of the music file will be shown on the screen. 4.5 Running the photo browser Click the “Photo” icon on the remote control. Use Up/Down direction keys on remote control to select the picture file. Press “OK”... -
Page 20: Running The Text Reader
Press the “Exit” button or button on the remote control to go back to the list box. You also can press the “INFO” button on the remote control to display the detail information of the current picture. 4.6 Running the text reader Click the “TEXT”... - Page 21 Press the “Exit” button or button on the remote to go back to the list box. www.encore-usa.com...
-
Page 22: Playback The Movie On Network (Upnp)
4.7 Playback the movie on Network (UPNP) 4.7.1. PC setup (1) Download the TwonkyMedia manager from below link. http://www.twonkyvision.de/manager_download.html (the software not included on standard package) (2) Install the TwonkyMedia manager. (3) Double-click on “TwonkyMeida Manager “icon to run the TwonkyMedia manager. - Page 23 (6) Return back to TwonkyMedia Manager, as you can see the media files that just copied. www.encore-usa.com...
-
Page 24: Mediaplayer Setup
4.7.2. MediaPlayer setup Below steps are how the DMP to play videos through the LAN, select “Network” on the OSD. Select “UPNP” Select “Movie” www.encore-usa.com... - Page 25 Select “net_upnp1” Select “Videos” folder Select “All Videos” Select a video file to be played. www.encore-usa.com...
-
Page 26: Chapter 5: Frequently Asked Questions
Chapter 5: Frequently Asked Questions Q. How to update device firmware? Please download the last firmware file for our website. Unzip the firmware to USB Storage Drive or Memory Cards and plug it to Media Player device. Select the “upgrade“on ‘Setting”... -
Page 27: Chapter 6: Technical Support
Chapter 6: TECHNICAL SUPPORT Please visit www.encore-usa.com for the latest product information and downloads. International tech support hotlines are listed on the back cover Appendix A: USER’S NOTICE This manual is provided “as is” without warranty of any kind, either express or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. - Page 28 * Local tech-support numbers are provided in selectively countries. Service may change without prior notice. Please visit www.encore-usa.com for more details. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein. www.encore-usa.com All trademarks and brand names are the properties of their respective holders.
