Summary of Contents for Linx 160

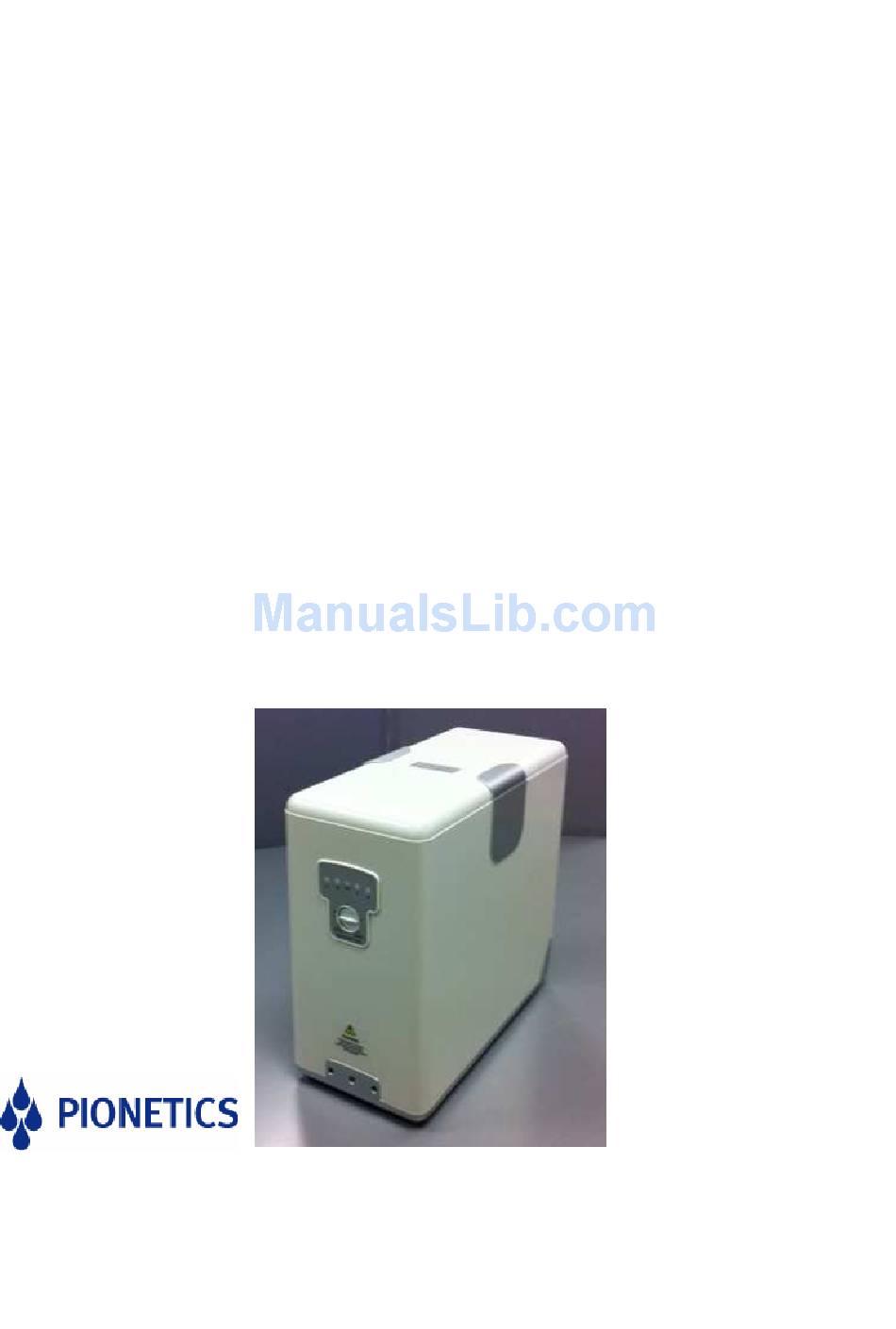

- Page 1 ® LINX Drinking Water System with LINX Technology ® and Dial-a-Taste Mineral Level Control (Software 20.082) Owner’s Manual 05-3044-A...
- Page 2 Dial-A-Taste Mineral Level Control External Leak Sensor (Optional) Section 5 Maintenance LINX 50 TDS, LINX 120 Sediment, and LINX 120 Cartridges/Filters Drain Blockage Section 6 Troubleshooting Potential Problems and Remedies Certified by WQA against NSF/ANSI Standard 53 as verified and substantiated by test data for the reduction of nitrate/nitrite.
- Page 3 • Read and follow all instructions carefully before using the LINX 160 Drinking Water System. • DO NOT open the cell lid or outer enclosure when the LINX 160 system is powered. There is a risk of electrical shock. •...
- Page 4 Section 2. Overview of the LINX 160 System The LINX 160 anDrinking Water System employs an ion exchange process which uses electricity rather than chemicals for operation. LINX technology does not release chemicals to the environment and it conserves water compared to other drinking water systems that provide similar water quality.
- Page 5 Section 3. Installation The LINX 160 system should be installed and serviced by an Authorized Dealer to assure that it complies with state and local laws and regulations, and to provide optimum performance. If a system is to be disconnected for any reason, FIRST ensure that the feed water is turned off, the valve to/from the tank is closed, and the faucet is opened to depressurize it (open the faucet until water stops flowing).
- Page 6 Selecting Feed Water TDS Level The LINX 160 system must be set to your incoming feed water quality. Two settings are available: a first level for 0-500 ppm, and a second level for 501-1000 ppm TDS feed waters. The factory setting is for ≤500 ppm TDS feed water which provides 1.5 gallons (6.0 liters) of drinking water prior to regeneration, yielding 70% water recovery.
-
Page 7: System Operation
Conditioning the LINX 50 TDS Cartridge, and LINX 120 Sediment and Carbon Filters When a new LINX 160 system is installed or the LINX 50 TDS cartridge and LINX 120 filters have been replaced, the system must undergo three steps to ready it for drinking water production: 1) a 90 minute conditioning of the LINX 50 TDS cartridge, 2) filling the tank (empty it if full at the start), and 3) emptying the tank from the faucet to rinse the carbon filter (automatically triggering tank refill). - Page 8 External Leak Sensor (Optional) The LINX 160 system comes equipped with an internal leak sensor to detect leaks and shut off the feed water supply to the entire system to prevent the risk of water damage. If a leak is detected, the A, B and D lights blink and the buzzer sounds. To stop the buzzer, unplug the LINX 160 system.
- Page 9 • No Product Water Flow Faucet is mounted 13 ft (4 meters) or more above the LINX system (Green light on; no indicator lights are Remedy – install the LINX system at <13 ft (4 meters) below faucet •...
-
Page 10: Replacement Parts List
External Leak Sensor Kit (above 3 parts) 19-001323 LED PCB (front display) 19-000009 Power Cord (US Plug, 120V) 19-000006 The LINX 160 and LINX 160M Drinking Water Systems are manufactured by: Pionetics Corporation 151H Old County Road San Carlos, CA 94070 USA (650) 551-0250 www.LINXwater.com... - Page 11 Warranty 05-3044-A...
- Page 12 Warranty Page 2 05-3044-A...
