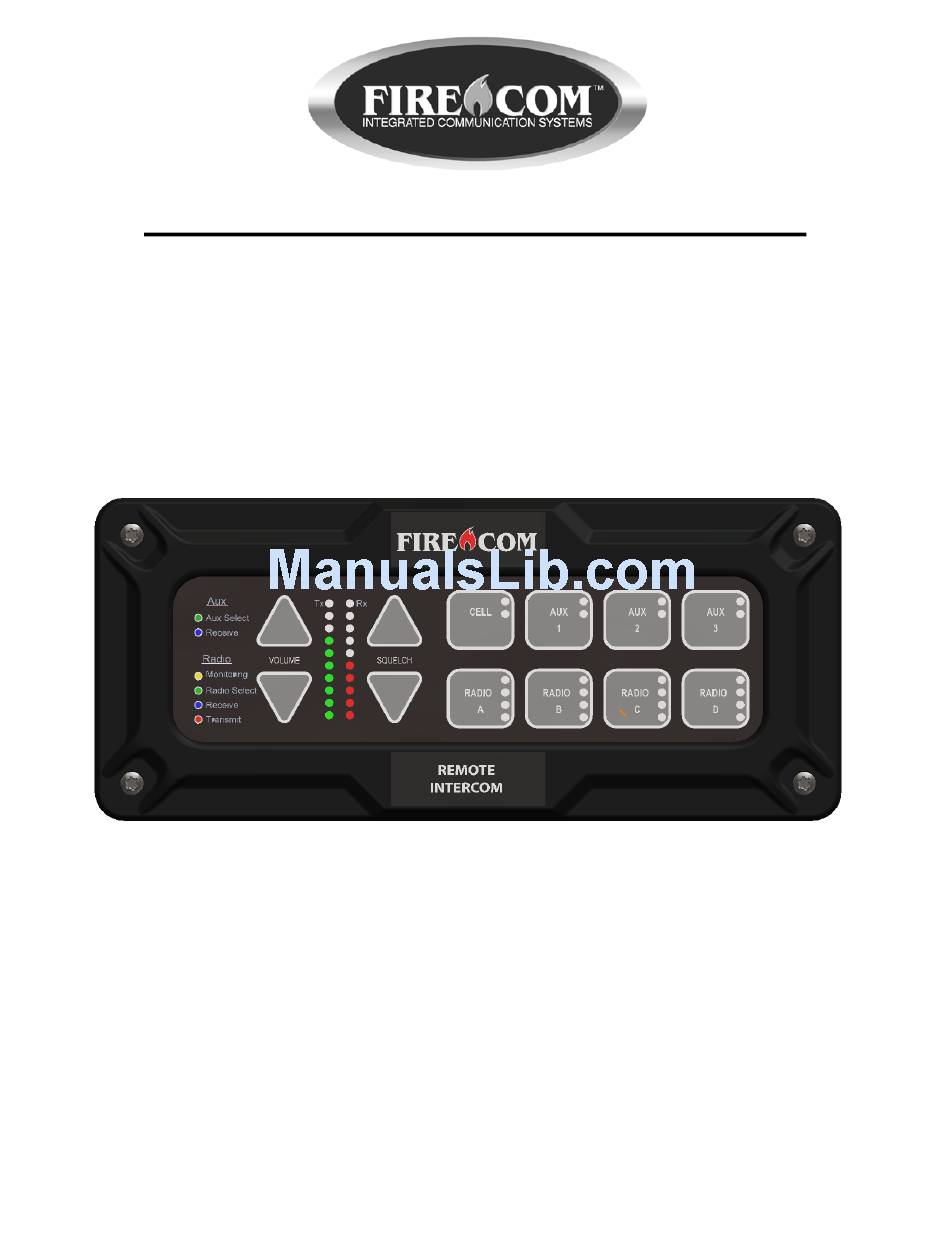

5000DRH Series Digital Remote Heads
5100DRH, 5200DRH, 5300DRH, 5400DRH Digital Remote Heads
Installation & Operation Manual
1
Advertisement
Table of Contents
Summary of Contents for Fire Com 5100DRH
- Page 1 5000DRH Series Digital Remote Heads 5100DRH, 5200DRH, 5300DRH, 5400DRH Digital Remote Heads Installation & Operation Manual...
- Page 2 “Intercom Only” headsets will not transmit over the radio. There are 4 models of Remote Heads in the 5000DRH Series as shown below. Model 5200DRH Model 5100DRH Model 5300DRH Model 5400DRH FIGURE 1...
- Page 3 SYSTEM ORIENTATION This section provides an overview of the 5000DRH Series Digital Intercom System and an introduction to its individual components. Figure 2 shows a typical system. Refer to this diagram for each component. REMOTE HEAD A Remote Head can be connected to the main control unit to control the intercom from a remote location. Up to 5 remotes heads can be connected to the digital intercom by utilizing an RJ-12 splitter or by splicing into the 6 conductor modular cable.
- Page 4 REMOTE HEAD CONTROLS FRONT PANEL CONTROLS: VOLUME UP & VOLUME DOWN BUTTONS: Adjust the master volume for the Intercom System. VOLUME INDICATOR LED'S: 10 green LED’s which indicate the master volume level setting. There are 3 volume changes between lights. SQUELCH LEVEL INDICATOR LED'S: 10 red LED’s which indicate the master volume level setting.
- Page 5 INSTALLATION INSTALLING A REMOTE HEAD: Remote Heads can be connected to the Digital Intercom unit by plugging the CA Cable plug into the Remote connector shown in Figure 4. A remote head can be installed on a mounting bracket or flush mount to any flat surface. Included Mounting Hardware (with remote head): #6x.75in sheet metal screws (1) .28 ID x .56 OD x .25 in black rubber grommet...
-
Page 6: System Test
MODULAR PLUG INSTALLATION This section describes the installation of the RJ-12 Modular Plug onto the flat CA Cable. 1. Using the cutter blade on the crimping tool (labeled A in Figure 6), cut the flat CA Cable so the cut is clean and 90 degrees to the sides of the cable. -
Page 7: Specifications
WIRING DIAGRAM & SCHEMATICS Remote Head Wiring Pin 1 BUSY + BUSY - DATA L DATA H Pin 6 POWER TO INTERCOM TO REMOTE HEAD FIGURE 9: Modular Plug Wiring Specifications Size: ........7.125" L x 3" W x .875 D Weight: . - Page 8 W A R R A N T Y Firecom Standard Limited Warranty Firecom, a division of Sonetics Corporation, (“Firecom”) warrants to the original purchaser of its products that products will be free from defects in materials and workmanship under normal and proper use for the period of two years from date of purchase. Firecom will repair or replace, at its option, any products showing factory defects during this warranty period, subject to the following provisions and obligations: 1.
