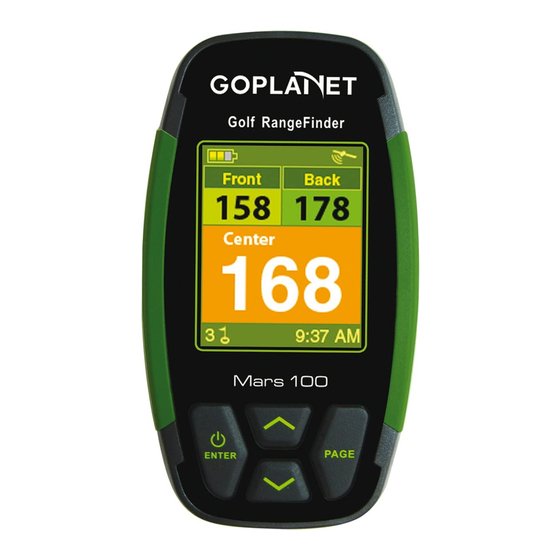

- Page 1 Mars100 Golf Range Finder Operation...
-
Page 2: Table Of Contents
Table of Contents Special Statement............. 4 Notes .................. 5 About GPS ................. 6 Thanks for Choosing MARS100......... 7 Use Conditions..............7 Description................. 8 Screen Display............8 Basic Specifications ..........9 Accessories .............. 10 Battery Charging............. 10 Major Functions ............... 12 Power On/Start Page .......... - Page 3 6) Language............16 7) Set Time..............17 8) Equipment Info........... 17 Main Page..............18 Score Card Page ............ 19 Hitting Distance Page ..........20 Golf Green Position Correction Page....21 Q&A .................. 24...
- Page 4 Special Statement ©Compass Systems Co. Ltd. E-mail： service1@goplanetgps.com The copyright of this Operation Manual is owned by ©Compass Systems Co., Ltd. No individual or organization is allowed to copy, reproduce, photocopy, scan or alter, or in any other form, all or part of this Operation Manual (including text and pictures), for use by another or for selling, unless a written permission is obtained in advance from ©Compass Systems Co., Ltd.
-
Page 5: Notes
US government has the right to change, for the purpose of national security, functions of this system or its positioning accuracy without further notice. To use Mars100 properly and safely, please read the following notes before use: Mars100 is for amusement only, and is not applicable to industrial or professional measurement. -
Page 6: About Gps
About GPS GPS is a satellite system developed by United States Department of Defense, comprising 32 satellites about 11,000 miles above ground. These satellites, which circle the earth twice each day, keep transmitting low-power signals, which are received and recorded by five earth stations. These stations use accurate timing signals to locate accurately each satellite in the orbit, and your GPS receiver can “capture”... -
Page 7: Thanks For Choosing Mars100
Following instructions of Mars100, you will know clearly the distances to the center, front edge and back edge of the green. Mars100 is a golf GPS extremely easy for use. The Operation Manual will give a detailed description of its characteristics and operation, helping your realize ideal performance. -
Page 8: Description
Description Screen Display Buttons: Enter: Power on/off; distance to the green/hitting distance display; parameter setting and selecting. Page: Switch between pages; set the starting point in measuring hitting distance; correct golf course data. Up (forward) Down (backward) -
Page 9: Basic Specifications
Basic Specifications Data storage capacity Receiver chip High-sensitivity receiver chip Positioning time Hot Start < 1sec Warm Start < 38sec Cold Start < 42sec Positioning accuracy Positioning with single receiver <10m (without SA interference) Antenna Built-in antenna Power source Rechargeable lithium battery Battery type (1100mAh) Hours of use... -
Page 10: Accessories
Battery Charging Built-in rechargeable lithium battery. Connect the USB connector on the back of Mars100 (protected by a rubber cover) and the AC charger with the USB cable, and then insert the charging plug into the power outlet. - Page 11 charge it for 4~5 hours. Fully-charged battery can work for about 11 hours. If battery status displays two bars, the battery can last 8 hours; one bar of electricity means that the battery can last 5 hours. Please charge the battery when it is about to run out of power.
-
Page 12: Major Functions
Major Functions Please use Mars100 in open areas so that GPS signals can be received free of interference from buildings and trees. Power On/Start Page Press Enter for three seconds to turn on Mars100. Three options will appear on the start page: <Start>... -
Page 13: Auto Golf Course Search
Auto Golf Course Search Mars100 provides the function of auto golf course search. Upon completion of satellite positioning, Mars100 will choose automatically a golf course in your proximity. Then, a window will appear and ask you want this golf course. You may choose <Yes>... -
Page 14: Choose Golf Course
<Choose Golf Course> and press Enter. Then, you will see the list of golf courses stored in your Mars100. Please move the cursor to the desired golf course and press Enter. The chosen golf course will become red. Next, it... -
Page 15: Delete Golf Course
Delete Golf Course Move the cursor to <Delete golf course> press Enter, and then move the cursor to the golf course that you want to delete and press Enter. A dialog box will appear and ask whether you are sure you want to delete this golf course. -
Page 16: Return Timer To Zero
Return Timer to Zero Mars100 has a simple timer for recording time consumed. You may adjust the timer to zero at any time by moving the cursor to <Return Timer to Zero> and pressing Enter. Note that the timer is displayed only on the score card page. -
Page 17: Set Time
Set Time Mars100 is able to automatically set the time according to GPS data. If you are in countries which have official summer time, you may put the clock forward/back. To do this, you may choose <Set Time> and press Enter, and... -
Page 18: Main Page
Main Page You will spend most time on the main page. This page will display your distances to the center, front edge and back edge of the green, which are expressed in yards or meters. You may choose <Start> on the start page and press Enter, or press Enter for three consecutive seconds under any page to return to the start page, and then choose... -
Page 19: Score Card Page
Score Card Page The score card page provides basic information on the fairway. You may press Page under the main page to enter the score card page. This page will display the following information: • Golf course name • Hole No. (change with the hole chosen by you on the start page) •... -
Page 20: Hitting Distance Page
Hitting Distance Page You can use this function to measure the distance between two points in a simple way. This function is for the measurement of hitting distance in the course of a golf game. To use this function, you may first press Enter under the start page to enter the hitting distance page. -
Page 21: Golf Green Position Correction Page
Enter. Mars100 will ask whether you are sure you want to correct the center of the green. You may press <Yes> and the distance will be reset to <0>. - Page 22 Download Golf Course Data Mars100 has established accurate data on all golf courses in Taiwan, and can provide you with up-to-date information on more than 20 thousand golf courses across the world. You may visit www.mygolfgps.com for more information, and download relevant software from Customer Support for downloading more golf course data to your Mars100.
- Page 23 Mars100 Be able to receive the information sent from 20 satellites; GPS standard positioning service and accurate navigation; Support standard NMEA 0183 protocol (Version 2.3 GGA GSA GSV RMC VTG); Support SBAS (WAAS EGNOS); Measure hitting distance; Download updated golf course data;...
-
Page 24: Q&A
If this icon stops blinking, it signals. signal. means the receiver has 2. Adverse captured satellite signal. influences of 2. Use Mars100 in open areas. buildings or trees. Can not 1. USB cable fails to 1. Connect USB cable be connected correctly, or replace it.
