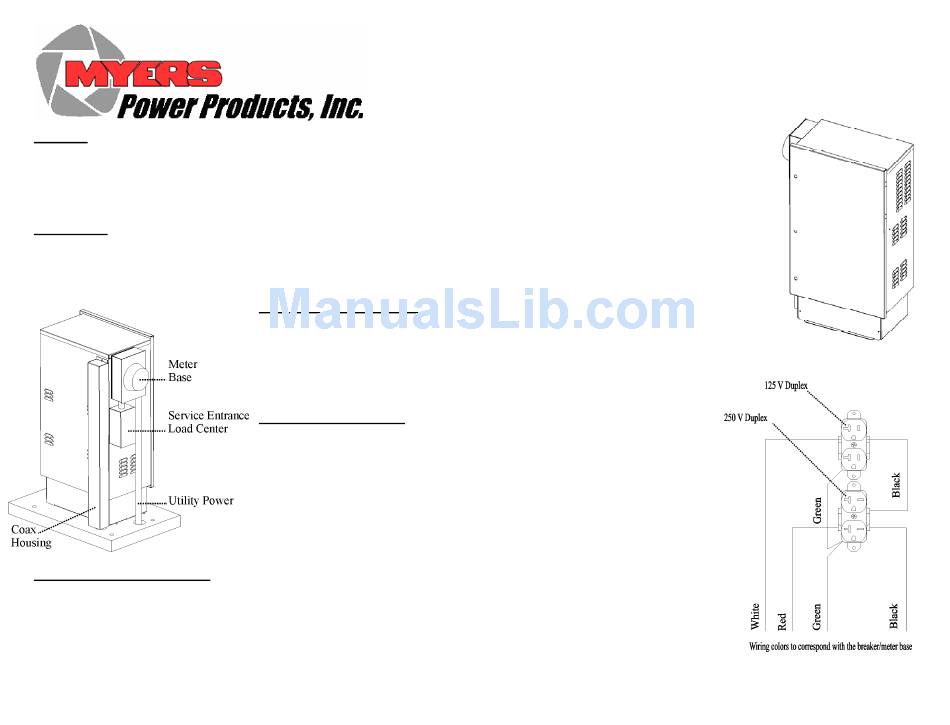

Myers Power Products CTEG8-240MB Quick Reference Manual

Cable power enclosure

Safety

Only trained service personnel should install and maintain the power enclosure and electronics.

Any modifications to this unit not expressly approved by Myers Power Products could void the warranty.

Failure to observe these warnings may result in serious injury, death or damage to the equipment.

This is a "quick reference" only. Detailed instructions are available by contacting a Myers representative.

Unpack the enclosure upon receipt. Notify the carrier if there is any damage.

Check the package contents. The package contains the enclosure, battery cables, connectors and associated

hardware, and this product documentation.

Remove the coax housing raceway by removing the coax raceway fastener from inside the enclosure.

Route the coax from the pad to one of the coax bushings. A 90 degree pin-connector will be required to

terminate the cable. The pin-connector will fasten to the coax bushing with the pin entering the enclosure.

After securely tightening all connections, replace and secure the coax raceway to the enclosure.

Myers Power Products

Tel: 610-868-3500 Service: 610-868-5400 Toll Free: 800-526-5088

Doc# 114537

Install a preformed or pour a concrete pad according to best industry practice.

If installing the enclosure on the matching Myers pre-formed pad, place the enclosure on the pad. Align

the bolt holes in the enclosure base to the anchor hooks on the pad. Fasten the enclosure to the pad

using the appropriate hardware.

Install and interconnect ground rods appropriate for proper grounding

according to local engineering and electrical code requirements.

Typically, the local AC utility will connect the AC line to the Meter Base.

As the enclosure is pre-wired, no additional wiring should be required.

A licensed electrician must make any AC wiring changes that may need to

be made.

Cable Power Enclosure

Model: CTEG8-240MB

Eight Battery Ground Mount Enclosure w Meter Base, 240VAC

Quick Reference Guide

January-2008

Page 1

Table of Contents

Do you have a question about the CTEG8-240MB and is the answer not in the manual?

Page 1 Only trained service personnel should install and maintain the power enclosure and electronics. Any modifications to this unit not expressly approved by Myers Power Products could void the warranty. Failure to observe these warnings may result in serious injury, death or damage to the equipment.
Page 2 Cable Power Enclosure Model: CTEG8-240MB Eight Battery Ground Mount Enclosure w Meter Base, 240VAC Quick Reference Guide Euro-block Installing the Power Supply Place and assemble the cable power supply onto the top internal shelf of the enclosure. Attach and fasten the Euro-block terminated wire exiting the EIO assembly to the coax cable pin connector.
