Summary of Contents for Extraheat RAPID 10

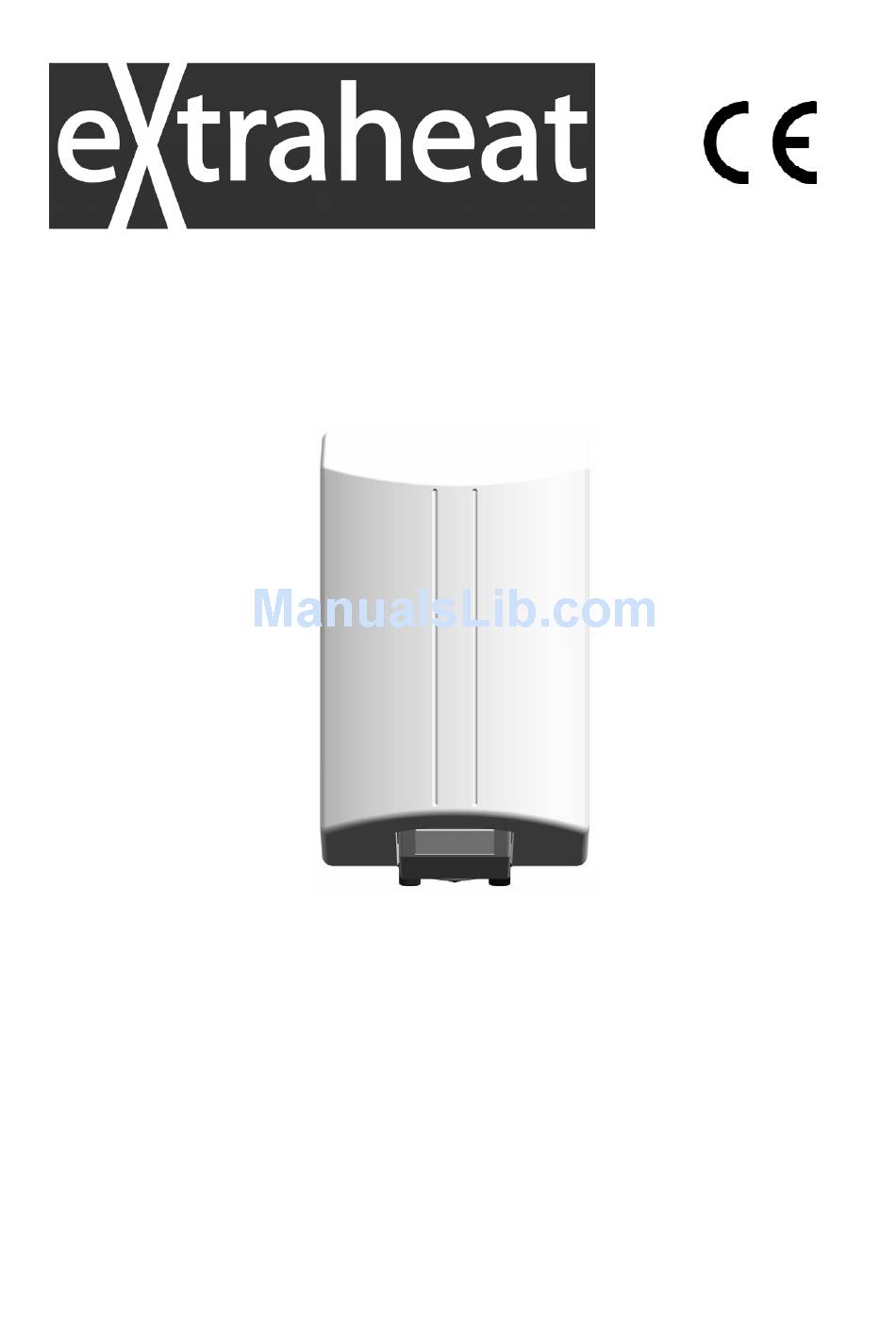

- Page 1 Cod. 122591 – Agg. 28.05.2010 RAPID 10–15–30 ELECTRIC UNVENTED WATER HEATER INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE...
- Page 2 the nation’s favourite PLUMBING & HEATING SUPPLIES FREE SHIPPING SECURE PAYMENTS on all orders over £100 to mainland UK shop online with confidence FINANCE AVAILABLE PRICE MATCH spread the cost with low interest rates always get the best deals available we have H U G E R E D U C T I O N S...
-
Page 4: General Instructions
1) TECHNICAL AND DIMENSIONAL CHARACTERISTICS The technical and dimensional characteristics of the appliances are given, according to the model, in Figures 4, 5 and in the Table of Dimensions, table 1. The electrical specifications are given on the appliance, according to the model. 2) GENERAL INSTRUCTIONS Installation is the customer’s responsibility. - Page 5 3.3.3. Expansion provision It is acceptable for the expansion of the hot water to be accommodated in the pipework where conditions permit. The minimum (15 mm) pipework distance to the nearest cold water drawoff should be 2,8 m (10 litre) or 4,2 m (15 litre) and there must be no check valve, stop valve or other device preventing reverse flow within this distance.
- Page 6 4) OPERATING INSTRUCTIONS (U 4.1. Switching on Before switching the appliance on check correct electrical connection and water filling. The appliance has an adjustment thermostat that automatically controls the water temperature; the indicator light stays on only during the heating phase. CAUTION: Before switching the appliance on, always make sure it is filled with water, in order to avoid serious damage to the electric heating element.
-
Page 7: Maintenance Instructions
- make sure the water safety unit discharge union is connected to a drain as provided for in par.3.3.1. Reconnect the power only after this operation. 5) MAINTENANCE INSTRUCTIONS ( QUALIFIED PERSONNEL ONLY IMPORTANT: repair and/or maintenance operations must be carried only using original spare parts and by qualified personnel. - Page 8 5.4. GENERAL NOTES Use equipment suitable for the purpose. Always replace the seal gaskets and/or O-rings. Only use original spare parts. When refitting, make sure: - the heating element is correctly housed and that the seals are correctly fitted; - the thermostat is inserted in the housing of the heating element, pushing it all the way in but without any striking that can damage it;...
-
Page 9: Troubleshooting
7) TROUBLESHOOTING Fault Possible causes Cures and explanations Lamp not connected Reconnect the lamp and thermostat. Indicator light does not come on (hot water comes out) Faulty lamp Replace lamp Indicator light does not come No current Reinstate the mains power supply (hot water does not come Thermostat safety limiting device Reset the thermostat. - Page 10 SCHEMA ELETTRICO/ WIRING DIAGRAM Fig. 1 SCHÉMA ÉLECTRIQUE / SCHALTBILD/ ESQUEMA ELÉCTRICO Fig. 2...
- Page 11 Fig. 3 Fig. 4 RAPID OVERSINK MODELS...
- Page 12 Fig. 5 RAPID UNDERSINK MODELS Fig. 6 WALL-MOUNTING...
- Page 13 TABELLA DIMENSIONALE / TABLE OF DIMENSIONS / TABLEAU DES DIMENSIONS / Tab. 1 ABMESSUNGSTABELLE / TABLA DE MEDIDAS RAPIDI SOPRA E SOTTOLAVELLO / RAPID OVERSINK AND UNDERSINK MODELS / RAPIDES DESSUS ET DESSOUS ÉVIER / Fig./Abb. 6 e 7 SCHNELLWARMWASSERBEREITER FÜR UNTERGESTELLTE Model INSTALLATION / INSTANTÁNEOS ENCIMA Y DEBAJO DEL LAVABO Fig.
- Page 14 Fig. 8 Fig. 9 Fig. 10...
- Page 15 WARRANTY YOUR EXTRAHEAT RAPID WATER HEATER IS PRODUCED BY ONE OF EUROPES LEADING MANUFACTURERS AND SHOULD PROVIDE MANY YEARS OF SUCCESFULL USE IF CORRECTLY INSTALLED, OPERATED AND MAINTAINED AS DETAILED IN THESE INSTRUCTIONS. IT IS SUPPLIED WITH A MANUFACTURERS WARRANTY OF TWO YEARS FROM DATE OF PURCHASE COVERING MANUFACTURING DEFECTS OR COMPONENT FAILURE.
- Page 17 EXTRAHEAT LIMITED BELMAYNE HOUSE CLARKEHOUSE ROAD SHEFFIELD S10 2LN TEL; 01142 309147 www.extraheat.co.uk sales@extraheat.co.uk...
