Insignia NS-ANT314 Quick Setup Manual

Indoor hdtv antenna

Advertisement

Quick Links

This is a specially designed antenna for both analog and digital TV
broadcasting reception. It can receive all the TV signals in your area
in the VHF and UHF bands, as well as FM radio signals. An ideal and
easy-to-install solution for home or portable TV reception.
PACKAGE CONTENTS
• Indoor HDTV antenna
• Quick Setup Guide
FEATURES
• Receive free local HDTV broadcasts
• Adjustable VHF and fixed UHF antennas receive 1080i and 720p
HDTV signals
• Integrated 4' coaxial cable for simple connection to your TV
• Small size for convenience

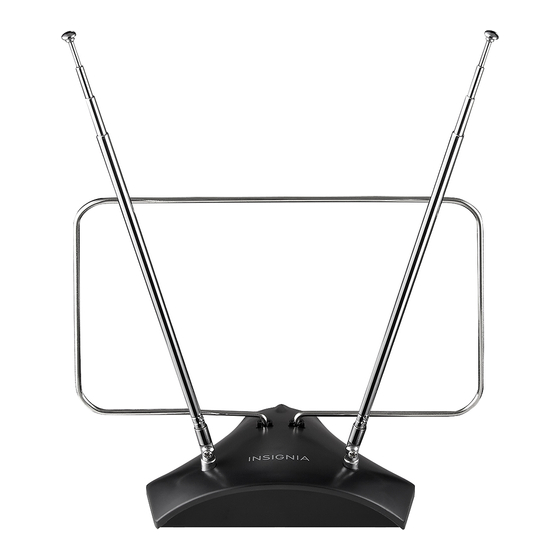

VHF antenna
UHF antenna
Coaxial cable
Before using your new product, please read these instructions to prevent any damage.
SETTING UP AND USING YOUR ANTENNA
1 Squeeze the bottom of the UHF antenna and insert it into the
holes on the base.
2 Screw the VHF antennas into the base.
Quick Setup Guide |
Indoor HDTV Antenna
3 Connect the end of the coaxial cable to the coaxial jack on the
back of your TV or digital converter box.
Connect to HDTV
If you have an HDTV with a digital TV (ATSC) tuner, you can
connect the antenna directly to the HDTV. Older TVs may require a
separate digital TV tuner, or digital converter box, such as the
Insignia NS-DXA2.
Antenna
OR
Coaxial cable
Connect to TV through digital converter box
Note: See the instructions for your digital converter box for connection
steps.
Digital converter box
Antenna
Coaxial cable
Coaxial cable or composite video/audio cable
NS-ANT314
HDTV
TV
