V
ADDIO
P
RESET

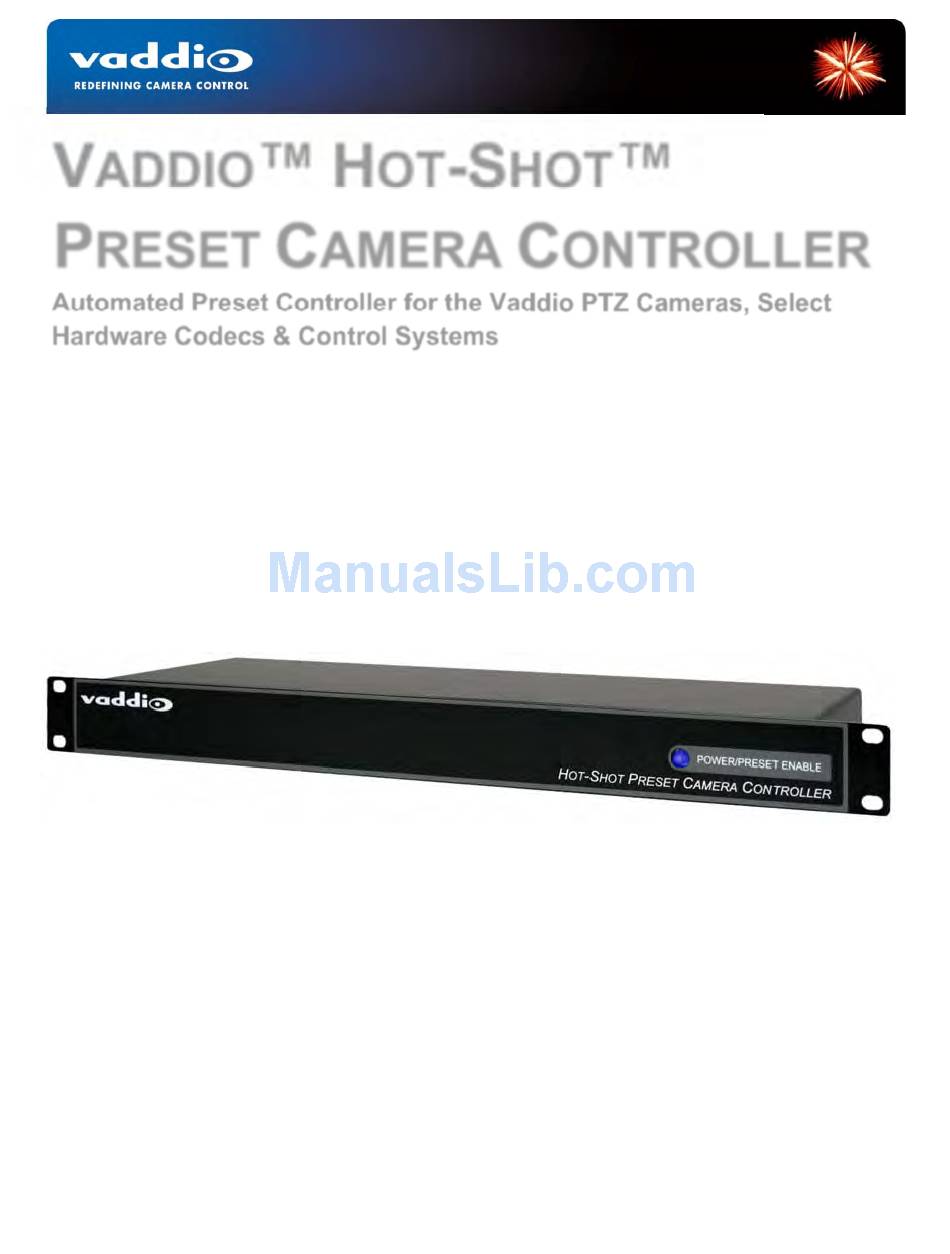

Automated Preset Controller for the Vaddio PTZ Cameras, Select
Hardware Codecs & Control Systems
Part Numbers:
999-1036-000 North America
999-1036-001 International
© 2012 Vaddio - All Rights Reserved. Hot Shot Preset Camera Controller Installation and User Guide. Document Number 342-0124 Rev D
™ H
OT
C
AMERA
Installation and User Guide
-S
™
HOT
C
ONTROLLER
Advertisement
Table of Contents
Related Manuals for VADDIO HOT-SHOT
Summary of Contents for VADDIO HOT-SHOT
- Page 1 Automated Preset Controller for the Vaddio PTZ Cameras, Select Hardware Codecs & Control Systems Part Numbers: 999-1036-000 North America 999-1036-001 International © 2012 Vaddio - All Rights Reserved. Hot Shot Preset Camera Controller Installation and User Guide. Document Number 342-0124 Rev D...
- Page 2 Hot Shot Preset Camera Controller Inside Front Cover - Blank Hot Shot Preset Camera Controller - Installation and User Guide - Document Number 342-0124 Rev D Page 2 of 16...
-
Page 3: Table Of Contents
Image: Front Panel ............................5 Image: Rear Panel ............................5 Diagram: Basic Connectivity featuring the Hot-Shot and C60 Codec ..............6 Diagram - Advanced Connectivity: ........................6 Diagram - New Application - Single Camera System: ....................7 ... -
Page 4: Overview
Sensors, PresenterPOD™, TouchVIEW™ as well as other triggering/logic I/O devices. The Hot-Shot will accept a trigger input from a trigger device, for example, a mat on Trigger 2. When the mat is triggered by a presenter standing on it, the Hot-Shot will output “PRESET 2” in the RS-232 protocol of the assigned camera or codec and then the camera and preset (pan/tilt/zoom coordinates) associated with Preset 2 for that device will be activated. -
Page 5: Unpacking
Flexible triggering modes are included. The Hot-Shot can be set up as a “Last Step” or “First Step” triggering mode. Setting it up in Last Step Mode allows for the last trigger activated to switch to that trigger’s preset. First Step trigger mode allows the first trigger to activate and then prevent all other triggers until the first trigger is released. -
Page 6: Diagram: Basic Connectivity Featuring The Hot-Shot And C60 Codec
Hot Shot Preset Camera Controller Diagram: Basic Connectivity featuring the Hot-Shot and C60 Codec Vaddio MicVIEW Mic AutoVIEW IR Sensor StepVIEW Mat Push to Instructor Talk Location Student Mics Preset Triggers Preset Camera Controller Audio Audio RS-232 Preset #’s RGBHV... -
Page 7: Diagram - New Application - Single Camera System
Setting Up the Hot-Shot Preset Camera Controller The Dip Switches: There are ten (10) dip switches on the rear panel that configure the Hot-Shot Preset Camera Controller. Configuration is not automatic, but it is easy to understand. The dip switches control the following functions:... -
Page 8: Control Protocols And Strings
The Vaddio PTZ Camera Programming mode is used to program Presets 7 through 16 on the Vaddio PTZ Camera. The Vaddio PTZ Camera Playback mode is turned on to trigger the stored presets inside the camera. Dip Switch 5 must be down in both Programming and Playback modes. -
Page 9: Installation Step-By-Step Example With Codec
Connect the IR Sensor leads (+ to connector 2 and - to GND) to the Hot-Shot. Connect the MicVIEW logic out triggers 3 through 11 to terminals 3 through 11 on the Hot-Shot and the GND wire of the MicVIEW to the GND of the Hot-Shot. -
Page 10: Installation Example With Vaddio Ptz Cameras
Using the Hot-Shot to program preset 7 through 16 (if more than 6 presets are needed): Each Vaddio Camera has 16 internal presets. However, only 6 presets can be programmed via IR Remote. To program the rest of the Hot-Shot presets: Step 1: Put dip switches 1, 5 and 8 down on the Hot-Shot. -
Page 11: General Specifications
Hot Shot Preset Camera Controller General Specifications: Hot-Shot Preset Camera Controller 999-1036-000 - North America Part Numbers 999-1036-001 - International (with UK and Euro AC Cord Set) 5.5mm OD and a 2.5mm ID Coaxial Power Connector Connectors & Controls Rear Panel ... -
Page 12: Warranty Information
Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. -
Page 13: Compliance And Ce Declaration Of Conformity
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. -
Page 14: Notes
Hot Shot Preset Camera Controller NOTES: Hot Shot Preset Camera Controller - Installation and User Guide - Document Number 342-0124 Rev D Page 14 of 16... - Page 15 Hot Shot Preset Camera Controller Inside Rear Cover - Blank Hot Shot Preset Camera Controller - Installation and User Guide - Document Number 342-0124 Rev D Page 15 of 16...
- Page 16 Toll Free: 800-572-2011 ▪ Phone: 763-971-4400 ▪ FAX: 763-971-4464 www.vaddio.com ©2011 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without notice. Vaddio, Hot-Shot, AutoVIEW, MicVIEW, TouchVIEW, StepVIEW, PresenterPOD and PowerRite are trademarks of Vaddio.
