- Page 1 TWO-WAY LCD VEHICLE SECURITY AND ENGINE STARTER SYSTEM 2300 Series 2300 Series MANUAL FOR OPERATION AND INSTALLATION TWO- WAY LCD VEHICLE SECURITY AND ENGINE STARTER SYSTEM please read this manual carefully before operate and install the machine...
-
Page 2: Table Of Contents
Thank You for Purchasing 2300 Series Long- Range Two Way PLL- FSK Vehicle Security System with 3D Sensor The setting of Remote Control C. The choice of Centigrade or Fahrenheit 1. Standard Arming Mode 2. Multi- Level Security Arming 3. Panic Mode 4. -
Page 3: Product Description

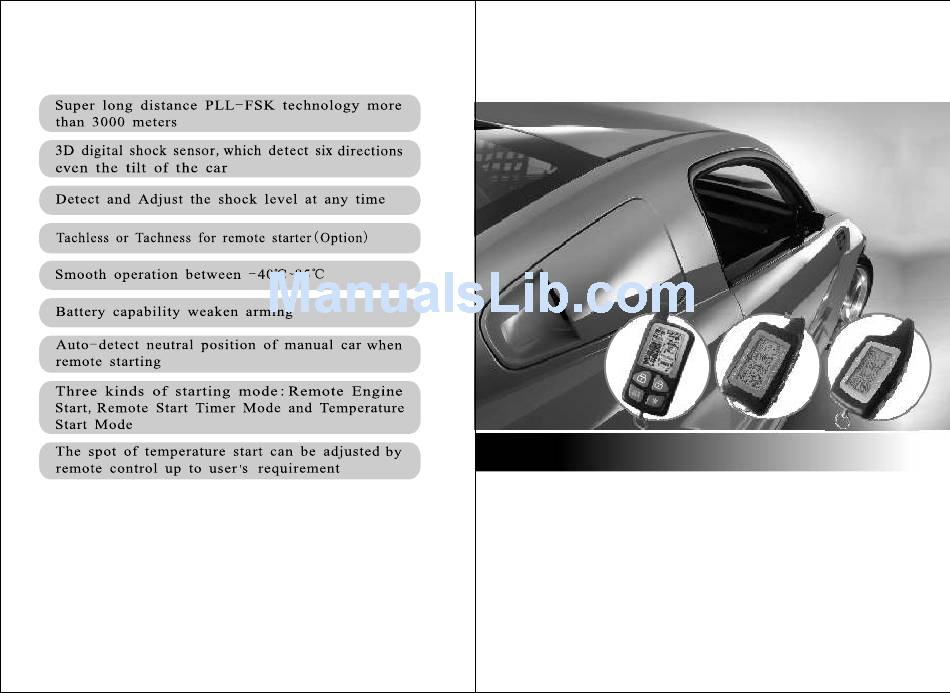

Valet Switch is for Disarm the system without Remote Control, Program 2. Temperature compensation 3. Adopt PLL- FSK technology Features and Code Memorizing of at 433. 92MHz Remote Control. Manual for operation and installation 2300 Series Two-way LCD vehicle security and engine starter system... - Page 4 ON Turbo A u t o s t a r t - Temperature ON/ OFF Backlight Keylock Keyboard Features Option 2300 Series Manual for operation and installation Two-way LCD vehicle security and engine starter system...
-
Page 5: Disarming
User can set the shock level to meet different need, and can query the shock You can choose either the Sound Mode or the Vibration Mode. level on the LCD timely. Manual for operation and installation 2300 Series Two-way LCD vehicle security and engine starter system... - Page 6 Remote Control is not mormal. 2300 Series uses intellective power management, the battery can be used for 3 - 8month under the normal work condition.
- Page 7 Note: Multi-Level Security Arming only applies to a single arming cycle. Once the system is disarmed and then re-armed, all the zones (inputs) will be active again. Manual for operation and installation 2300 Series Two-way LCD vehicle security and engine starter system...
- Page 8 5. If the auto- vehicle use Tachless Mode, it has not the function4 as above. Manual for operation and installation 2300 Series Two-way LCD vehicle security and engine starter system...
-
Page 9: Time Of Motor Crank
A u t o s t a r t - A u t o s t a r t - Temperature Temperature Temperature Temperature Temperature Temperature Manual for operation and installation 2300 Series Two-way LCD vehicle security and engine starter system... - Page 10 Showing the alarm status of car alarm system HOOD HOOD 3DSENSOR 3DSENSOR TRUNK HOOD Manual for operation and installation 2300 Series Two-way LCD vehicle security and engine starter system...
- Page 11 Infrared TRUNK Region sensor triggered HOOD HOOD Infrared Infrared TRUNK d: You may select a region sensor, such as microwave sensor or ultrasonic sensor, your Manual for operation and installation 2300 Series Two-way LCD vehicle security and engine starter system...
- Page 12 TR UN K TR UN K TR UN K ¢Û If no programming activity occurs within a 20sec period, the Features Programming Mode will expire. Manual for operation and installation 2300 Series Two-way LCD vehicle security and engine starter system...
- Page 13 Output is 7A( +) and 250mA( - ) . The light2 switch( +/ - ) is on main board, the default is ( +) output. The default is ( +) output. Manual for operation and installation 2300 Series Two-way LCD vehicle security and engine starter system...
- Page 14 4PIN WHITE Connector( H6) and 3PIN RED Connector( H7) : For future use. 3PIN BLACK Connector( H10) :Region Sensor(¢ÙMicrowave Sensor only Ultrasonic Sensor only ? Both Microwave Sensor and Ultrasonic Sensor) Manual for operation and installation 2300 Series Two-way LCD vehicle security and engine starter system...
- Page 15 Manual for operation and installation 2300 Series Two-way LCD vehicle security and engine starter system...
- Page 17 If in multi-level security arming, the shock sensor and tilt sensor maybe not alarm The tach wire input must be connected to tachometer for manual car, otherwise, it can’ t start the car. Manual for operation and installation 2300 Series Two-way LCD vehicle security and engine starter system...
- Page 18 2300 Series Two-way LCD vehicle security and engine starter system...
