Jumpking JTR6 User Manual

Round 6' diameter trampoline
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®

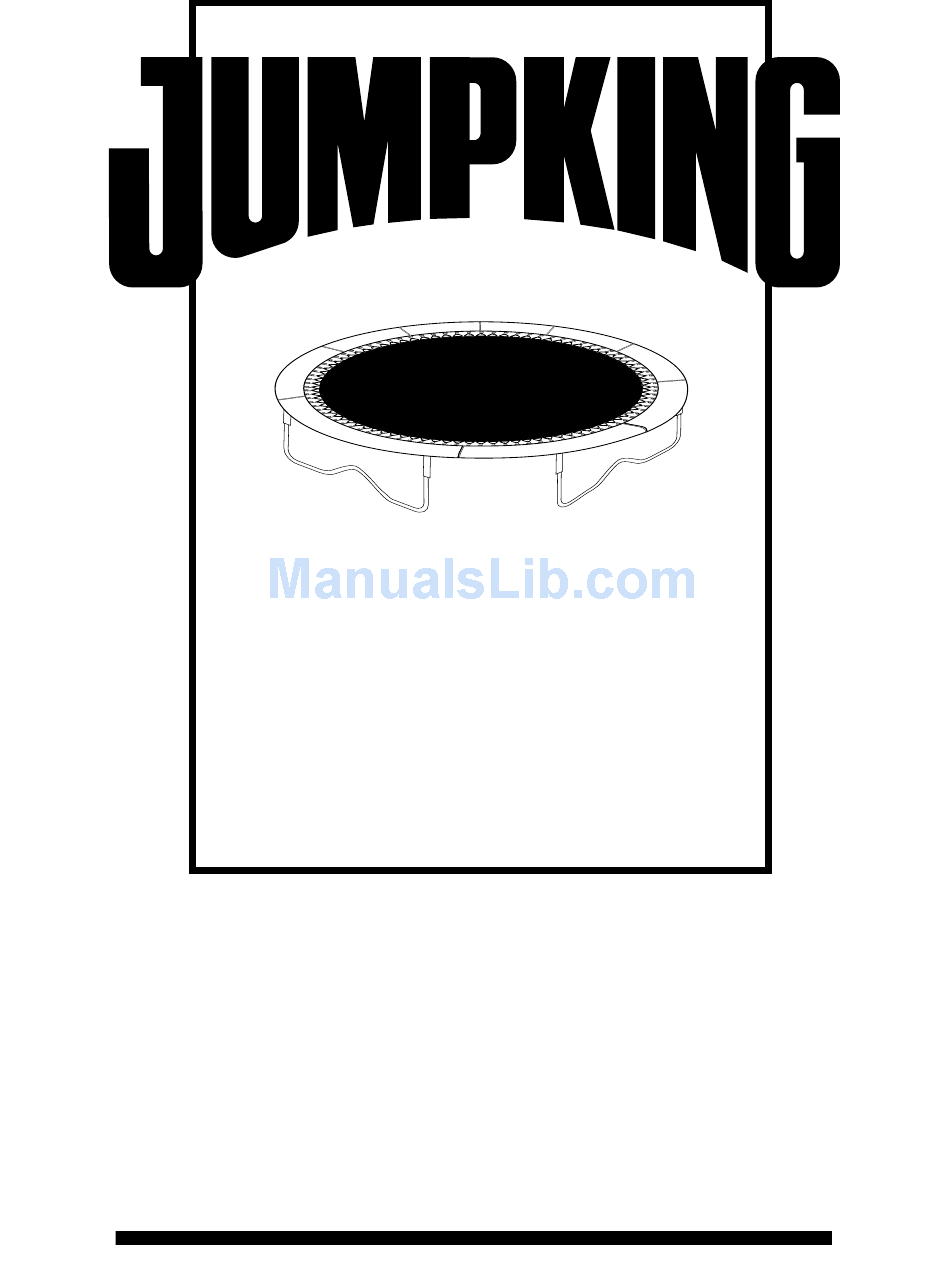

PRODUCT MODEL JTR6
Round 6' Diameter Trampoline
Users Manual
ASSEMBLY, SAFETY, CARE AND MAINTENANCE,
USE, AND INSTRUCTIONAL MATERIALS ENCLOSED.
WARNING: USING THIS TRAMPOLINE EXPOSES YOU TO THE RISK OF SERIOUS
INJURY, INCLUDING PERMANENT PARALYSIS OR EVEN DEATH FROM LANDING
ON THE BACK, NECK OR HEAD. THIS RISK EXISTS EVEN IF YOU LAND ON THE
TRAMPOLINE MAT (BED). READ THIS MANUAL AND ALL MATERIALS FURNISHED
WITH THE TRAMPOLINE THOROUGHLY BEFORE ASSEMBLING OR ALLOWING
ANY PERSON TO USE THE TRAMPOLINE. RETAIN THIS MANUAL FOR FUTURE
REFERENCE.
COPYRIGHT © 9/93

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JTR6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jumpking JTR6

Summary of Contents for Jumpking JTR6

  • Page 1 ® PRODUCT MODEL JTR6 Round 6' Diameter Trampoline Users Manual ASSEMBLY, SAFETY, CARE AND MAINTENANCE, USE, AND INSTRUCTIONAL MATERIALS ENCLOSED. WARNING: USING THIS TRAMPOLINE EXPOSES YOU TO THE RISK OF SERIOUS INJURY, INCLUDING PERMANENT PARALYSIS OR EVEN DEATH FROM LANDING ON THE BACK, NECK OR HEAD.
  • Page 2 Warranty is limited to replacing or repairing, at Jumpking’s option, the product at one of its autho- rized service centers. All products for which a warranty claim is made must be received by Jumpking at one of its authorized service centers, freight prepaid, and accompanied by sufficient proof of purchase.

  • Page 3: Before You Begin

    BACK, NECK OR HEAD. THIS RISK EXISTS EVEN IF YOU LAND 1. Misuse and abuse of this trampoline is dangerous and can cause serious injuries. This trampoline (JTR6) is intended for light recreational use by children weighing up to 100 lbs. as a jumping device and by adults up to 225 lbs. as a jogging device.

  • Page 4: Top View

    Read through all assembly steps carefully before beginning the assembly process. Refer to drawings for clarification. No additional tools are required for assembly. The use of gloves is recommended. Step 1: Lay out all frame sections in a circle (See Fig. 1). The frame sections consist of 3 components: Top rail - 4 pieces (part no.
  • Page 5 Step 3: After the metal frame has been assembled it must be turned over so the base of the legs is in contact with the assembly surface. Stand outside the frame circle and lift one edge of the top rail to a vertical position.
  • Page 6 Step 5: Lay the jumping mat (bed) (part no. JTR6B) inside the frame. Springs are used to support the mat (bed) and are connected between “V” rings on the mat (bed) and holes in the top frame rail. There are 48 “V” rings on the mat (bed) that have to line up with corresponding holes on the top frame rail.
  • Page 7 Step 7: To install the rest of the springs, follow the above procedures in the following steps: a. Attach springs every 6 holes/”V” rings (springs now at 6, 18, 30, 42). b. Attach springs every 3 holes/”V” rings (springs now at 3, 9, 15, 21, 27, 33, 39, 45). c.

  • Page 8: Care And Maintenance

    CARE AND MAINTENANCE Your trampoline is manufactured using quality materials and is finely-crafted to provide you and your family with many years of enjoyment and exercise. Proper maintenance and care will help to prolong the life of the trampoline and reduce the possibility of injury. The following guidelines should always be observed.
  • Page 9 TRAMPOLINE SAFETY SAFETY PRECAUTIONS 1. When used indoors or outdoors, ensure adequate horizontal and vertical (overhead) clearance from electric power wiring, tree limbs, ceilings, furniture, and other possible hazards. 2. The trampoline must be placed on a level surface before use. Place on carpet when used indoors. Place on grass when used outdoors.
  • Page 10 OWNER’S ROLE IN PREVENTING ACCIDENTS The supervisor or owner must teach the fundamentals, supervise the users, and enforce the rules. Strict supervision and enforcement of the rules will help minimize the likelihood of accidents or injuries. The supervisor must be in direct charge of any activity on the trampoline.
  • Page 11 BASIC JUMPING TECHNIQUE FUNDAMENTAL BOUNCE 1. Start from standing position with head erect and eyes on mat. 2. Swing arms forward and up in a circular motion. 3. Bring feet together and point toes downward while in the air. 4. Keep feet about 15 inches apart when landing on mat. Page...

  • Page 12: Replacement Parts

    Model JTR6, Round 6' Diameter Trampoline. Needed Part Number Quantity JTR6B ( 1) JTR6PW ( 1) JTR6S (48) JTR6TRS ( 4) JTR6TR ( 4) JTR6L ( 4) The following items are not illustrated: ( 1) ( 8) ( 1)

  • Page 13: Ordering Replacement Parts

    5 p.m. Central Time (excluding holidays). When ordering parts, please be prepared to give the following information: 1. The NAME and MODEL NUMBER OF THE PRODUCT (Jumpking trampoline). 2. The PART NUMBER (from page 12) . 3. The DESCRIPTION of the part (from page 12).

  • Page 14: Order Form

    CARD #_______________________________________________________________ exp. date ____________________ For Cashier’s Check or Money Order please list Driver’s license # /State: _______________________________________ Call for appropriate freight charges . Mail to: Jumpking, Inc. 901 W. Miller Road P. O. Box 461806 Garland, TX 75041 Page ORDER FORM...
  • Page 15 NOTES: Page 15...
  • Page 16 CUSTOMER “HOT LINE”. Let the trained technicians on our Customer “Hot Line” provide immediate assistance, free of charge to you. Customer “Hot Line”: 1-800-322-2211, Monday-Friday, 8 a.m. - 5 p.m. CST (excluding holi- 2nd Day UPS Charge _____________ TOTAL ENCLOSED $ _____________ Jumpking, Inc. 901 W. Miller Road Garland, Texas 75041 800-322-2211...
