Summary of Contents for Jumppod Orbounder OR1213

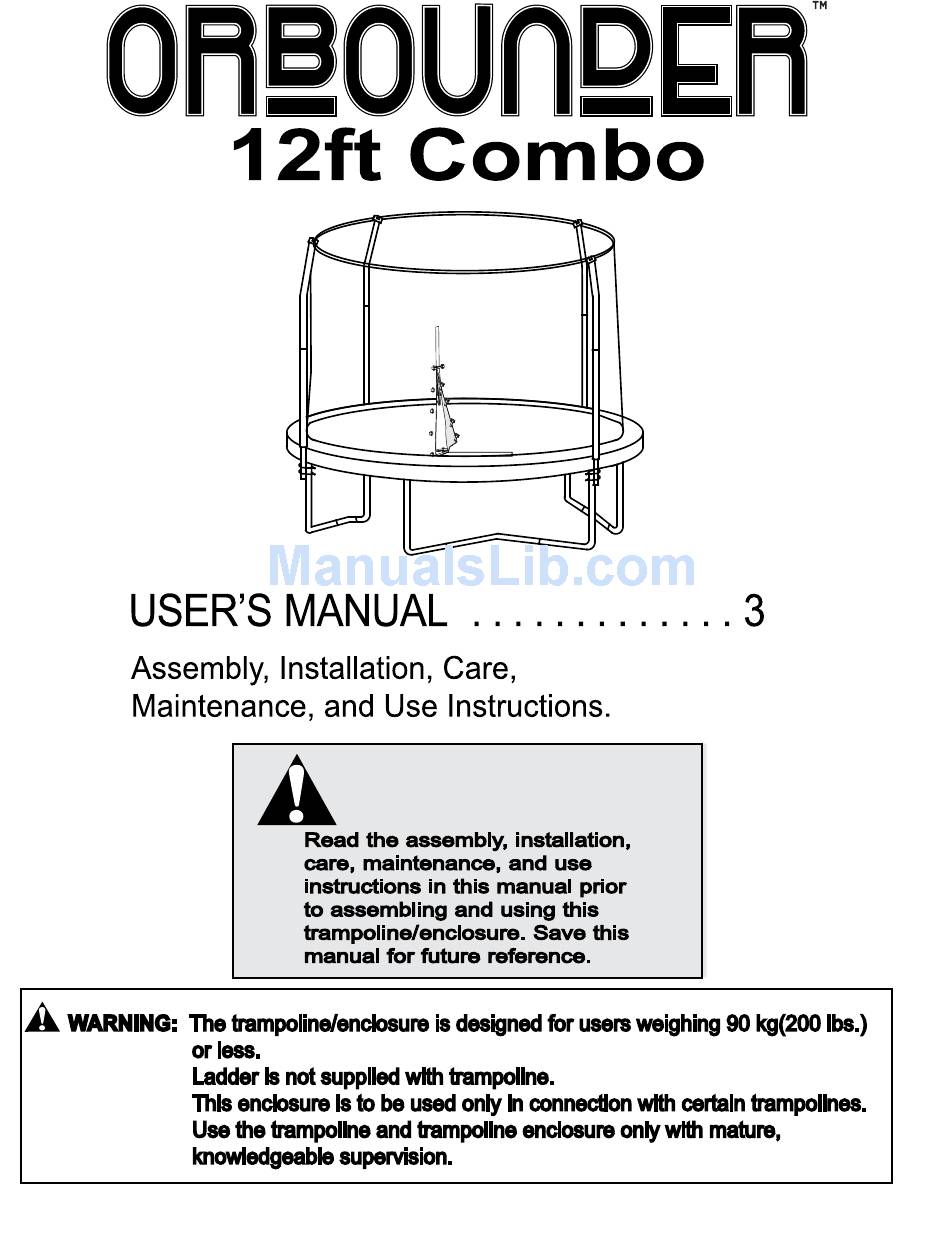

- Page 1 WARNING YJ USA Corp., 3970 Lindbergh Drive Adison, TX 75001 www.jumppod.com 877-928-8777...
- Page 4 1. The owner and supervisors of the trampoline are responsible to make sure all the users are aware of practices specified in this manual. 2. Trained Spotter supervision is recommended. 3. Place the trampoline and trampoline enclosure on a level surface before use. 4.
- Page 5 25. Do not attach anything to the barrier that is not a manufacturer approved accessory or part of the enclosure system. 26. Wear clothing free of drawstrings, hooks, loops, or anything that could get caught in the barrier. 27. Enter and exit the trampoline enclosure only at the door designed for that purpose.
- Page 6 Note: The...
- Page 11 sharply spot.
- Page 15 1. Make sure you understand the information in the box at the top of this page before you begin assembling the trampoline. Lay three Top Tubes (1), (2) and (3) on the ground as shown. Make sure there is a T-connector(4) on Top Tube (1, A marking with bigger end), Socket(7) on the Top Tube(2, B marking with bigger end) and T-connector(4) on the Top Tube(3, c marking with bigger end).
- Page 16 3. Lay the Bed (8) on the ground inside of the assembled frame. Make sure that the two warn- ing decals (not shown) are on top of the Bed. Note: There are V-rings around the edge of the Bed (8) and holes around the top of the frame. During this step, you will attach the Bed to the frame using the included Springs (10) for holes on top of frame and for holes on bottom of frame...
- Page 17 4. Lay the Frame Pad (9) on the frame. Do not use the trampoline without the Frame Pad (9), which is designed to reduce the likelihood of injury to the user from coming in con- tact with the trampoline frame. If you do not have a Frame Pad, call our Customer Hot Line toll-free at 877-927-8777, Monday-Friday,8 a.m.
- Page 18 6. Using the included plastic tie, attach the Safety Placard (11) to the frame near the point where jumpers will climb onto and off the trampoline. The trampoline is now fully assembled. Make sure that all parts are securely attached. Familiarize yourself and all users of the tram- poline with the safety precautions, use and instructional materials, and care and mainte-...
- Page 19 10. Attach the other three Pole(16,17) in the same way. See inset drawing. 11. Lay out Top G3 Pole (18), joint each section Connector to a straight line as shown. Assemble the remaining Top G3 Pole (18) in the same way. Spread the Netting (20) on the trampoline bed, insert a Top G3 Pole (18) into the opening of Top Sleeve on the Netting (20).
- Page 20 Netting (20) with the G3 Pole (18) to the Hemisphere Cap (19) of Top enclosure pole(17). Attach a second hanging point directly across the Netting (20) from the first hanging point. Attach the other two hanging point halfway between the first two hanging points, so four hanging points are attached as shown.
- Page 21 Netting Spring Repeat this procedure with the remaining straps. 15. Using the included plastic tie,attach the Safety Placard(10)to the Netting(20) near the door as shown. The trampoline/enclosure is now fully assembled. Make sure that all parts are securely attached. Familiarize yourself and all users of the trampo- line/enclosure with the safety precautions, use and instructional materials, and care and mainten- ance instructions in this manual before using.
- Page 22 It is possible for the trampoline/enclosure be blown about by high wind. If you anticipate high winds, the trampoline/enclosure should be moved to a sheltered location, disassembled, or tied down to the ground with ropes and stakes (not included). At least three ropes and three stakes should be used.
- Page 23 Top Tube(With T-connector, A marking) Top Tube(With Socket, B marking) Top Tube(With T-connector, C marking) T-Connector Leg Extension Center Socket Stitched Bed with V-ring Frame Pad 5.5” Springs User’s Manual and safety Placard (2 pcs) Self-tapping screw Locknut U-bolt Bracket To order replacement parts, please visit our website at www.jumppod.com or call 1-877-927-8777.
