Summary of Contents for Jensen Audio JTA-460

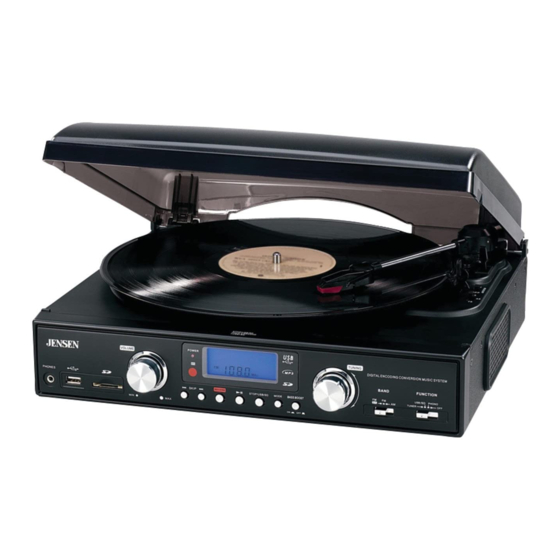

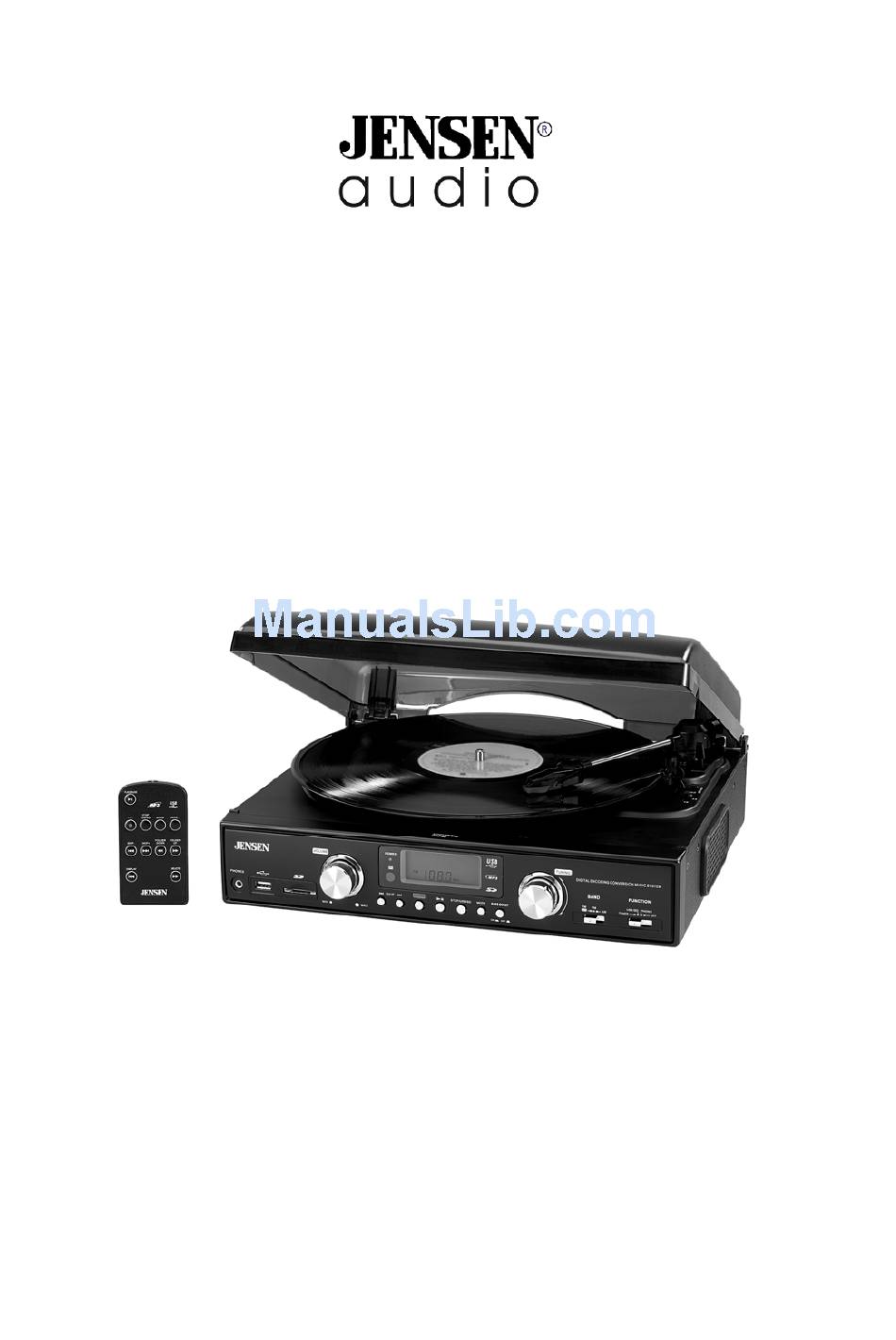

- Page 1 MODEL JTA-460 3-SPEED STEREO TURNTABLE WITH MP3 ENCODING AND AM/FM STEREO RADIO USER MANUAL PLEASE READ THIS OPERATING MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN IT FOR FUTURE REFERENCE.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET REFER SERVICING TO QUALIFIED PERSONNEL ONLY. CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE UNIT, KEEP THESE... - Page 3 7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding – type plug. A polarized plug has two blades with one wider than the other.
-
Page 4: Fcc Notice
FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 5: Location Of Controls
LOCATION OF CONTROLS MAIN UNIT 1. Turntable 16. Play / Pause Button 2. 45 RPM Adaptor 17. Record Button 3. Cue-lever (use this lever to lift the tone arm). 18. Skip + Button 4. Tone Arm 19. Skip - Button 5. -
Page 6: Important Notes
REMOTE CONTROL UNIT 1. PLAY/PAUSE BUTTON 2. RECORD BUTTON 3. STOP/USB/SD BUTTON 4. SKIP- BUTTON 5. SKIP+ BUTTON 6. DISPLAY BUTTON 7. PROG BUTTON 8. MODE BUTTON 9. FOLDER UP BUTTON 10. FOLDER DOWN BUTTON 11. DELETE BUTTON IMPORTANT NOTES Avoid installing the unit in locations described below: ... - Page 7 BATTERY CARE If the unit is not to be used for an extended period of time, remove the battery. An old or leaking battery can cause damage to the Remote Control. ii. Do not dispose of batteries in fire, batteries may explode or leak. BATTERY REPLACEMENT When the battery becomes weak, the operating distance of the Remote Control is greatly reduced and you will need to replace the...
- Page 8 TIPS FOR BEST RECEPTION AM – The AM antenna is located inside the cabinet of the main unit. If AM reception is weak, change the position of cabinet until the internal antenna picks up the strongest AM signal. FM – During FM reception, always keep the FM Wire Antenna fully extended. If FM reception is weak try repositioning the FM Wire Antenna until you find the strongest FM signal.
- Page 9 Drive or SD/MMC Memory Card via the USB port (22) or SD/MMC slot (20) located on the front panel. The following tasks can be accomplished by either using the controls on the REMOTE Control or those which have similar function markings on the JTA-460 main unit. This icon indicates that a task can only be performed using the controls on JTA-460.
-
Page 10: Usb / Card Operation
USB / CARD OPERATION The following tasks can be accomplished by either using the controls on the REMOTE Control or those which have similar function markings on the JTA-460 main unit. This icon indicates that a task can only be performed using the controls on JTA-460. - Page 11 The track will be repeated and stop until the STOP Button (3) is pressed. To repeat a Folder, press the MODE button (8) twice. "FOLDER" will light up. The selected Folder will be repeated and stop until the STOP Button (3) is pressed.
- Page 12 Control or those which have similar function markings on the JTA-460 main unit. This icon indicates that a task can only be performed using the controls on JTA-460. 1. Insert your USB flash drive into the USB PORT (22) and the SD/MMC Memory Card into the SD/MMC Slot (20).
- Page 13 4. Repeat 1-3 above to delete more tracks as desired. LINE OUT OPERATION (OPTIONAL) For better playback sound, you can connect the JTA-460 to an external Audio Amplifier via the RCA LINE OUT JACKS located at the back panel. Please proceed as following: Connect the “L”...
-
Page 14: Using Headphones (Not Included)
Sound will then come out from the system’s built-in speakers and the external Amplifier’s speakers simultaneously. Set the VOLUME CONTROL (23) to “MIN” and adjust the sound level using the VOLUME CONTROL on the external Amplifier as desired. Turn the System and the external Amplifier off when you have finished listening. Unplug the connection cable. -
Page 15: Care And Maintenance
CARE AND MAINTENANCE Clean your unit with a damp (never wet) cloth. Solvent or detergent should never be used. Avoid leaving your unit in direct sunlight or in hot, humid or dusty places. Keep your unit away from heating appliances and sources of electrical noise such as fluorescent lamps or motors. - Page 16 90 DAY LIMITED WARRANTY AND SERVICE VALID IN THE U.S.A ONLY SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective materials or factory workmanship for a period of 90 days from the date of original customer purchase and provided the product is utilized within the U.S.A.
