BMW Z3(E36/7) Electrical Troubleshooting Manual page 93

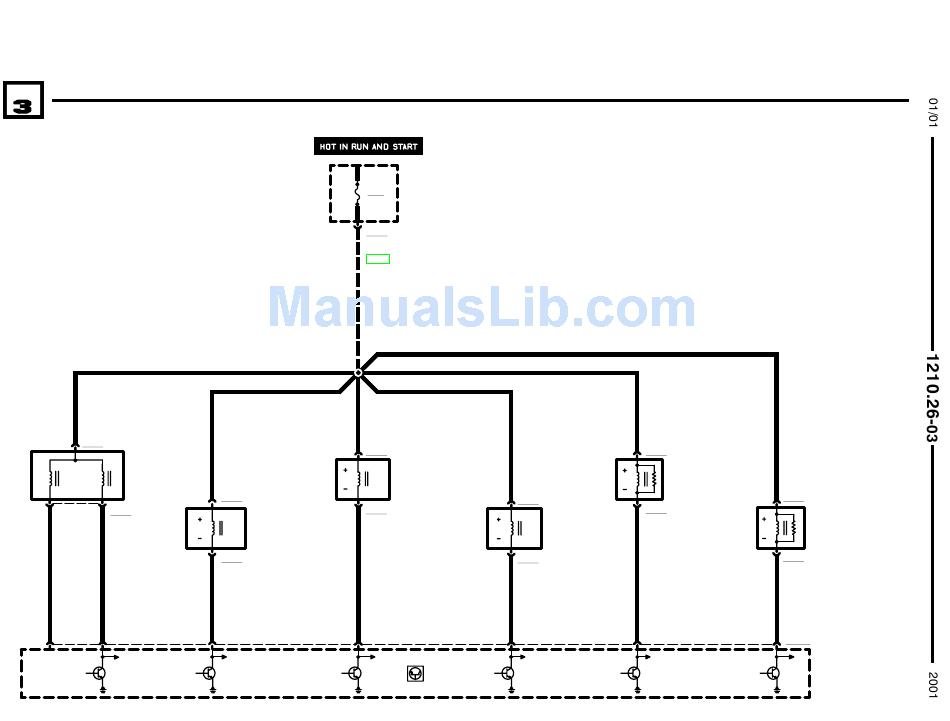

ENGINE CONTROL SYSTEM MS43 (6–CYLINDER M54)
BMW BMW BMW BM
Z3
1 RT/WS/GE .5 RT/WS/GE
2 X6130
Y6130
IDLE SPEED
CONTROL VALVE
3 1 X6130
.5 WS/GE .5 WS/GN .5 GN/BL
47 46
31
F202
30A
4 X8680
FUSE DETAILS
0670.3
.5 RT/WS
1 X6276
1 X6275
2 X6276
Y6275z
VARIABLE CAM-
SHAFT CONTROL
VALVE 1 (INLET)
2 X6275
.5 GN/VI
40
41
31 31
P98
FUSE HOLDER IN
E–BOX
.5 RT/WS/GE
Y6276
VARIABLE CAM-
SHAFT CONTROL
VALVE 2 (OUTLET)
1 X6120
Y6120
EVAPORATIVE
EMISSION VALVE
2 X6120
.5 BR
42
31
Z3 VERSIONS
.5 RT/WS/GE .5 RT/WS/GE
2 X6163
Y6163
SECONDARY AIR
PUMP VALVE
1 X6163
1
.5 BR/WS .5 BR/BL
52 49
31 31
2 X6167
Y6167
VALVE, INDIVIDUAL
CONTROL INTAKE
SYSTEM
X6167
X60003
A6000
ENGINE CONTROL
MODULE (DME)
